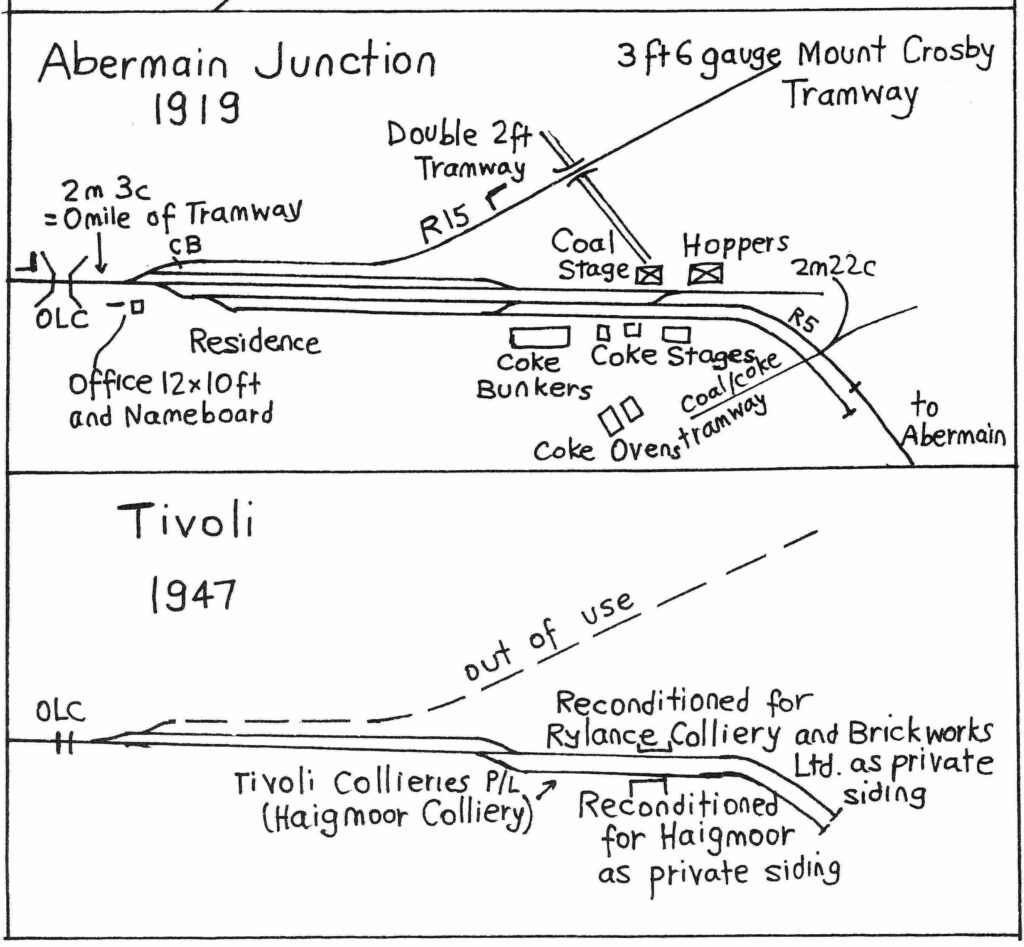

LINE DRAWINGS OF TIVOLI YARD; 1919 & 1947
"The Tivoli Coal Railway"
by John D.Kerr
ARHS Bulletin, May 1984

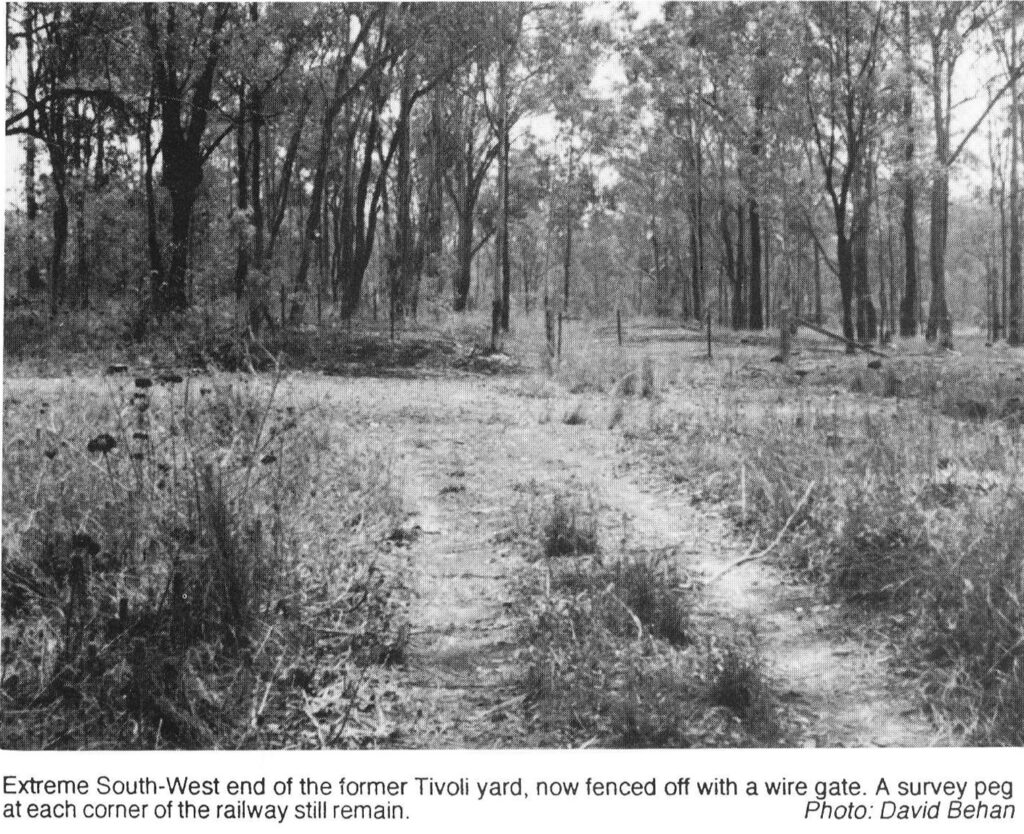

TIVOLI YARD SOUTH-WEST END c1995
"Tivoli Branch Line Re-Visited - 1995"
by E.D.Behan
Sunshine Express June 1996

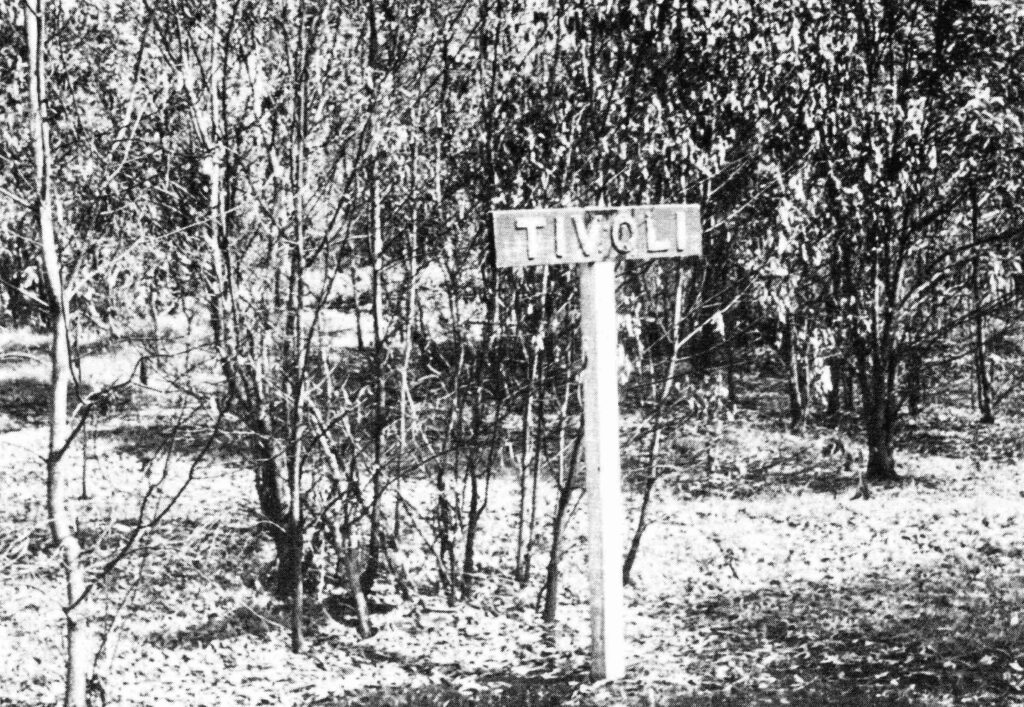

REMAINING TIVOLI YARD SIGN 1960s
At this stage branch had been shortened to New Tivoli Yard on other side of highway.
J. D. Kerr) p102
"The Tivoli Coal Railway"
by John D.Kerr
ARHS Bulletin, May 1984

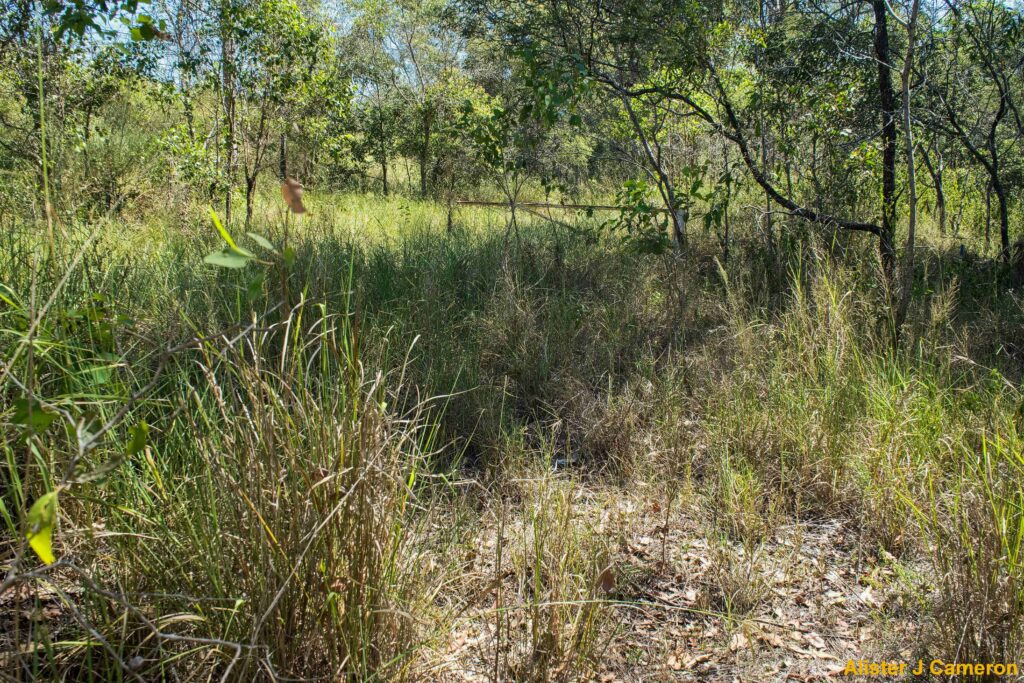

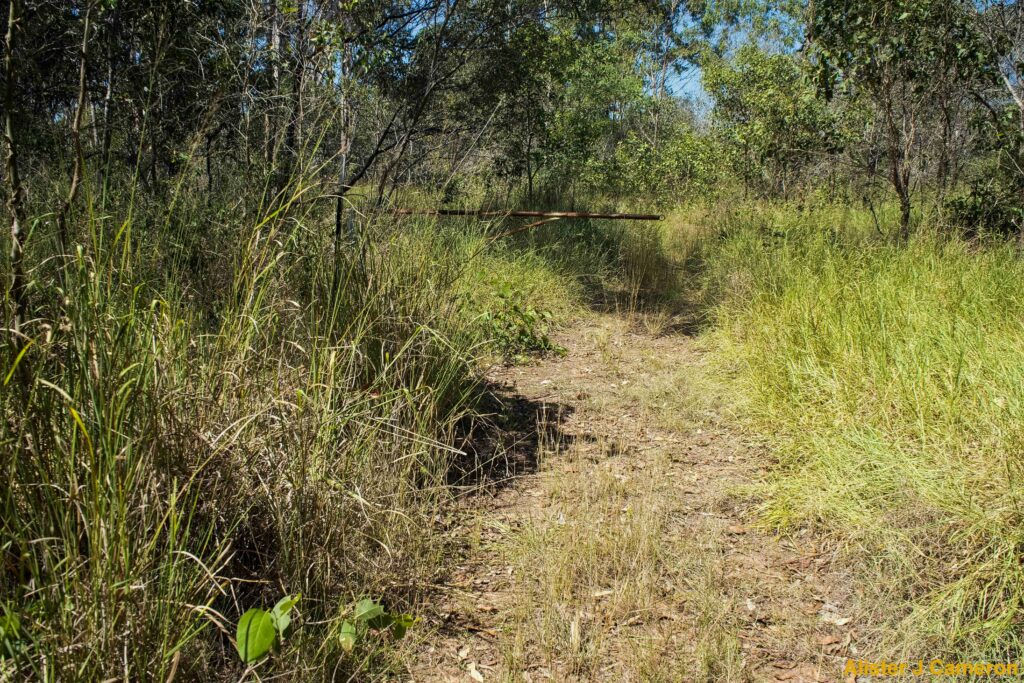

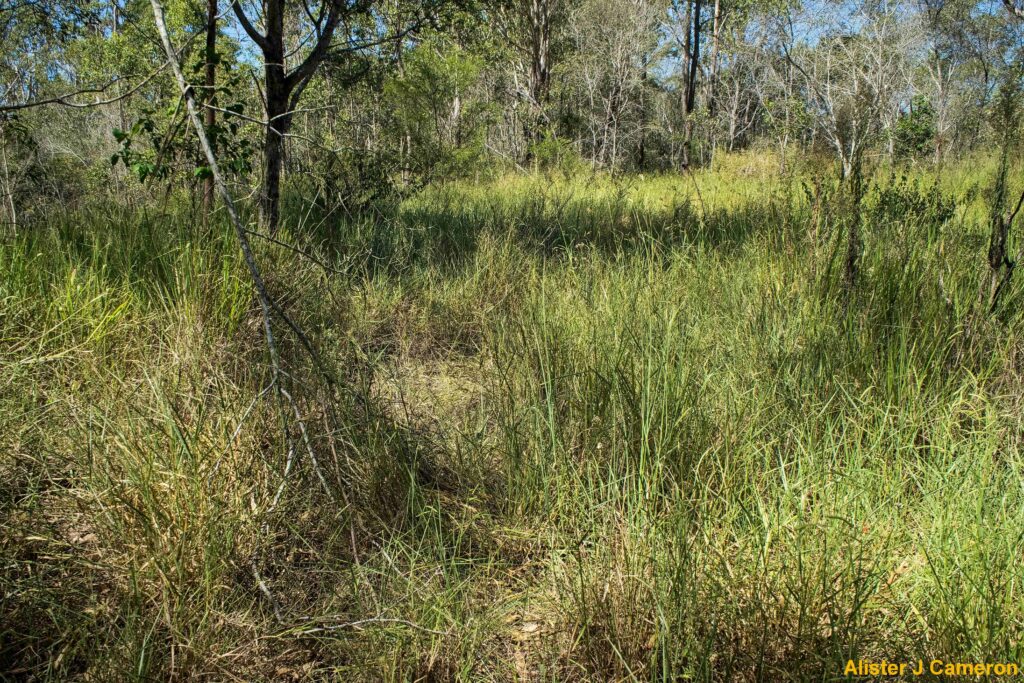

LOOKING NORTH-EAST ALONG ALLIGNMENT TOWARDS METAL MINE GATE 2023
On far side of gate there was a cattle grid, open level crossing and commencement of yard site.
Photo: Alister J Cameron
LOOKING BACK SOUTH-WEST 2023
The modern former mine gate can be seen. The area is front would have been an Open Level Crossing, and in front of that, the beginning of yard.
Photo: Alister J Cameron
LOOKING BACK AGAIN NORTH-EAST ALONG FORMER YARD ALLIGNMENT ACROSS CLEARED POWERLINE AREA 2023
Photo: Alister J Cameron

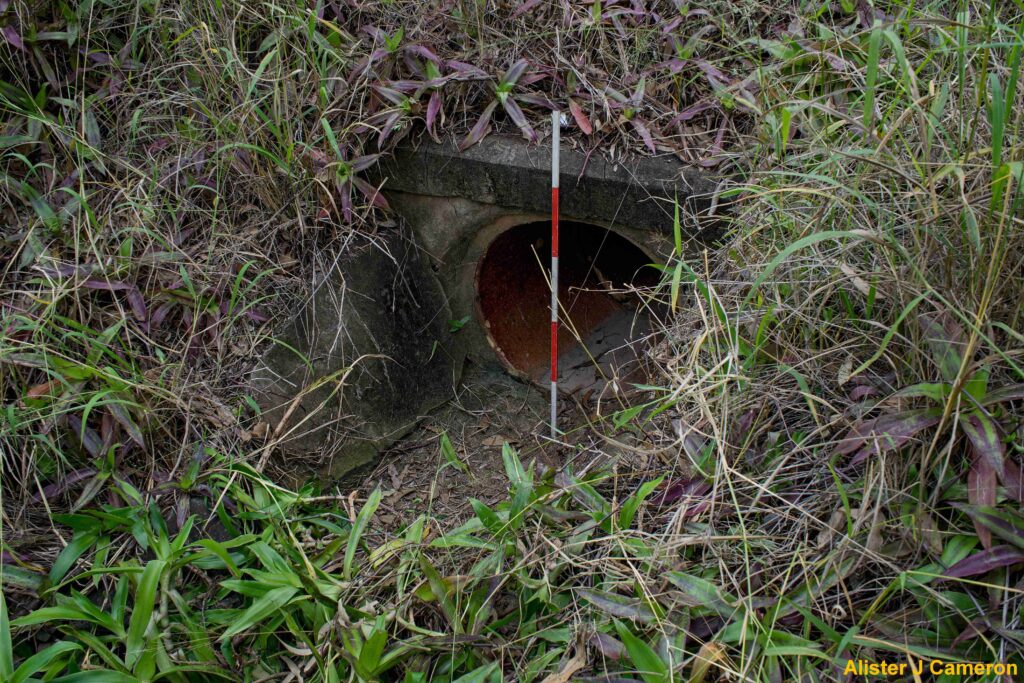

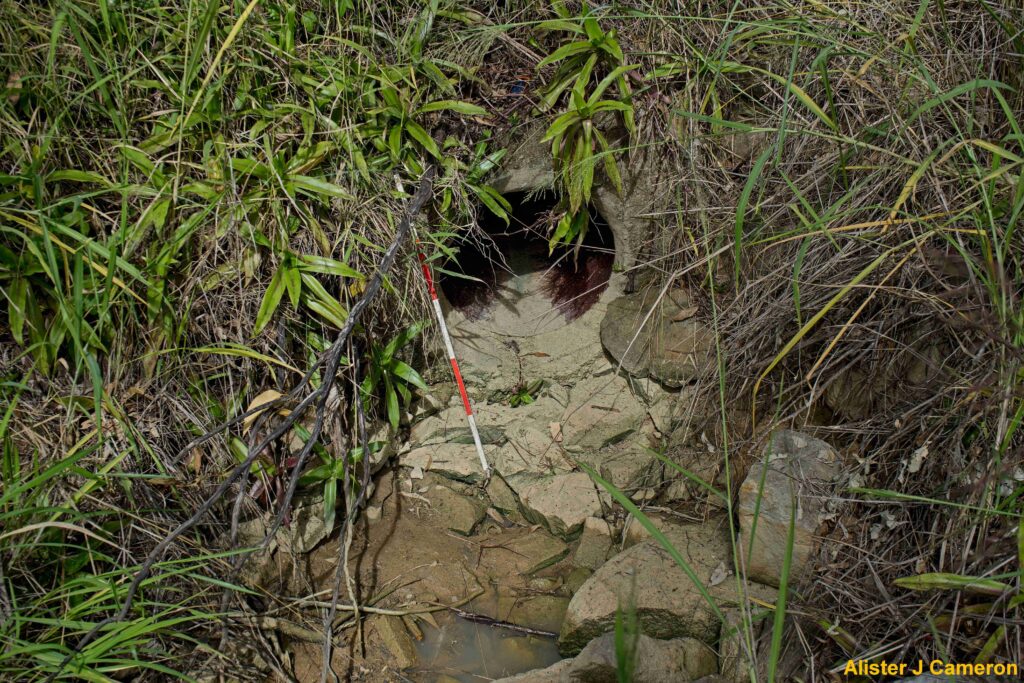

SOUTHERN PORTAL OF CULVERT POSITIONED AT BEGINNING OF TIVOLI YARD SITE 2019
Classic concrete design.
Photo: Alister J Cameron
CULVERT VIEWED FROM FURTHER BACK 2019
The railway embankment is quite pronounced at this point.
Photo: Alister J Cameron

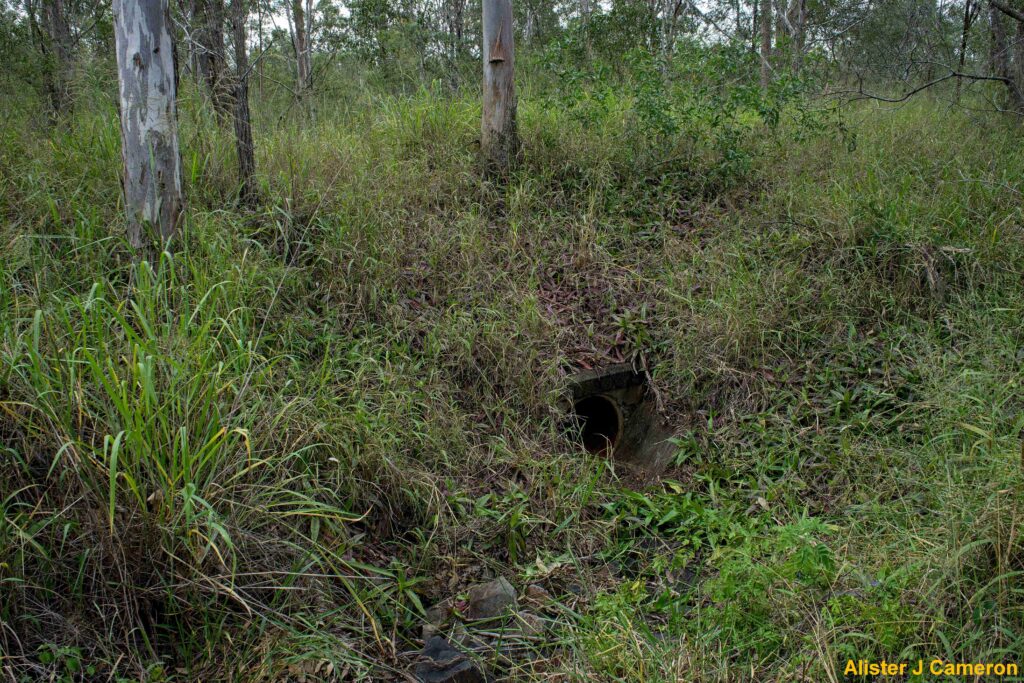

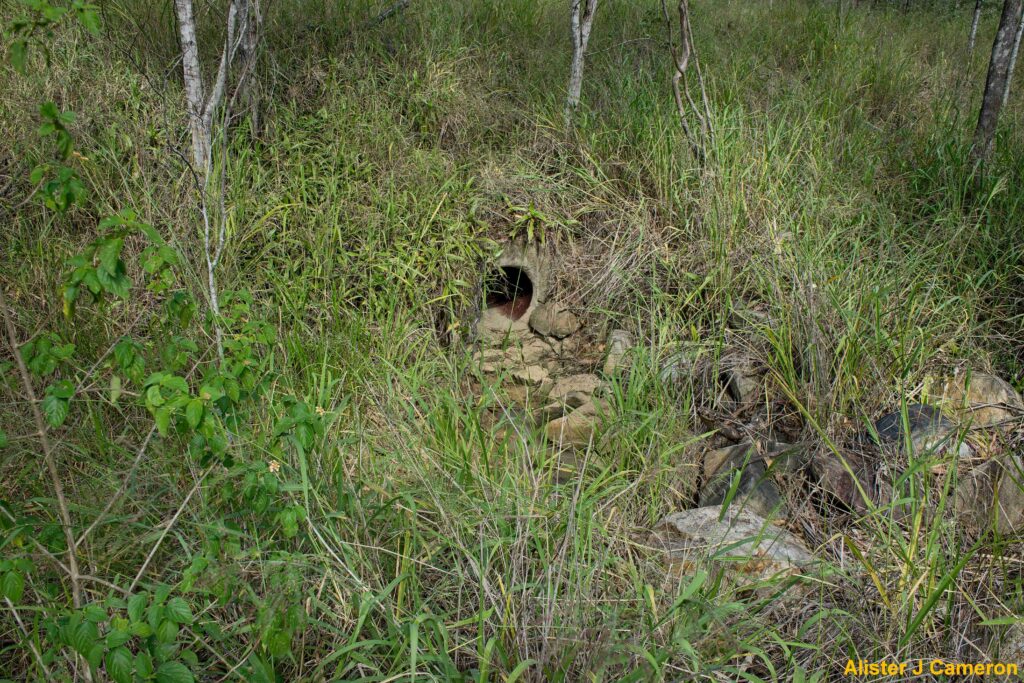

CULVERT PORTAL ON FAR SIDE OF EMBANKMENT 2019
Little is left of the surrounds.
Photo: Alister J Cameron
SAME PORTAL VIEWED FROM FURTHER BACK 2019
Photo: Alister J Cameron

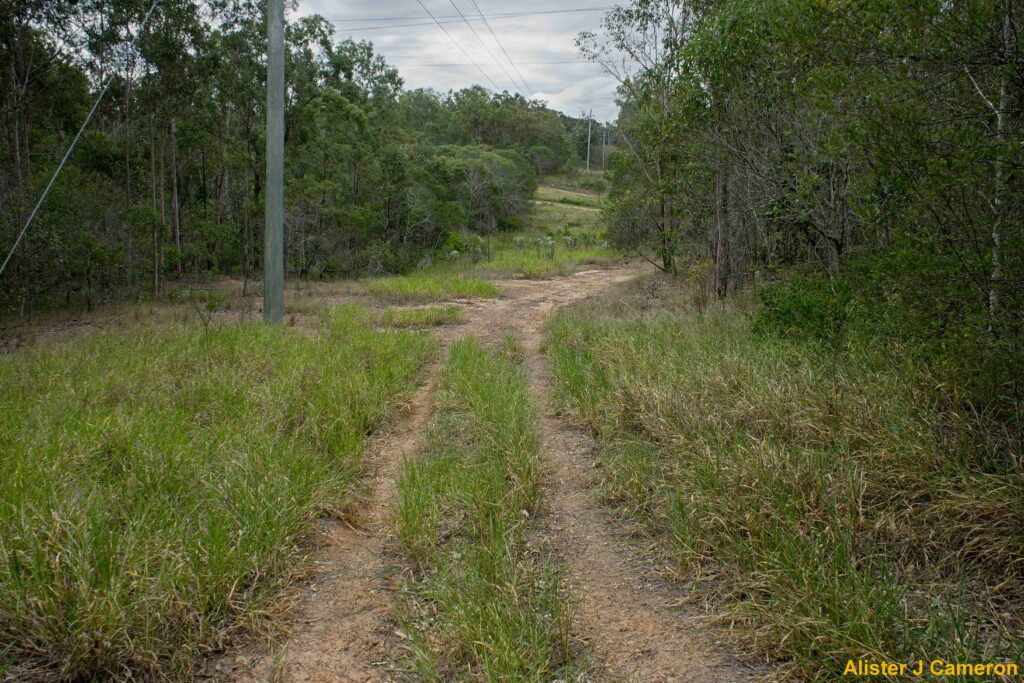

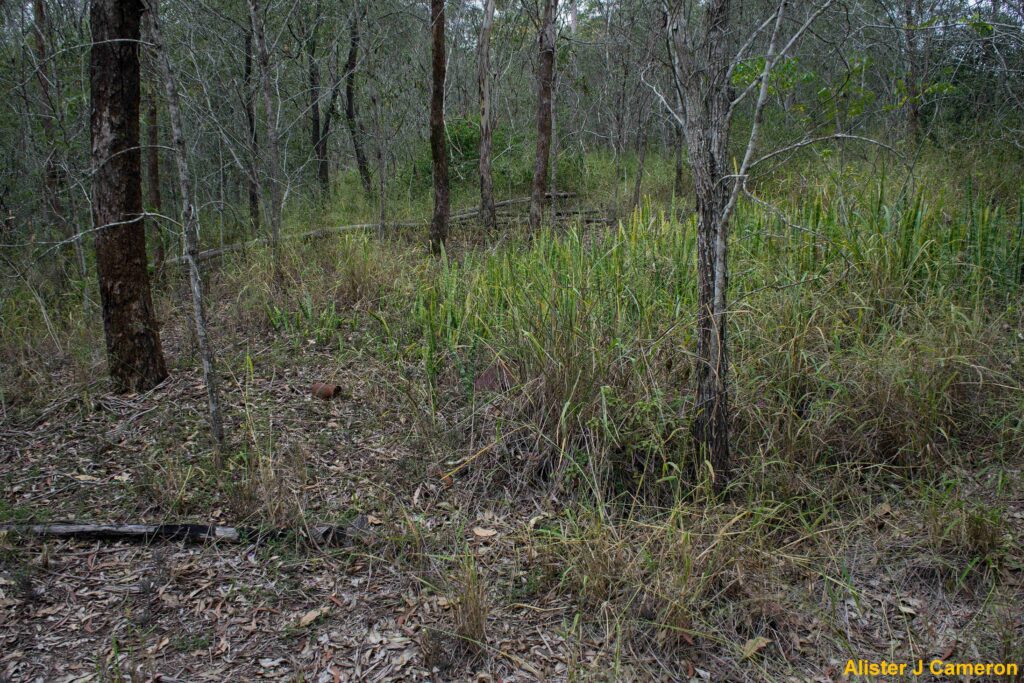

PLACE WHERE THE TWO SIDINGS OF TIVOLI YARD PASSED ACROSS WHAT IS NOW A TRACK 2019
Looking north
Photo: Alister J Cameron
FURTHER NORTH-EAST ALONG YARD ALLIGNMENT 2018
Photo: Alister J Cameron

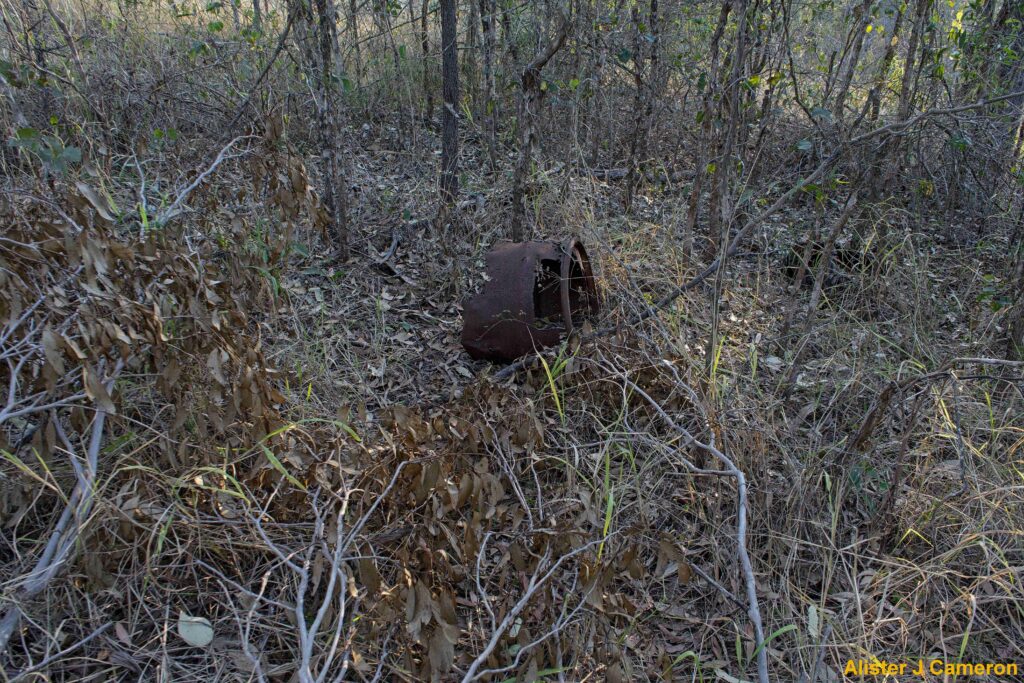

REMNANTS OF A FORTY-FOUR GALLON DRUM 2018
These and smaller varieties can often be found at mine sites around Ipswich.
Photo: Alister J Cameron
FURTHER ALONG ALLIGNMENT 2018
Ahead a gully crosses which is probably the site of a former culvert.
Photo: Alister J Cameron

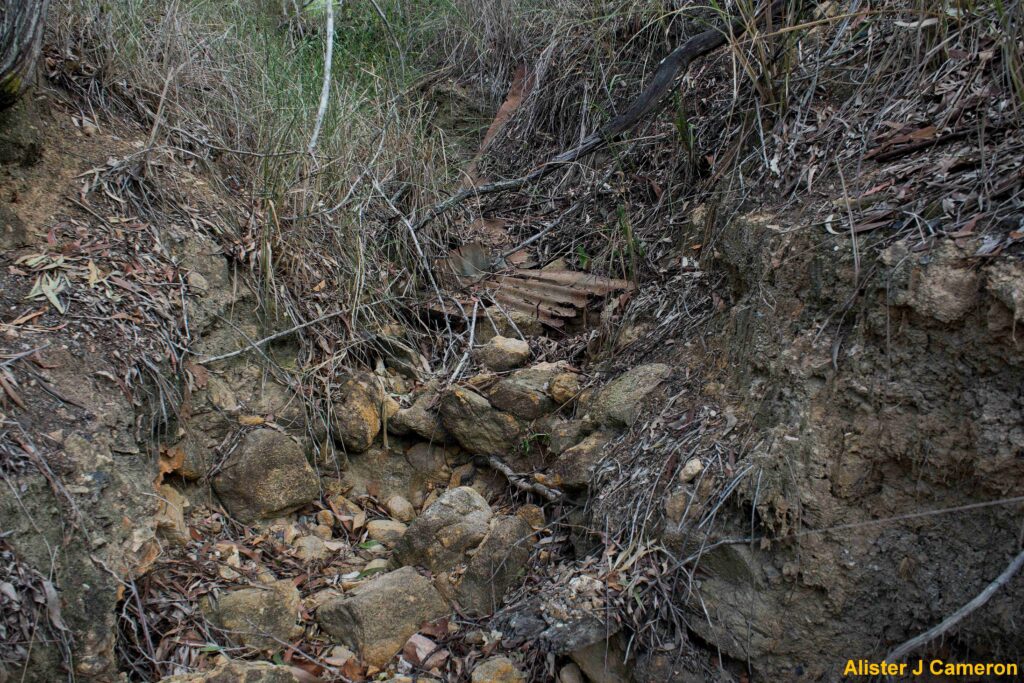

CLOSEUP OF GULLY WITH CORREGATED IRON REMNANTS 2019
Photo: Alister J Cameron
IRON CULVERT PIPE LYING ASKEW NEAR GULLY 2019
End can just be seen poking out of the ground in the foreground.
Yard embankment can be seen at top of picture.
Photo: Alister J Cameron

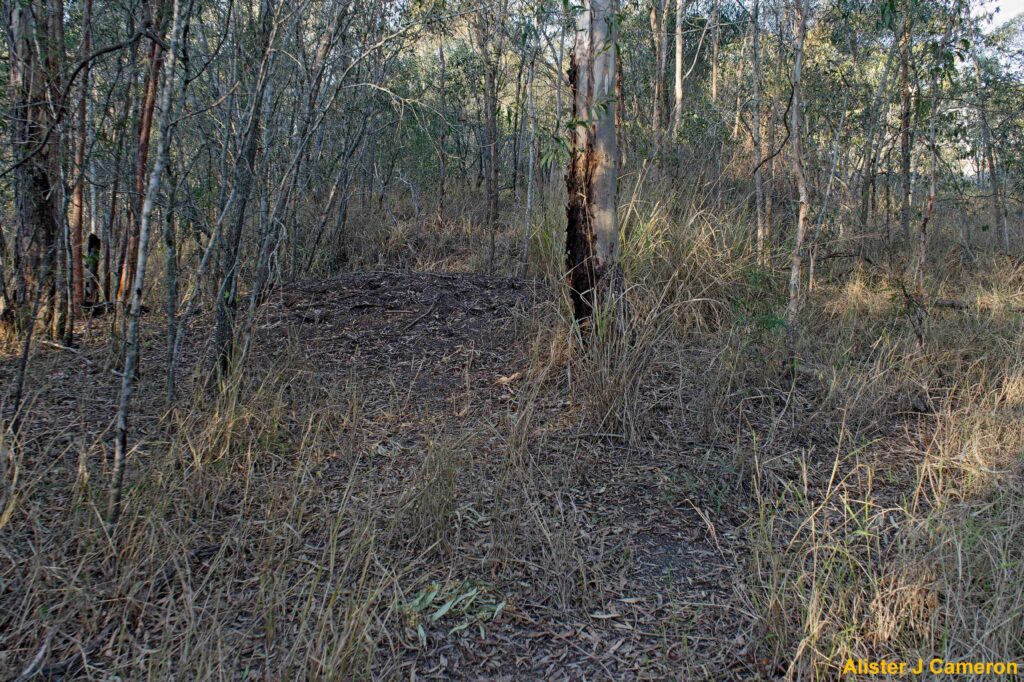

BACK ON EMBANKMENT LOOKING NORTHEAST TOWARDS MAJOR CUTTING (OUT OF SIGHT) 2018
Photo: Alister J Cameron

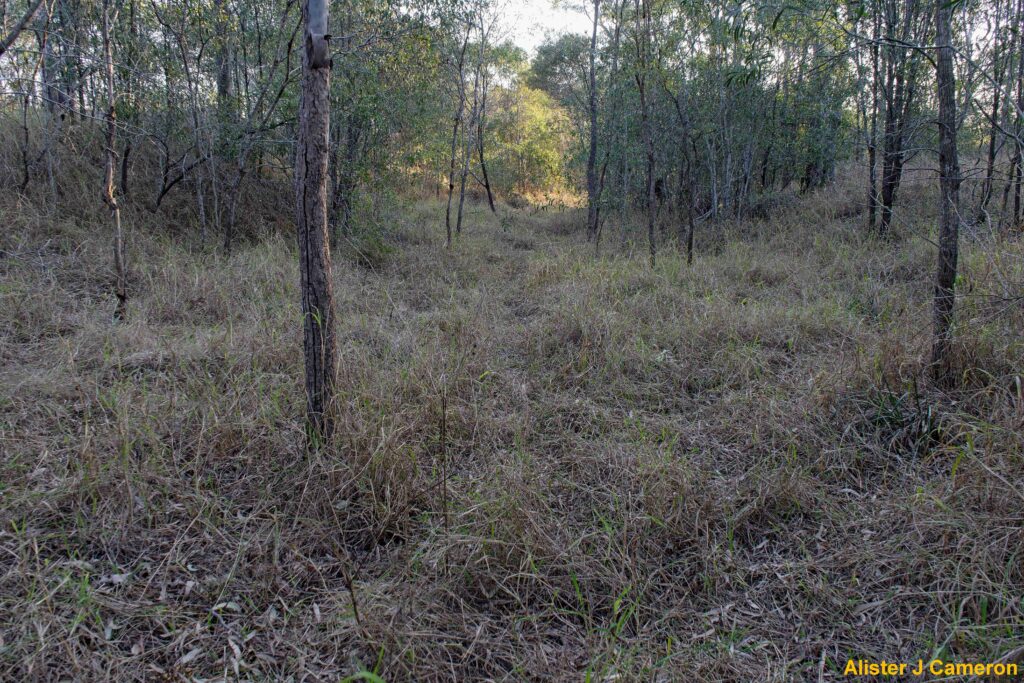

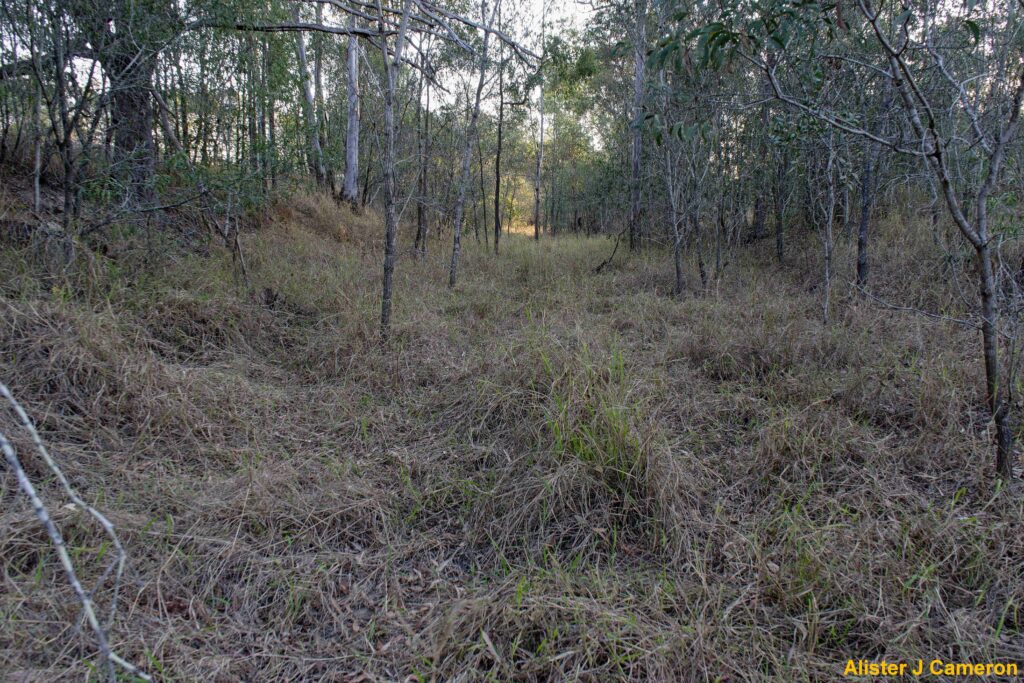

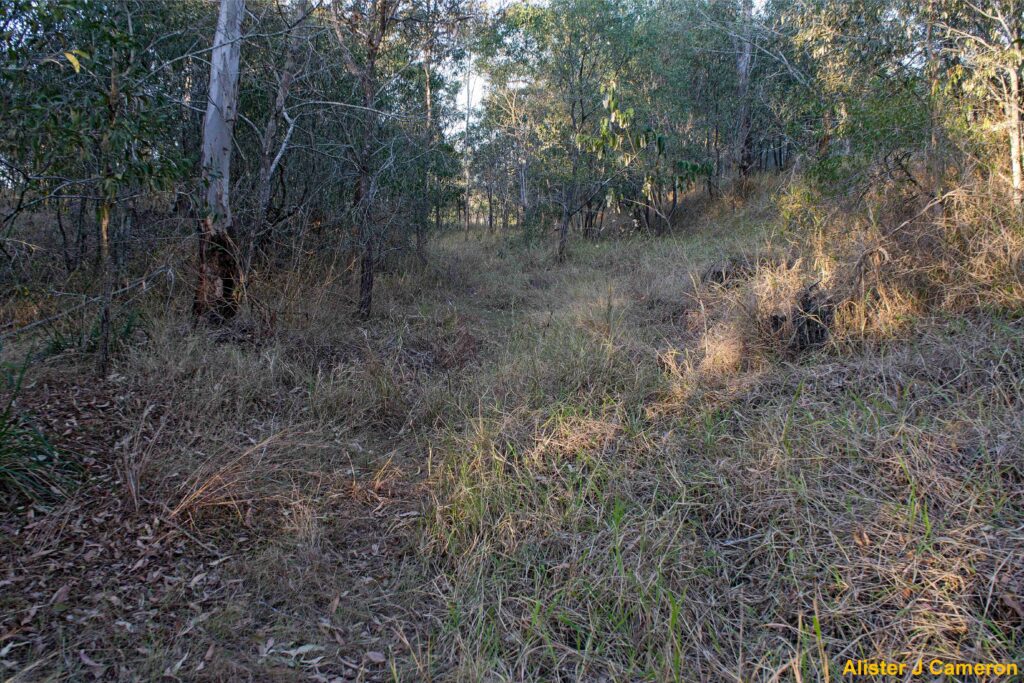

BEGINNING OF DEEP CUTTING LOOKING NORTH-EAST 2018
Photo: Alister J Cameron

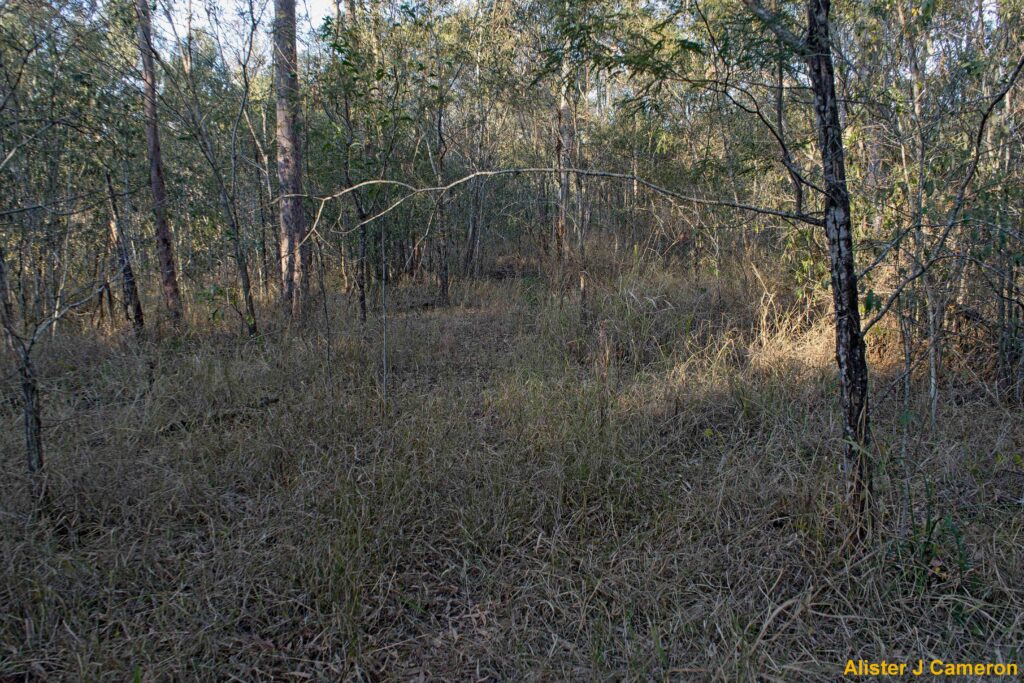

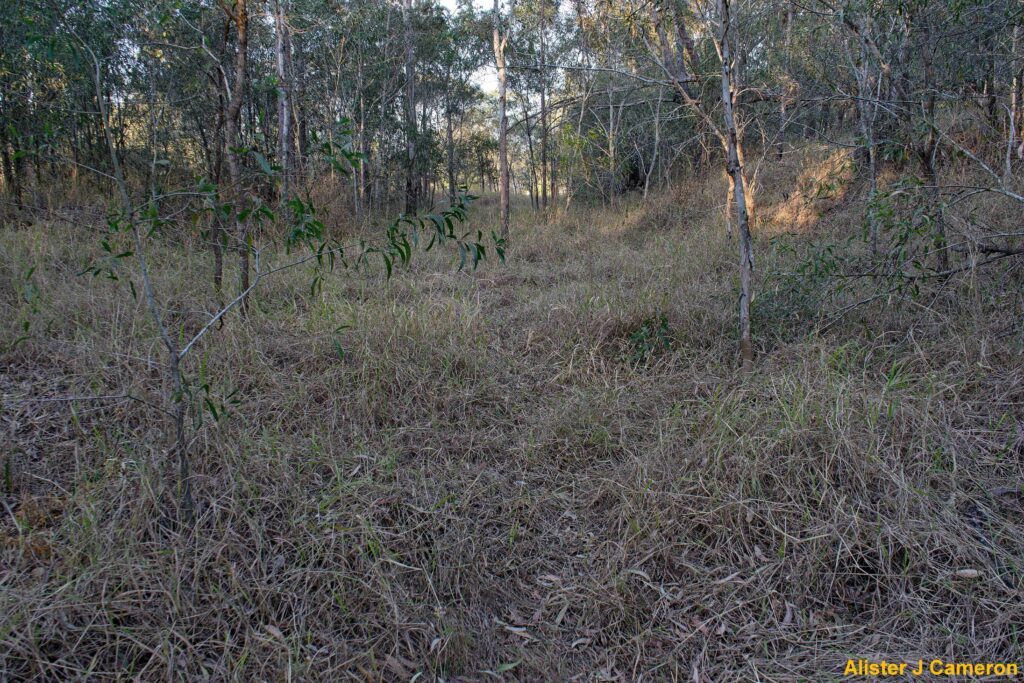

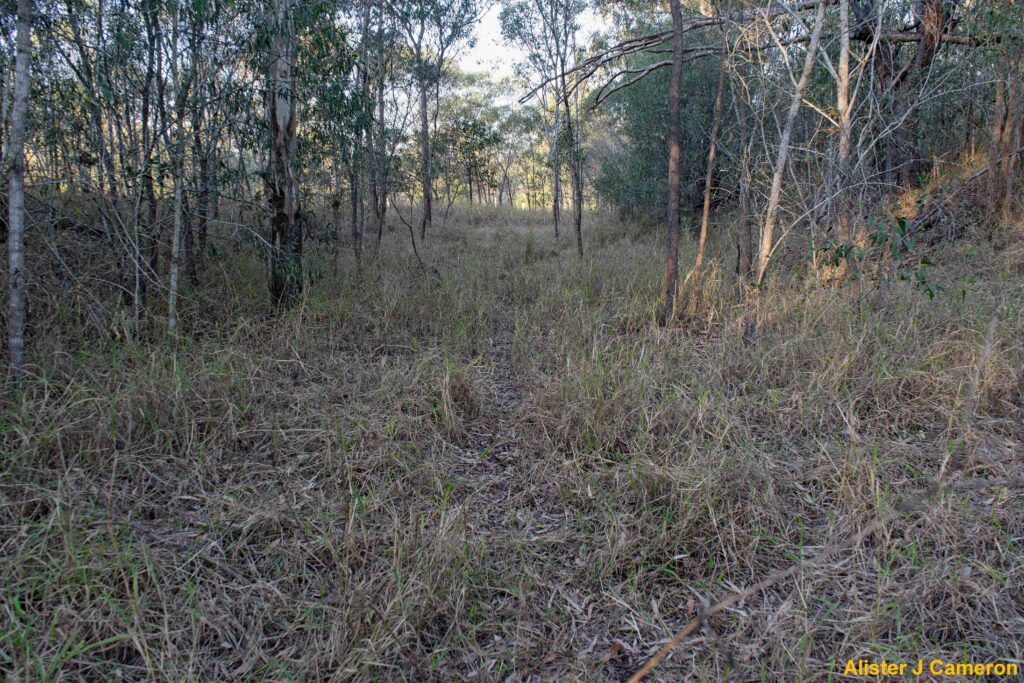

FURTHER NORTH-EAST ALONG CUTTING 2018
Photo: Alister J Cameron
FURTHER SOUTH-EAST LOOKING TOWARDS OPEN ROAD AREA 2018
Photo: Alister J Cameron

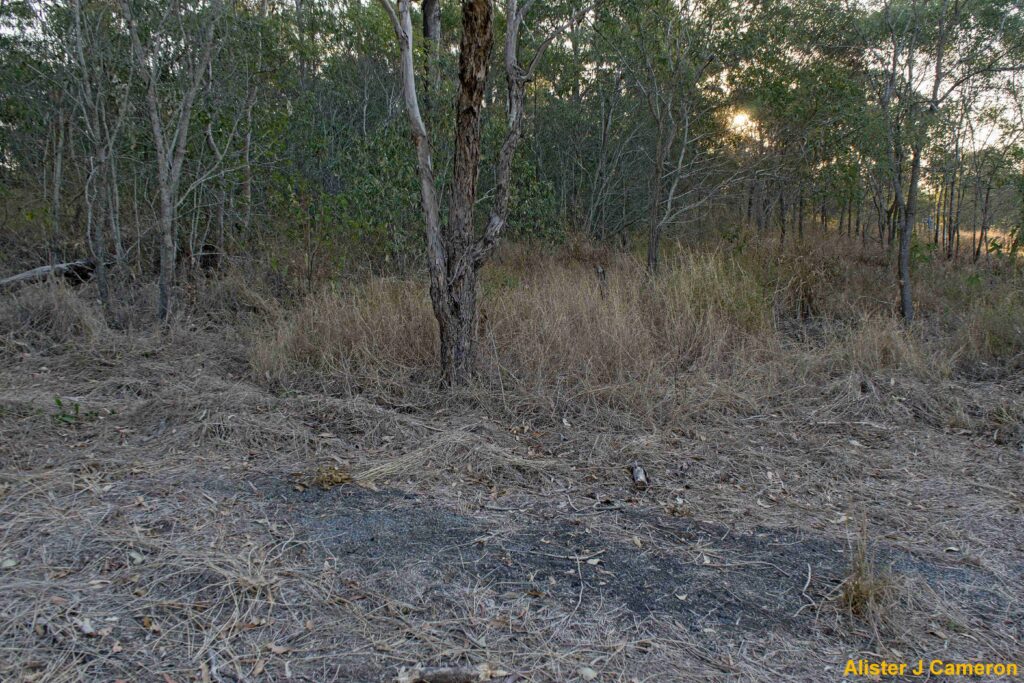

OVERGROWN AREA WHERE SIDINGS ORIGINALLY ENDED 2018
Remnants of coal can be seen everywhere.
Photo: Alister J Cameron

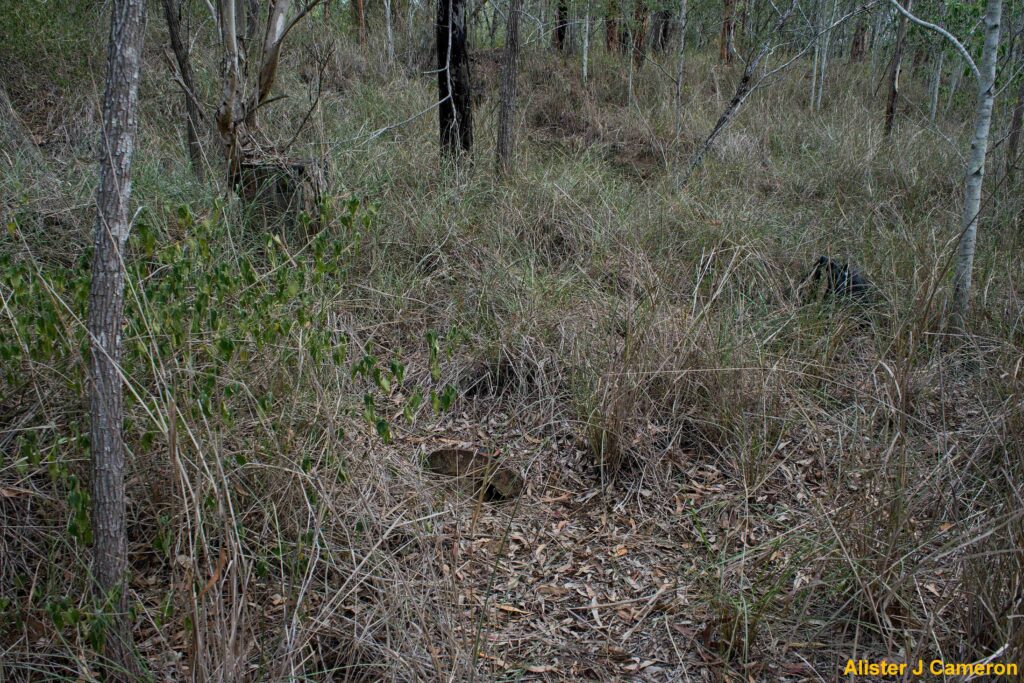

LOOKING BACK SOUTH-WEST ALONG THE CUTTING.
In the foreground the 1950s reconstruction of sidings to curve to the left can be seen.
Photo: Alister J Cameron

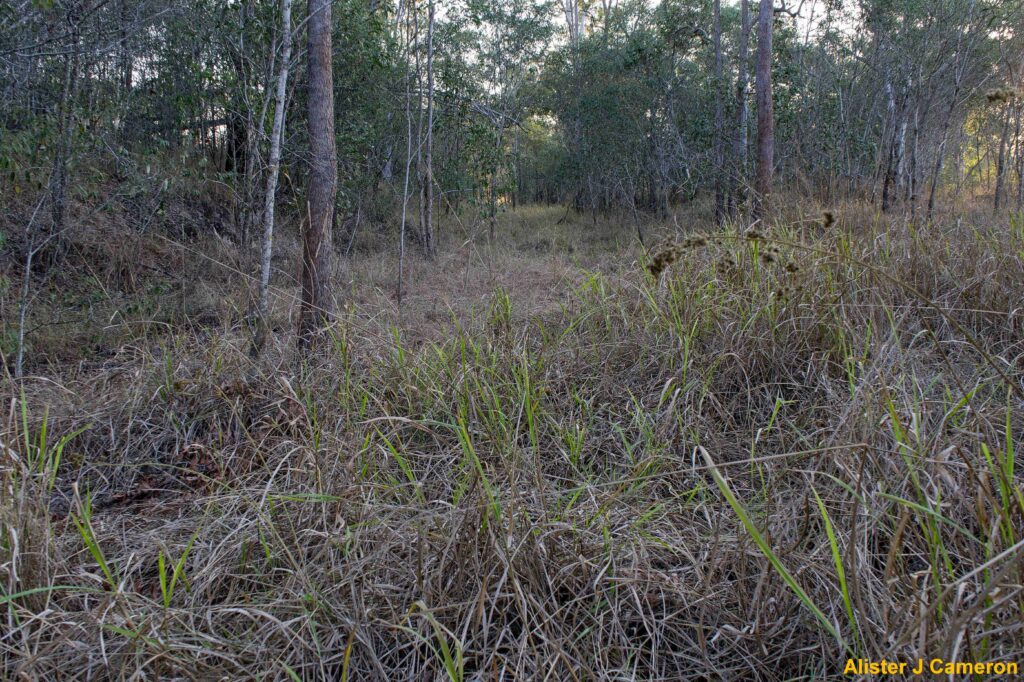

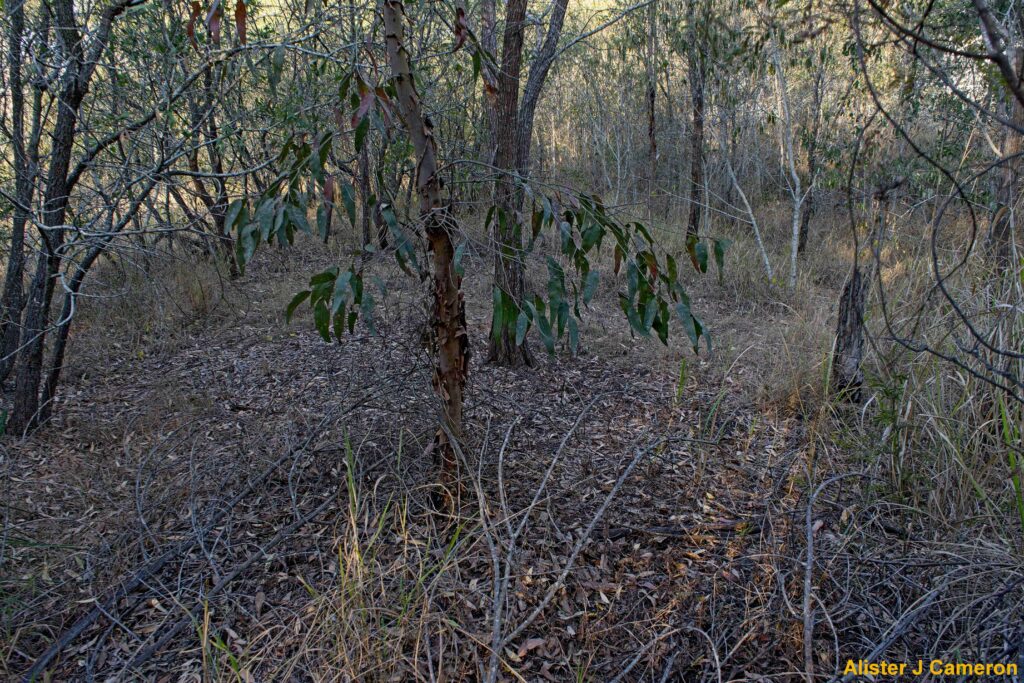

FURTHER BACK SOUTH-WEST ALONG CUTTING 2018
Coke ovens are out of sight to the left.
Photo: Alister J Cameron
FURTHER BACK AGAIN ALONG THE CUTTING 2018
The light green shrub at the end marks the point where cutting ceases.
Photo: Alister J Cameron

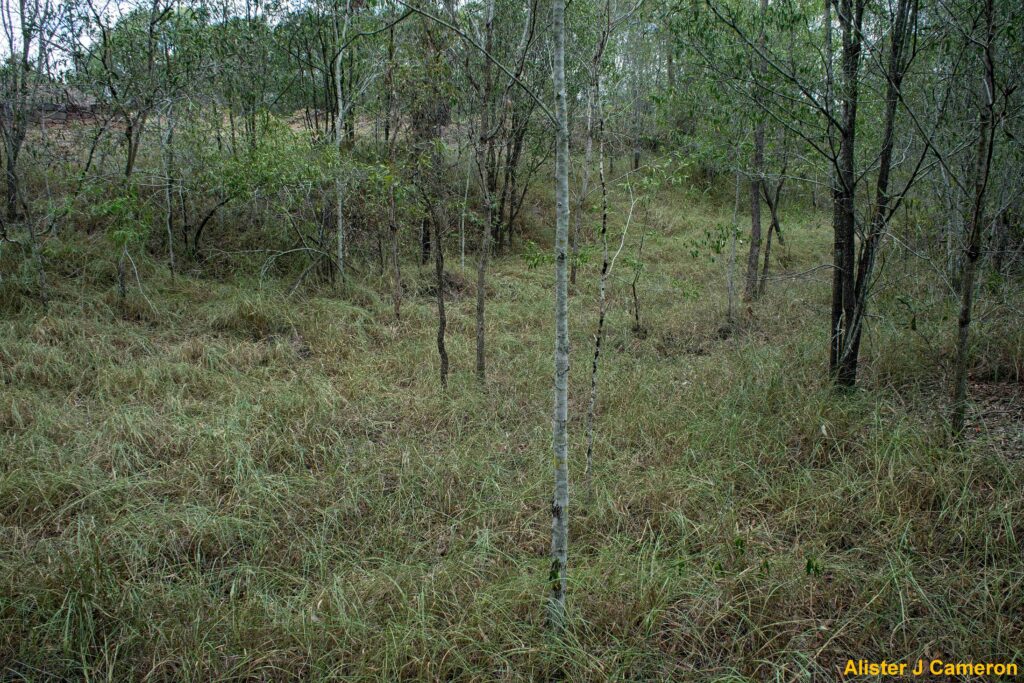

LOOKING ACROSS CUTTING TOWARDS THE COKE OVEN AREA 2019
Photo: Alister J Cameron
LOOKING ACROSS CUTTING TOWARDS THE COKE OVEN AREA 2019
Photo: Alister J Cameron

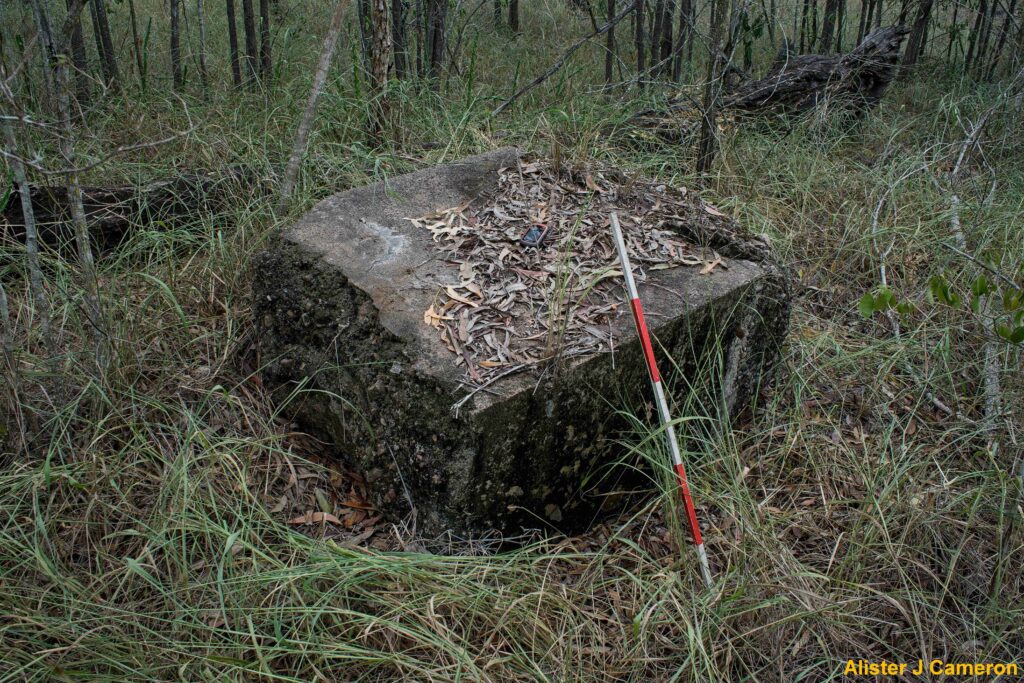

CLOSEUP OF BLOCK 2019
Photo: Alister J Cameron
Tivoli Ovens

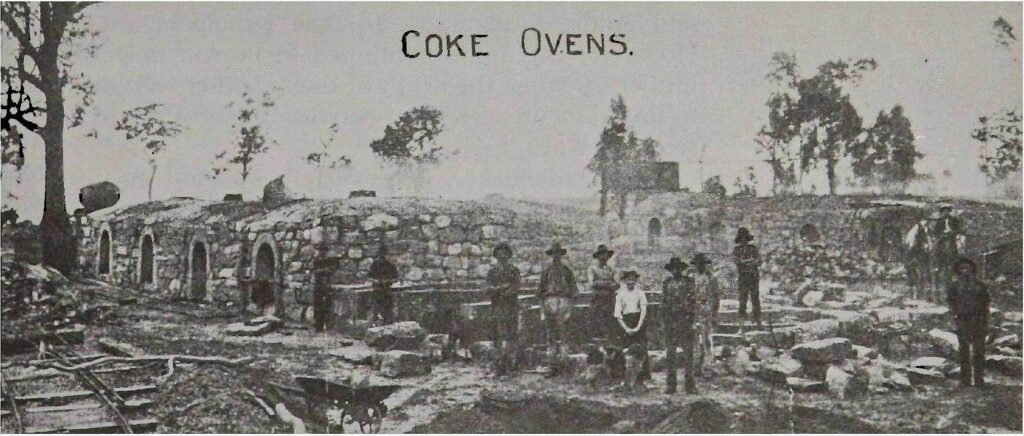

WORKMEN EXTENDING TIVOLI COKE OVENS c1910
Jubilee History of Ipswich, 1910, p.
118.)

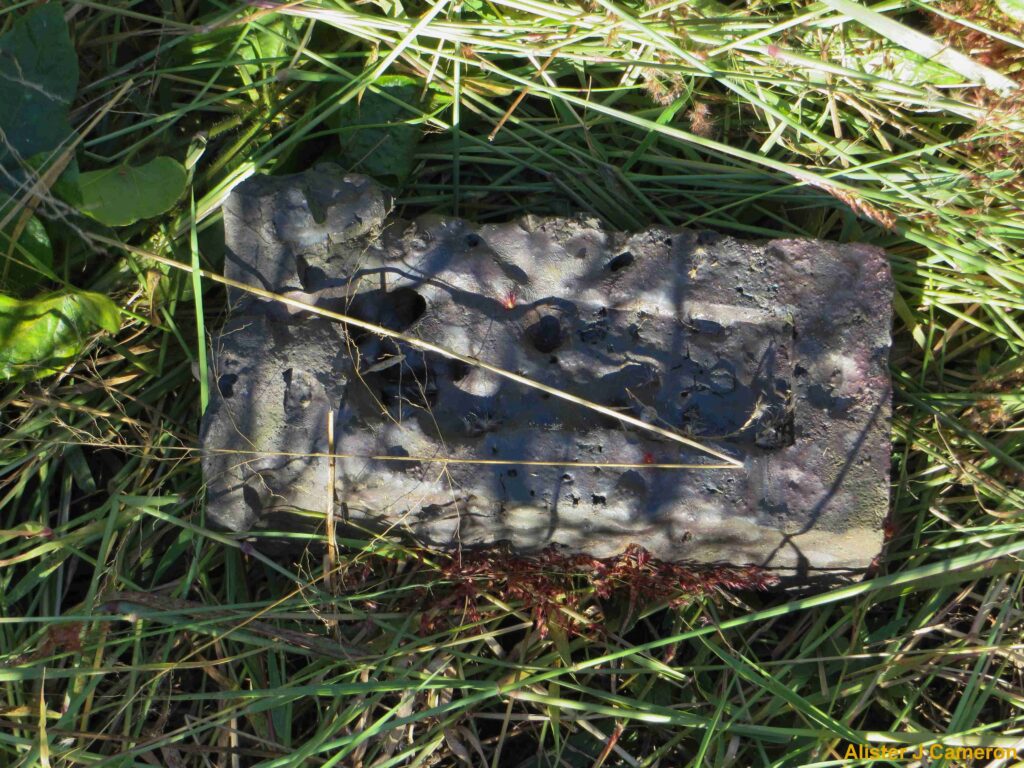

ONE OF THE BRICKS FROM THE OVENS 2015
Because of use over a number of years it is molten all over.
Photo: Alister J Cameron

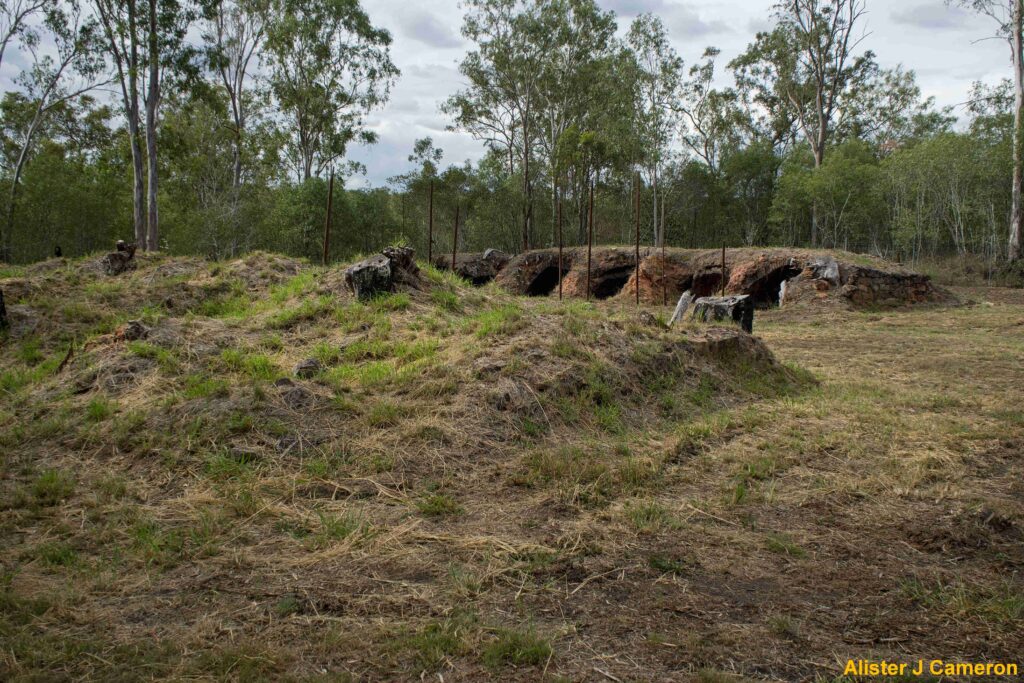

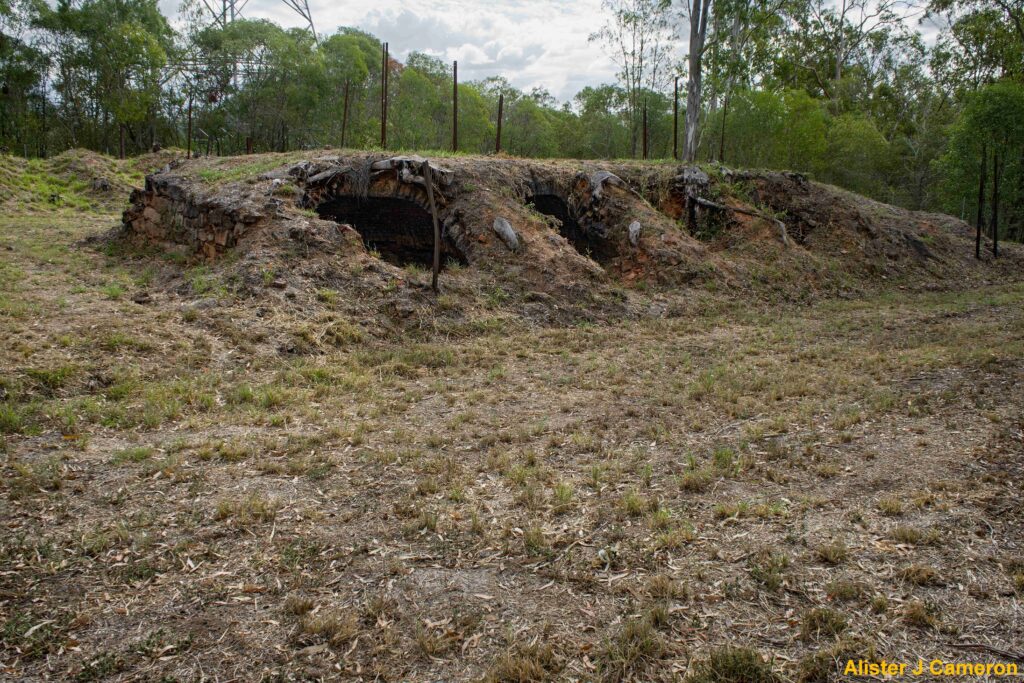

COKE OVENS AREA LOOKING DUE NORTH 2019
Barrow in foreground is still buried. Far barrow has been excavated. Stone facing has previously been removed apart from the end.
Photo: Alister J Cameron
OTHER SIDE OF EXCAVATED BARROW 2019
Only a few of the reused rail uprights remain.
Photo: Alister J Cameron
