31E1C Old Tivoli Pit Tramway Area

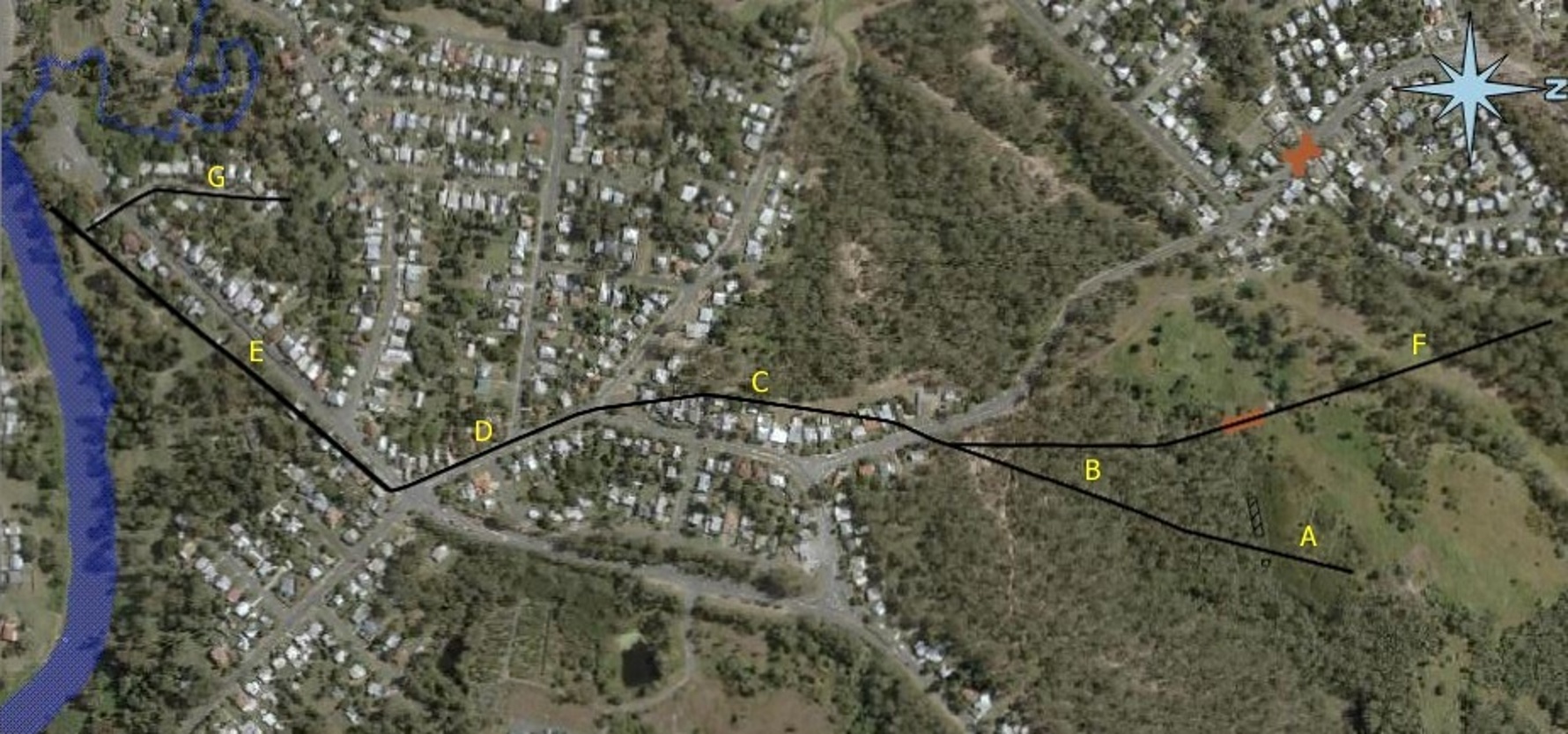

OLD TIVOLI PIT TRAMWAY FROM ABOVE A: Coke Ovens Area B: Former double tramway uphill to Francis St C: Fairly level allignment behind current houses D: Allignment along Mt Crosby Rd E: Former double tramway downhill to wharf F: Approximate site of Ware's Tramway G: Site of Gulland's Tivoli Mine Tramway (now Scour St) QGIS Vectors from late 1800s (Alister J Cameron) Underlay: Qld Globe (Ausmap)

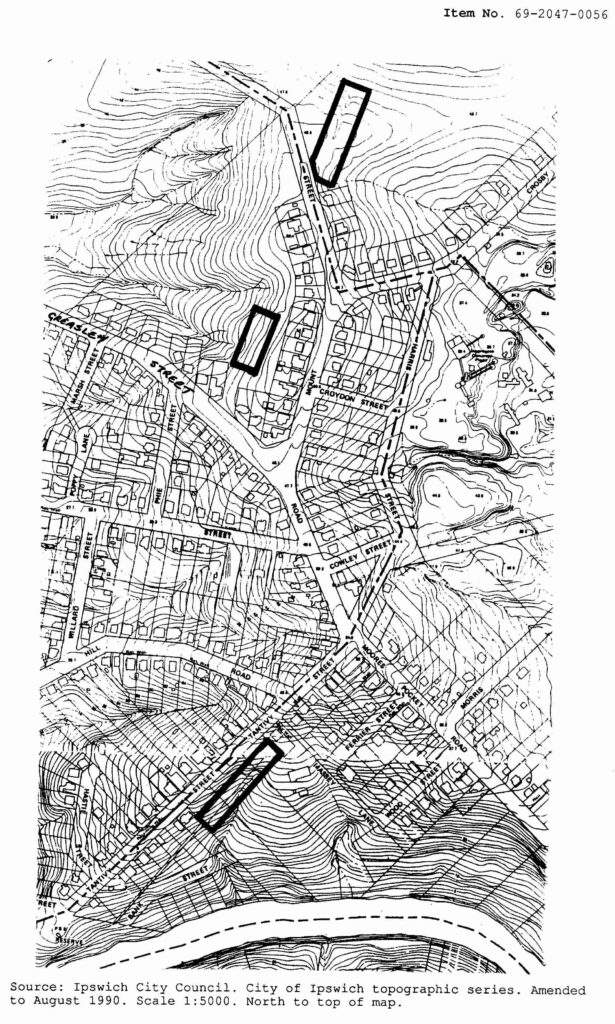

KEY HERITAGE AREA ALONG TRAMWAY ROUTE 1991 The middle highlighted area was formerly a cutting, but has now been filled in. Ipswich Heritage Study 1991

(A) Coke Ovens Area

A LARGELY INTACT COKE OVEN 1978 Photo: John Kerr "Tramways of Tivoli Coalfield" by J.D.Kerr Light Railways No. 59 January 1978 LRRSA

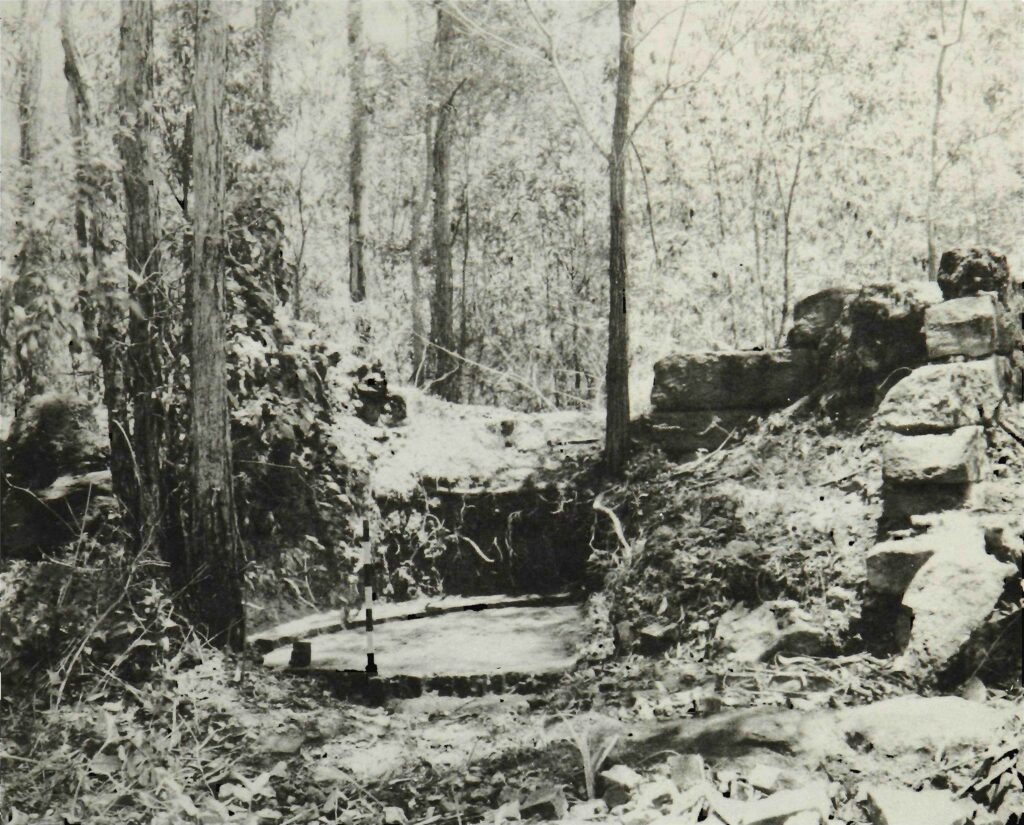

EXCAVATED COKE OVEN 1979 The scale divisions on the measuring rod are each 100mm. "Coal in Qld" The First Fifty Years R.L. Whitmore University of Qld Press 1981, p123

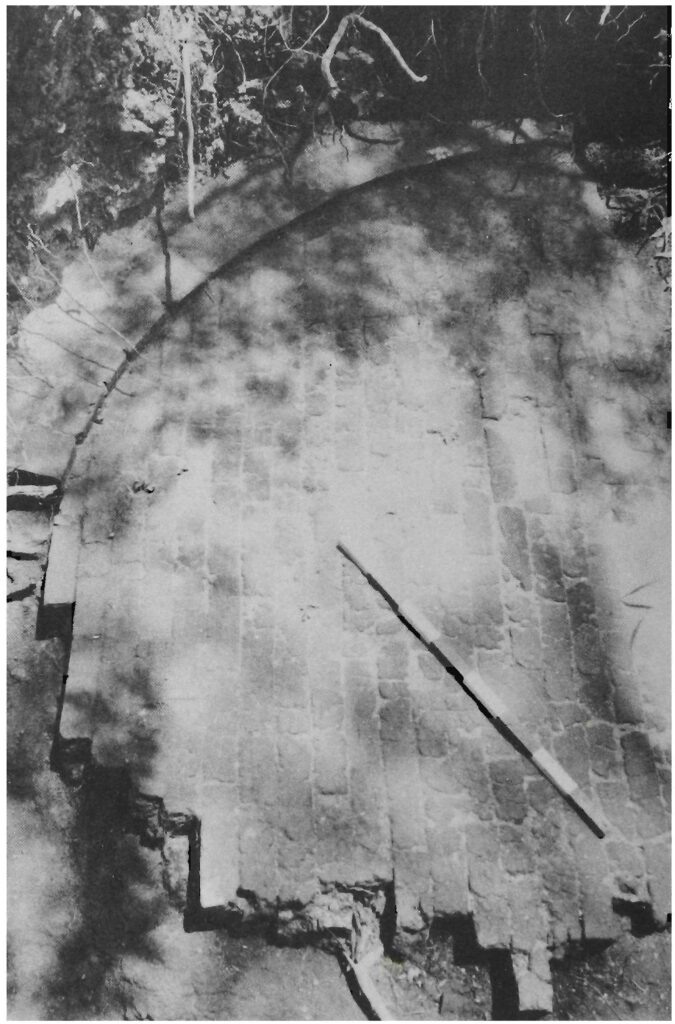

EXCAVATED BRICK FLOOR OF COKE OVEN 1979 The scale divisions on the measuring rod are each 100mm. "Coal in Qld" The First Fifty Years R.L. Whitmore University of Qld Press 1981, p124

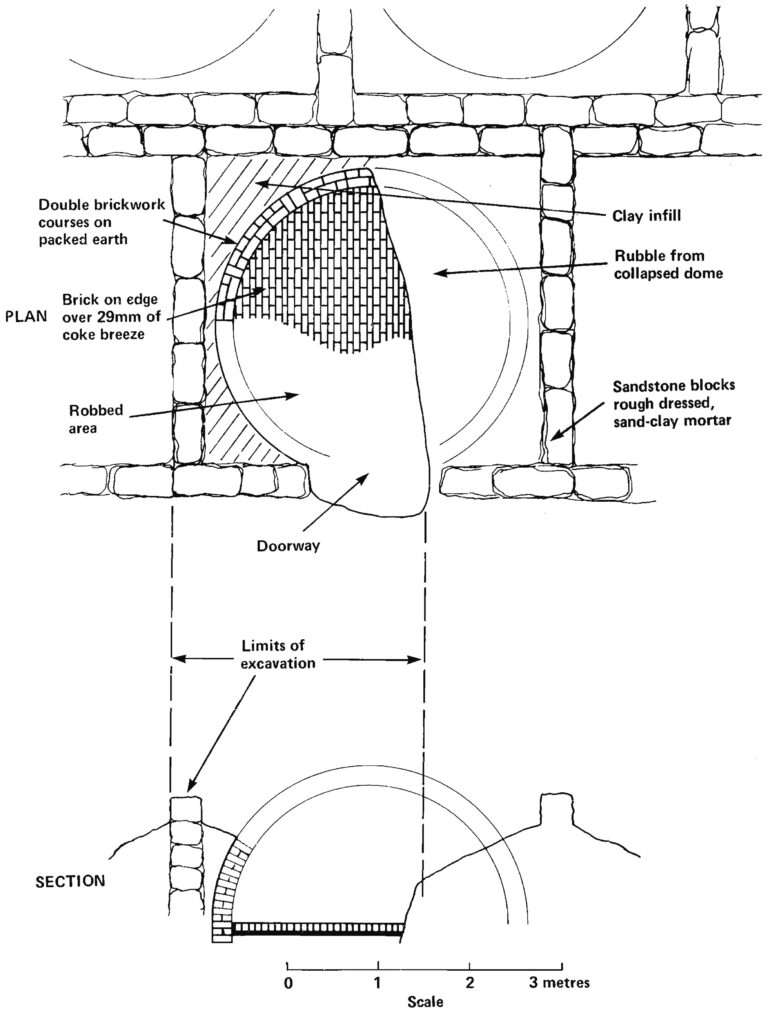

PLAN & SECTION OF ONE OF COKE OVENS As excavated in 1979 Coal in Qld: The First Fifty Years by R.L.Whitmore p172

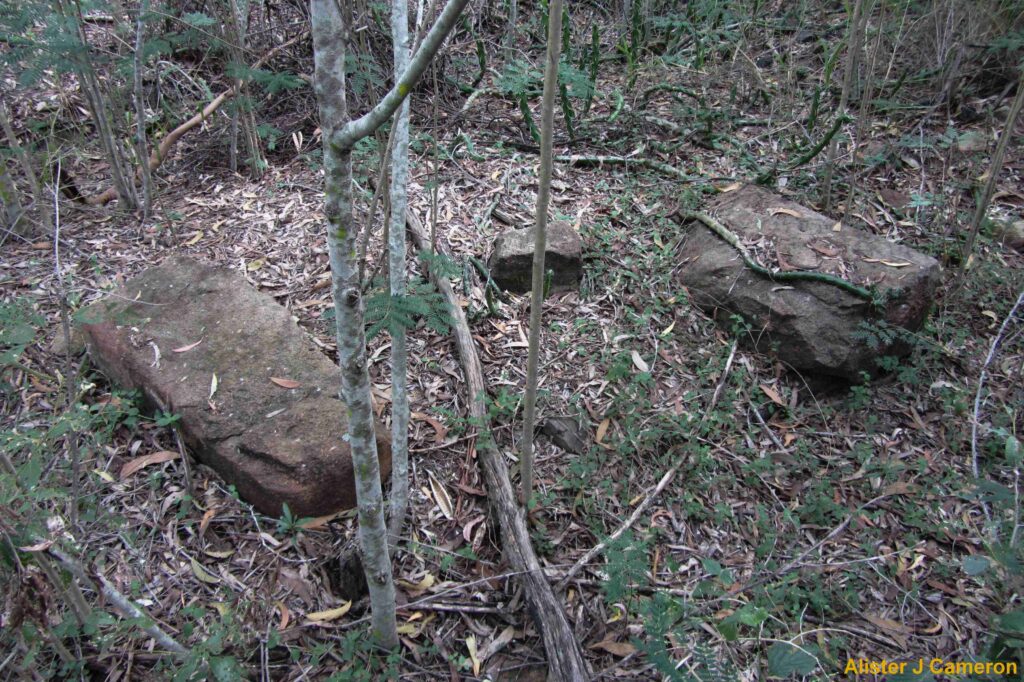

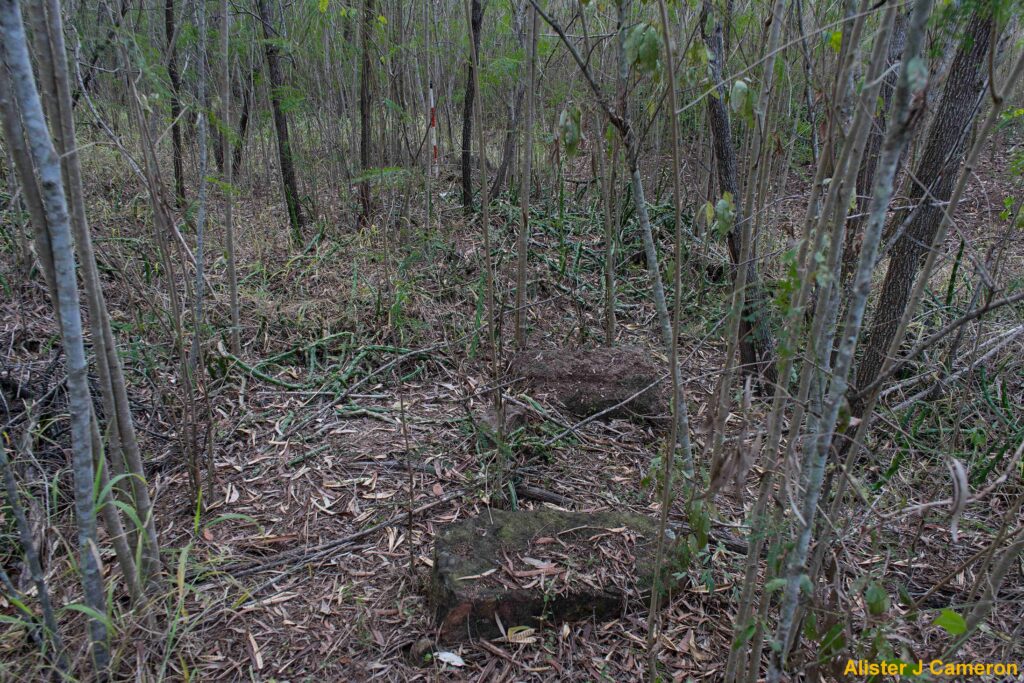

REMAINS OF COKE OVENS BARROW 2018 The whole area has been disturbed because of nearby opencut. A couple of masonry blocks can be seen. Photo: Alister J Cameron

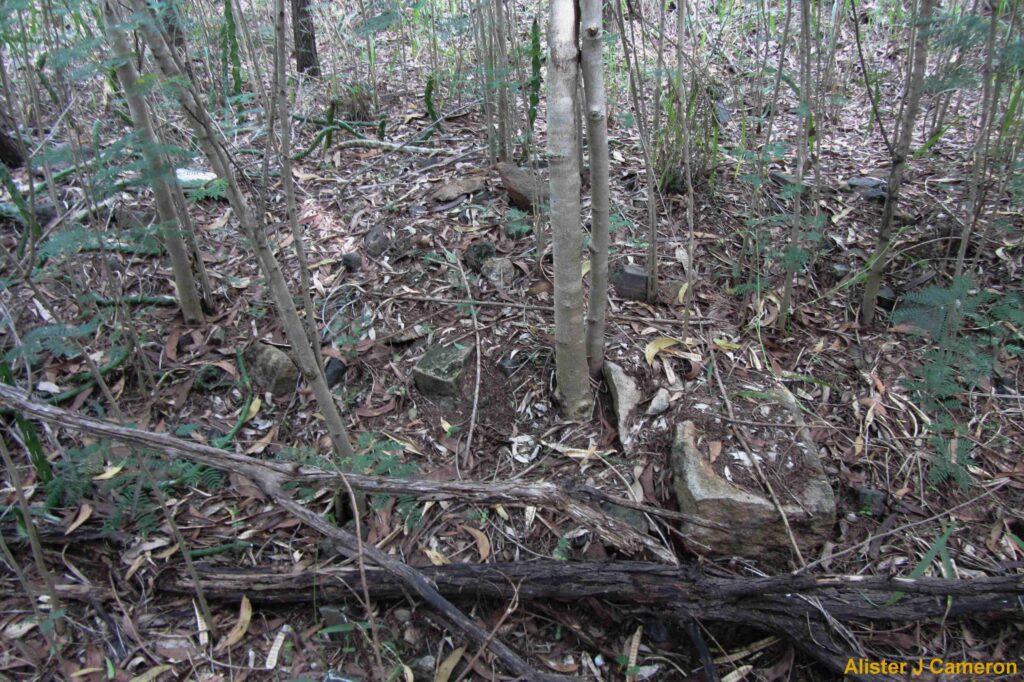

CLOSEUP OF BLOCKS 2014 Photo: Alister J Cameron

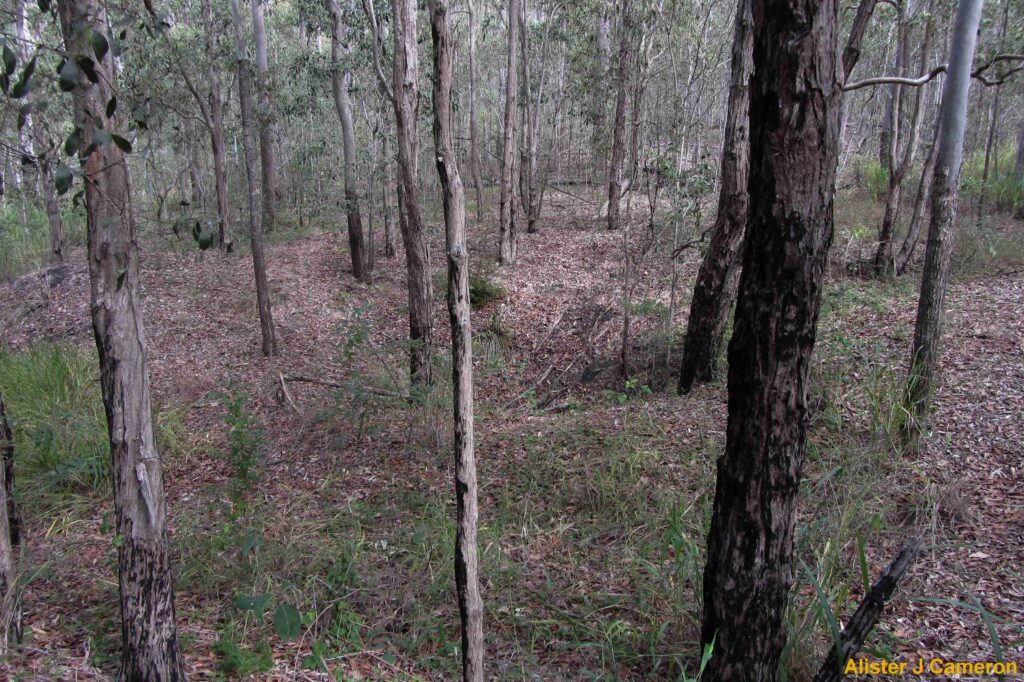

BARROW FROM A DIFFERENT ANGLE 2014 Many broken and scattered bricks can be seen. Photo: Alister J Cameron

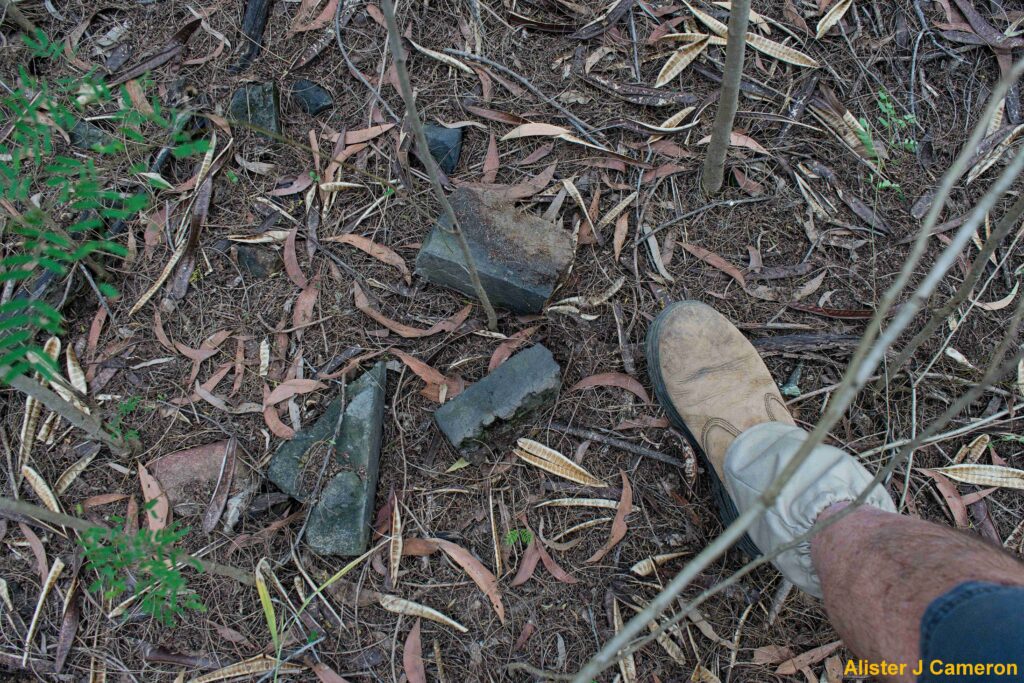

CLOSEUP OF SOME OF THE BRICKS 2018 Photo: Alister J Cameron

(B) Ovens to Francis Street

AREAS OF COAL AND COAL SPOIL SOUTH OF OVEN AREA 2018 J.M. Brass Submission opposing development on Tivoli Hill 2011 Photo: Alister J Cameron

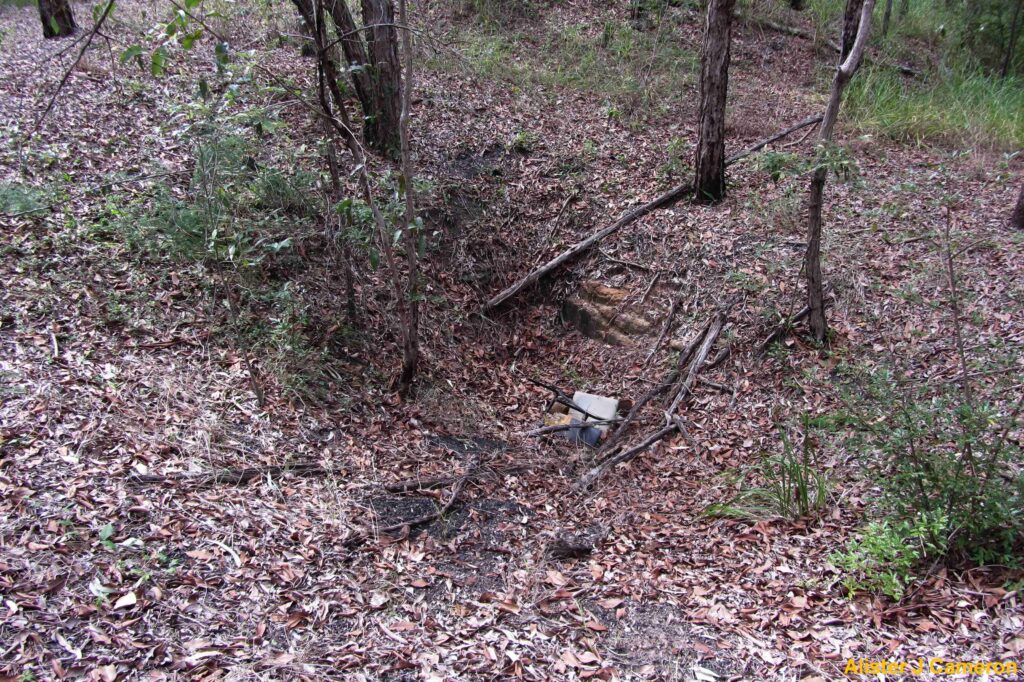

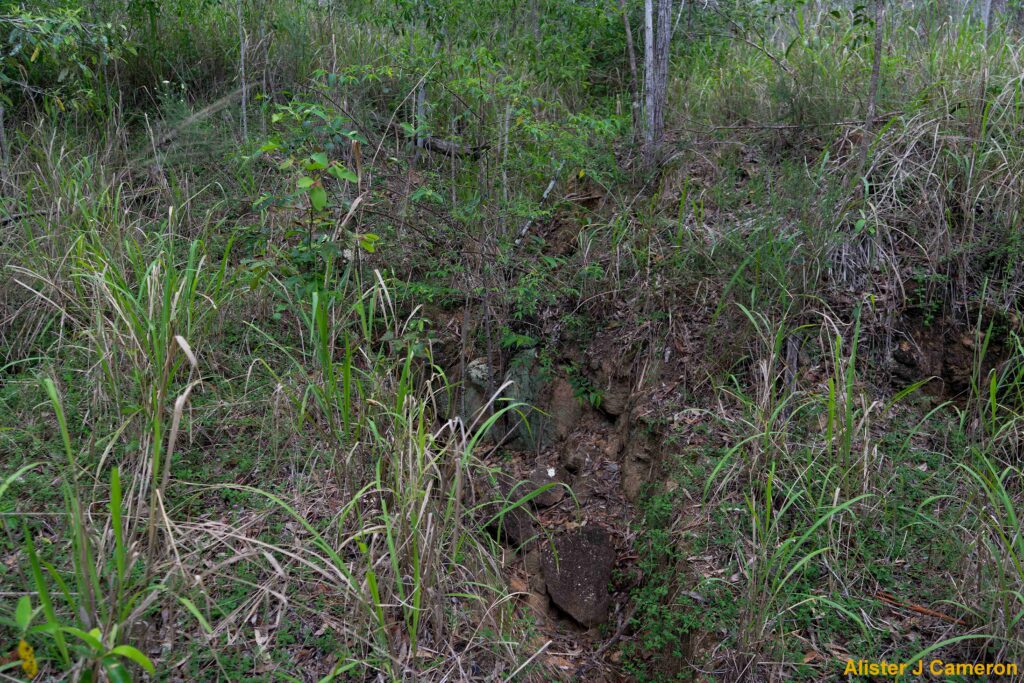

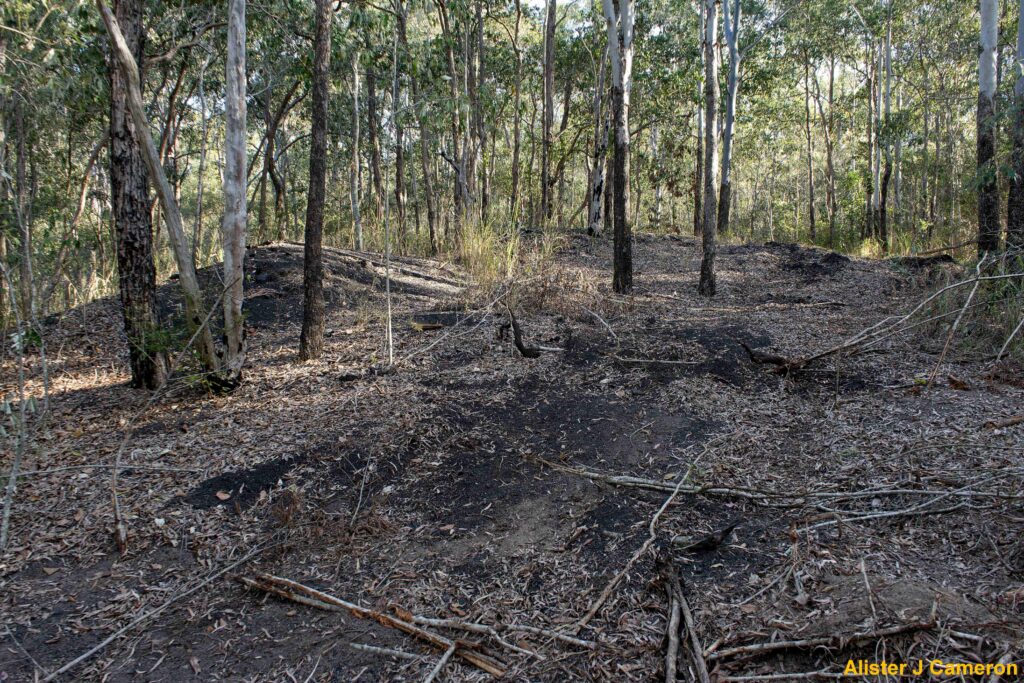

REMAINS OF SHAFT SOUTH OF OVENS 2014 Photo: Alister J Cameron
CLOSEUP OF THE SHAFT 2014 Photo: Alister J Cameron

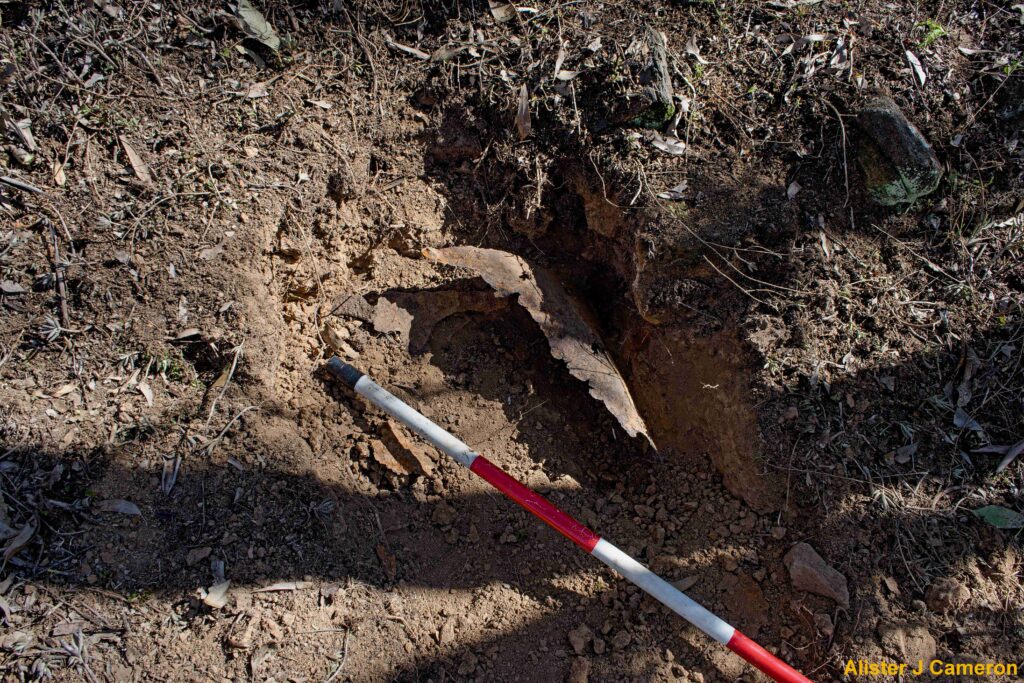

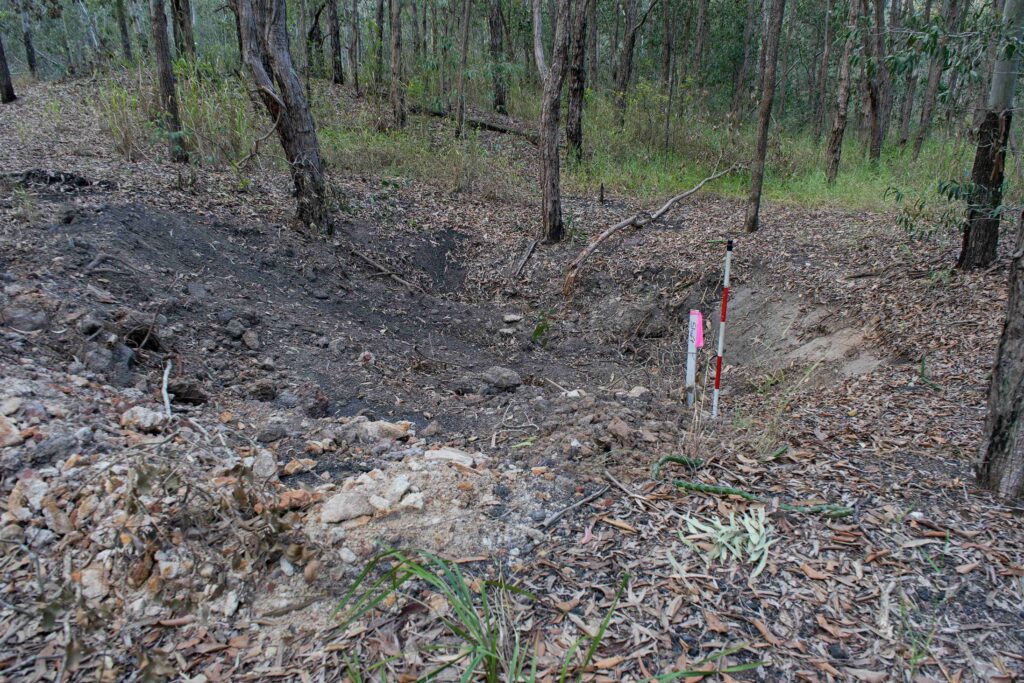

SAME SITE IN 2018 Shows clear signs of recent disturbance. Surveyor's peg is marked "shaft" Photo: Alister J Cameron

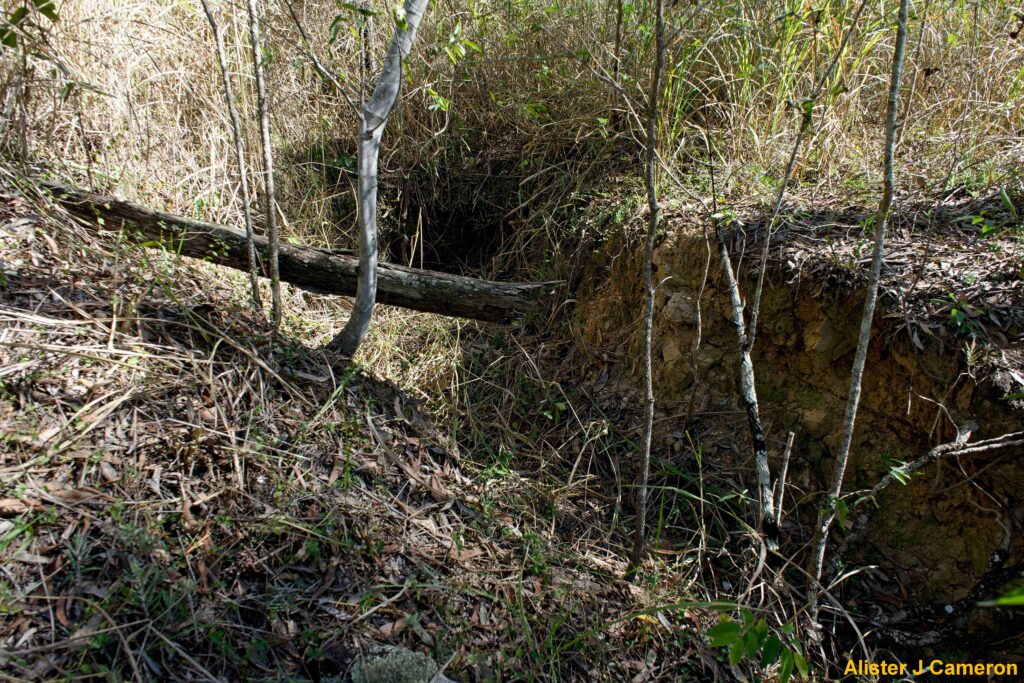

A SHORT DISTANCE SOUTH OF THE SHAFT A GAP IN THE EMBANKMENT MARKS POSSIBLE SITE OF A CULVERT Photo: Alister J Cameron

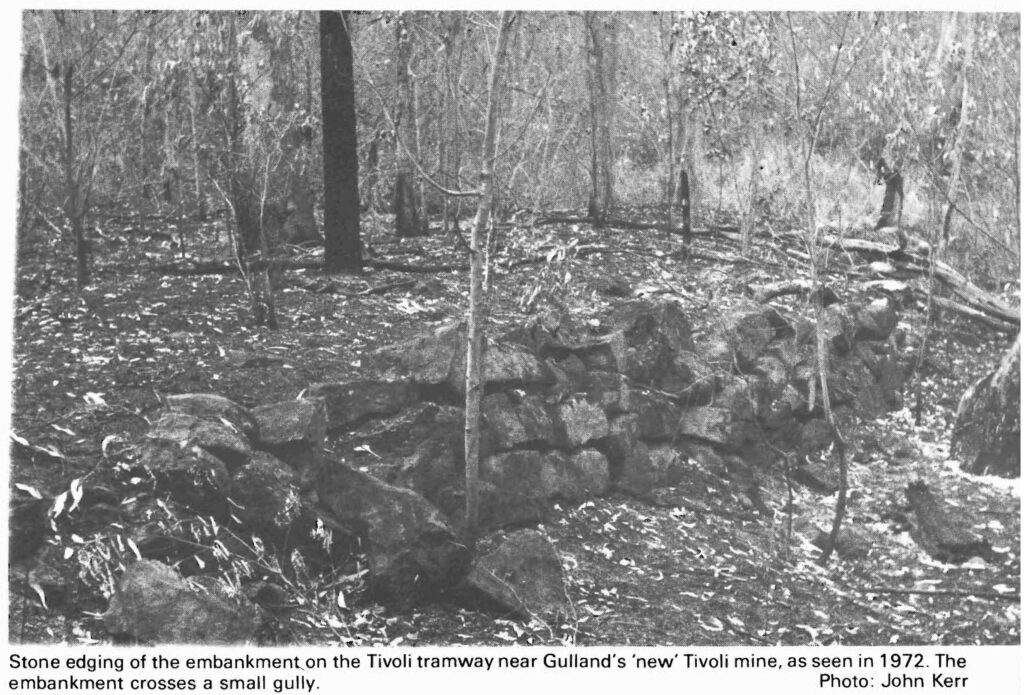

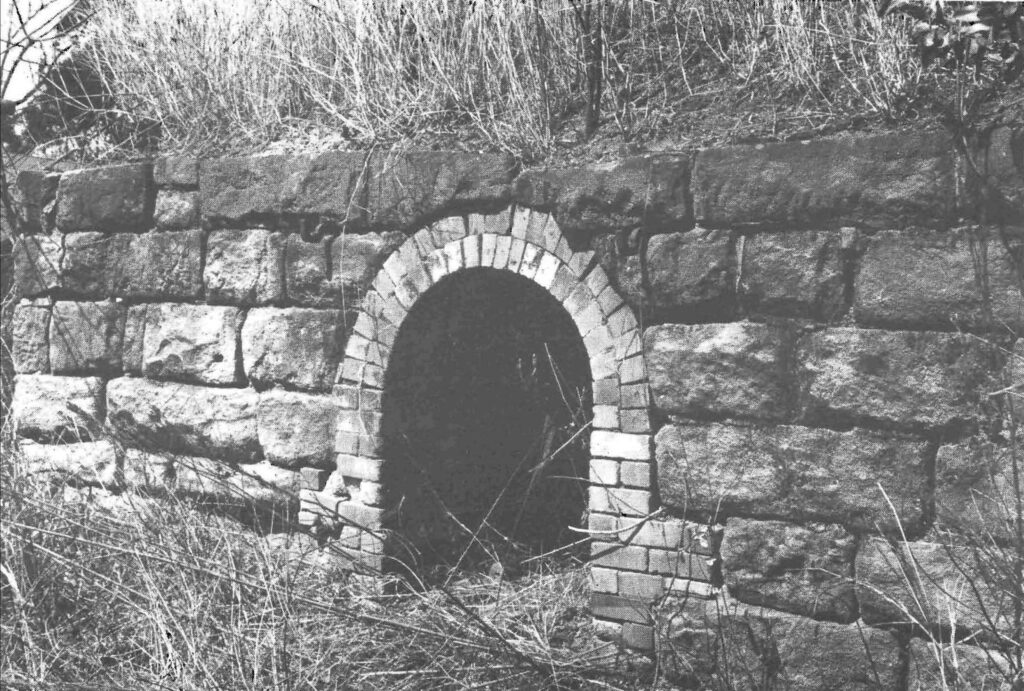

STONE-EDGED EMBANKMENT PART-WAY ALONG THE ALLIGNMENT 1972 "Tramways of Tivoli Coalfield" by J.D.Kerr Light Railways No. 59 January 1978 LRRSA, p6
POSSIBLY SIMILAR LOCATION: POSSIBLE CULVERT SITE PART-WAY UP ALLIGNMENT TOWARDS FRANCIS ST 2018 Photo: Alister J Cameron
FROM ANOTHER ANGLE SHOWING GULLY BELOW GAP IN EMBANKMENT 2017 Photo: Alister J Cameron

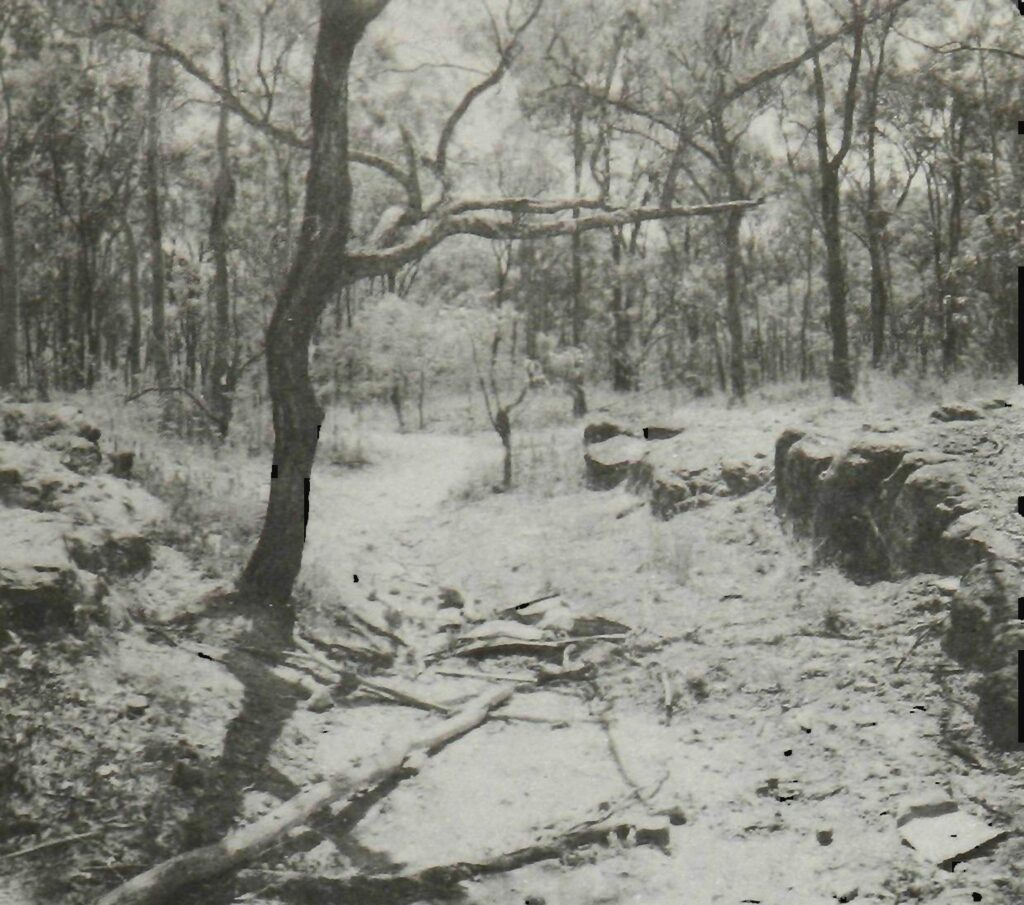

FRANCIS STREET CUTTING LOOKING NORTH-EAST 1981 "Coal in Qld" The First Fifty Years R.L. Whitmore University of Qld Press 1981

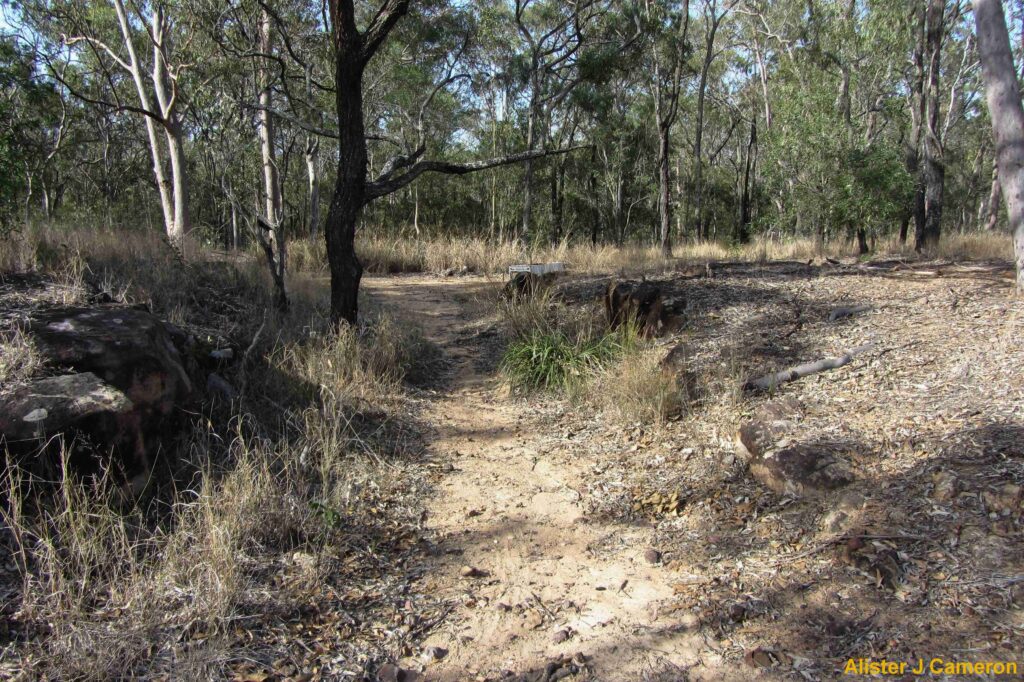

SAME SCENE 30 YEARS LATER 2012 Amazingly, not much has changed. Photo: Alister J Cameron

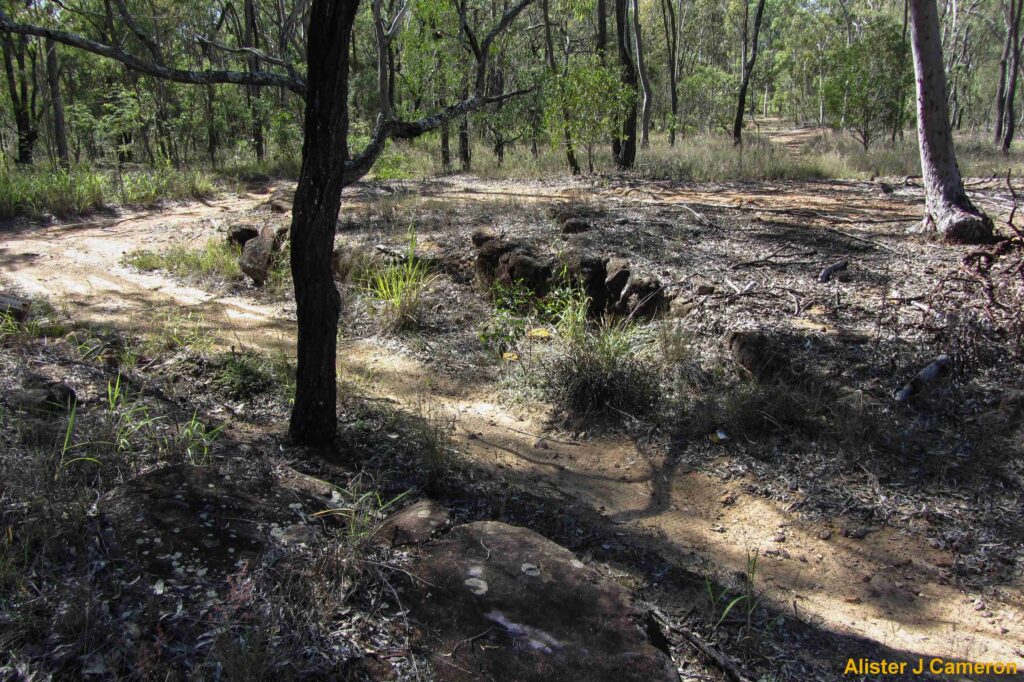

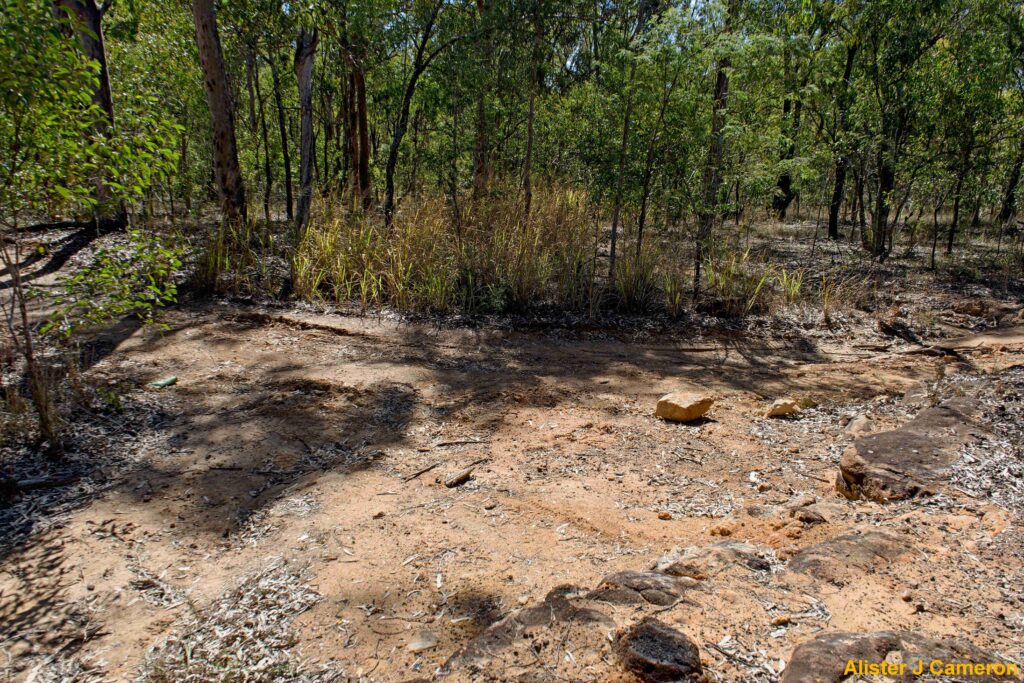

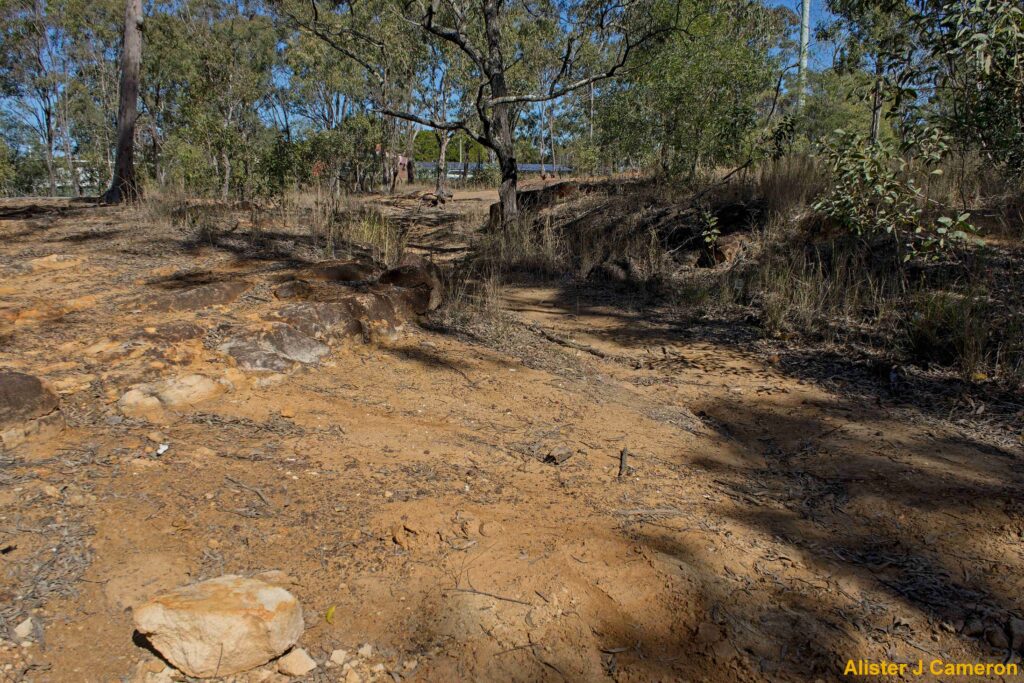

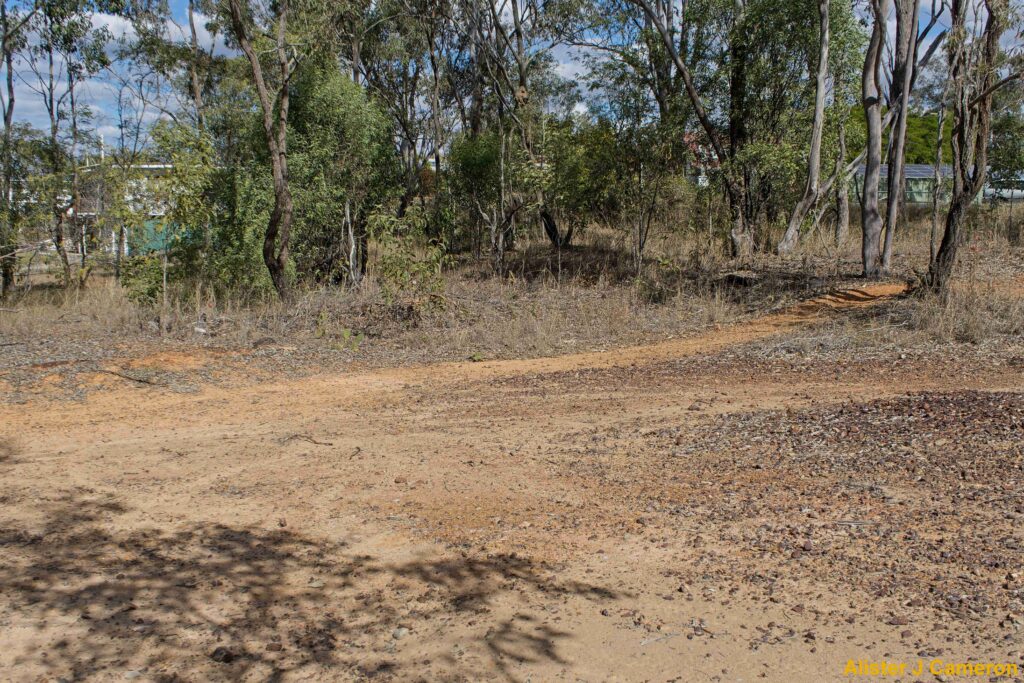

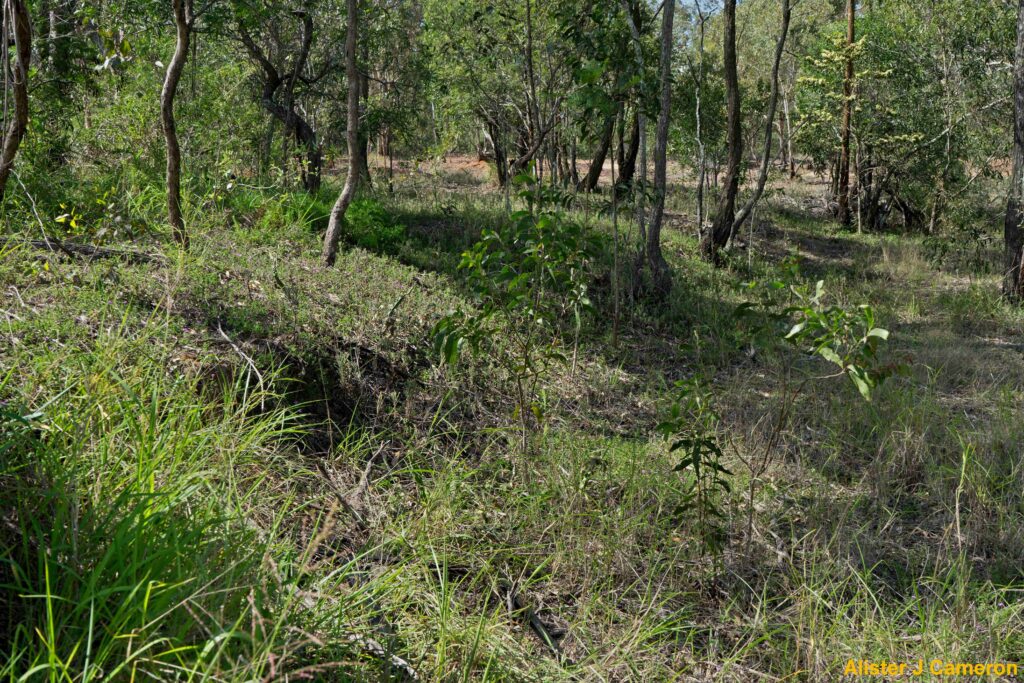

LOOKING ROUGHLY EAST ACROSS CUTTING 2014 Photo: Alister J Cameron

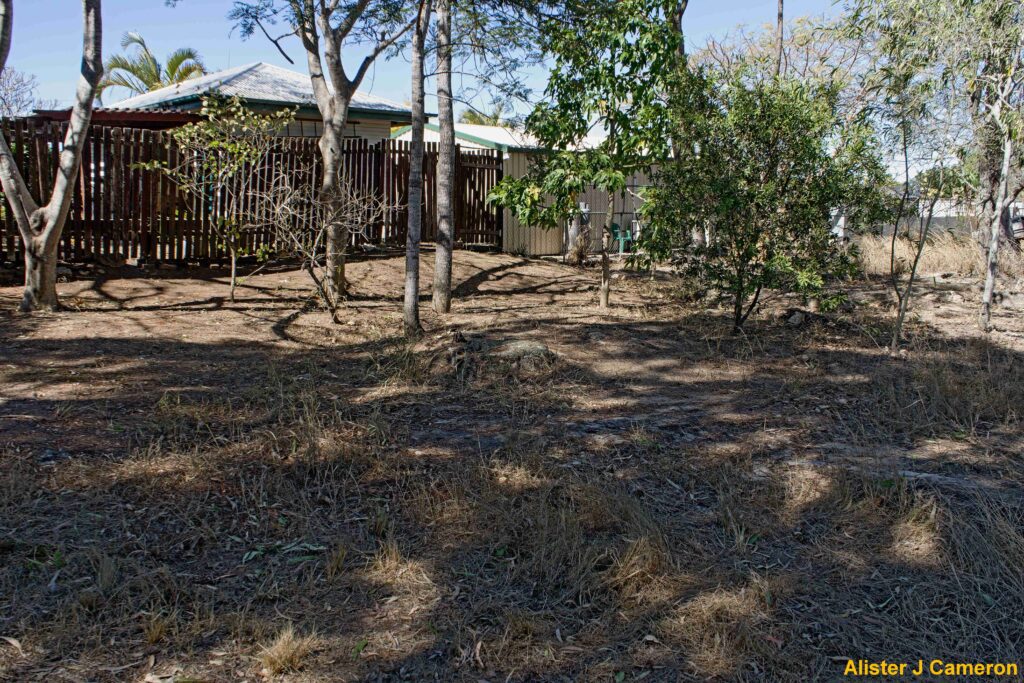

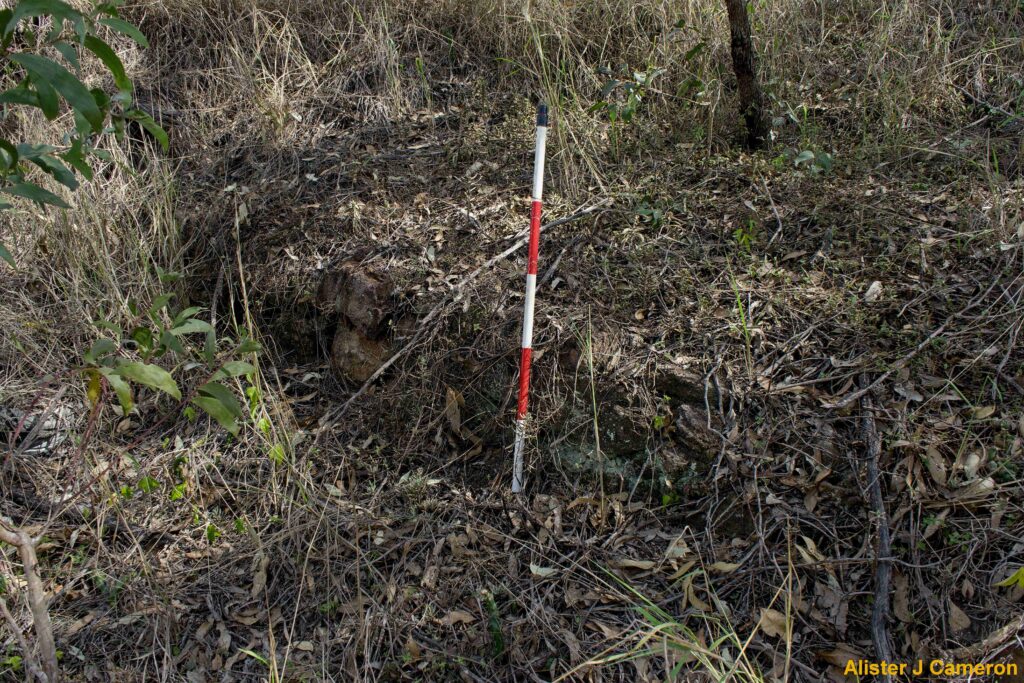

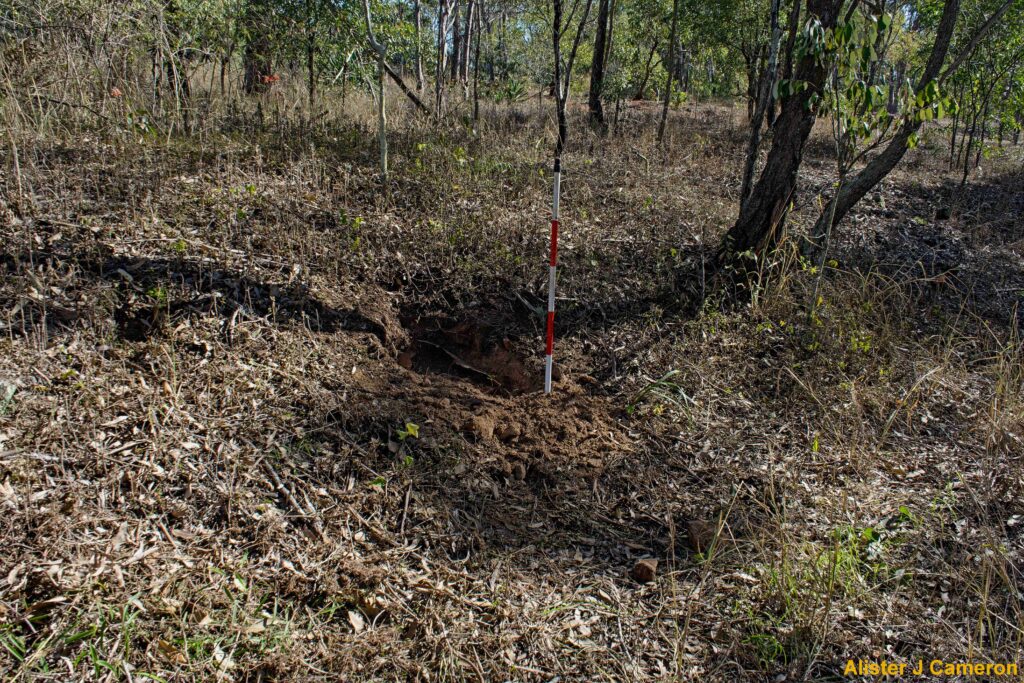

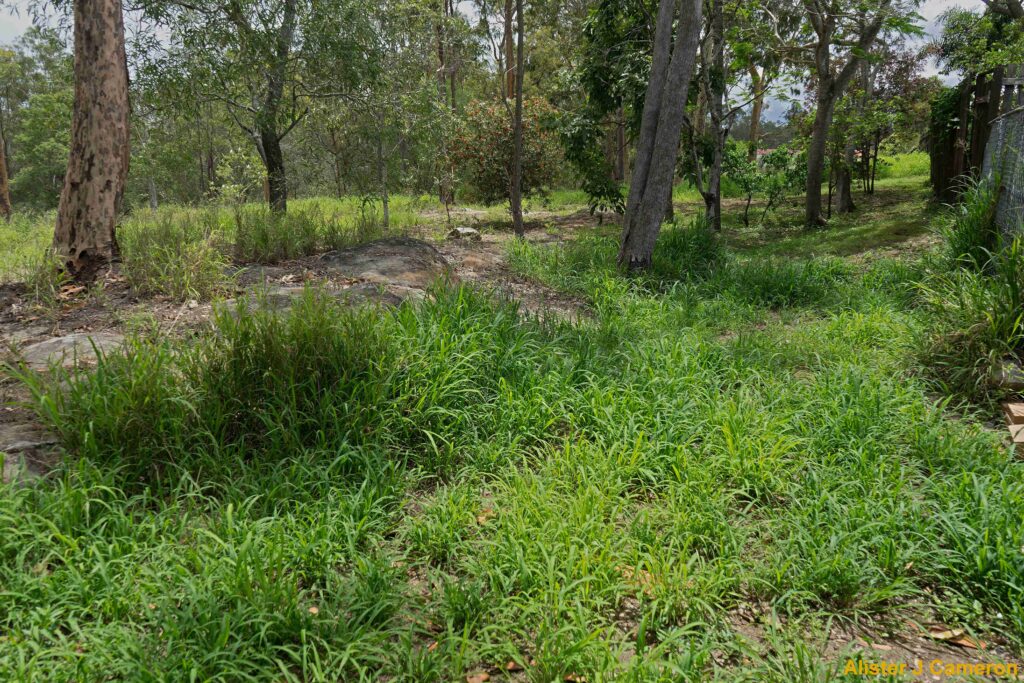

CLOSEUP OF GRASS PATCH IN LINE WITH NORTH-EAST END OF CUTTING. Hides a shallow cutting heading downhill Photo: Alister J Cameron
LOOKING BACK THROUGH CUTTING TOWARDS FRANCIS ST 2018 Photo: Alister J Cameron
LOOKING SOUTH-WEST THROUGH CUTTING TOWARDS FRANCIS ST 2017 Photo: Alister J Cameron
CONTINUING THE ALLIGNMENT FURTHER SOUTH-WEST 2018 Beginning of surviving embankment. Photo: Alister J Cameron

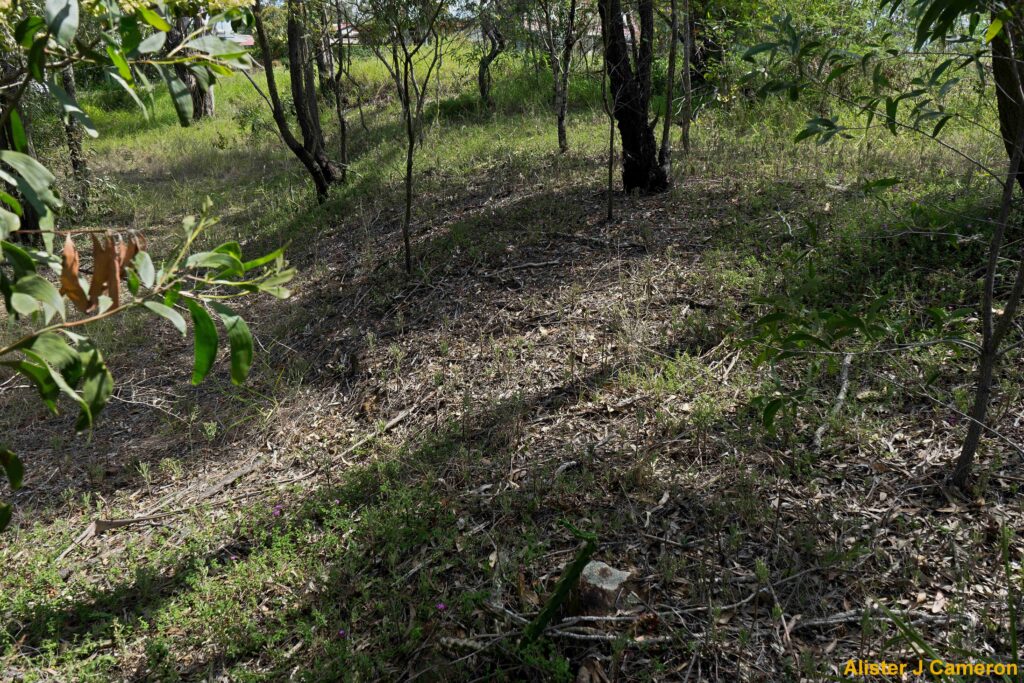

EMBANKMENT AS IT APPROACHES FRANCIS ST 2017 Photo: Alister J Cameron
IN THIS AREA A DRY STONE WALL UPHOLDING THE EMBANKMENT CAN BE CLEARLY SEEN 2018 Photo: Alister J Cameron
EMBANKMENT FACING THE OTHER DIRECTION 2017 Overgrown wall can be seen along the edge. Photo: Alister J Cameron

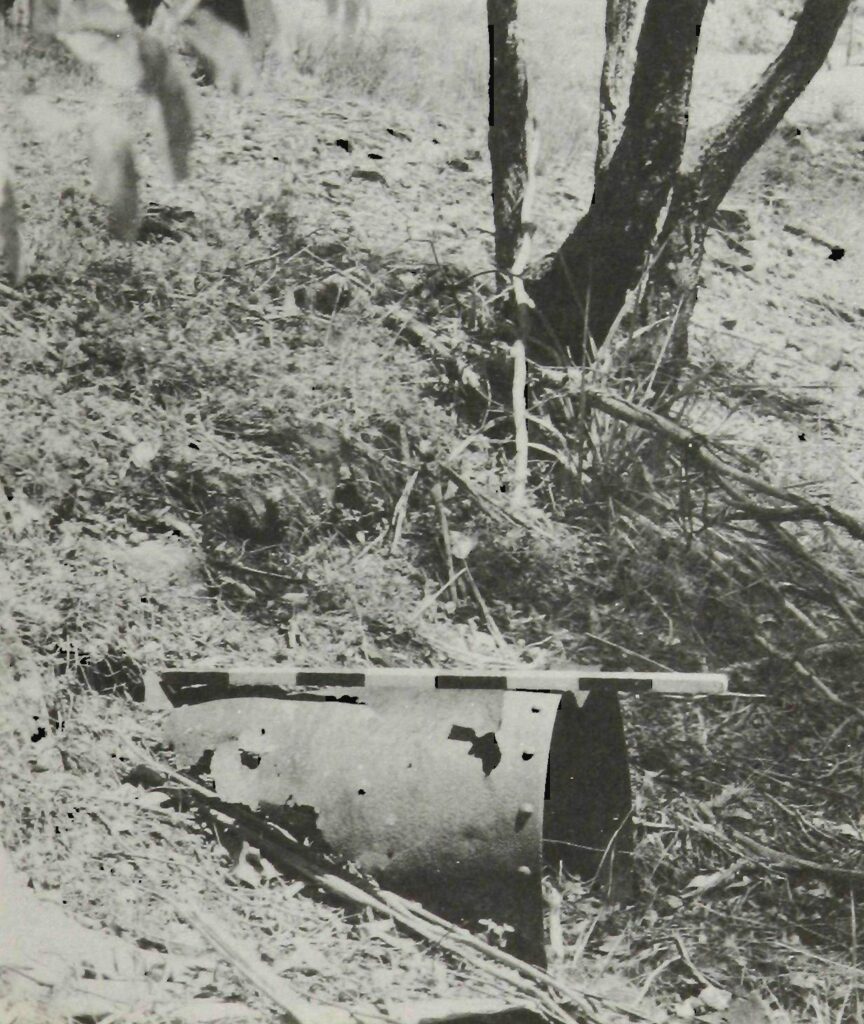

IRON CULVERT PIERCING THE EMBANKMENT NEAR FRANCIS ST 1979 "Coal in Qld" The First Fifty Years R.L. Whitmore University of Qld Press 1981
SAME AREA 40 YEARS LATER 2018 The iron culvert end has gone but the rest is still buried. Photo: Alister J Cameron
CLOSEUP OF THE CULVERT 2018 Photo: Alister J Cameron

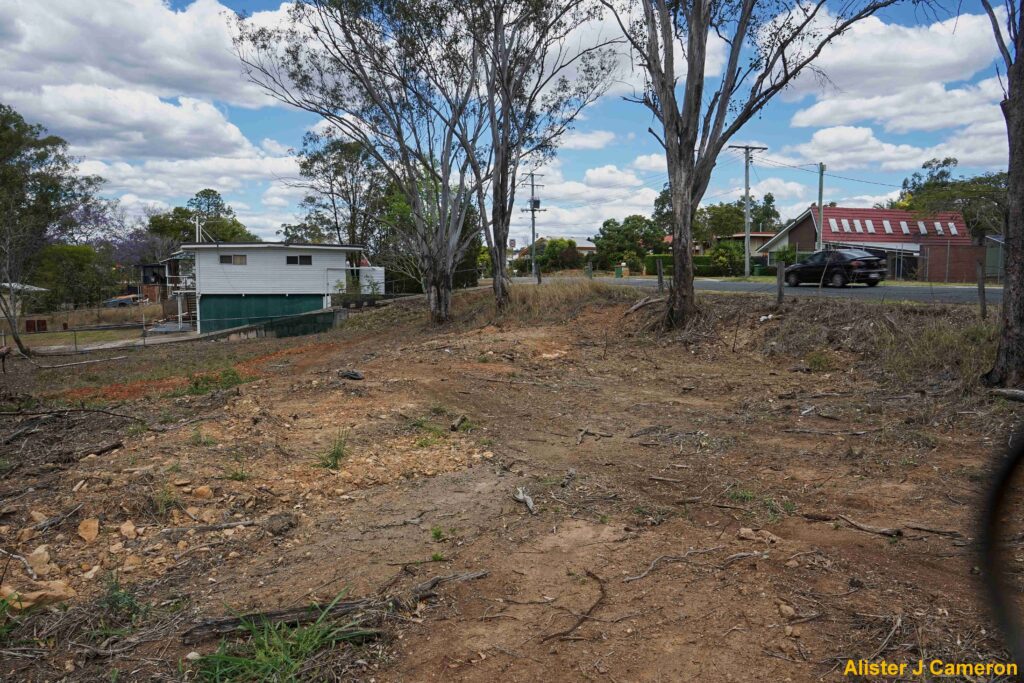

IN 2020 THE EMBANKMENT AREA WAS BULDOZED Thankfully the nearby cutting still remains. Photo: Alister J Cameron

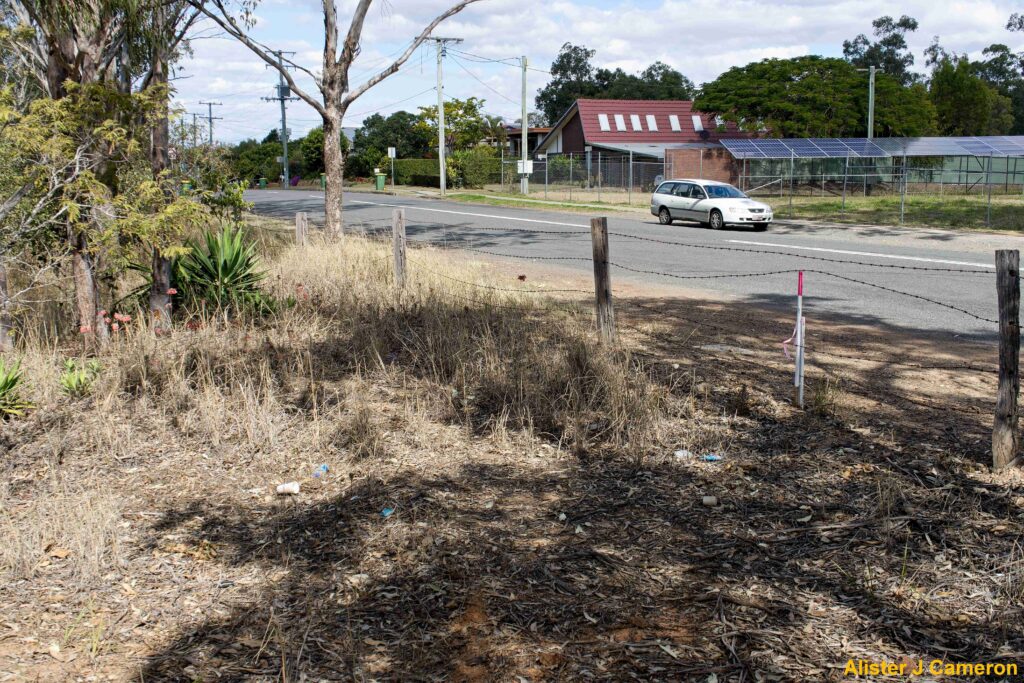

LOOKING SOUTH-WEST AT SITE OF FRANCIS STREET CROSSING 2018 Photo: Alister J Cameron

(C) Francis Street to Mount Crosby Road

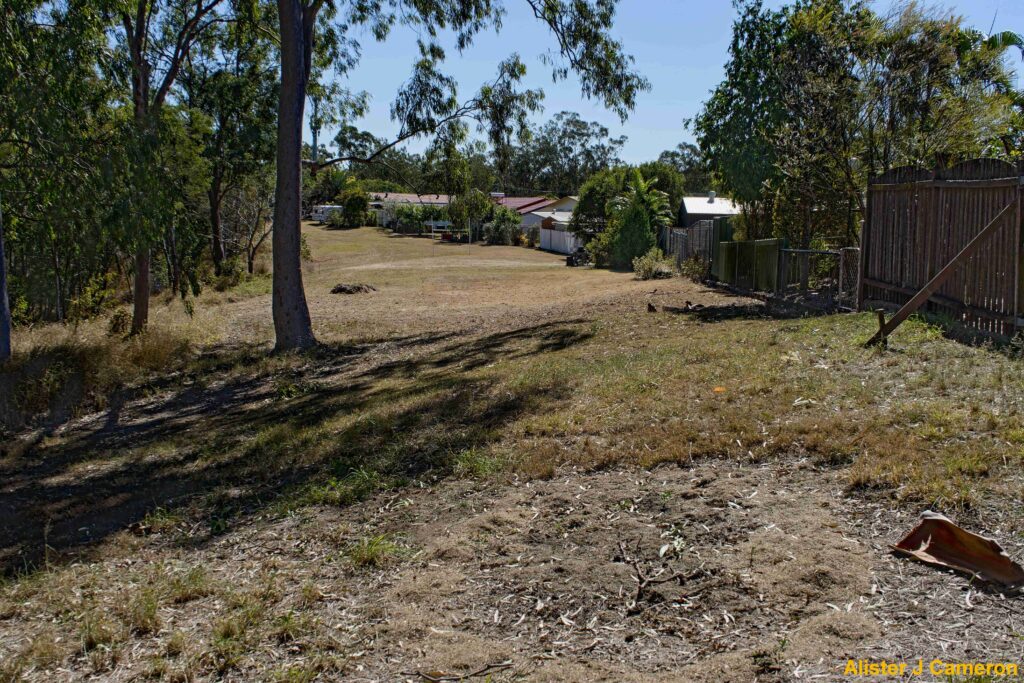

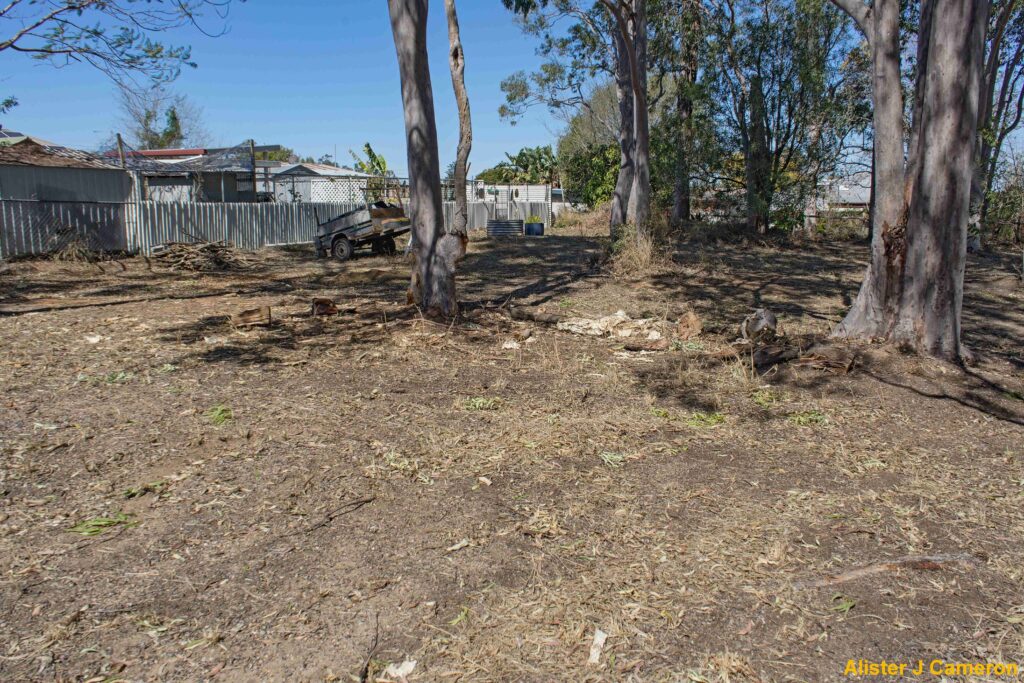

FORMER ALLIGNMENT LOOKING NORTH 2018 Line ran just to the left of the property boundaries. Photo: Alister J Cameron
FURTHER SOUTH ALONG ALLIGNMENT 2017 Up until recent times there was a cutting at this point. This was filled in a few years ago. Photo: Alister J Cameron
SAME AREA FROM A DIFFERENT ANGLE 2018 Photo: Alister J Cameron
LOOKING SOUTH-EAST TOWARDS ALLIGNMENT 2018. Where the property boundaries form a corner is where the lines exited the area. Photo: Alister J Cameron

(D) Mount Crosby Road Area

MOUNT CROSBY ROAD LOOKING APPROXIMATELY NORTH 2017 The line passed through the site now taken up by the grey house. It then proceeded along the road to the left. Photo: Alister J Cameron
SITE OF TRAMWAY LOOKING NORTH-WEST 2017 Approximate location, along the left hand side of the road (Mt Crosby Road). Photo: Alister J Cameron

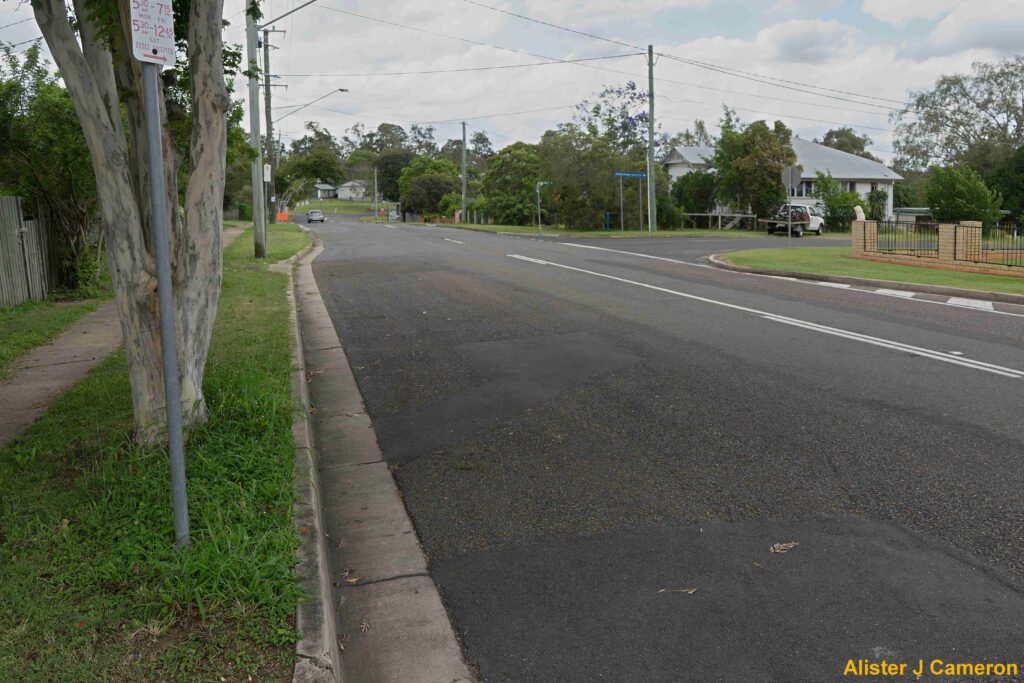

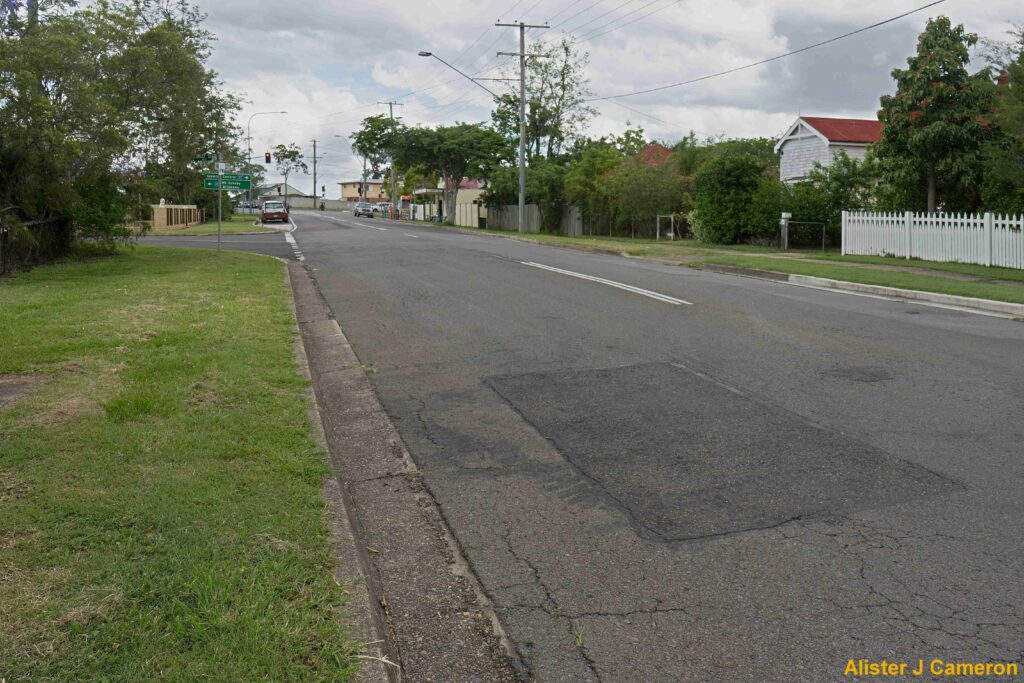

LOOKING SOUTH-EAST ALONG MT CROSBY RD TO TANTIVY ST 2017 Allignment was on right-hand side of road. Photo: Alister J Cameron

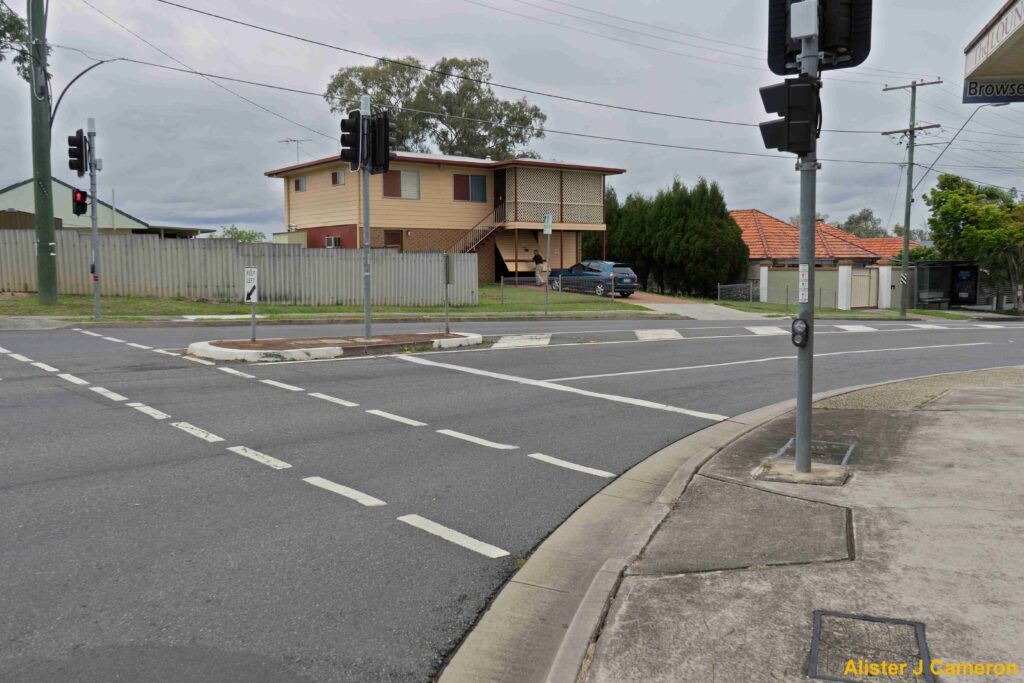

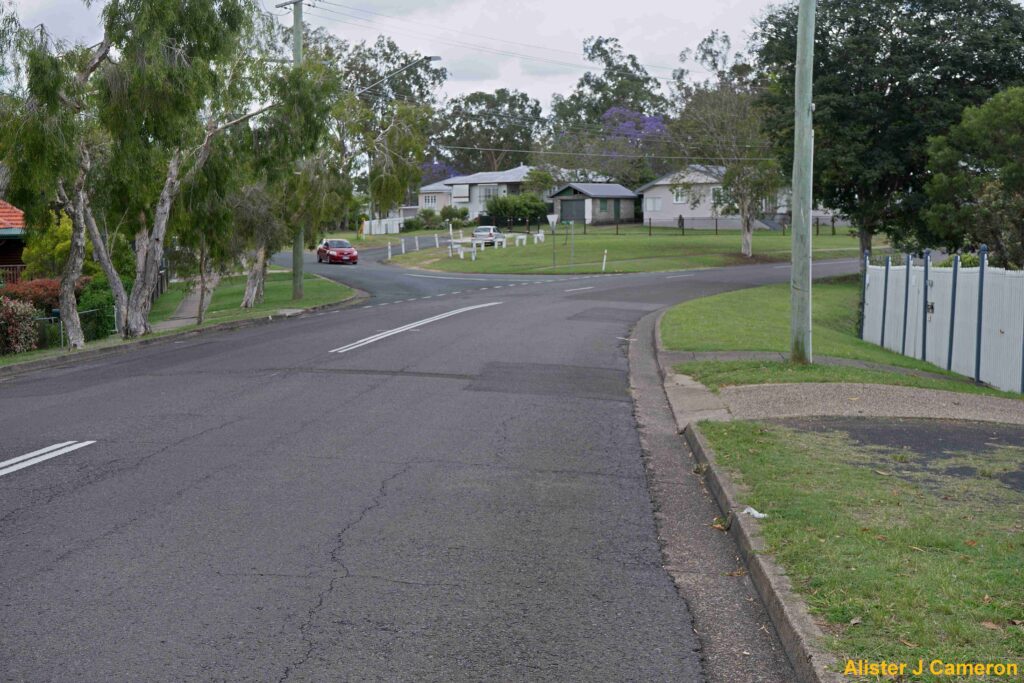

FURTHER SOUTH EAST AT THE JUNCTION OF MT CROSBY RD AND TANTIVY ST 2017 Line probably passed through where the featured house is located; then downhill to the river. Photo: Alister J Cameron

(E) Tantivy Street Crossing to River

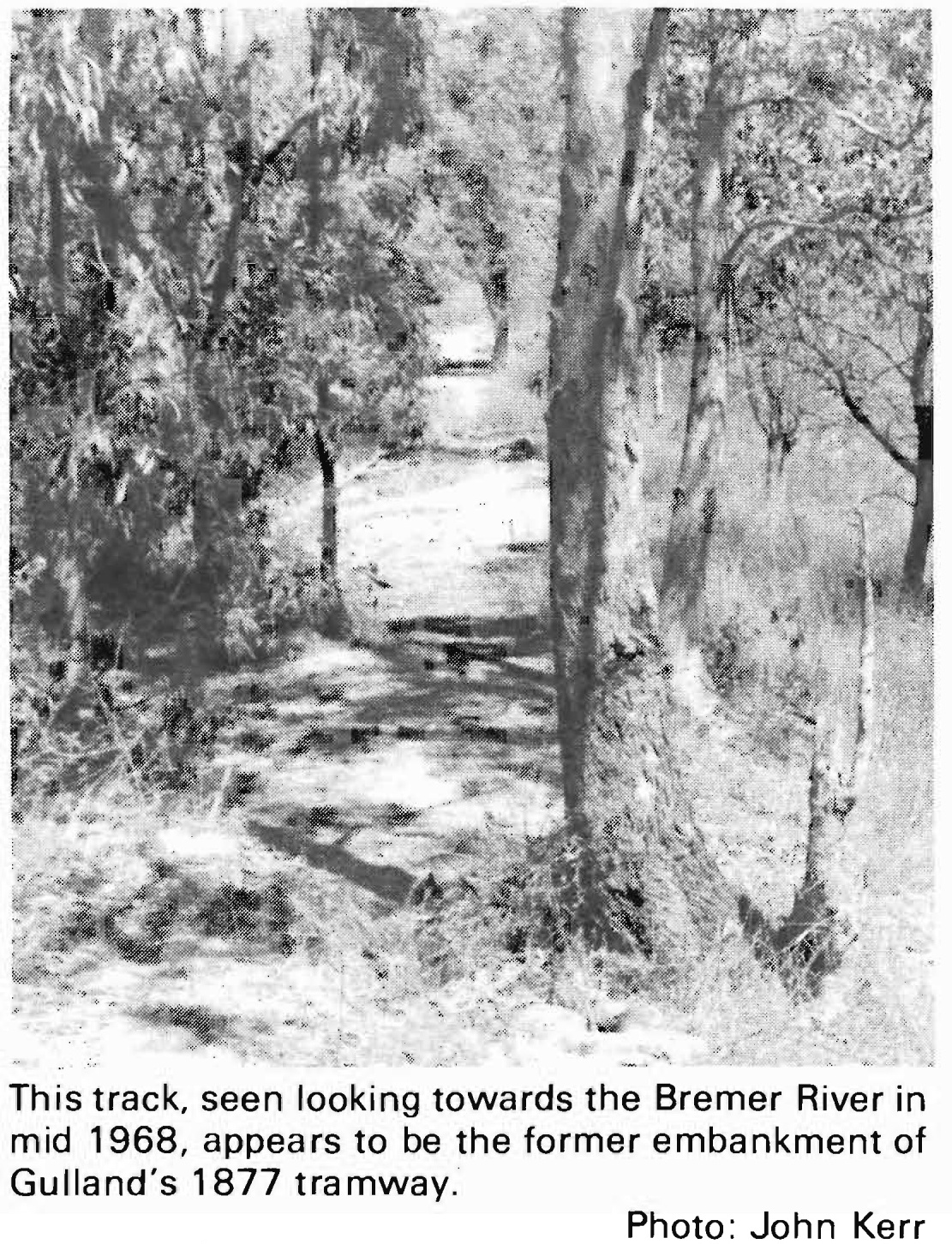

"Tramways of Tivoli Coalfield" by J.D.Kerr Light Railways No. 59 January 1978 LRRSA

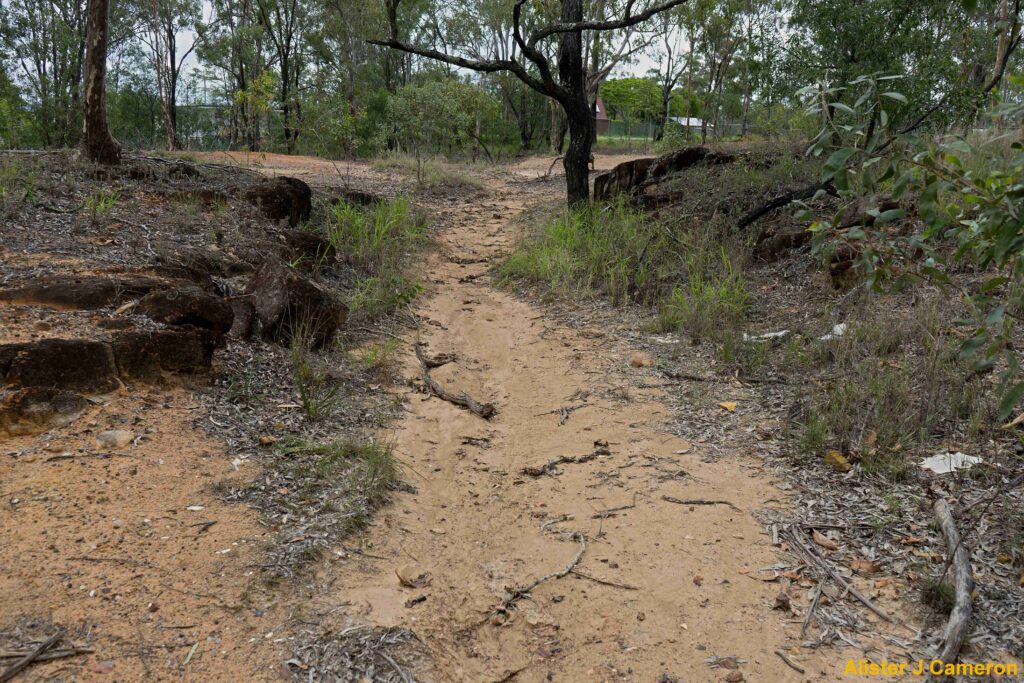

PHOTO TAKEN FROM A SIMILAR POSITION 2017 Looking south-west along the allignment. Embankment is still very evident. Photo: Alister J Cameron

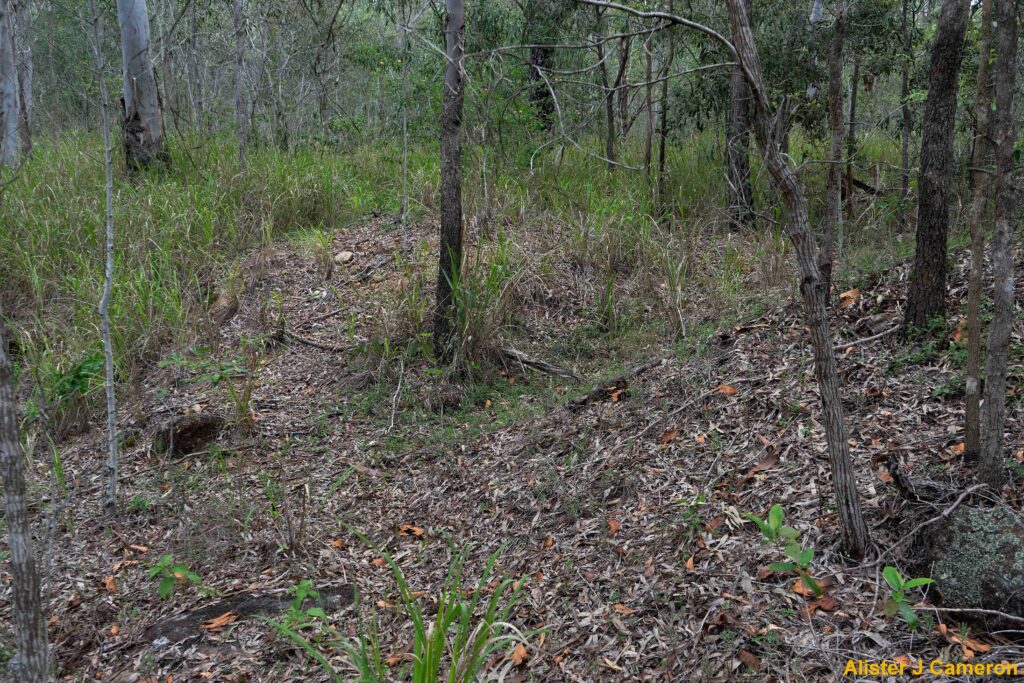

LOOKING SOUTH AT AN ANGLE TO THE EMBANKMENT 2017 Photo: Alister J Cameron

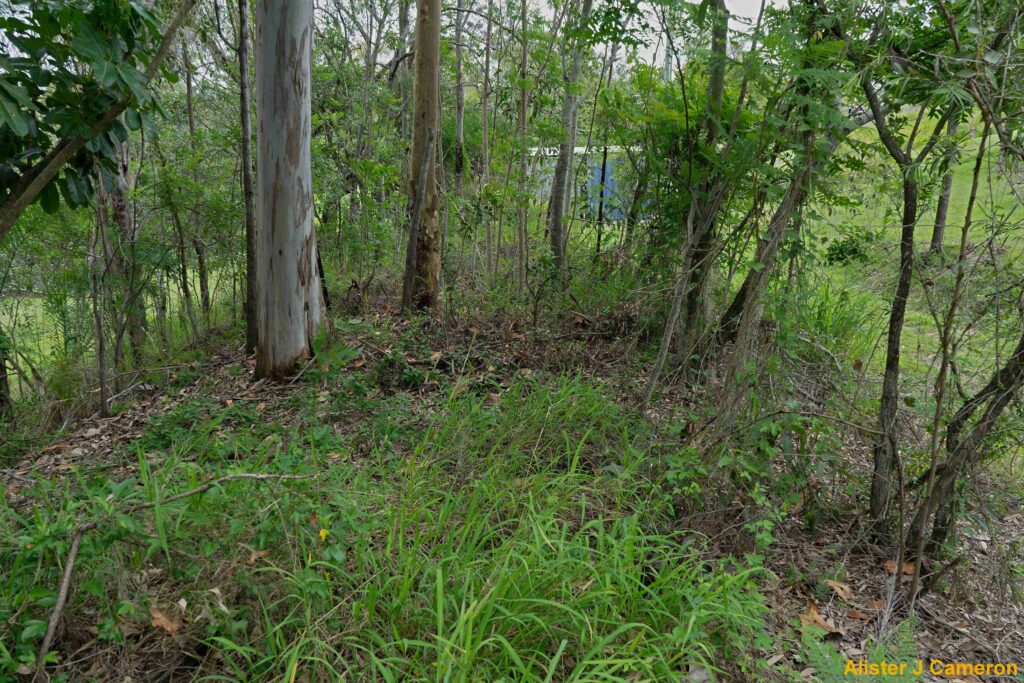

AT END OF SURVIVING EMBANKMENT LOOKING SOUTH-WEST TOWARDS RIVER 2017 Photo: Alister J Cameron
END OF EXISTING EMBANKMENT LOOKING EAST 2019 Photo: Alister J Cameron

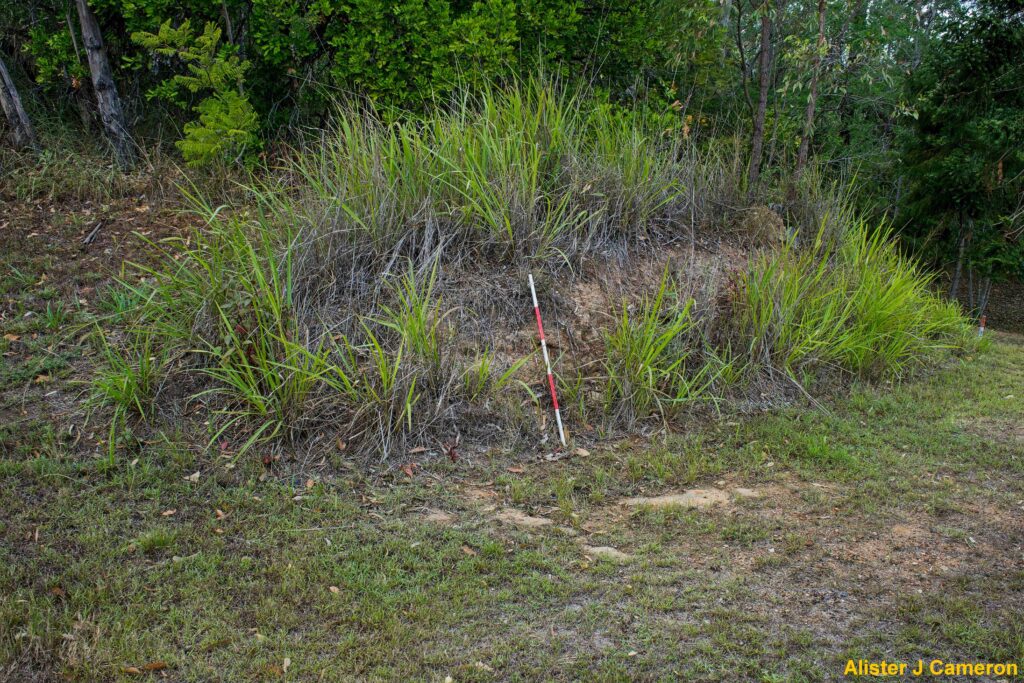

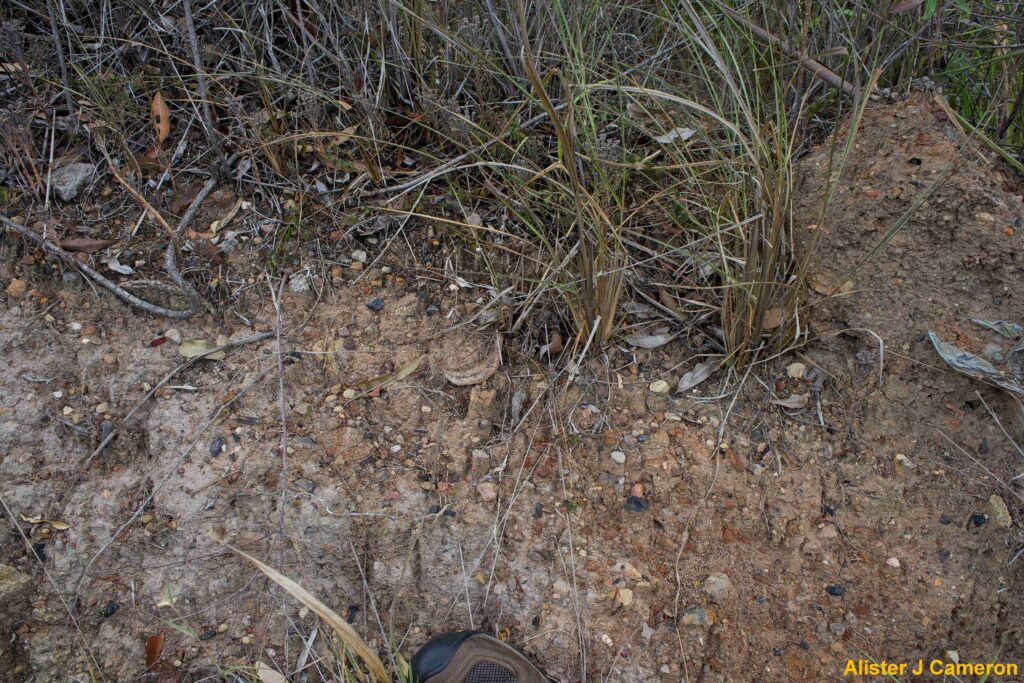

CLOSEUP OF BALLAST IN CROSS-SECTION OF EMBANKMENT 2019 Photo: Alister J Cameron

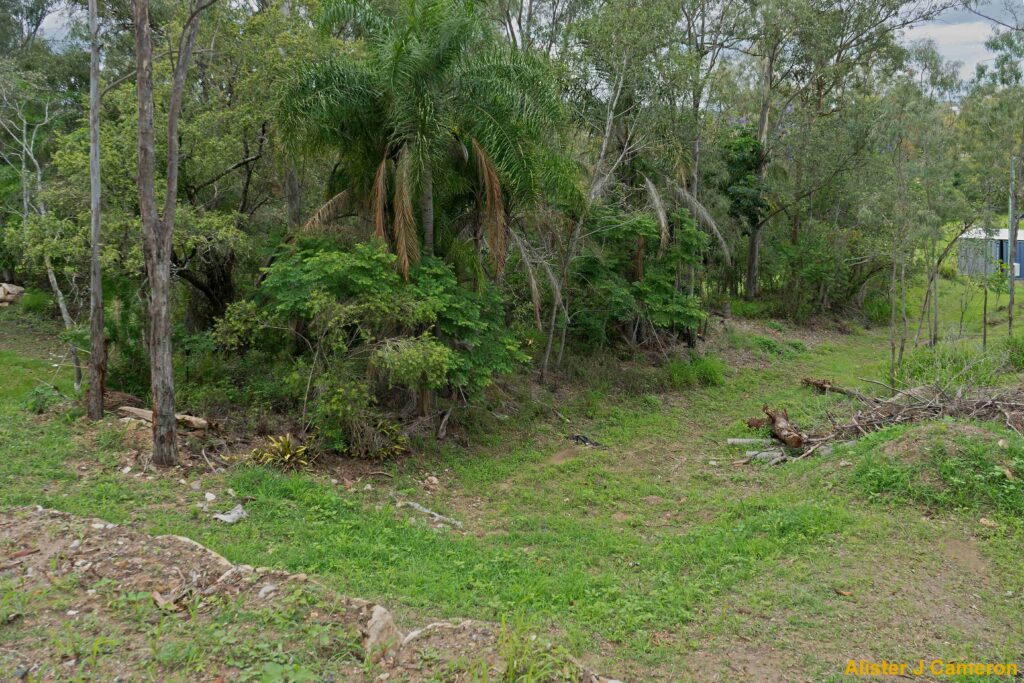

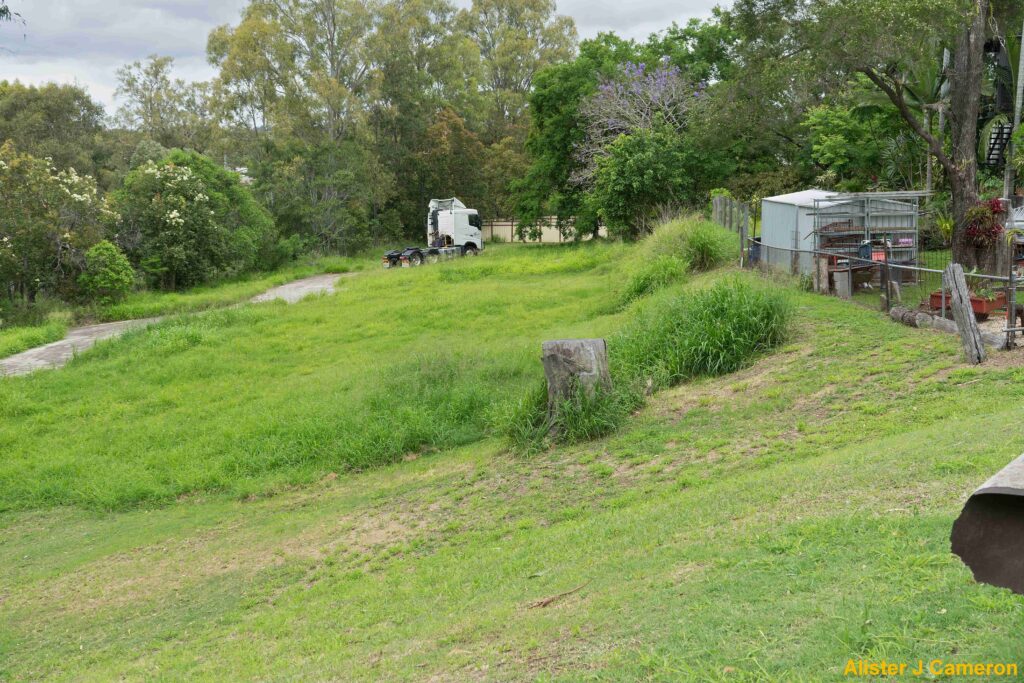

CONTINUATION OF ALLIGNMENT TOWARDS THE RIVER 2017 Looking east Site is the flattened area in front of containers; and has been landscaped in recent times. Photo: Alister J Cameron

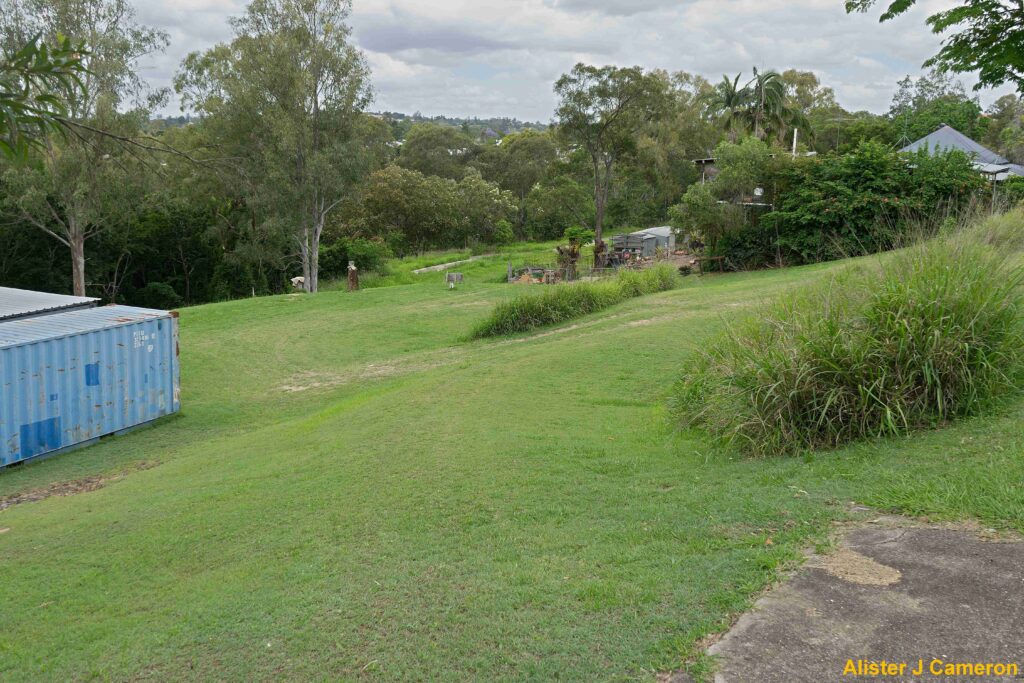

FURTHER ALONG: LOOKING SOUTH-WEST ALONG THE ALLIGNMENT 2017 Photo: Alister J Cameron

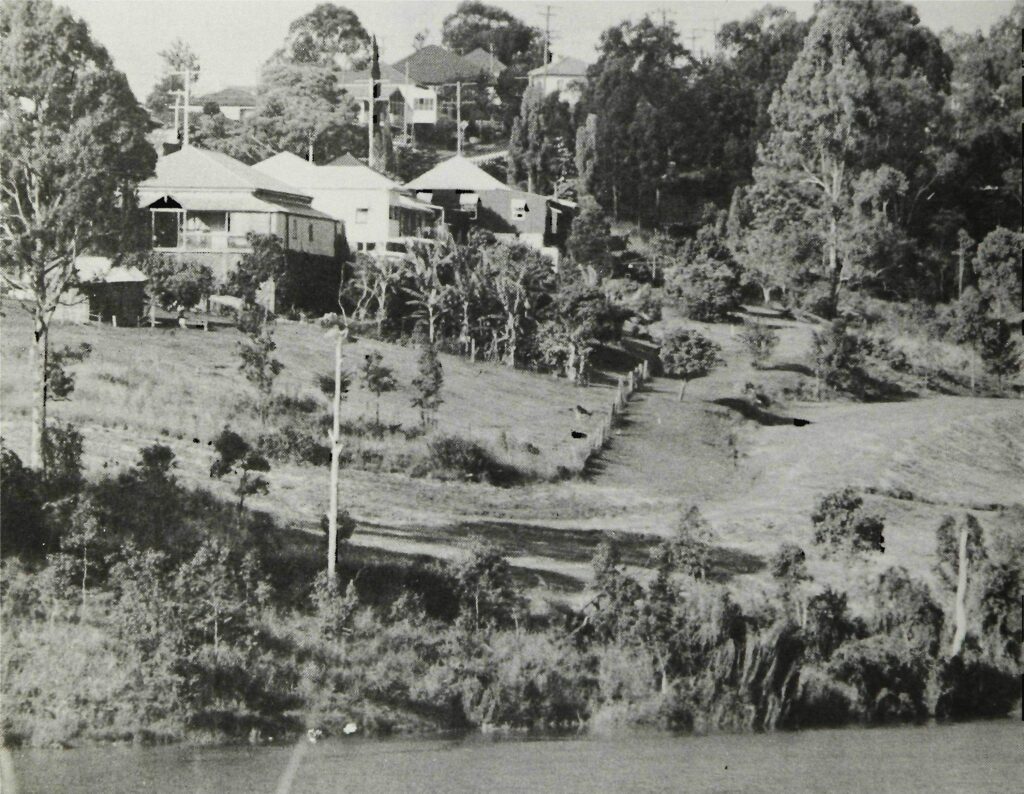

PHOTO TAKEN FROM FAR SIDE OF BREMER LOOKING NORTH-EAST 1979 Allignment is just to the right of the property boundary. Nothing remains of the coal shoots at the river. "Coal in Qld" The First Fifty Years R.L. Whitmore University of Qld Press 1981, p126

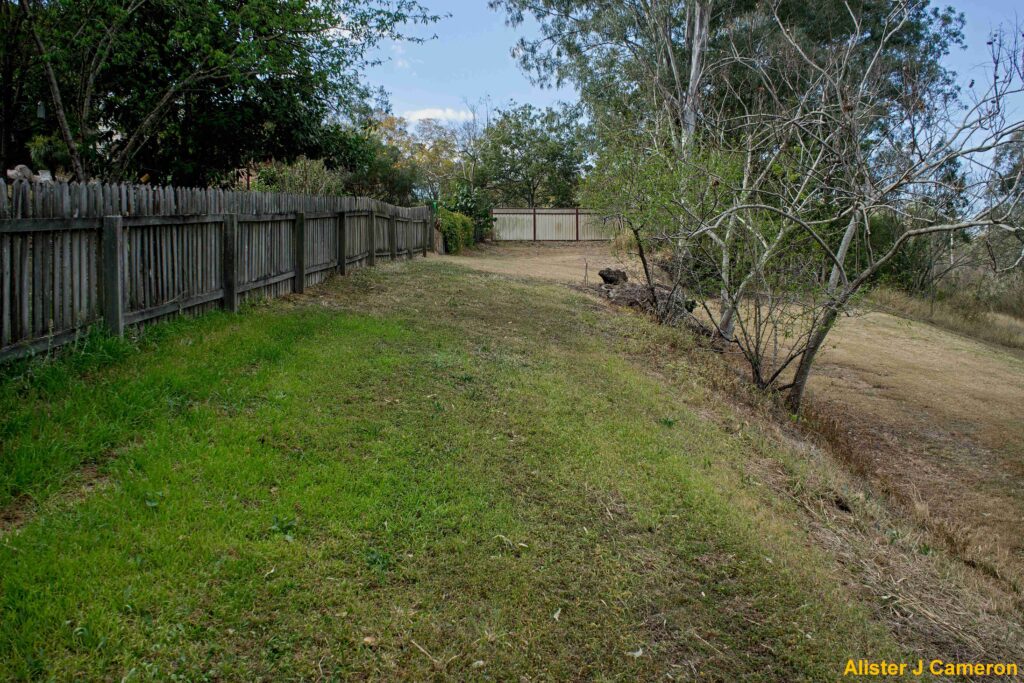

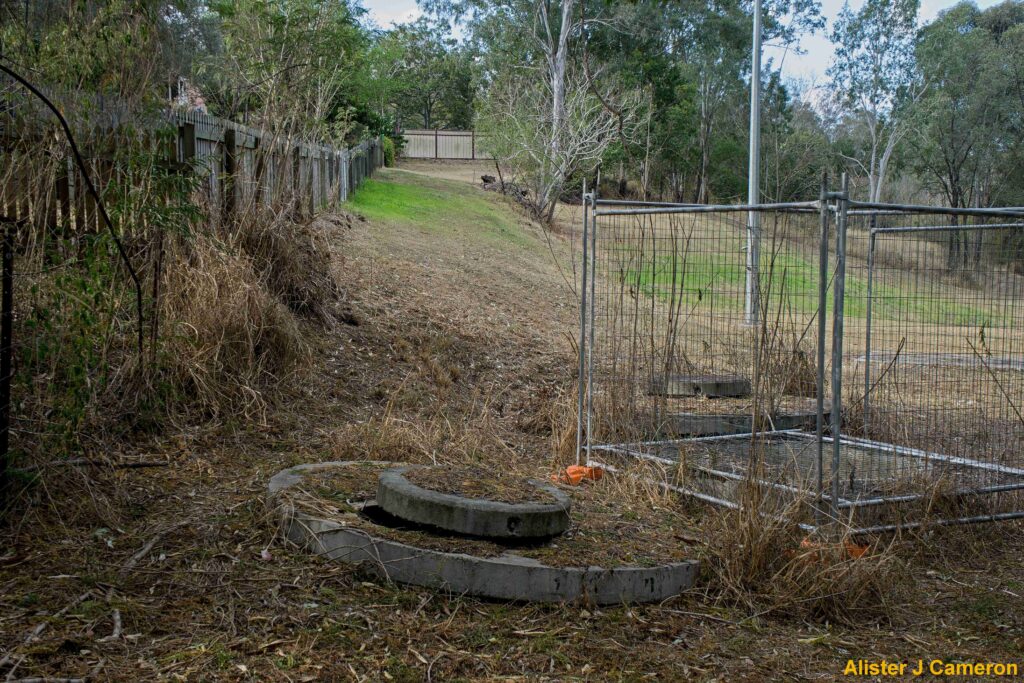

SIMILAR VIEW, BUT CLOSER 2019 Photo: Alister J Cameron
A CLOSEUP OF THE UPPER SECTION OF FORMER VIEW 2019 Embankment is quite distinct at this stage. Photo: Alister J Cameron

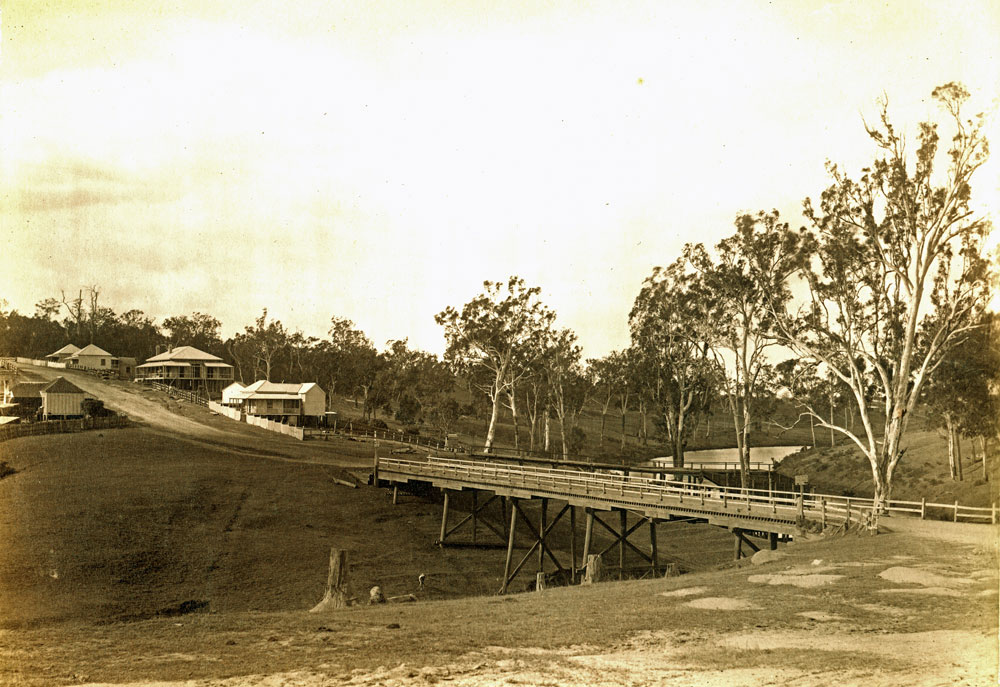

COAL SHOOTS AT MOUTH OF TIVOLI CREEK c1885 Can be seen just behind the road bridge (Tantivy Street) The house with the two chimneys is mine manager & owner Archibald's house. Picture Ipswich

(G) 31E1B Gulland's Tivoli Mine Tramway

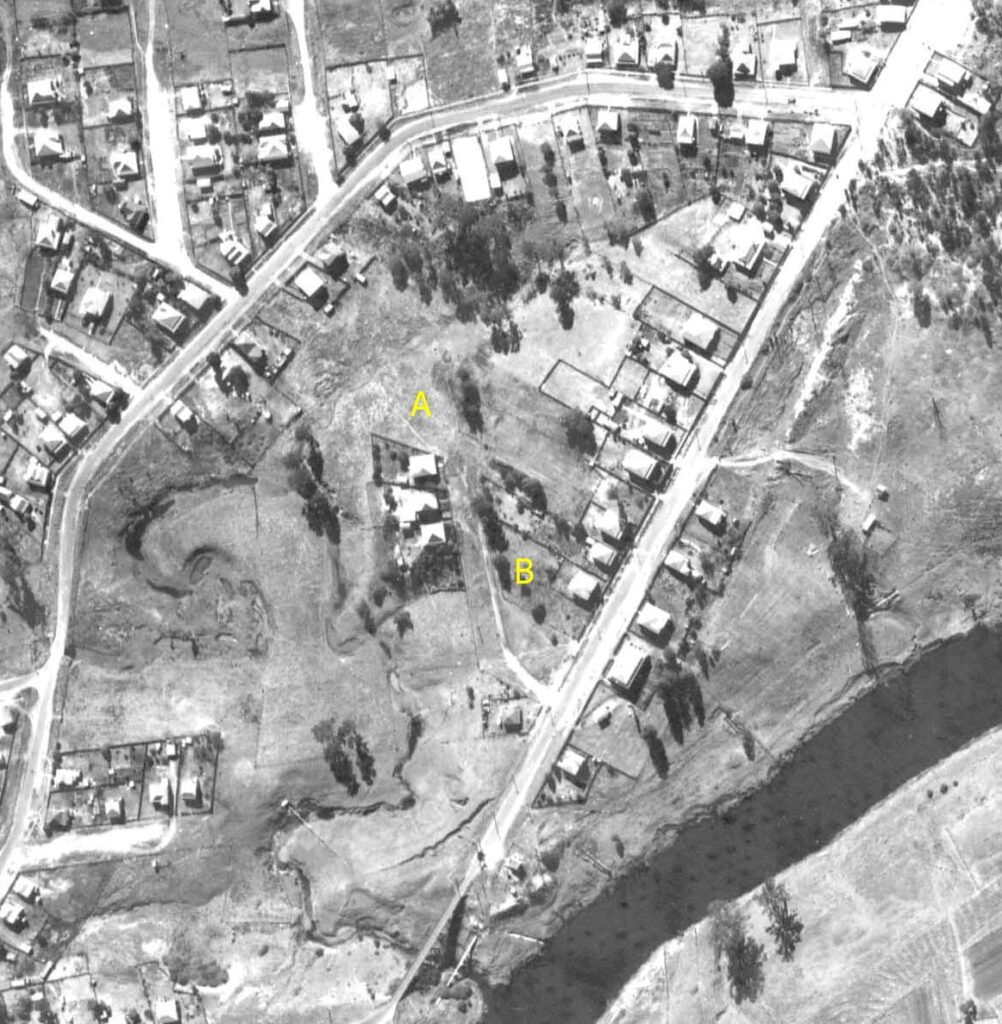

1946 AERIAL PHOTO; GULLAND'S TIVOLI MINE AREA A: Mine area B: Allignment of tramway, now Hastie Street. To the right, on the other side of Tantivy St, the former Old Tivoli Pit Tramway embankment can clearly be seen. RAAF4-35621 The State of Queensland (Department of Natural Resources and Mines) 2016

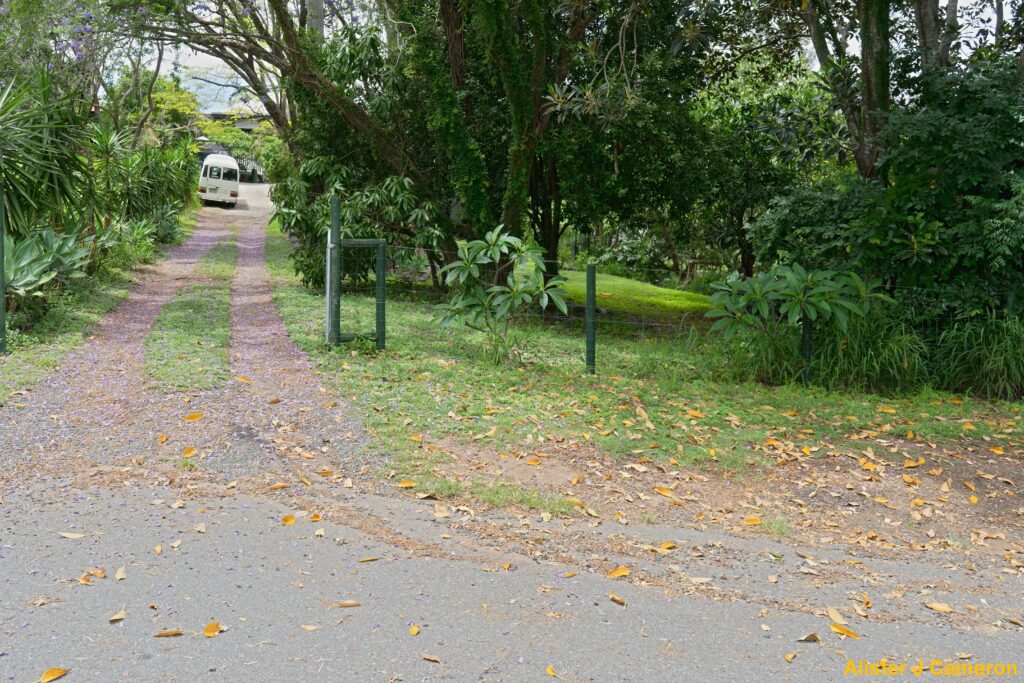

SITE OF TUNNEL ENTRANCE EAST OF CUL DE SAC AT END OF HASTIE STREET 2017 Area of lawn to right of driveway. Photo: Alister J Cameron

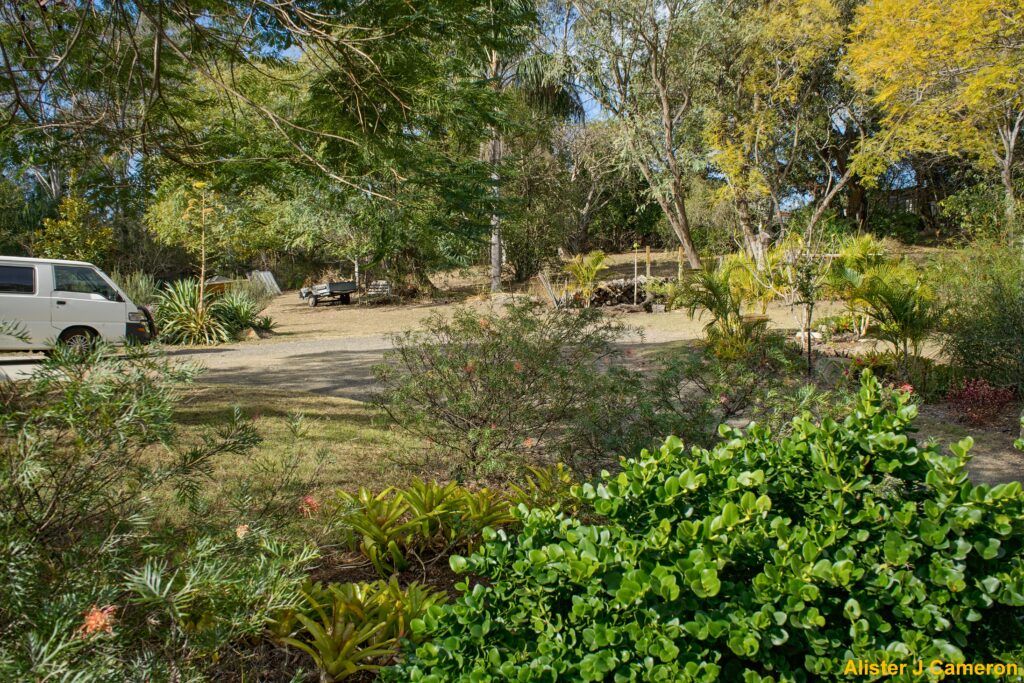

FORMER MINE AREA LOOKING NORTH OF CUL DE SAC 2019 Photo: Alister J Cameron
FORMER MINE AREA LOOKING NORTH-WEST OF CUL DE SAC 2019 Photo: Alister J Cameron

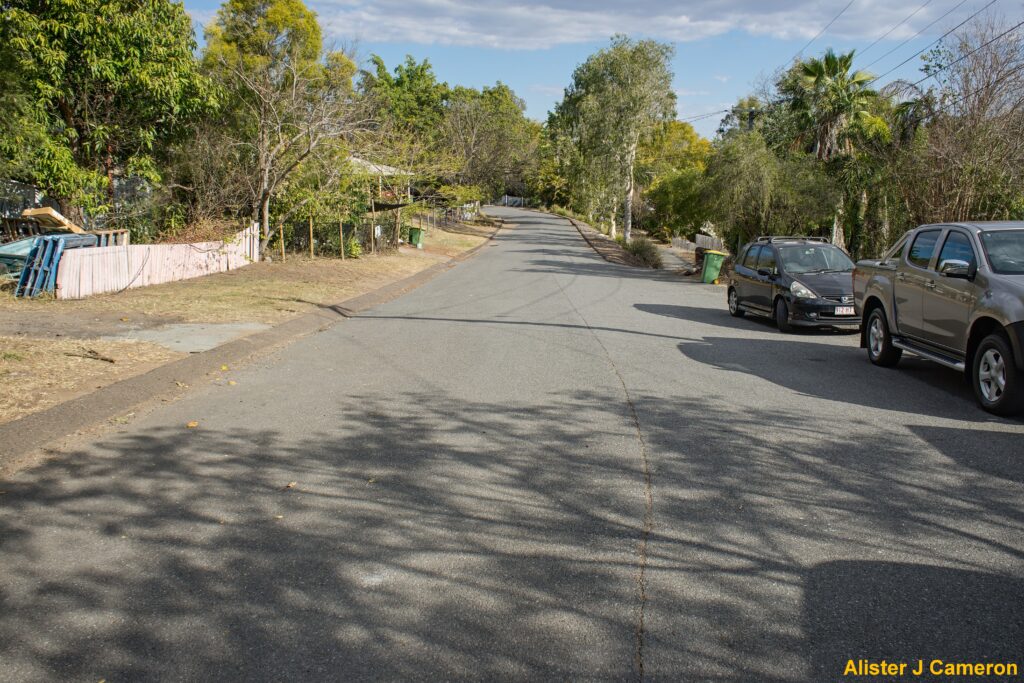

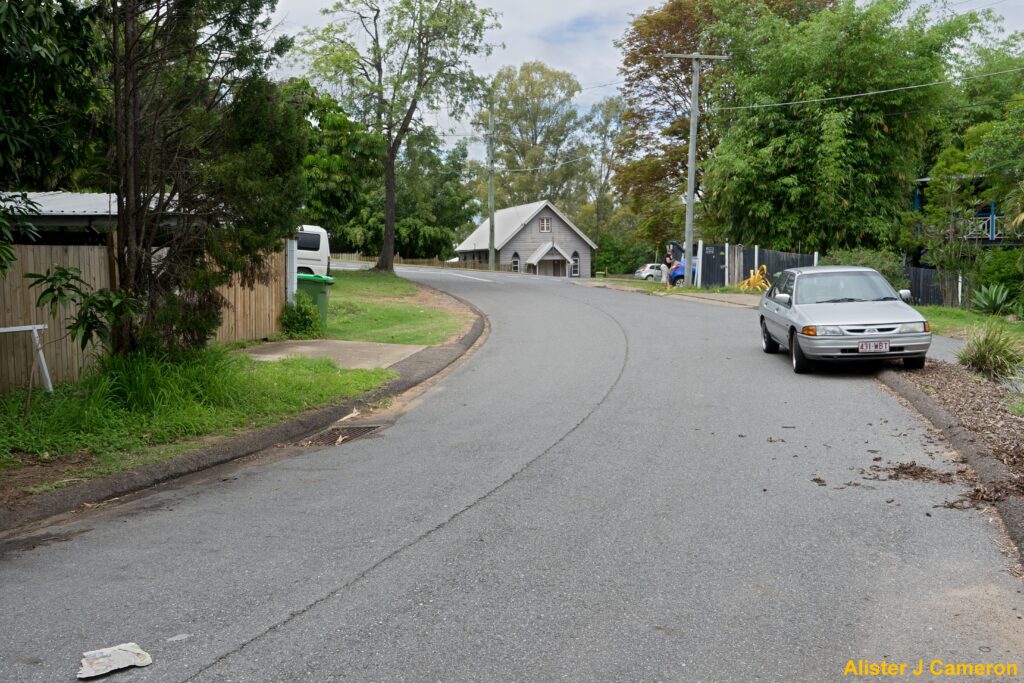

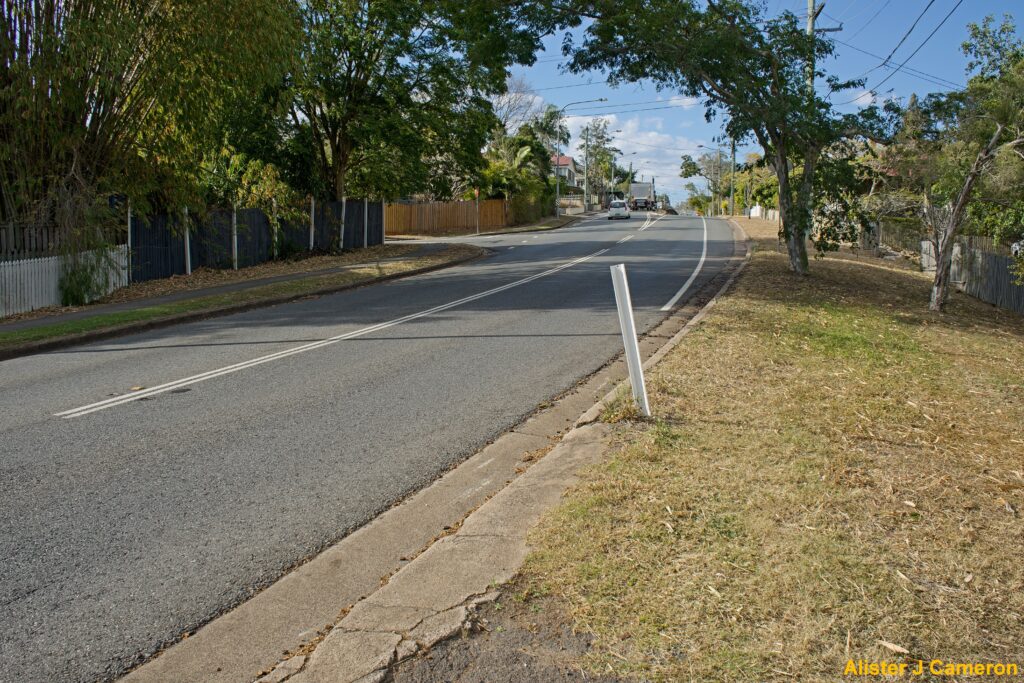

LOOKING BACK SOUTH ALONG HASTIE ST ALONG FORMER ALLIGNMENT 2019 Photo: Alister J Cameron

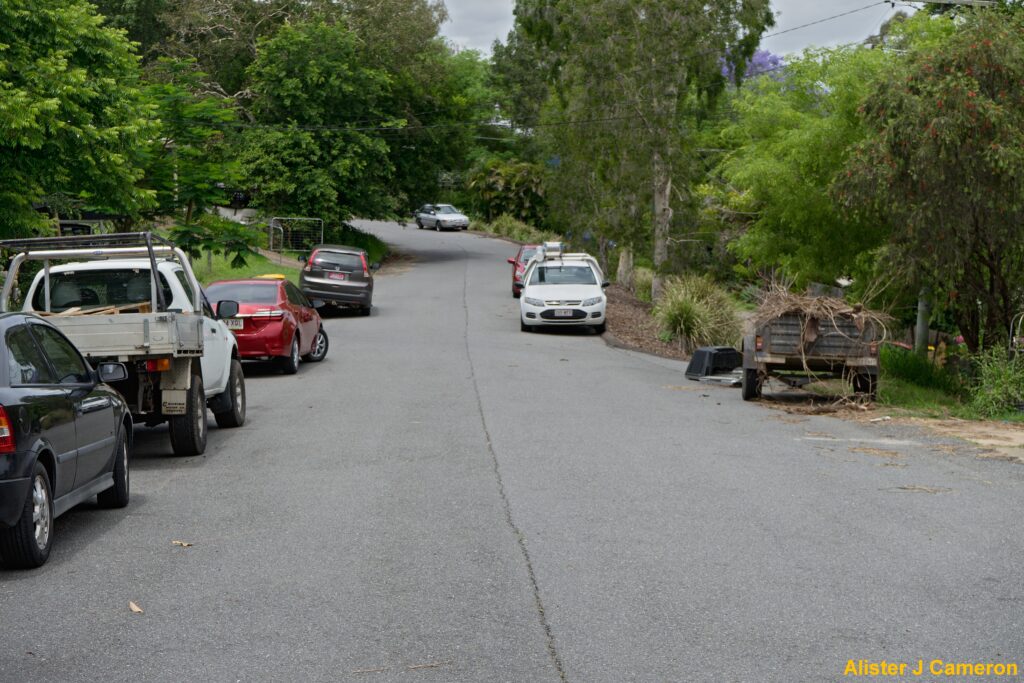

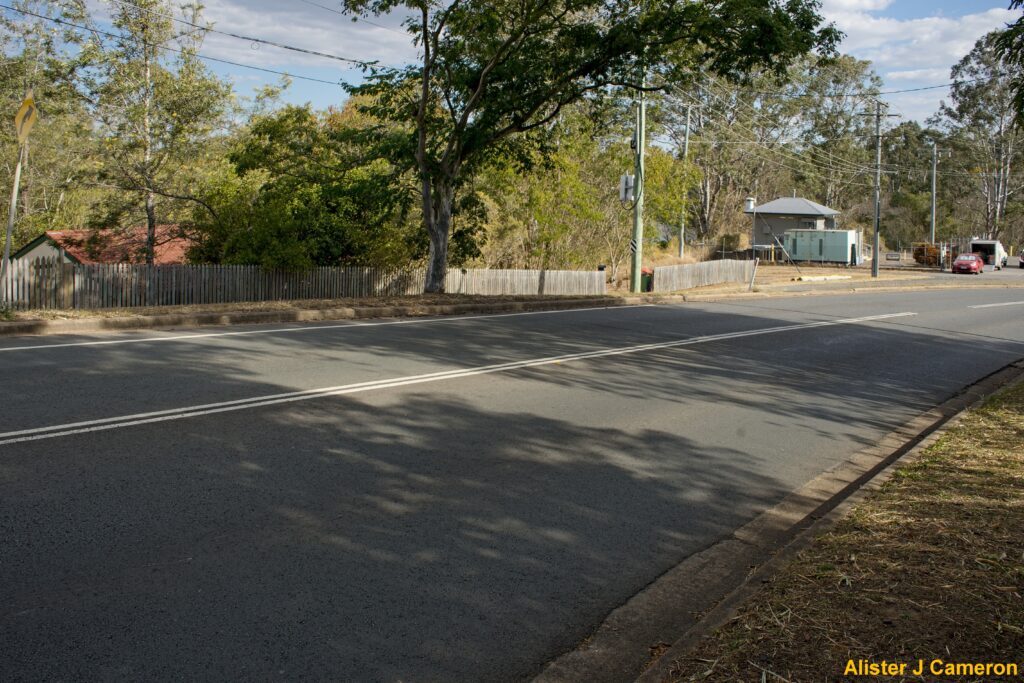

FURTHER SOUTH ALONG STREET 2017 Photo: Alister J Cameron

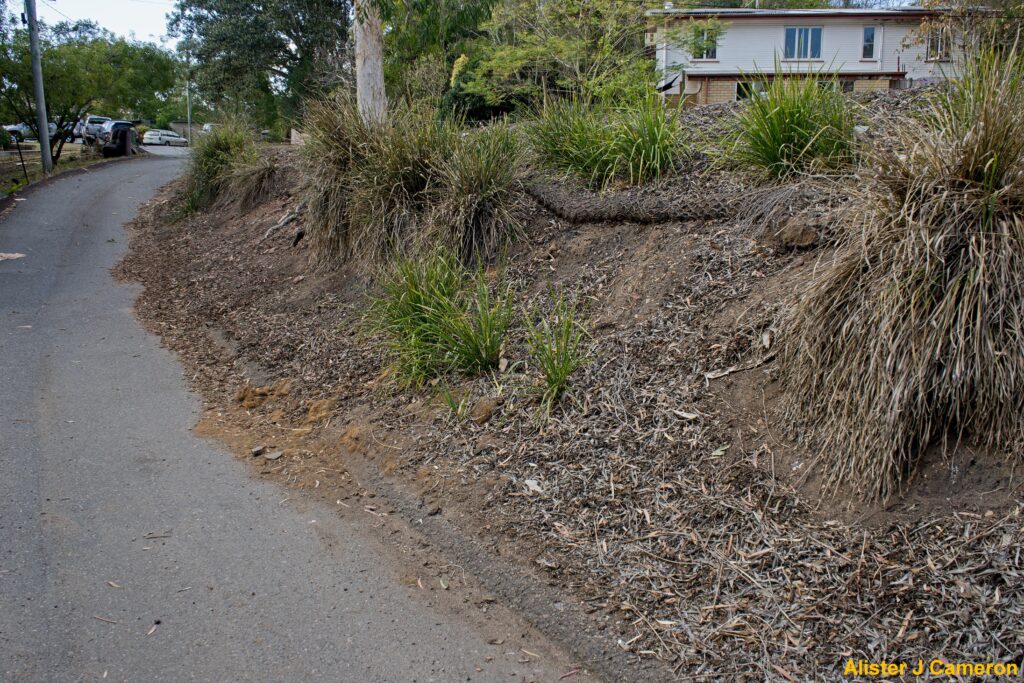

STREET ALLIGNMENT FROM THE SIDE LOOKING NORTH 2019 Possible evidence of former embankment. Photo: Alister J Cameron

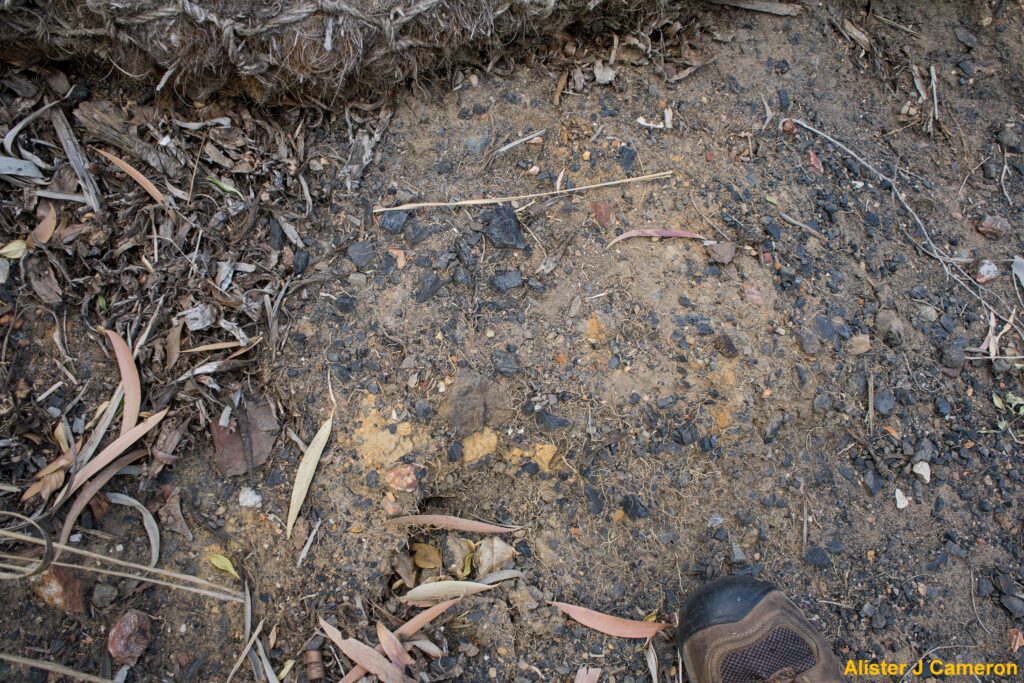

CLOSEUP OF EMBANKMENT 2019 Shows evidence of coal-coalstone. Photo: Alister J Cameron
HASTIE STREET AS IT APPROACHES TANTIVY STREET 2017 Photo: Alister J Cameron
TANTIVY STREET INTERSECTION LOOKING NORTH-EAST 2019 Photo: Alister J Cameron
LOOKING SOUTH FROM SAME INTERSECTION TOWARDS SITE OF WHARF 2019 Out of site behind houses. Photo: Alister J Cameron

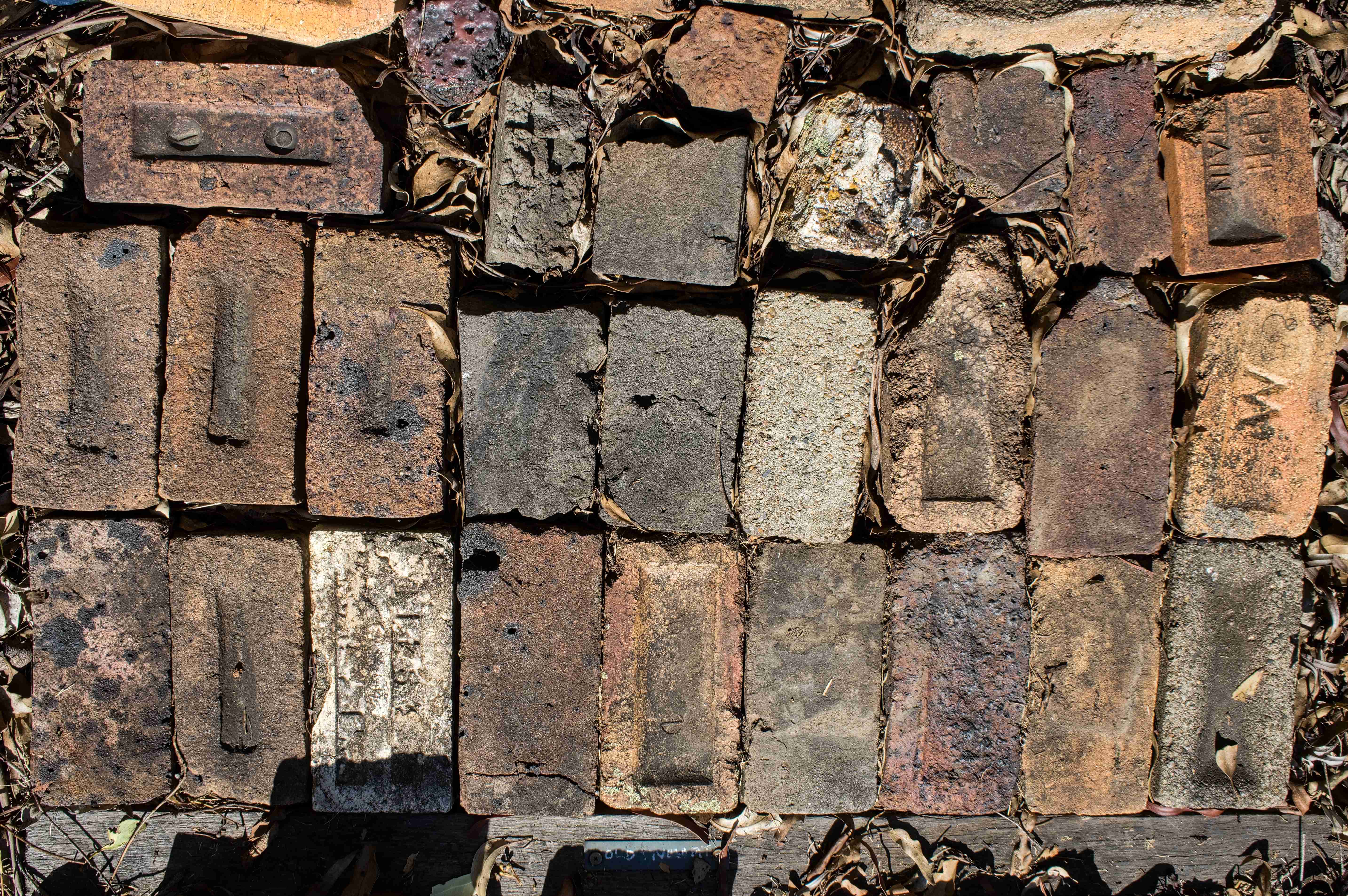

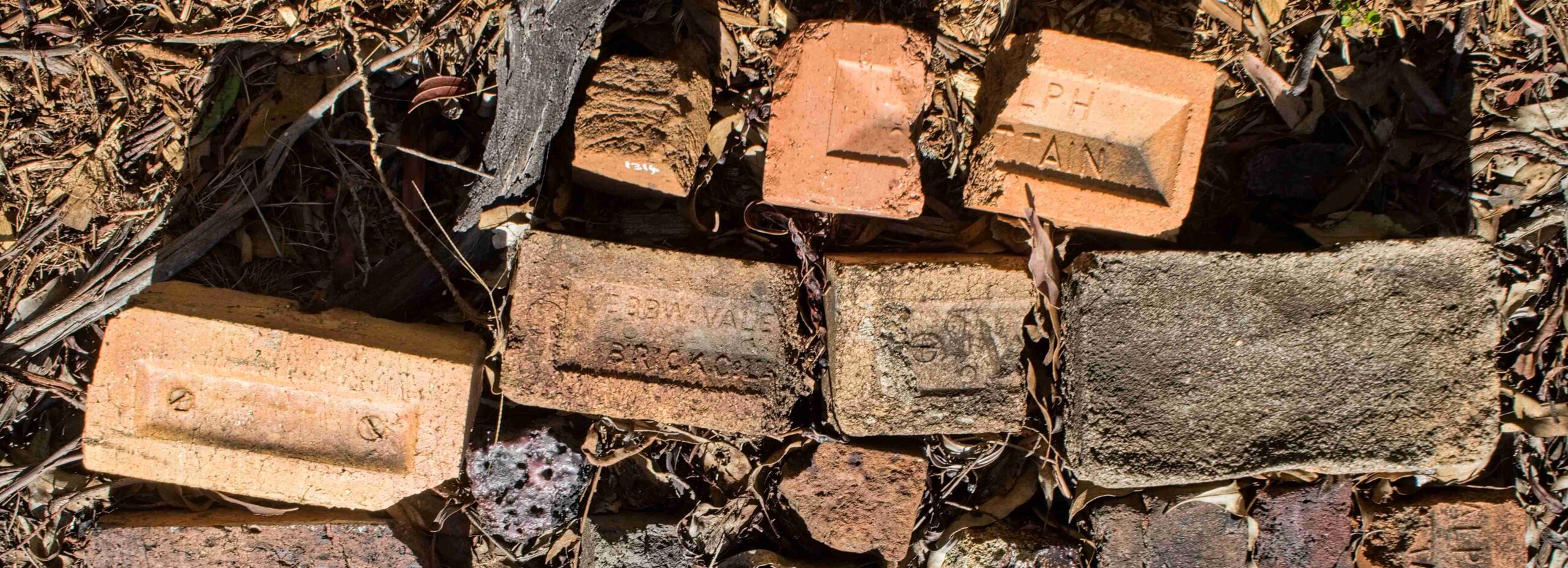

BRICK ARTEFACTS FROM THE
OLD TIVOLI PIT TRAMWAY AREA
