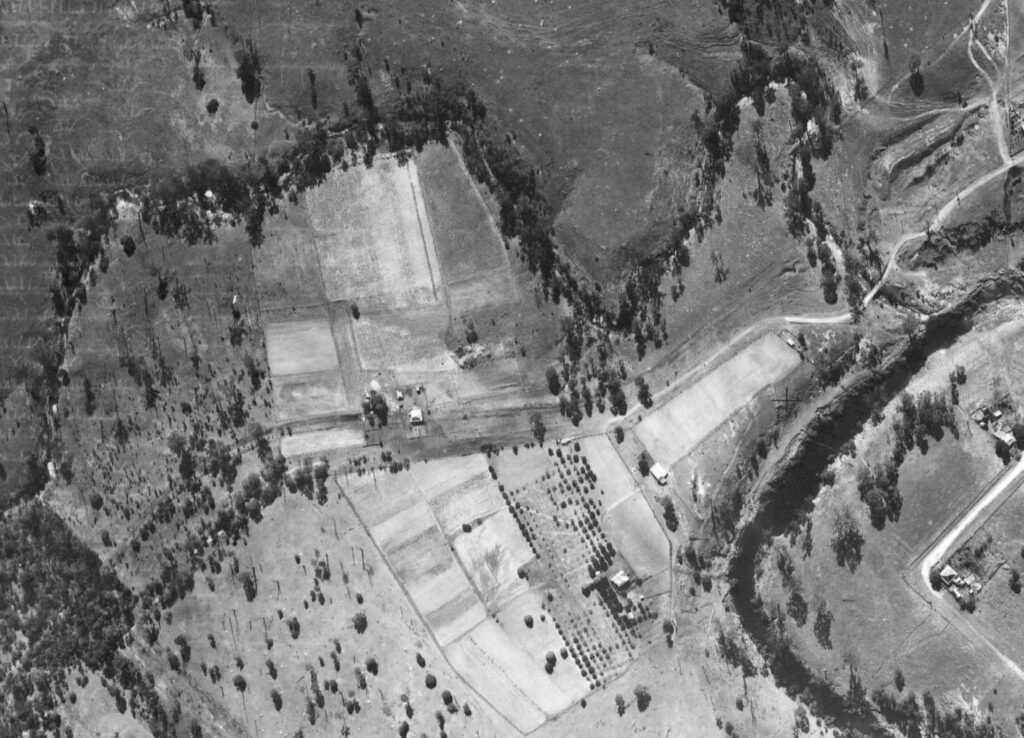

AERIAL PHOTO IRONPOT CREEK SOUTH WEST 1946
Ipswich City Council Series 1946
1 Jan 1946
1:7,200
QImagery
FROM ABOVE: IRON POT CREEK SOUTH-WEST
From right to left: Iron Pot Creek Bridge (now gone), Log Culvert (now gone), Grammar School Sports Ground.
Underlay: Qld Globe (Ausmap)

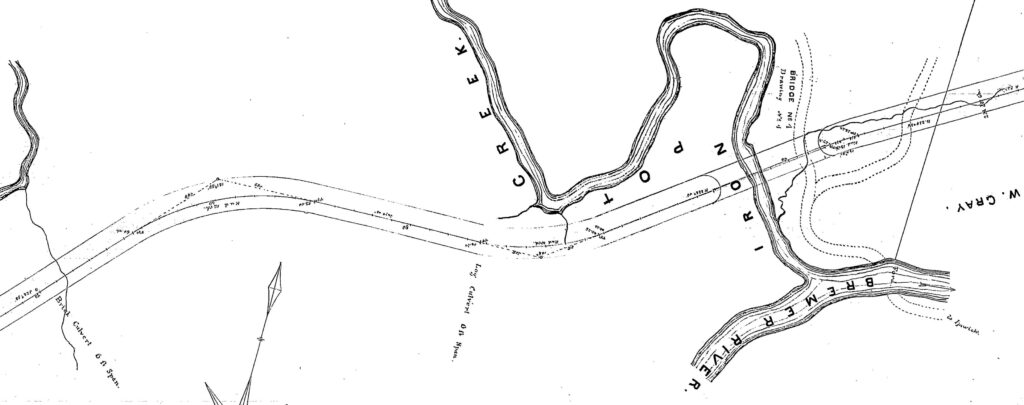

WORKING PLAN 1863
Southern & Western Railway
Section No.1 1st Division Contract No.1
General Plan
A Fitzgibbon
29 December 1863
Source: Qld Railways Archives

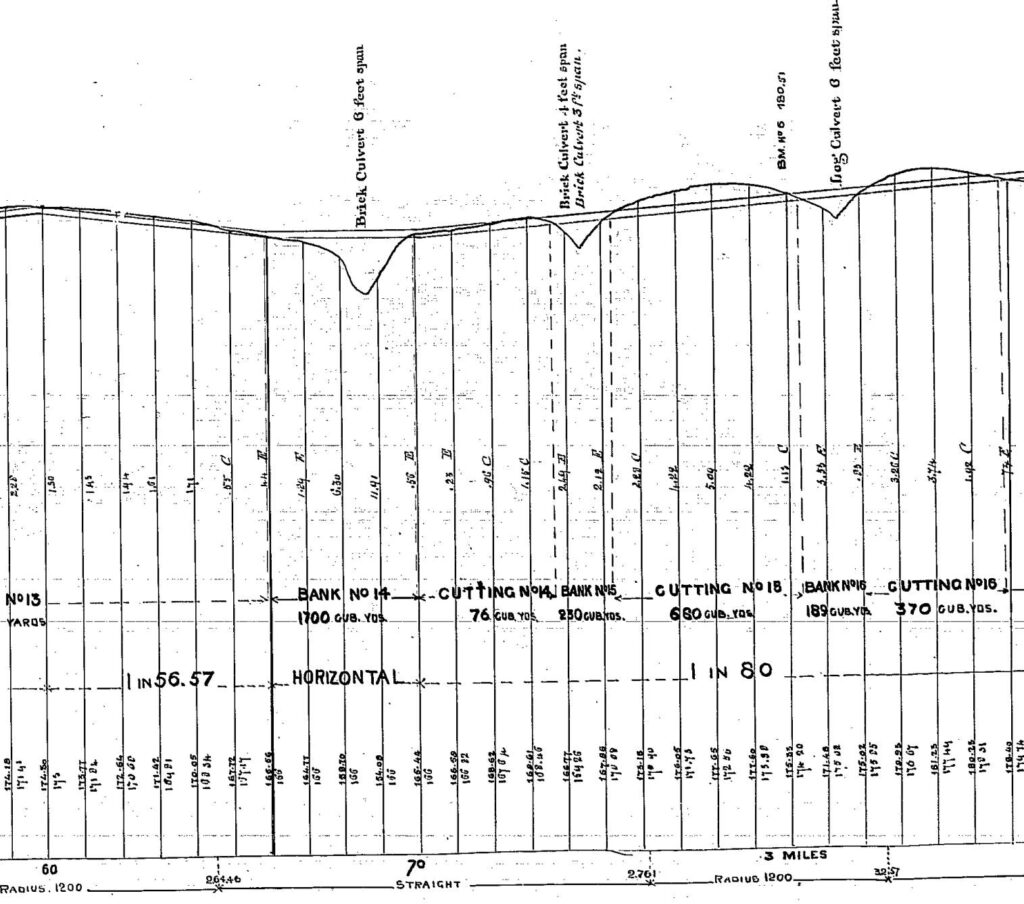

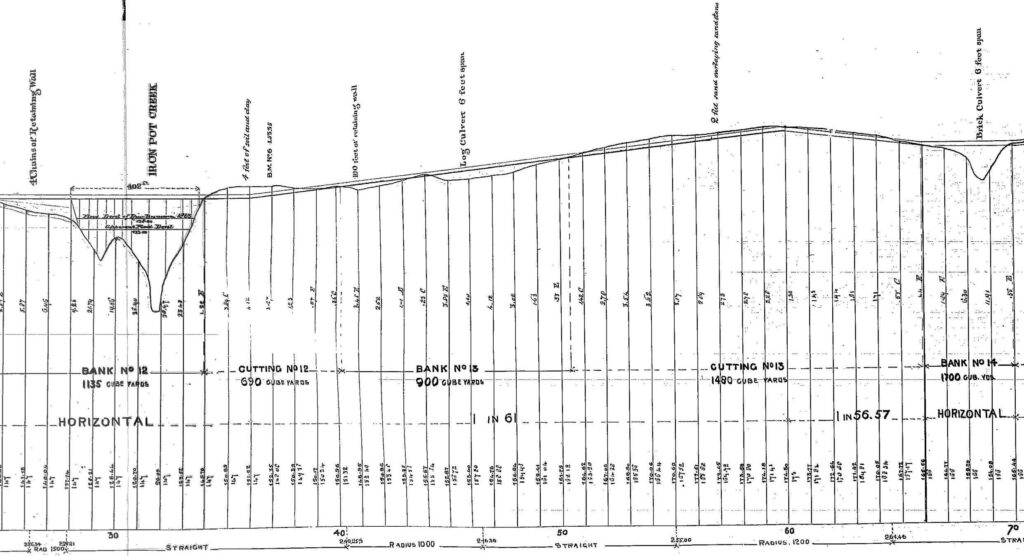

RAILWAY SECTION 1863
Note: top of map faces south so order of features is in reverse.
Southern & Western Railway
Section No.1 1st Division Contract No.1
General Plan
A Fitzgibbon
29 December 1863
Source: Qld Railways Archives

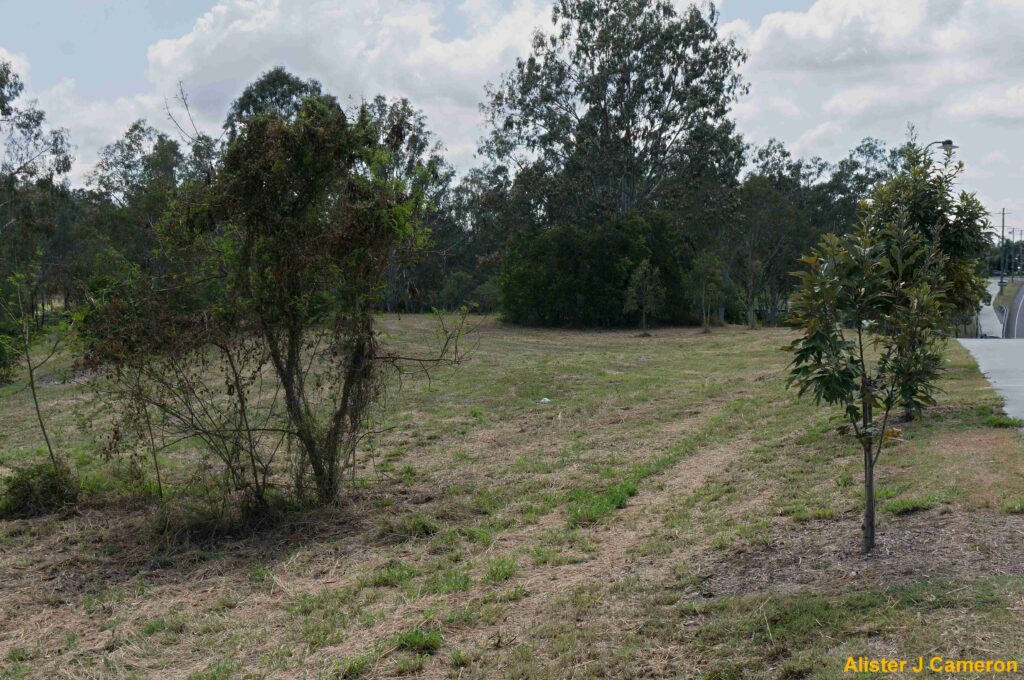

RAIL ALLIGNMENT SOUTH-WEST OF IRON POT CREEK 2015
Approximately from position of sapling on left and bright green shrub in middle of gums in the distance.
Photo: Alister J Cameron

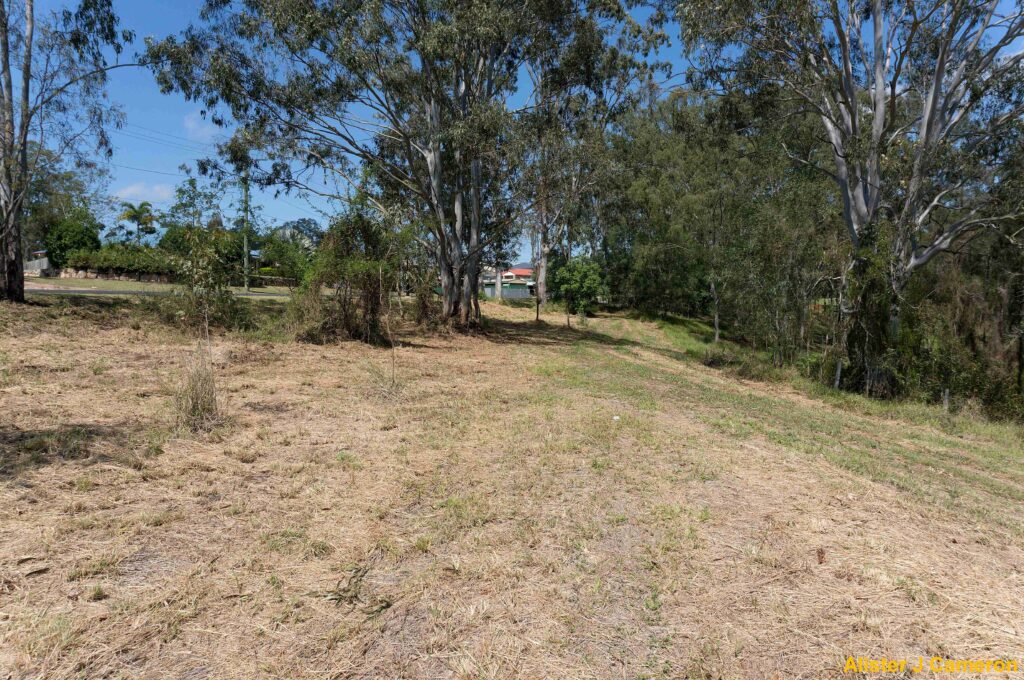

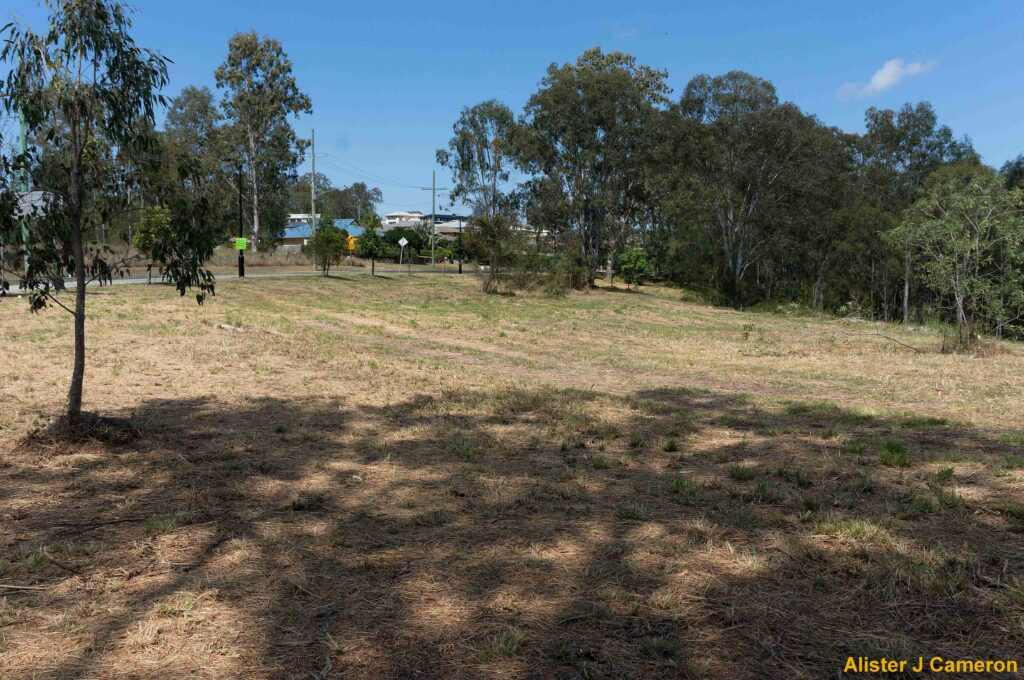

FORMER RAIL ALLIGNMENT LOOKING TOWARDS GRAMMAR SCHOOL PROPERTY 2015
Photo: Alister J Cameron

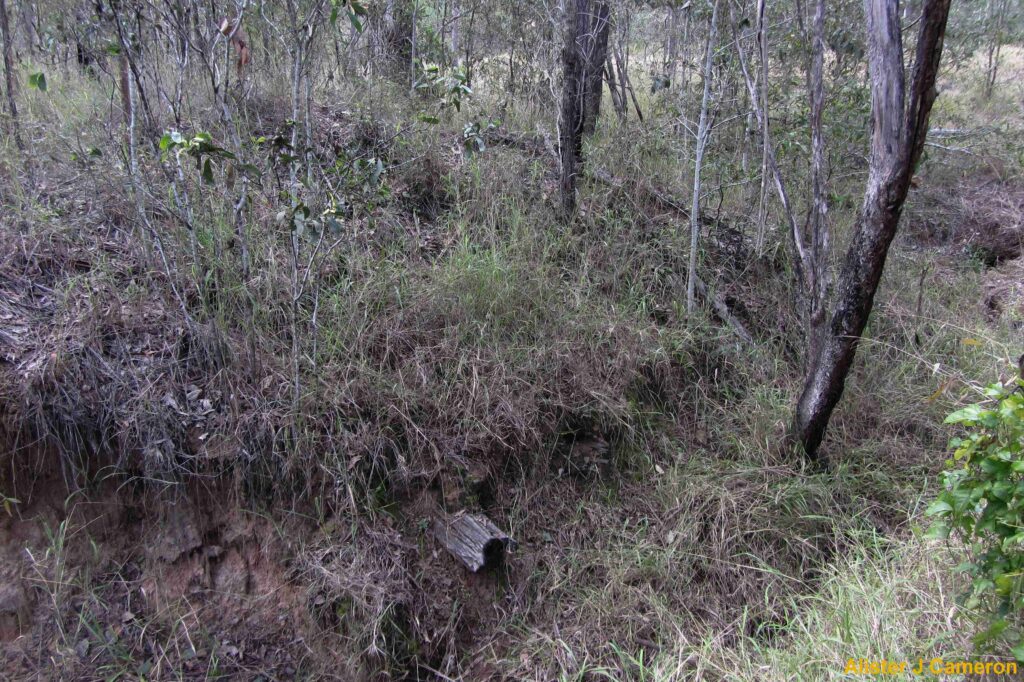

LOOKING NORTH-EAST BACK ALONG THE ALLIGNMENT 2015
Foreground is site of a log culvert (6 foot span). Nothing remains.
Grove of sapplings and bushes is approximately the position of the bridge.
Photo: Alister J Cameron

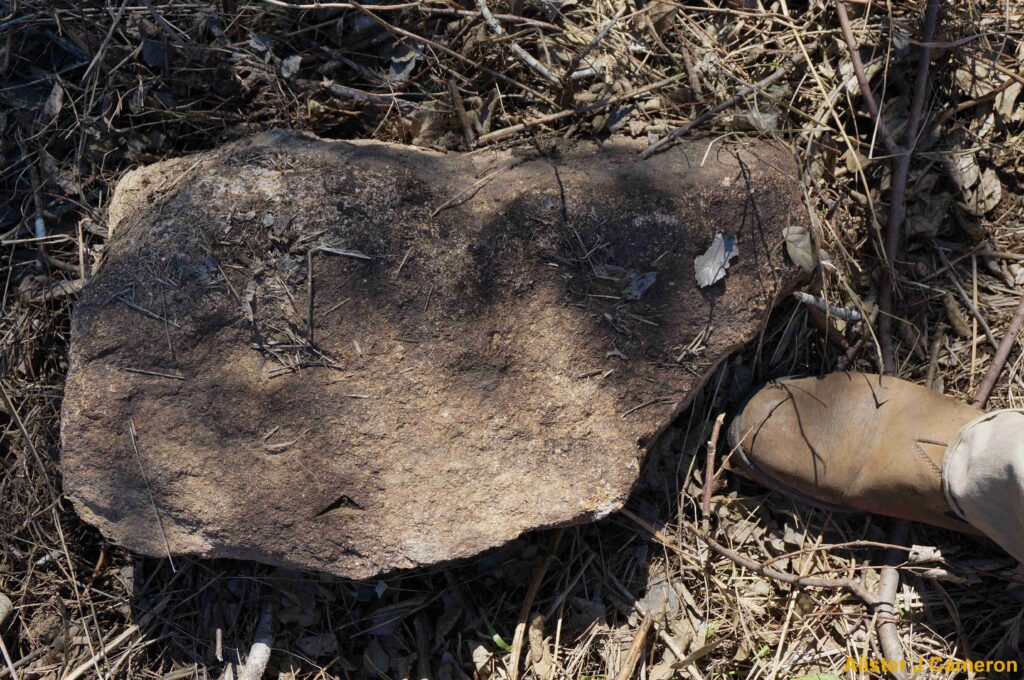

LARGE IRREGULARLY SHAPED SANDSTONE ROCK 2015
Found down-slope from this section of allignment.
Note distinct mason's mark.
Photo: Alister J Cameron

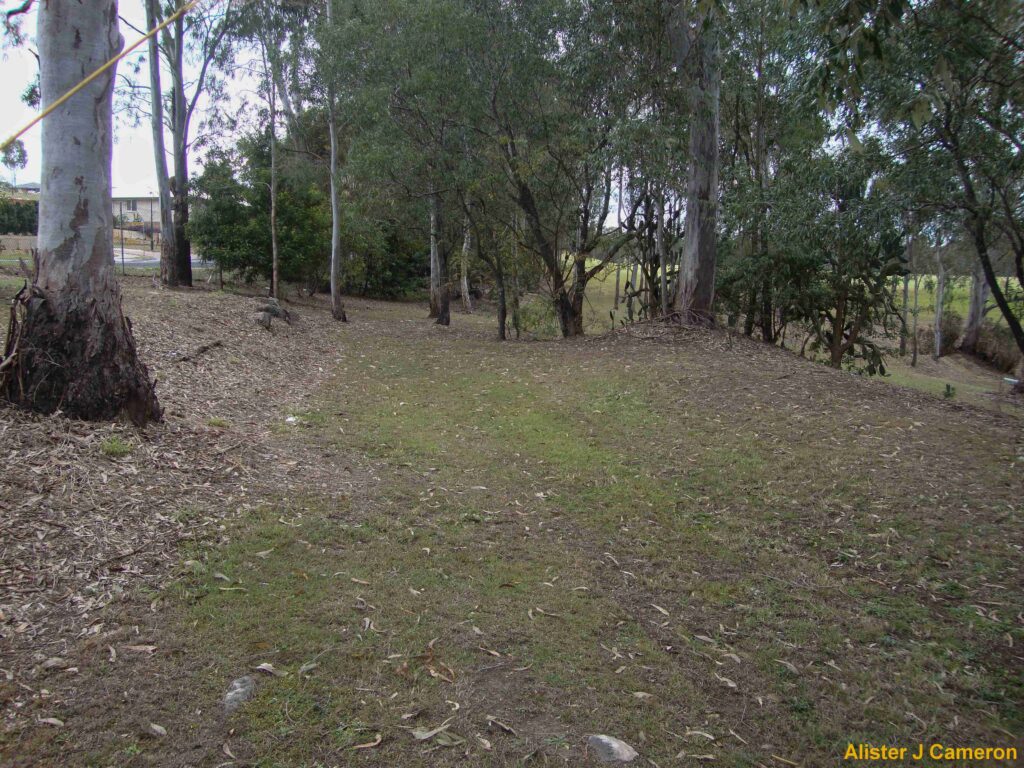

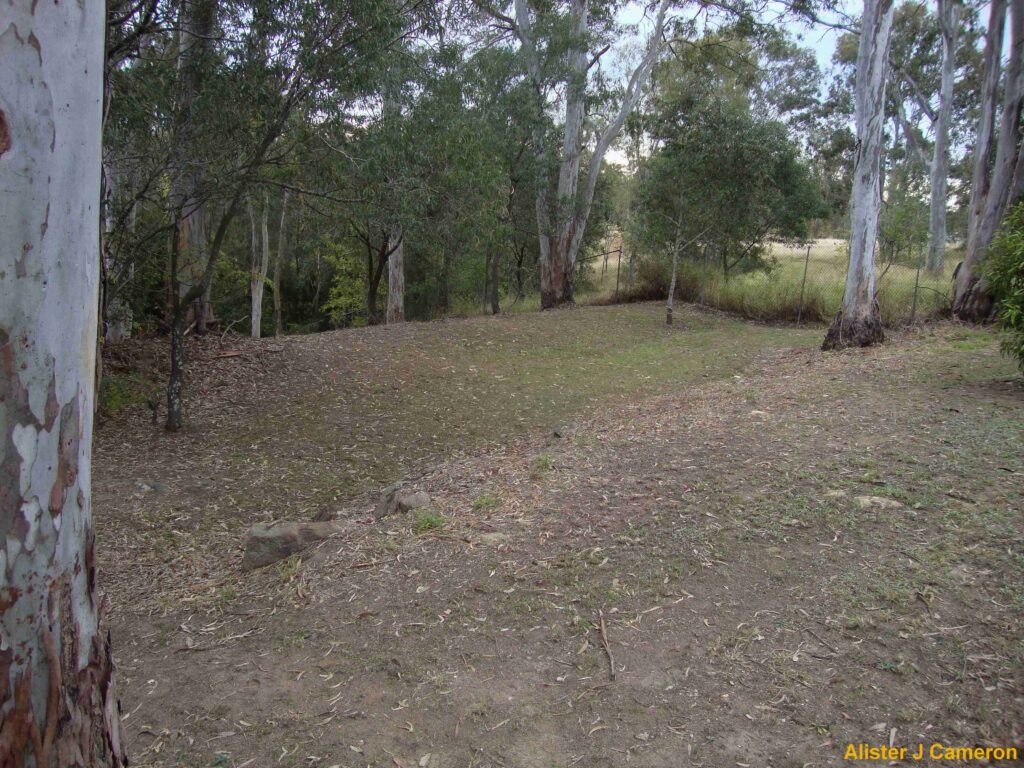

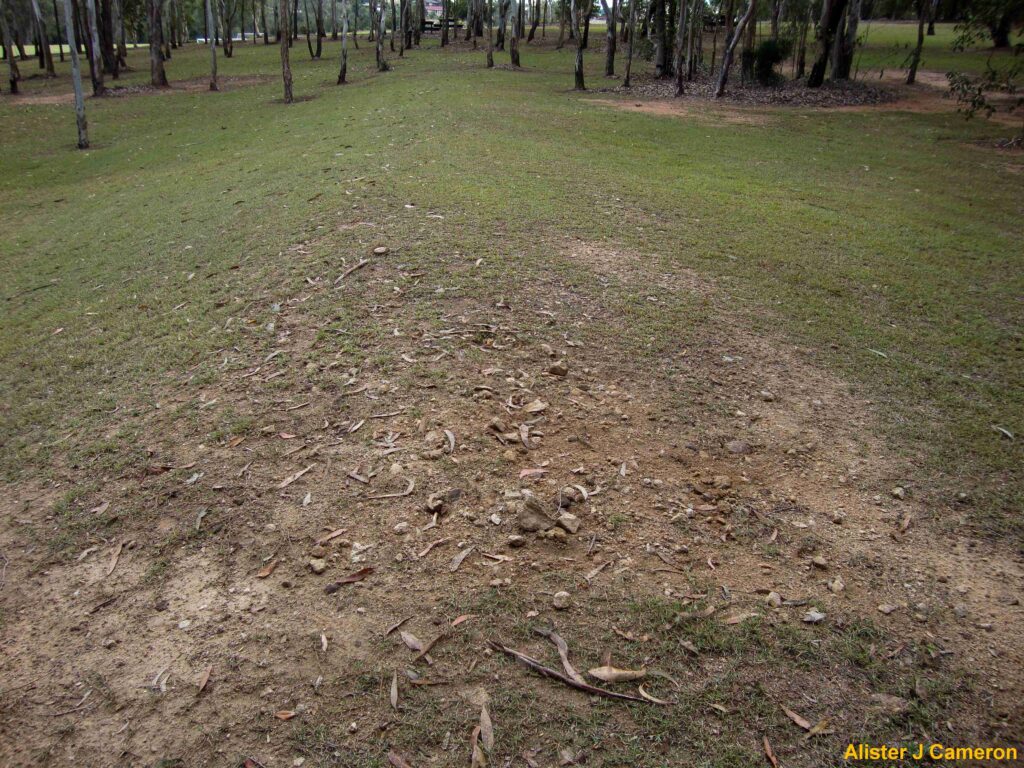

SHALLOW CUTTING ON EASTERN EDGE OF GRAMMAR SCHOOL PROPERTY 2010
Line ran directly west at this point.
Photo: Alister J Cameron
CUTTING LOOKING DIRECTLY WEST 2010
From this point onwards for a considerable distance allignment has been completely obliterated by later earthworks.
Photo: Alister J Cameron
SITE OF ALLIGNMENT FURTHER WEST 2013
In distance is a major sports field.
Photo: Alister J Cameron

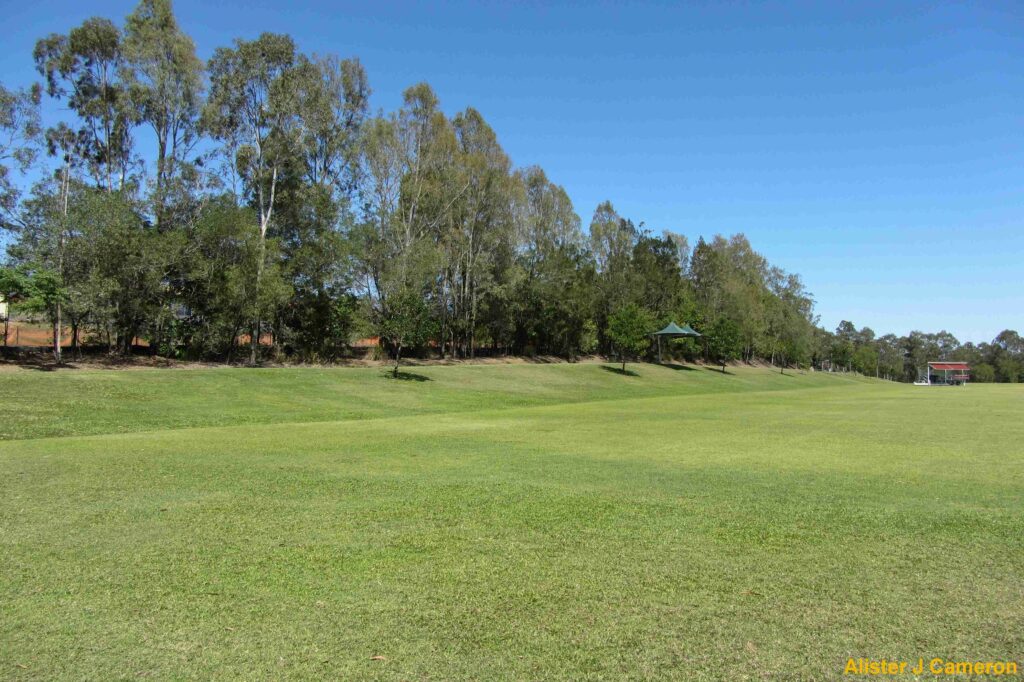

THE SPORTSFIELD 2013
Whole area has been excavated so former topography has completely changed.
Photo: Alister J Cameron
WEST OF SPORTS FIELD: ALLIGNMENT IS AGAIN VISIBLE 2013
Looking west.
Photo: Alister J Cameron
FORMER LINE EMBANKMENT HEADING WEST OUT OF SCHOOL PROPERTY 2013
Looking south-west.
Photo: Alister J Cameron

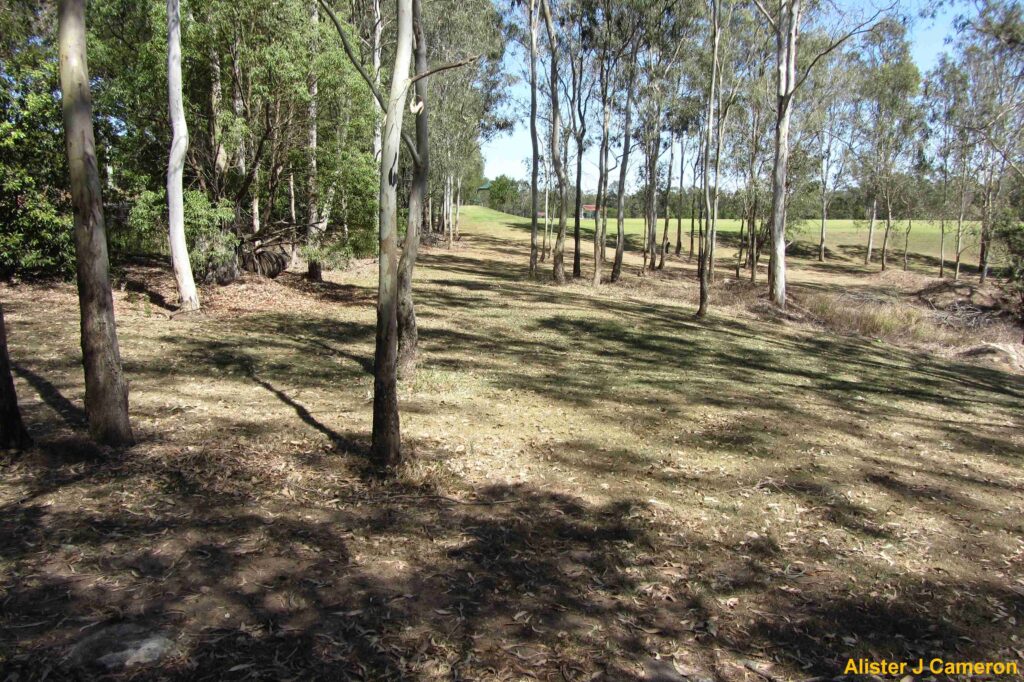

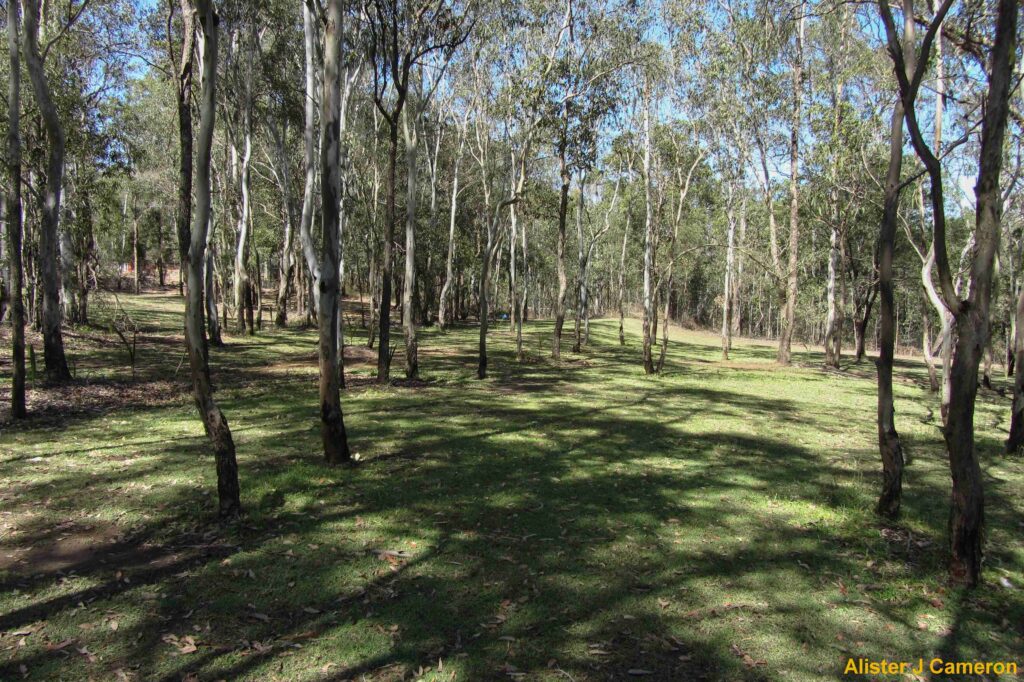

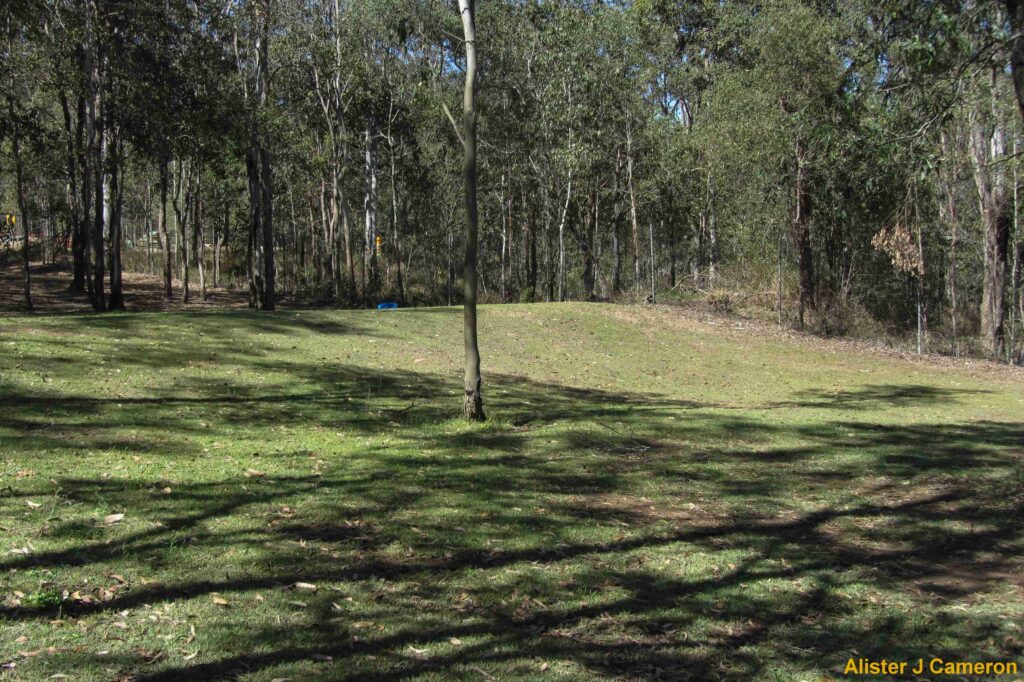

LOOKING BACK EAST FROM BORDER OF SCHOOL PROPERTY 2010

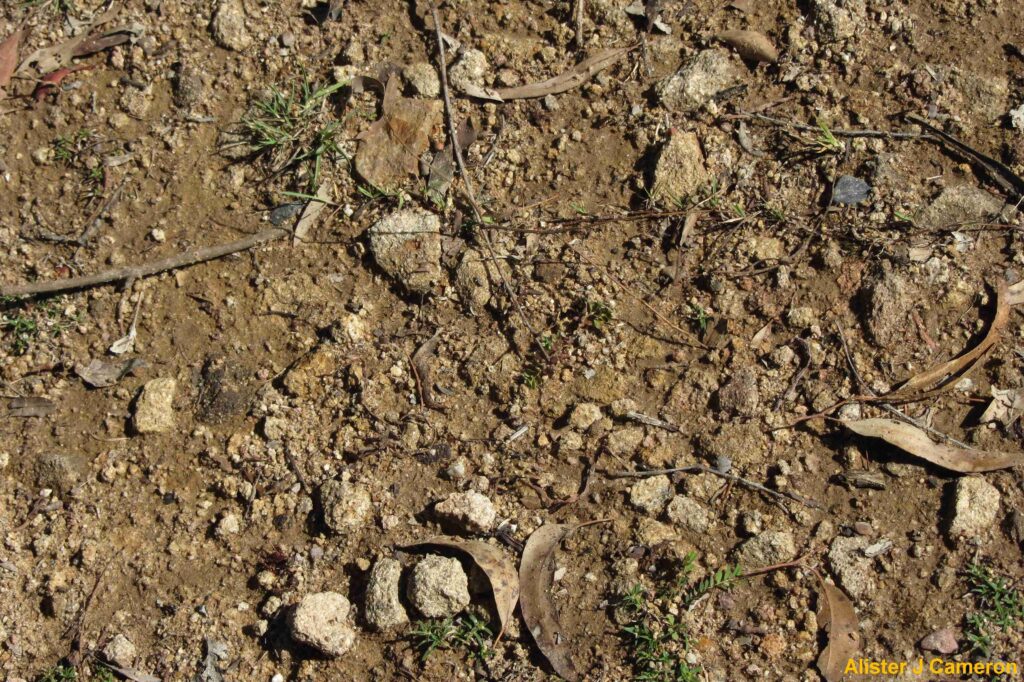

The original sandstone ballast can be clearly seen.
Photo: Alister J Cameron
CLOSEUP OF BALLAST 2013
Photo: Alister J Cameron
Sports Field Western Boundary to Rail Trail Path

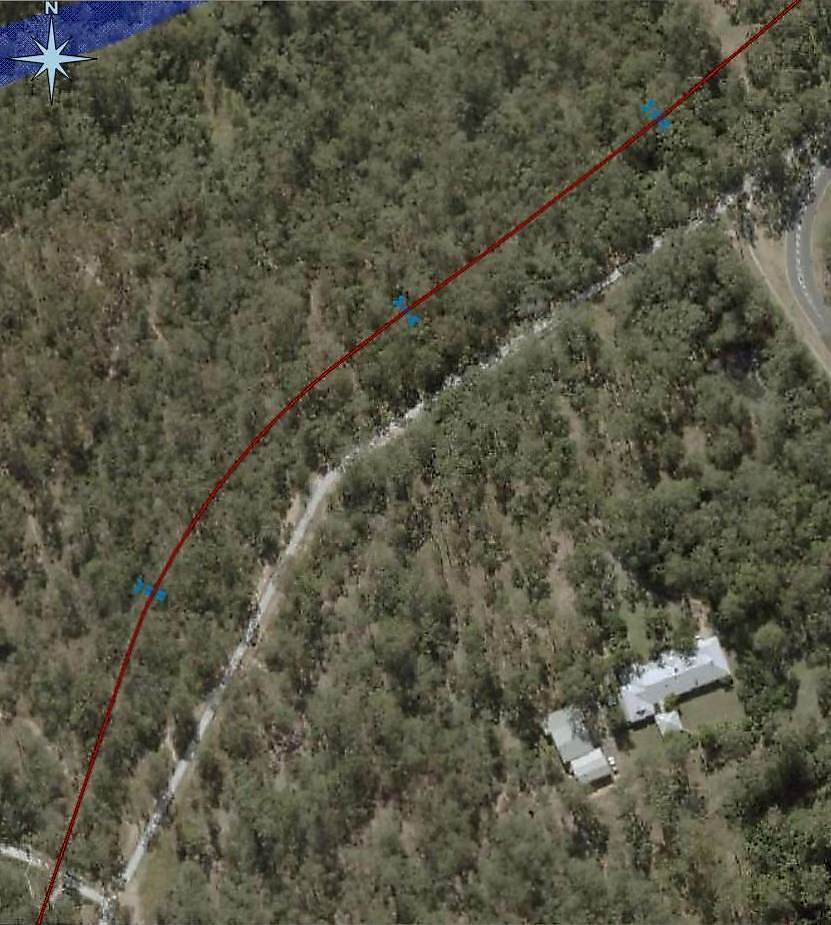

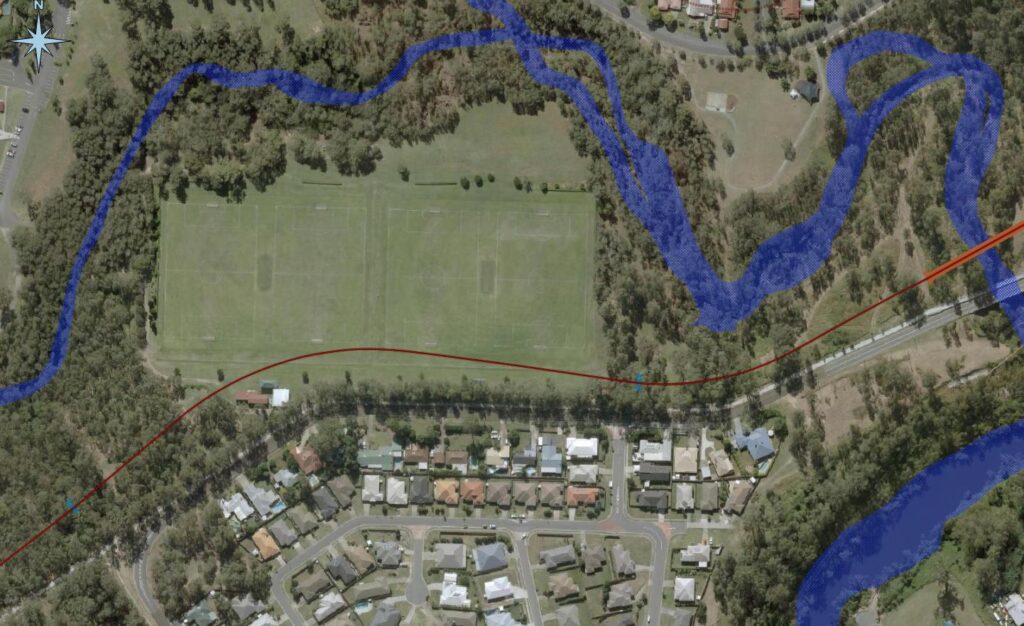

FROM ABOVE; SPORTS FIELD BOUNDARY TO RAIL TRAIL PATH
From right to left: Brick Culvert (mostly intact), Brick Culvert (mainly buried); Log Culvert (entirely missing) & Recent concrete path constructed for Brisbane Valley Rail Trail.
QGIS Vectors: Alister J Cameron
Underlay: Qld Globe (Ausmap)
AERIAL PHOTO 1946
RAAF4-35646
The State of Queensland (Department of Natural Resources and Mines) 2016

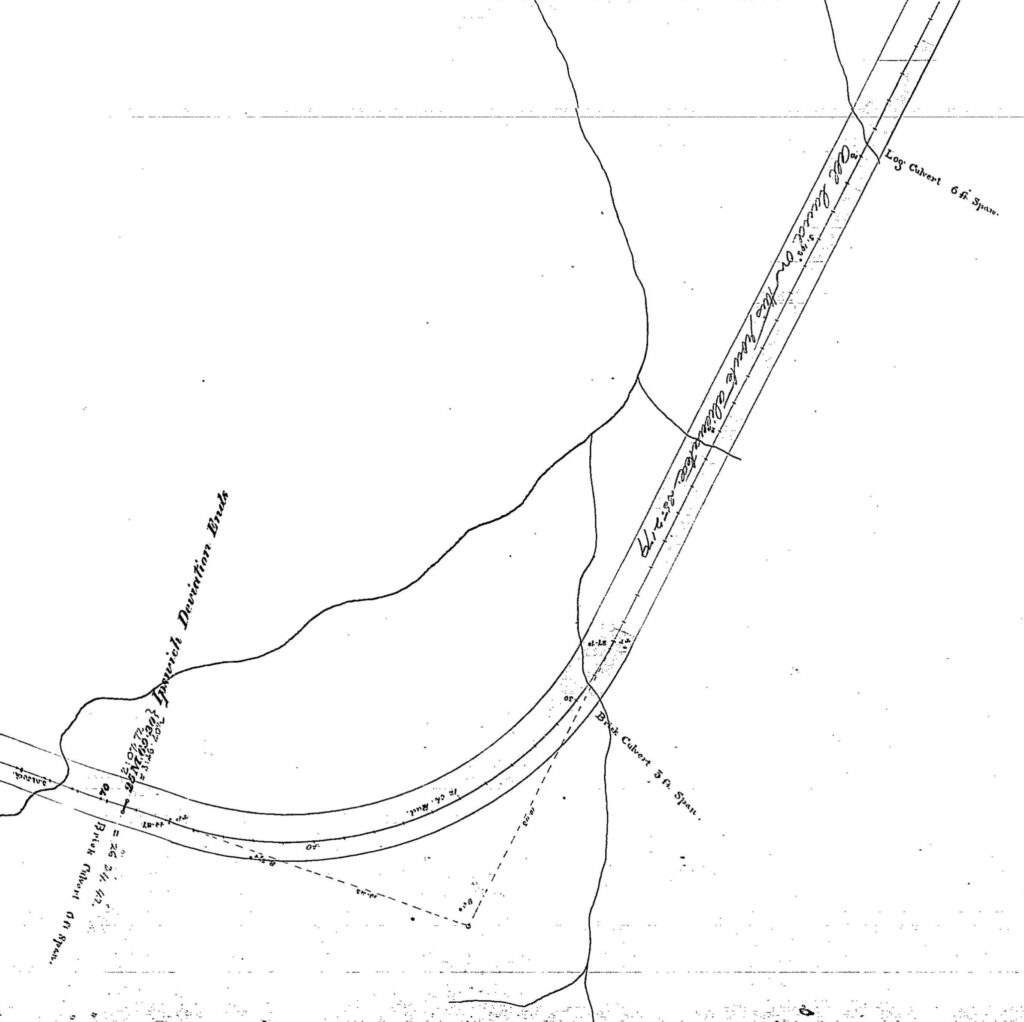

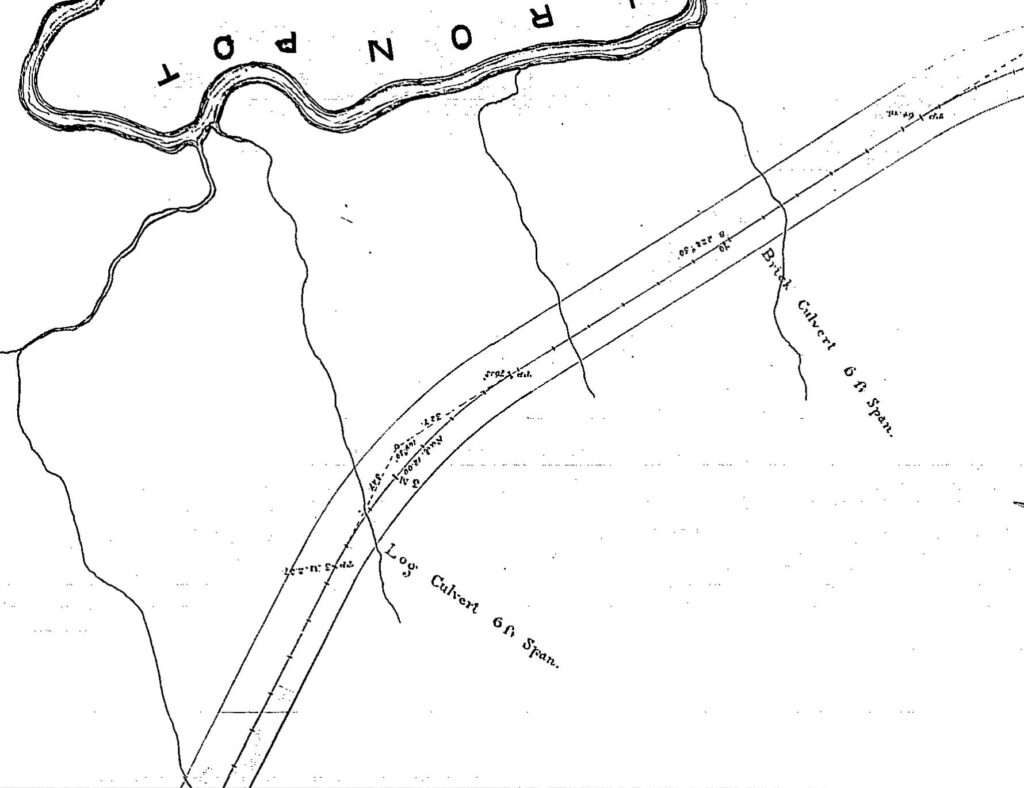

WORKING PLAN 1863
Southern & Western Railway
Section No.1 1st Division Contract No.1
General Plan
A Fitzgibbon
29 December 1863
Source: Qld Railways Archives

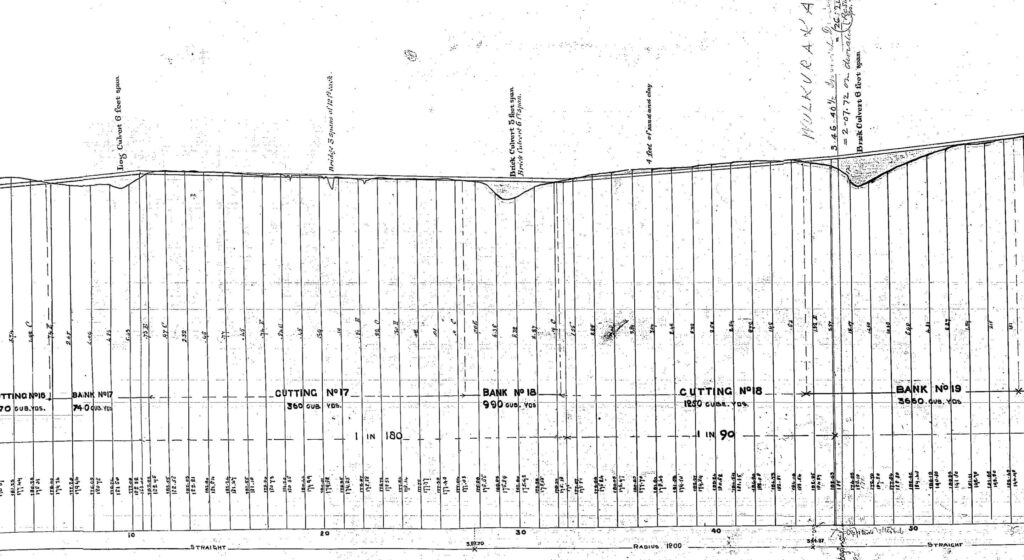

RAILWAY SECTION 1863
Note: top of map faces south so order of features is in reverse.
Southern & Western Railway
Section No.1 1st Division Contract No.1
General Plan
A Fitzgibbon
29 December 1863
Source: Qld Railways Archives
1st Culvert South-West of Sports Field (Brick & Stone 6 feet span)
CULVERT AREA JUST WEST OF SCHOOL PROPERTY 2017
Looking west.
Ranging pole marks where culvert is positioned under embankment.
On right-hand side erosian of culvert portal can clearly seen.
In distance large water pipe crosses the allignment at right angles.
Photo: Alister J Cameron
SAME AREA LOOKING EAST 2017
Pole marks position of culvert.
Pile on left consists of old balast probably excavated as the water pipe was intalled.
Photo: Alister J Cameron
CLOSEUP OF PILE OF BALLAST 2017
Photo: Alister J Cameron

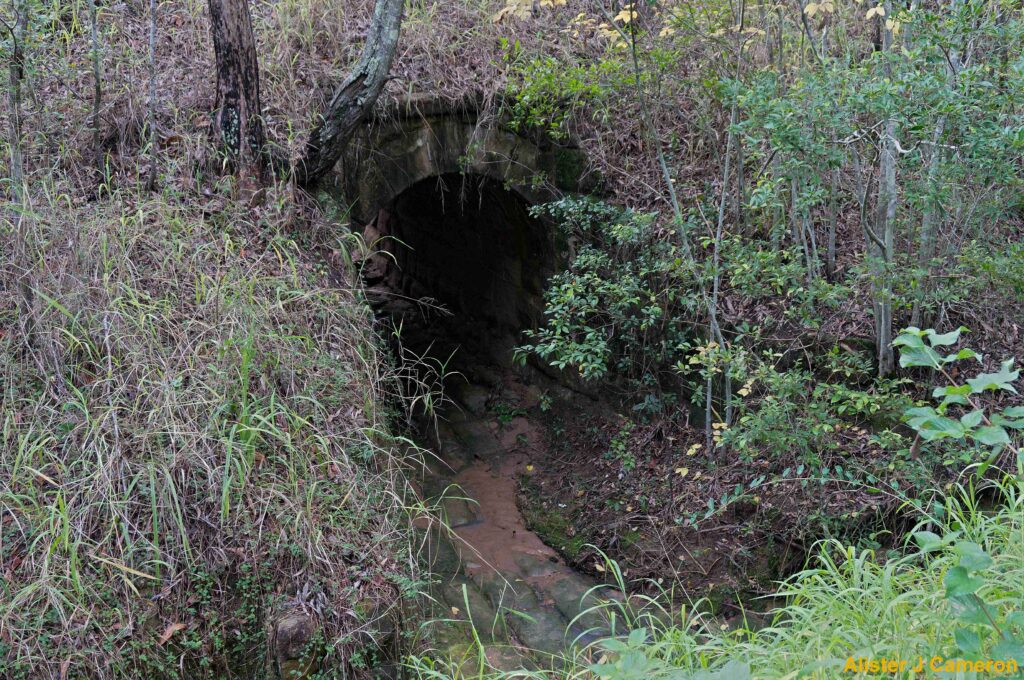

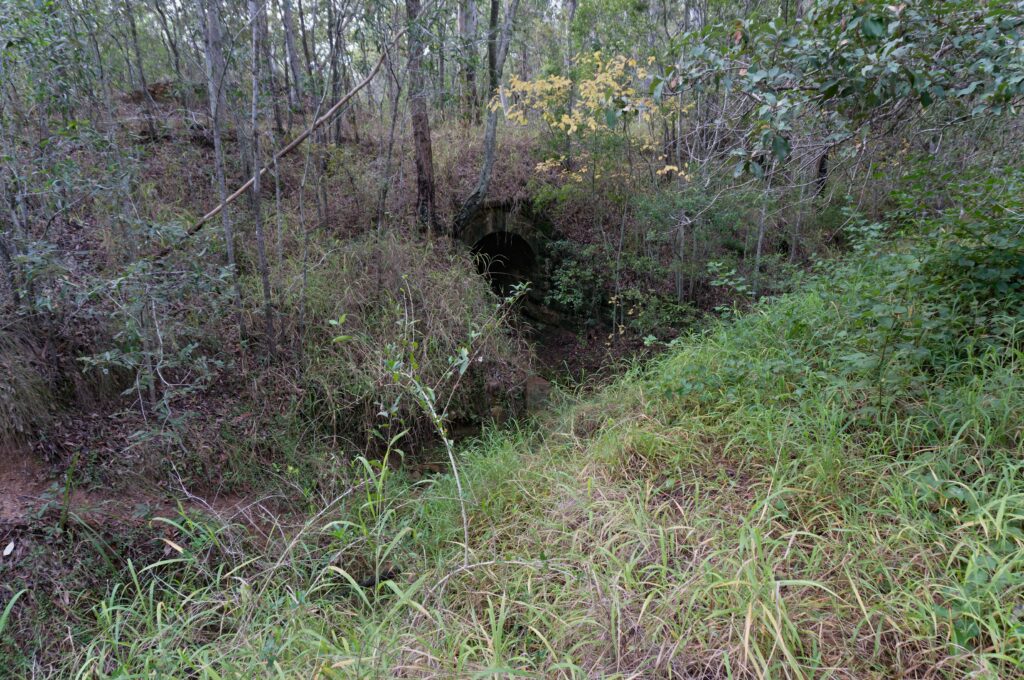

SOUTH-EAST PORTAL OF CULVERT 2017
The two gullys leading to it can clearly be seen.
Photo: Alister J Cameron
SOUTH-EAST PORTAL OF CULVERT 2017
Photo: Alister J Cameron

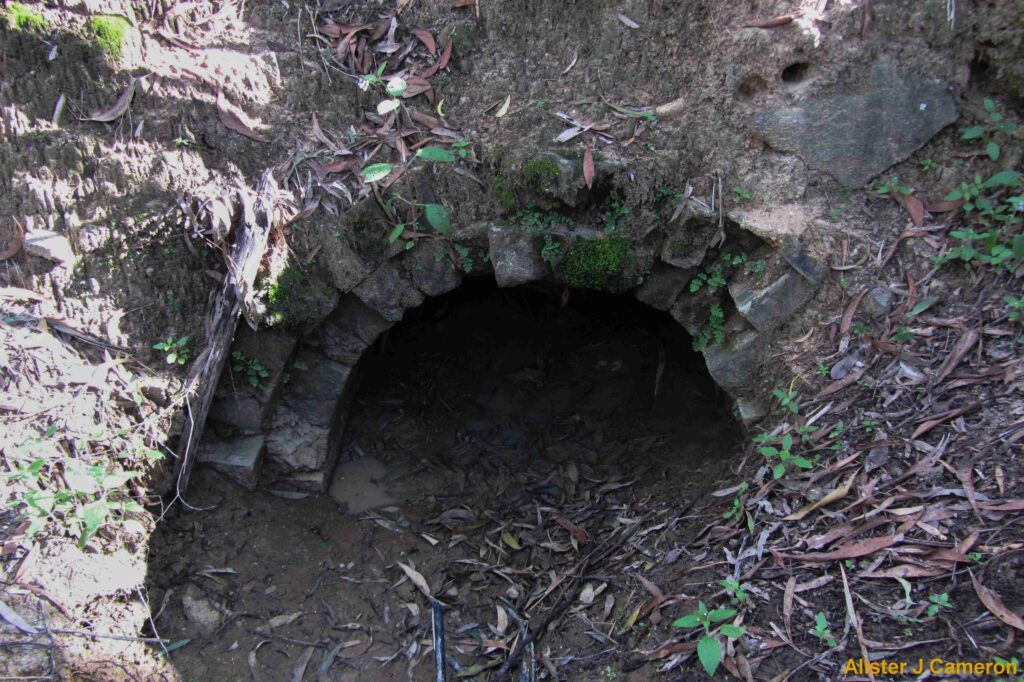

CULVERT SOUTH-EAST PORTAL 2018
The internal stone wall and brick arch can clearly be seen.
Photo: Alister J Cameron

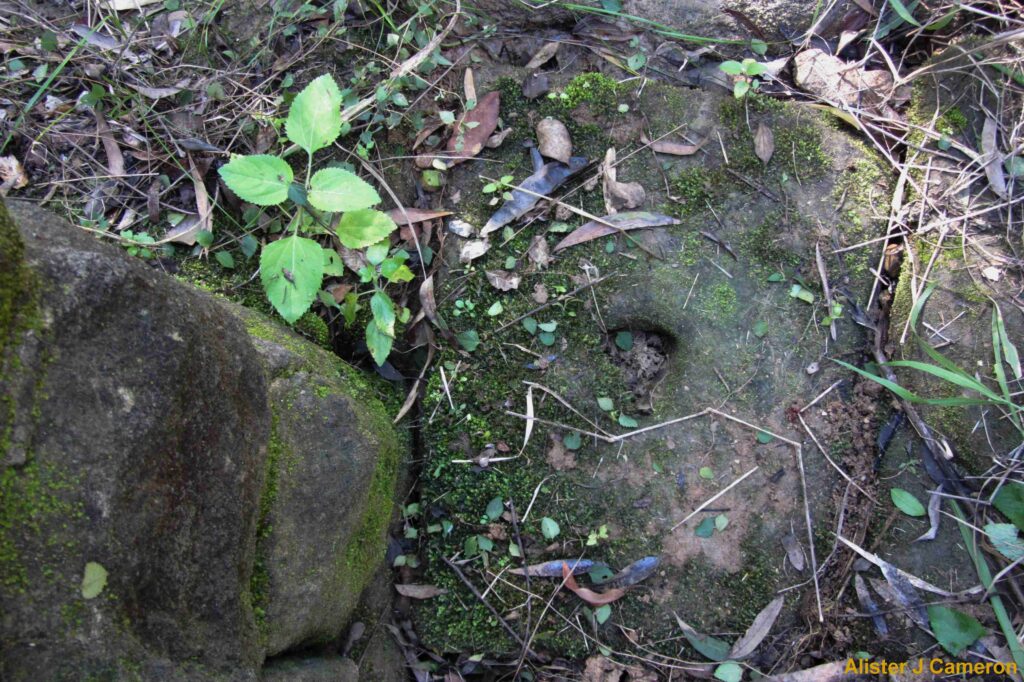

TOOL MARK IN FLAGSTONE IN FRONT OF LEFT-HAND SIDE OF PORTAL 2013
Photo: Alister J Cameron

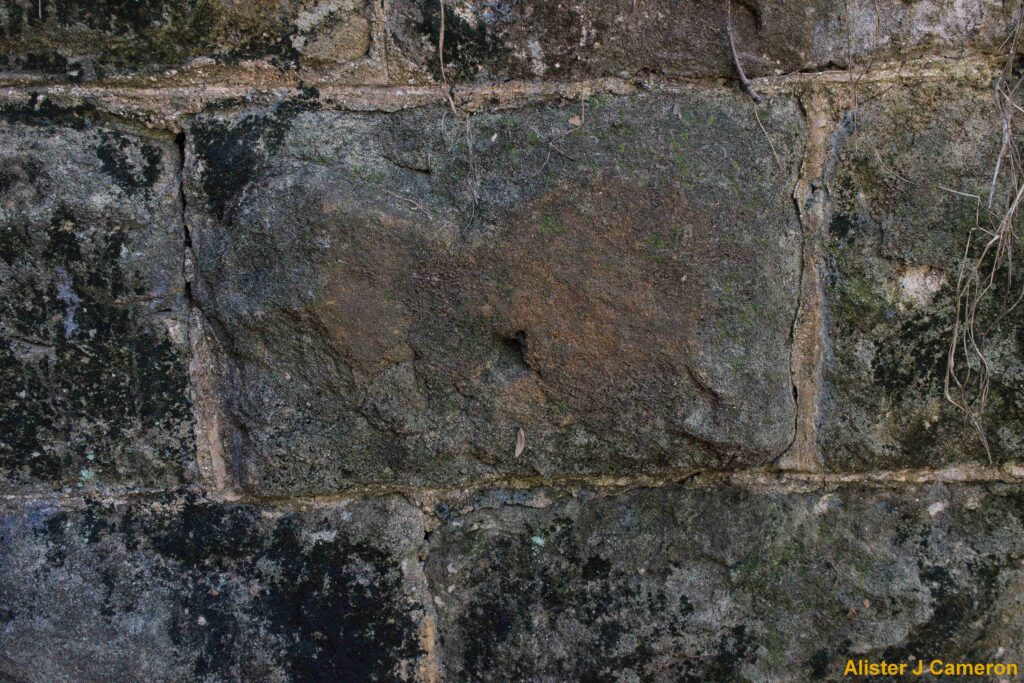

ANOTHER TOOL MARK IN RIGHT-HAND RETAINING WALL 2018
Photo: Alister J Cameron
CLOSEUP OF TOOL MARK 2018
Photo: Alister J Cameron

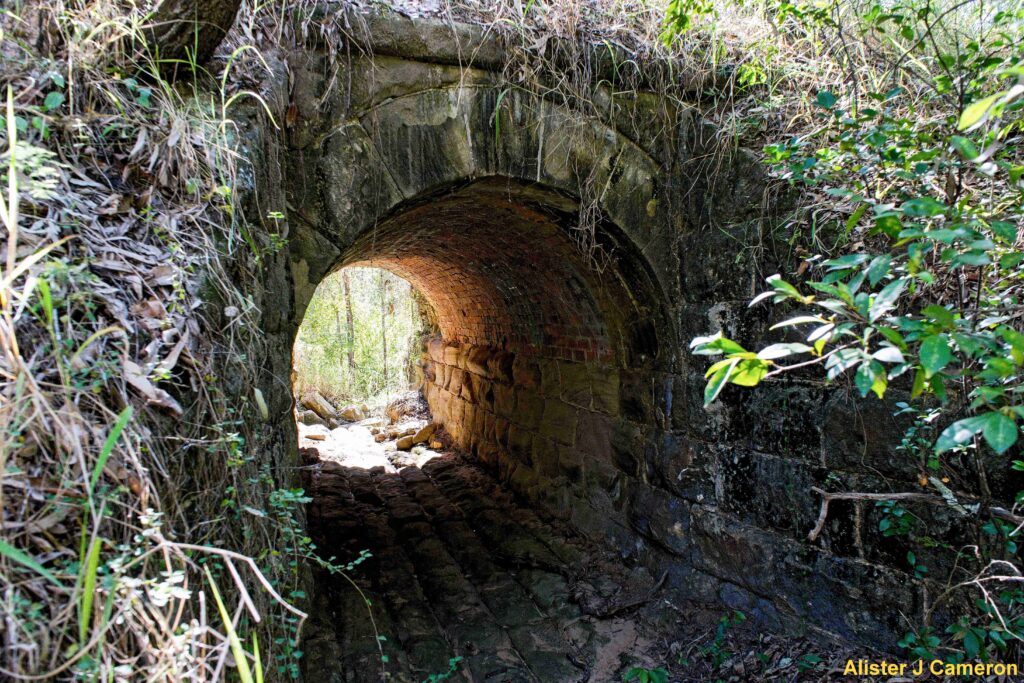

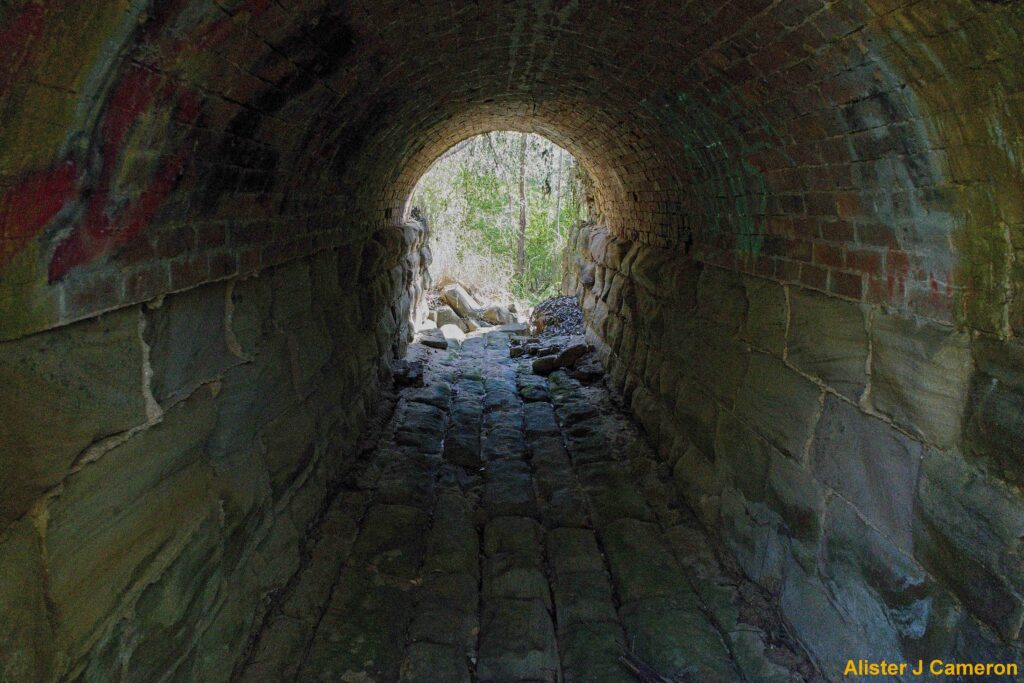

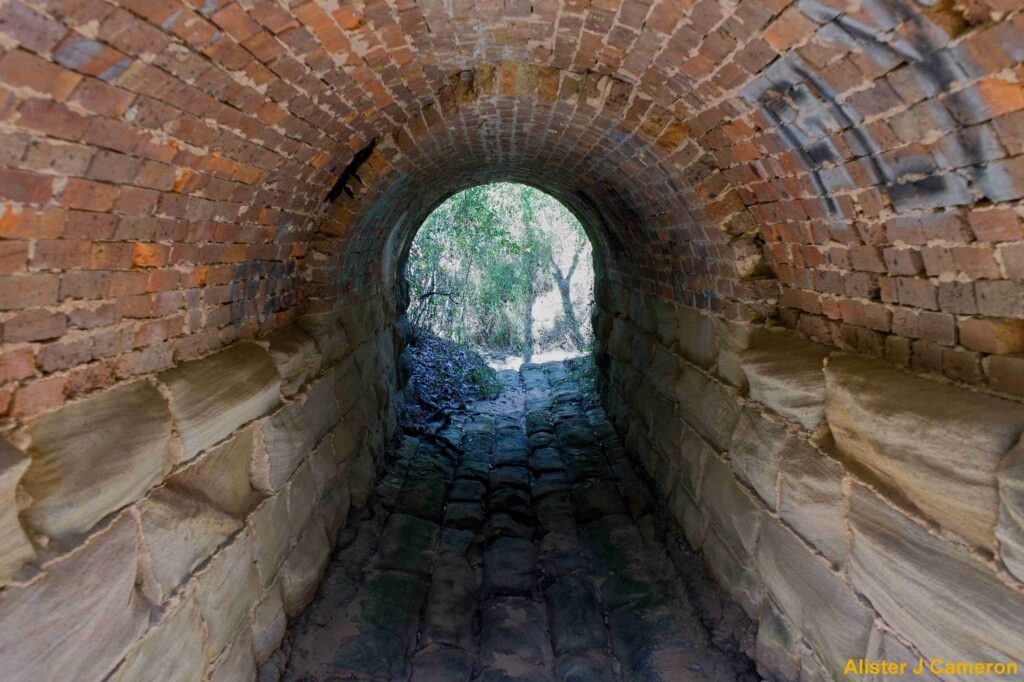

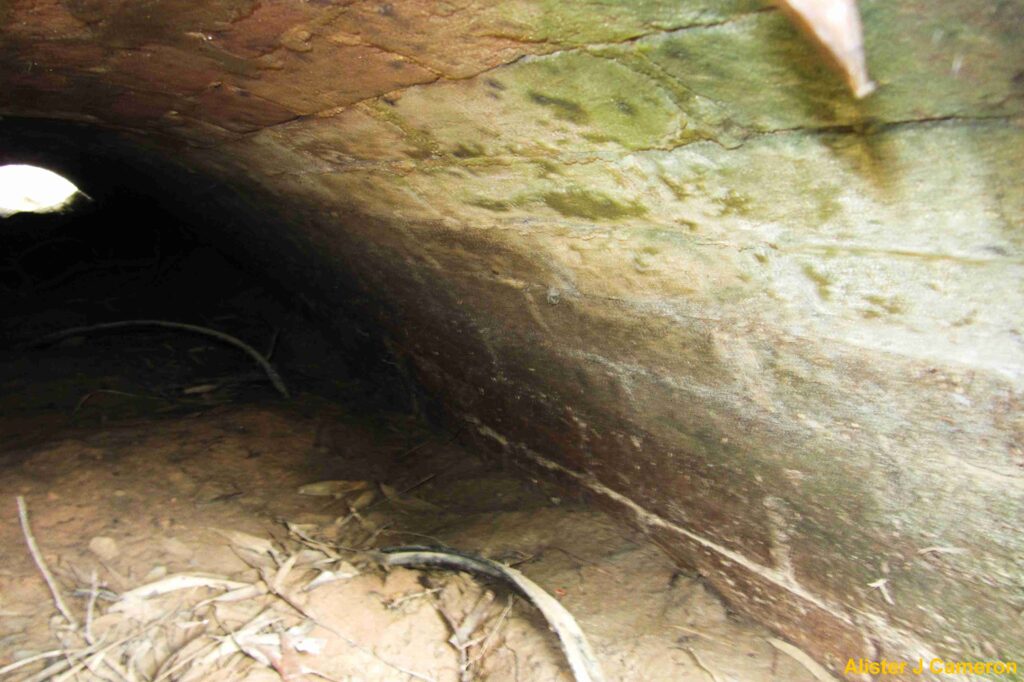

INSIDE CULVERT LOOKING SOUTH-EAST 2018
Note the two layers of the brick arch.
Photo: Alister J Cameron

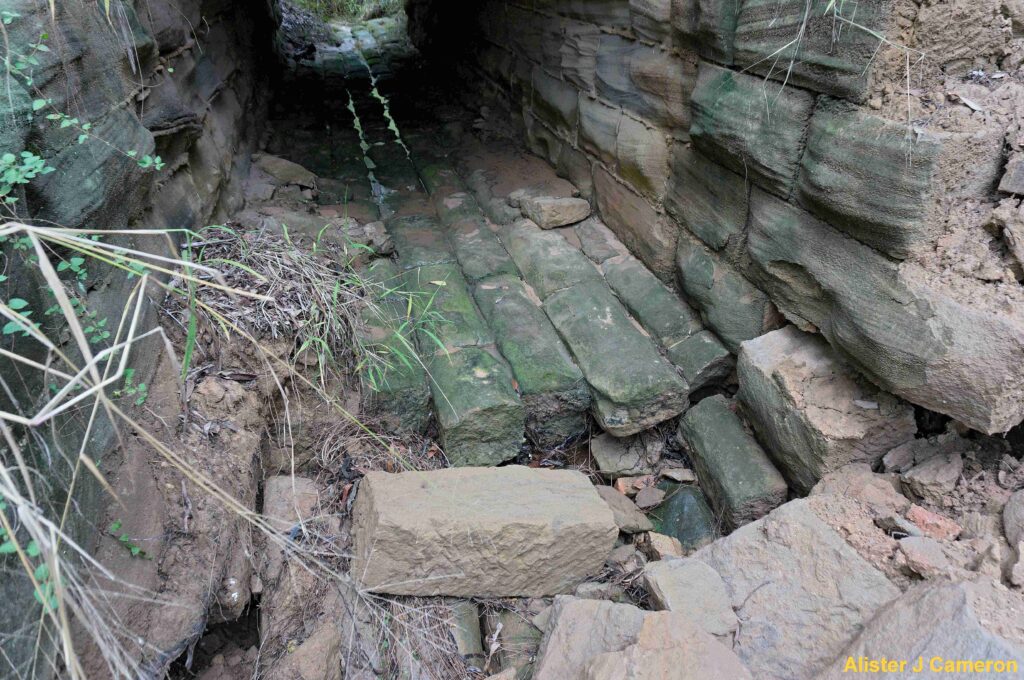

INSIDE CULVERT LOOKING NORTH-WEST 2018
Crumbling masonry blocks can be seen at the far end.
Photo: Alister J Cameron
SOUTH-EAST PORTAL OF CULVERT 2017
Photo: Alister J Cameron

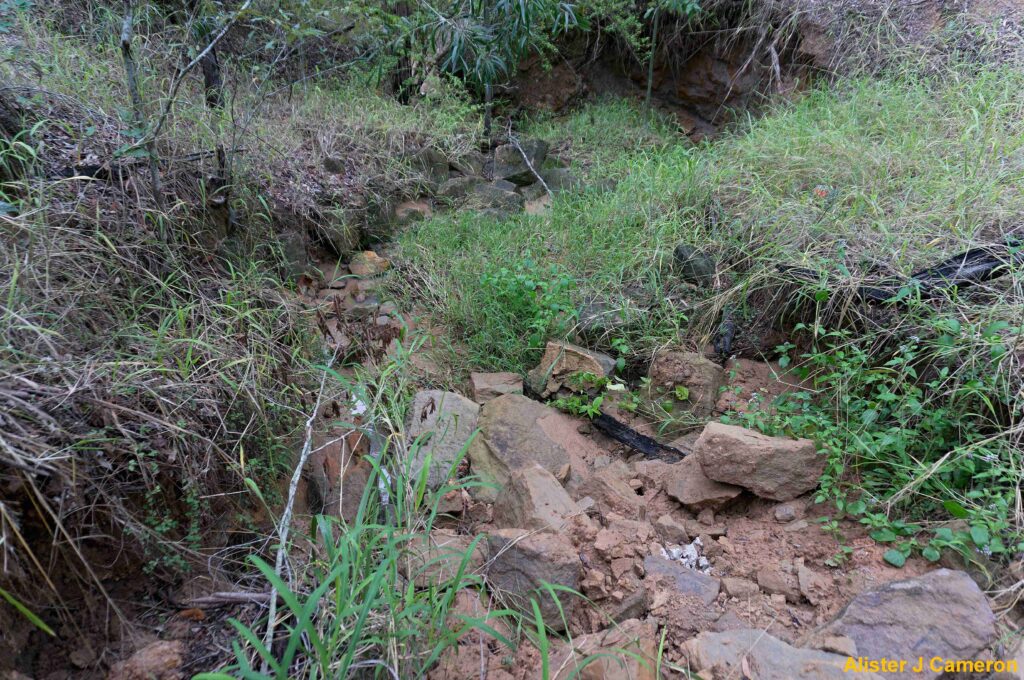

LOOKING DOWN THE GULLY FROM THE PORTAL 2017
Photo: Alister J Cameron

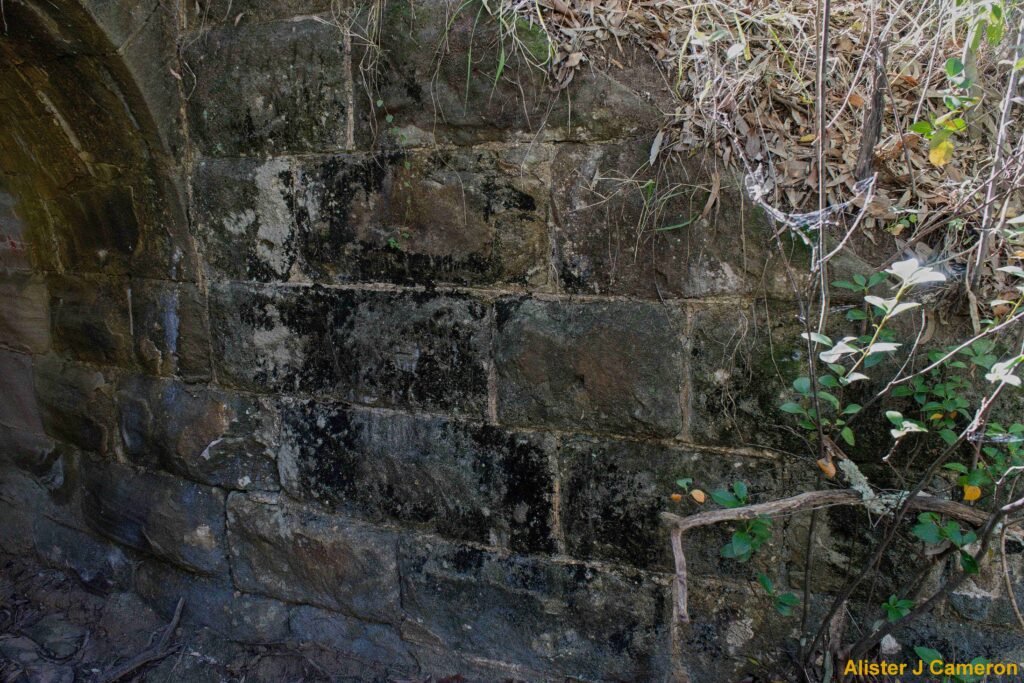

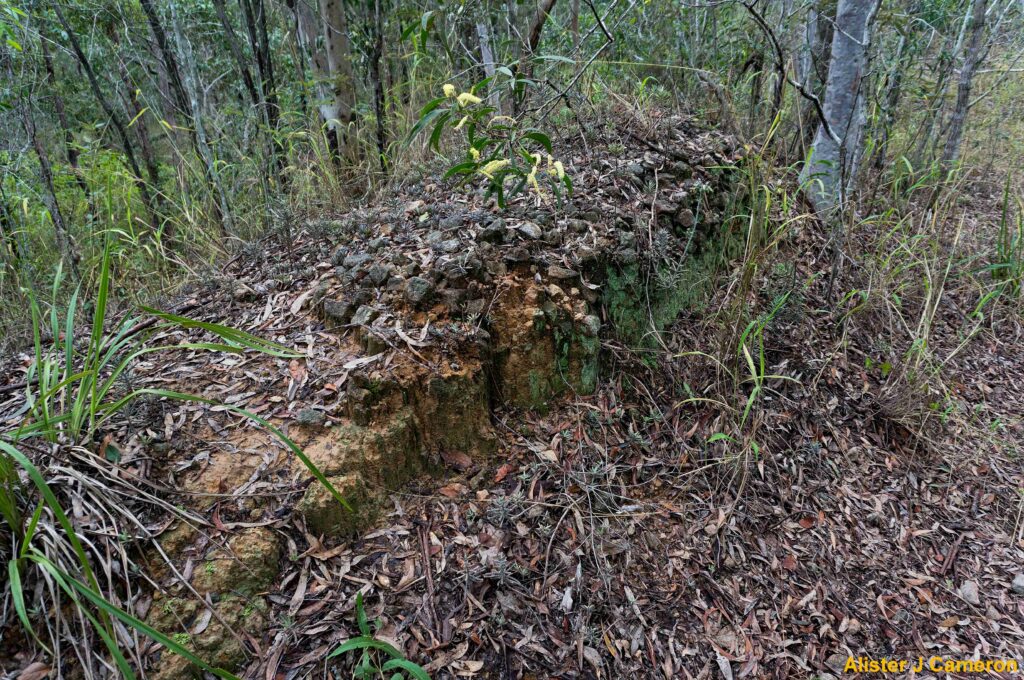

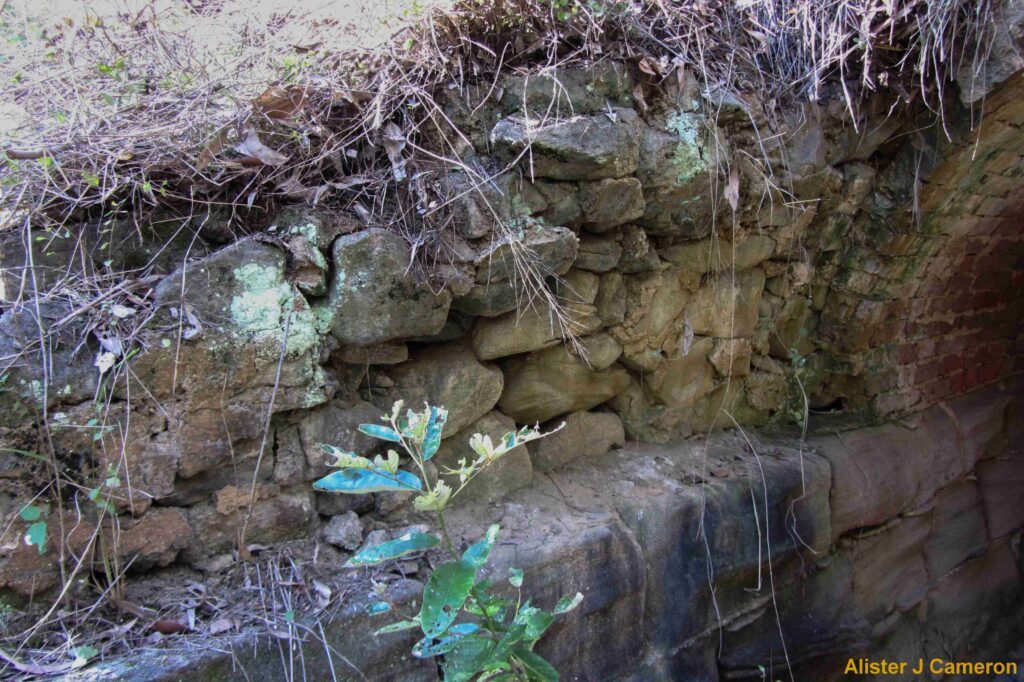

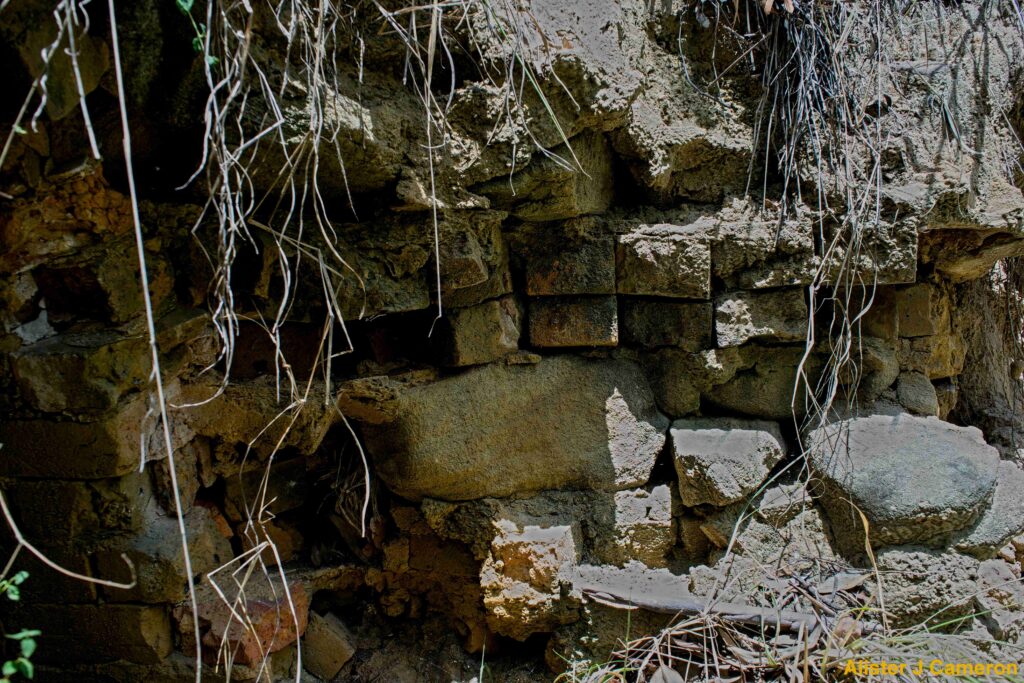

CLOSEUP OF PORTAL SHOWING EDGE OF INTACT MASONRY BLOCKS 2017
Photo: Alister J Cameron
STONE PACKING WHICH FORMERLY WOULD HAVE BEEN BEHIND THE BRICK ARCH 2013
Photo: Alister J Cameron
BROKEN BRICKS USED AS PACKING ON OTHER SIDE OF PORTAL 2019
Photo: Alister J Cameron

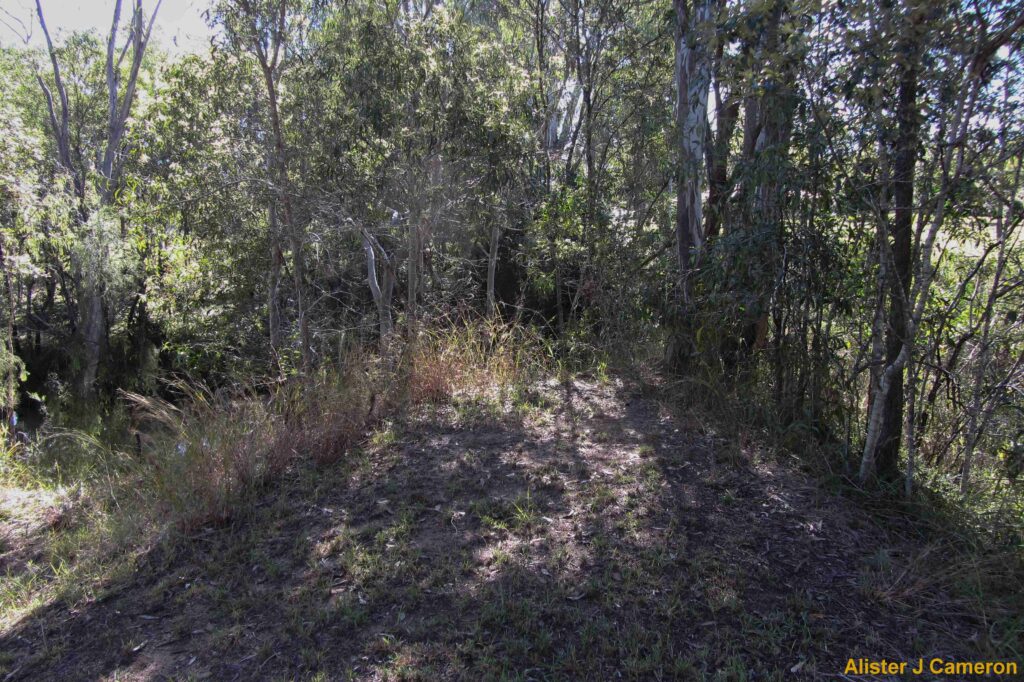

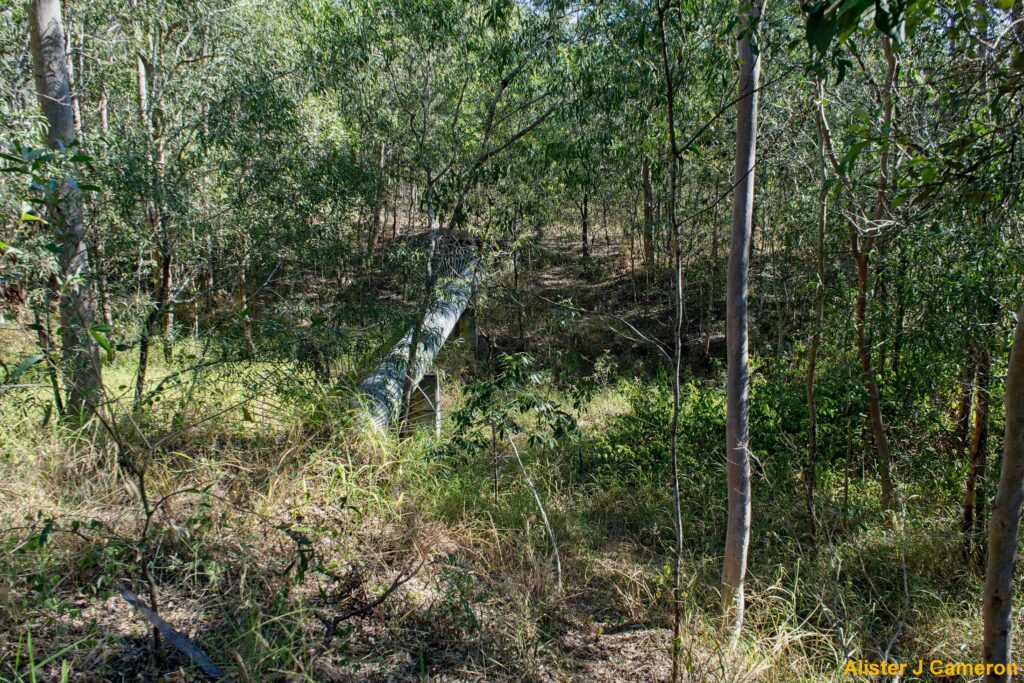

EMBANKMENT JUST WEST OF CULVERT SOUTH-EAST SIDE 2018
Water pipe can be seen in the foreground.
Photo: Alister J Cameron

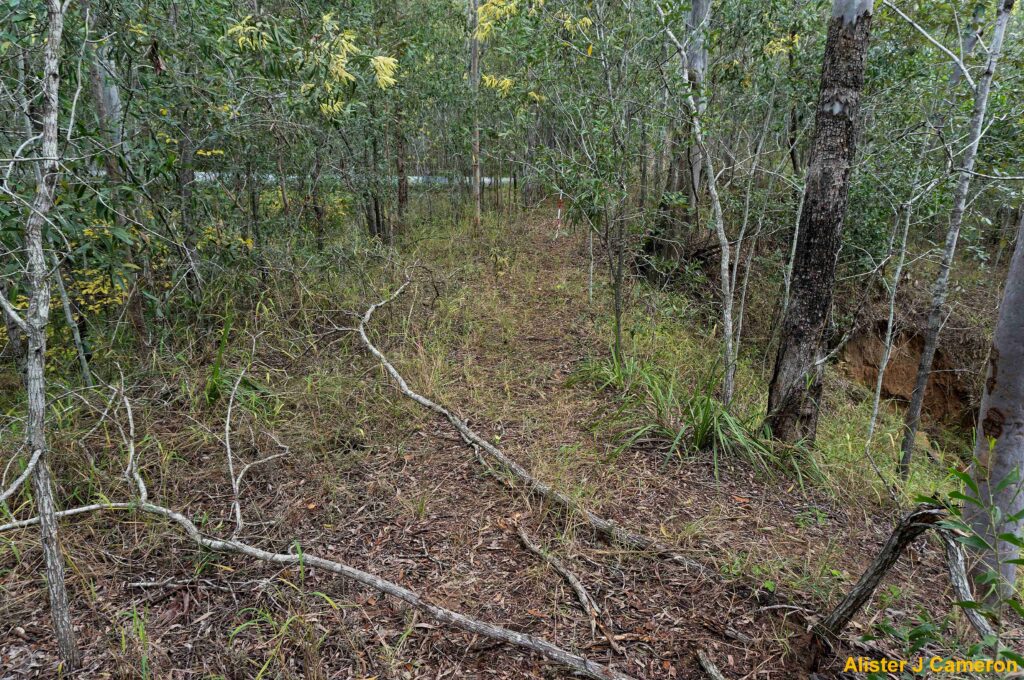

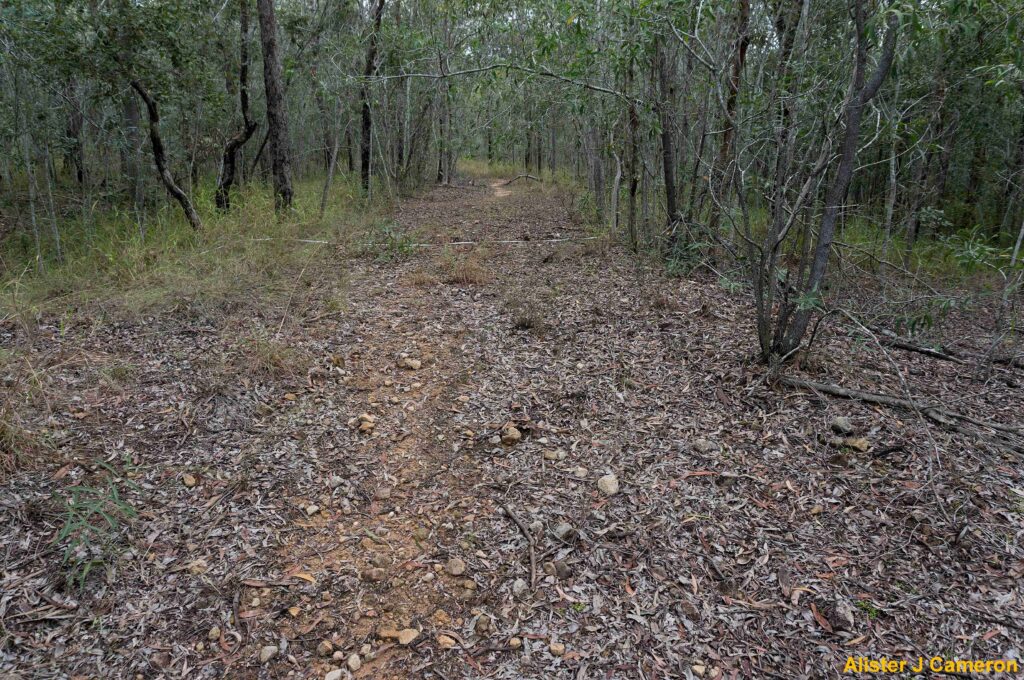

ALLIGNMENT ON WEST SIDE OF CULVERT FACING WEST 2017
Crumbled sandstone ballast can clearly be seen.
Photo: Alister J Cameron

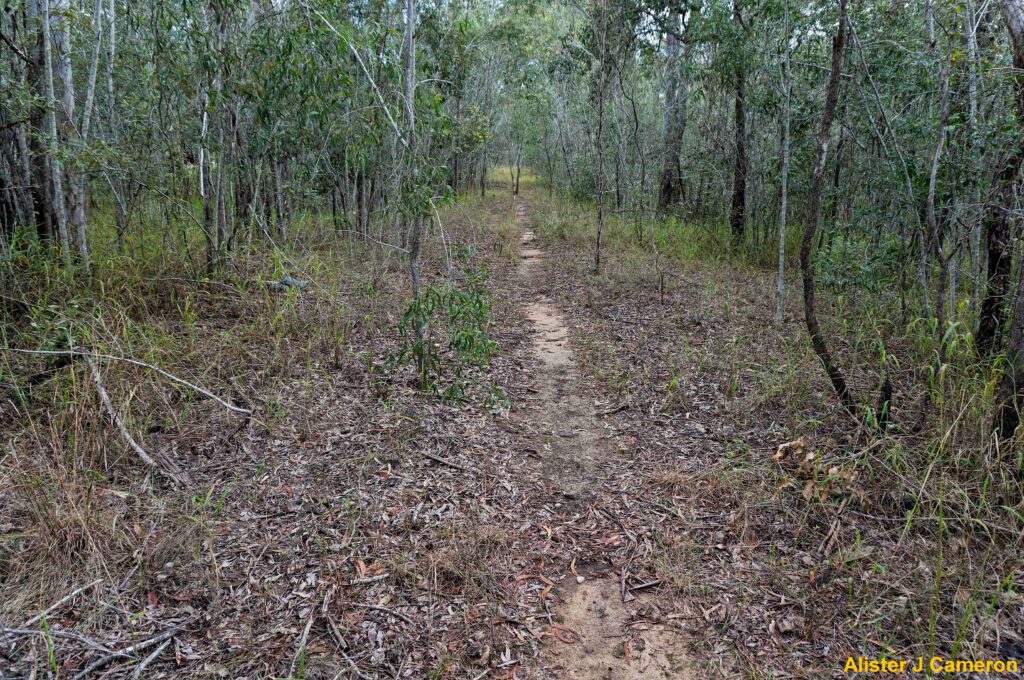

ALLIGNMENT LOOKING WEST FURTHER ALONG 2017
Striped pole marks position of next culvert.
Photo: Alister J Cameron
2nd Culvert South-West of Sports Field (Brick & Stone, 3 or 4 feet span)

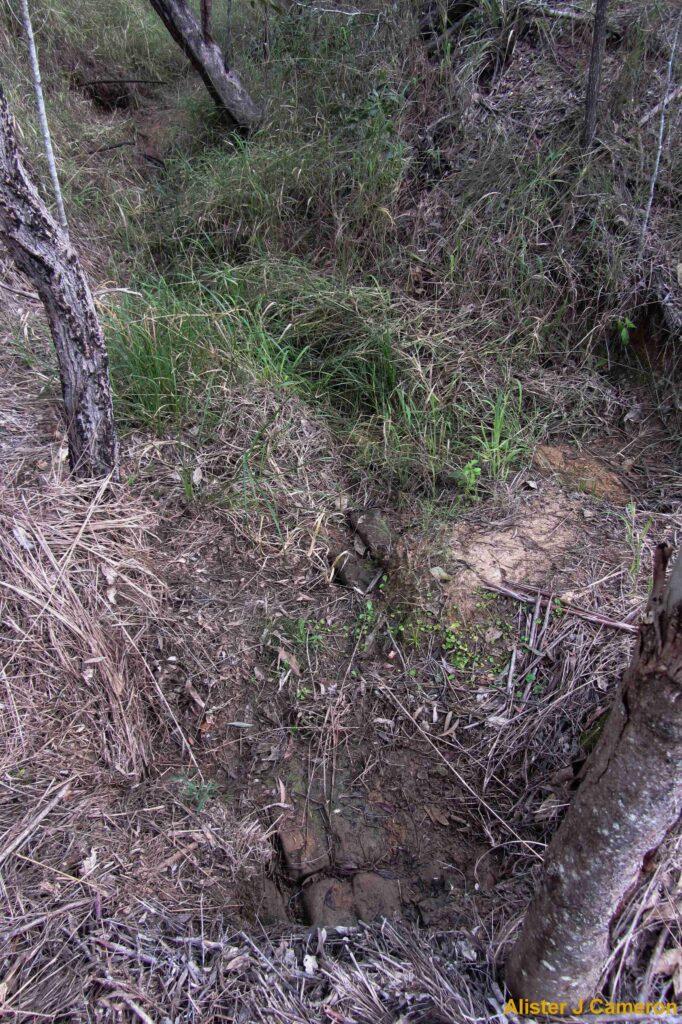

EMBANKMENT FACING WEST 2017
Striped pole shows position of culvert.
Photo: Alister J Cameron

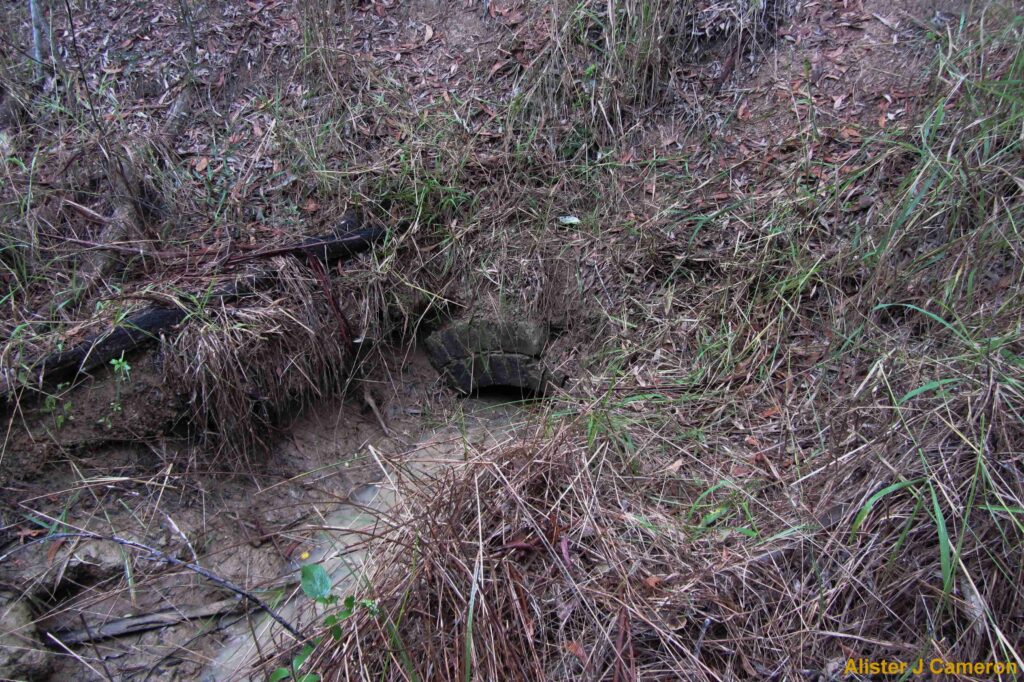

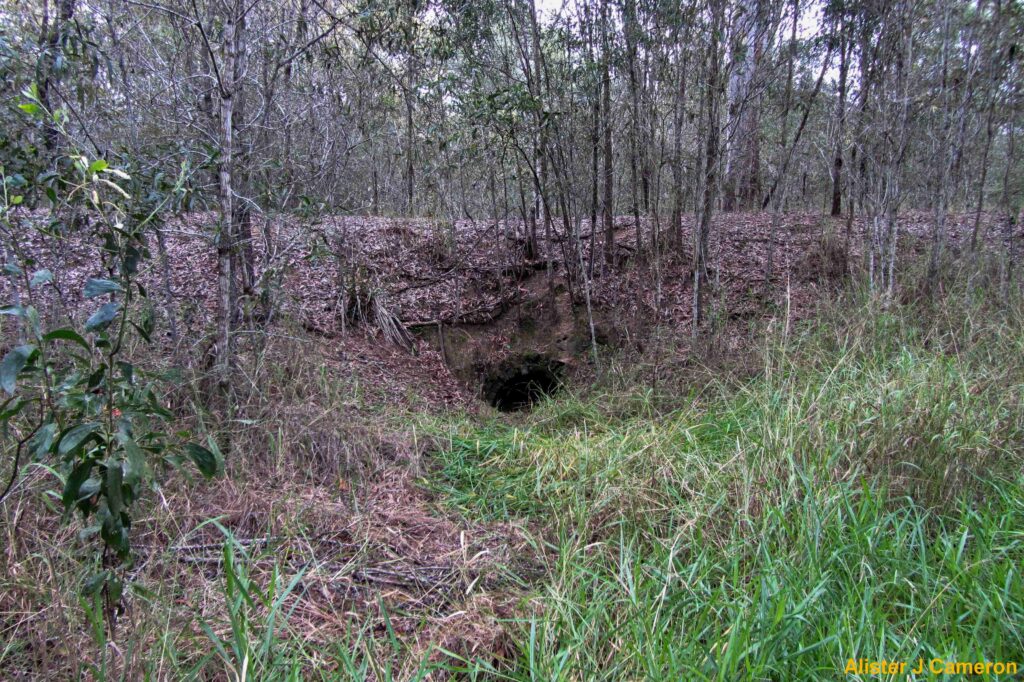

SOUTH-EAST PORTAL OF CULVERT 2013
Photo: Alister J Cameron
CLOSEUP OF SOUTH-EAST PORTAL 2013
Front has disintegrated.
Photo: Alister J Cameron
INSIDE CULVERT 2013
Only top of brick arch is visible.
Photo: Alister J Cameron
NORTH-WEST PORTAL OF CULVERT 2013
Photo: Alister J Cameron
CLOSUP OF NORTH-WEST PORTAL 2013
Photo: Alister J Cameron
LOOKING BACK NORTH-WEST ALONG ALLIGNMENT TOWARDS CULVERT SITE IN THE DISTANCE
Photo: Alister J Cameron
LOOKING FURTHER WEST ALONG THE ALLIGNMENT 2013
Is less distinct at this point.
Photo: Alister J Cameron

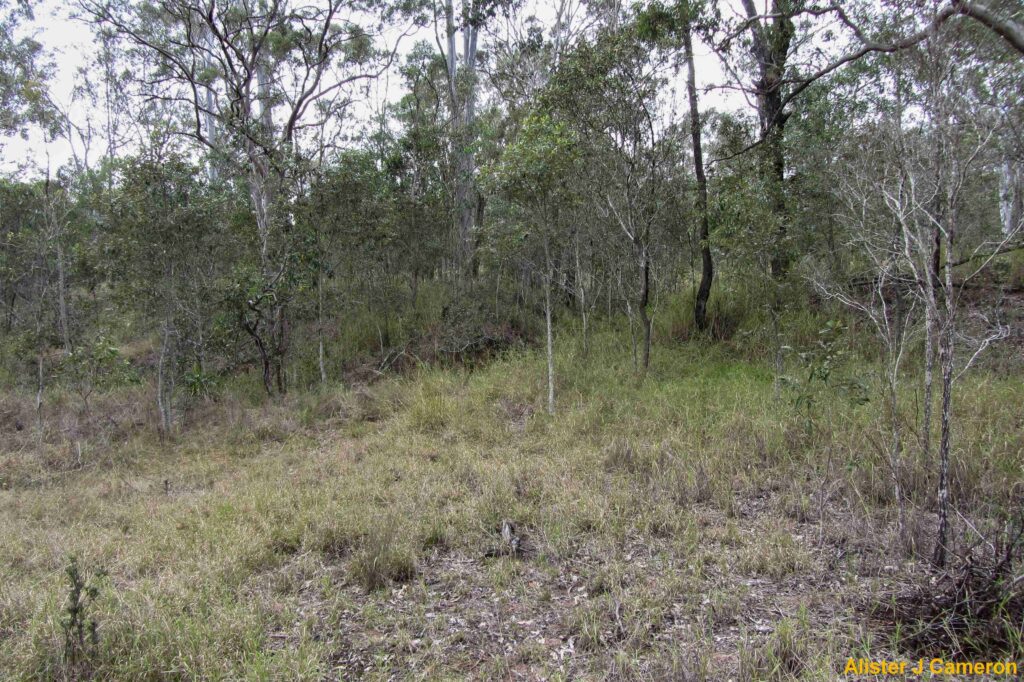

3rd Culvert South-West of Sports Field (Log Culvert, 6 feet span)

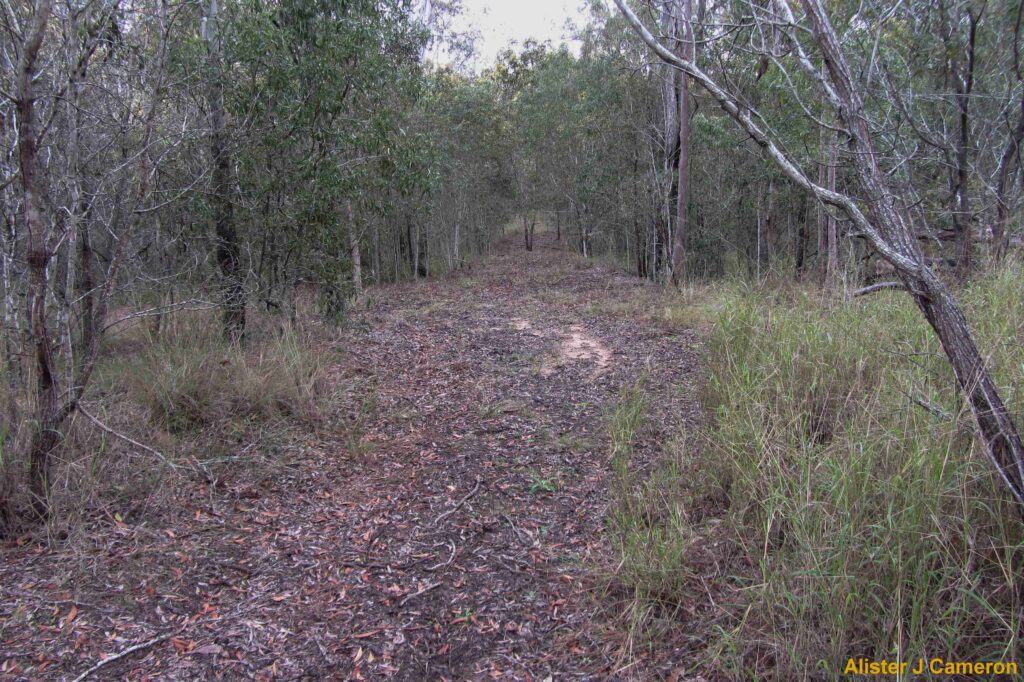

CONTINUING WEST AN EMBANKMENT CAN AGAIN BE SEEN 2013
Photo: Alister J Cameron

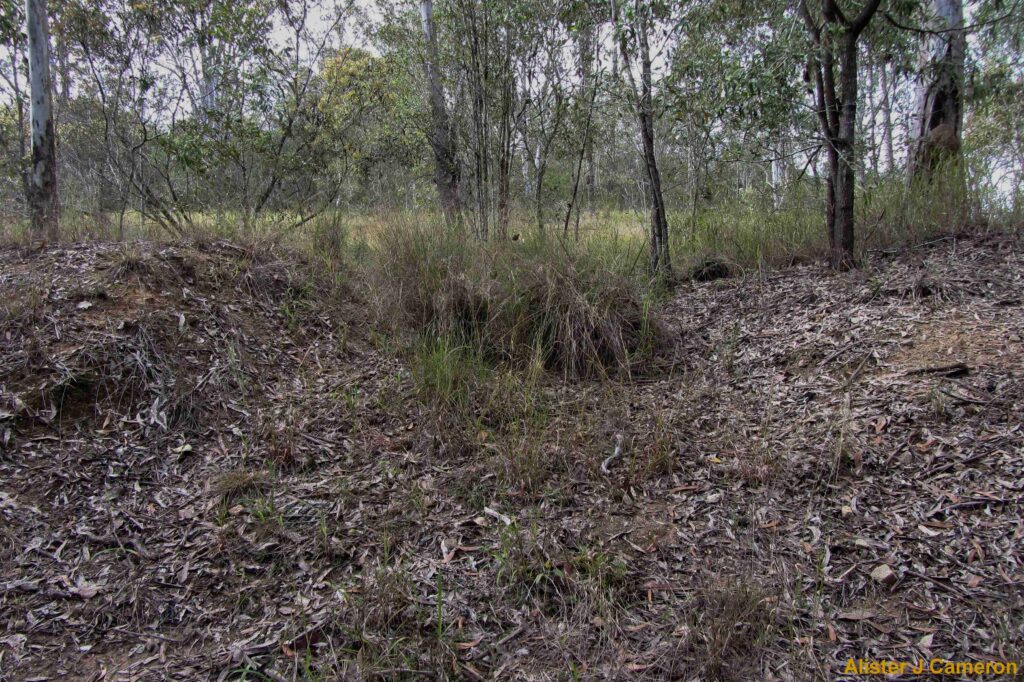

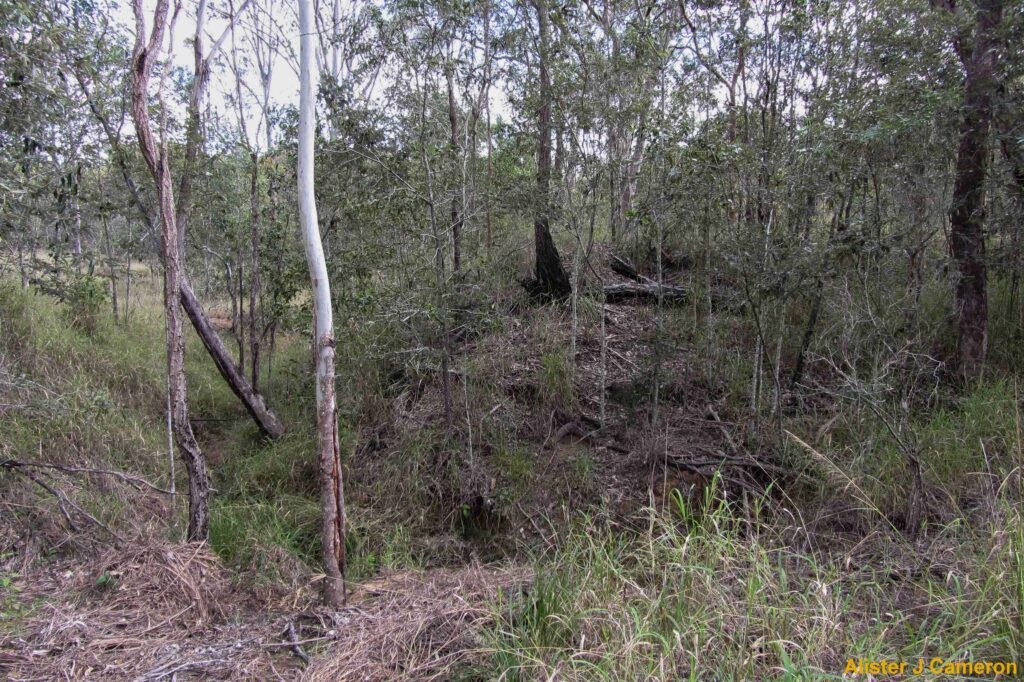

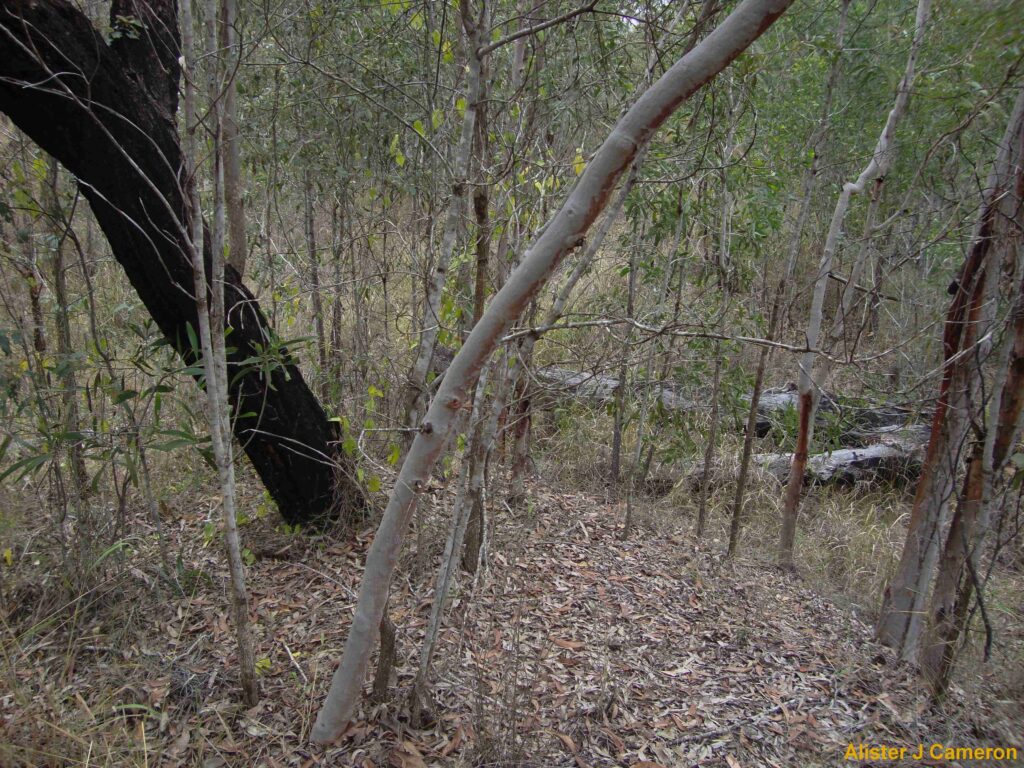

END OF EMBANKMENT LOOKING SOUTH-WEST 2010
Gap is site of former log culvert.
Photo: Alister J Cameron

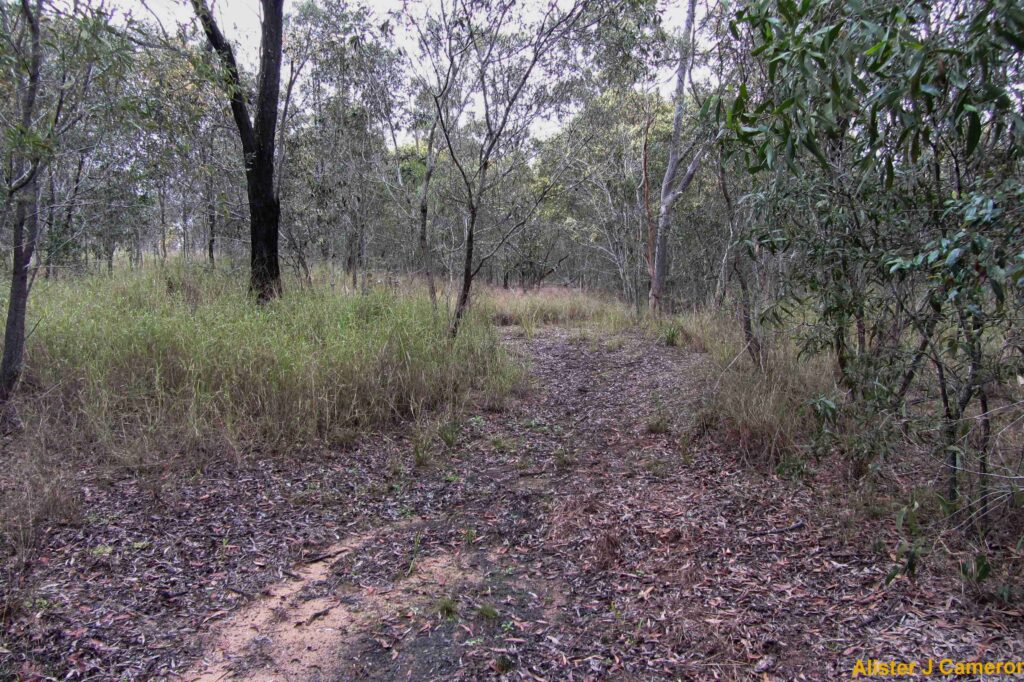

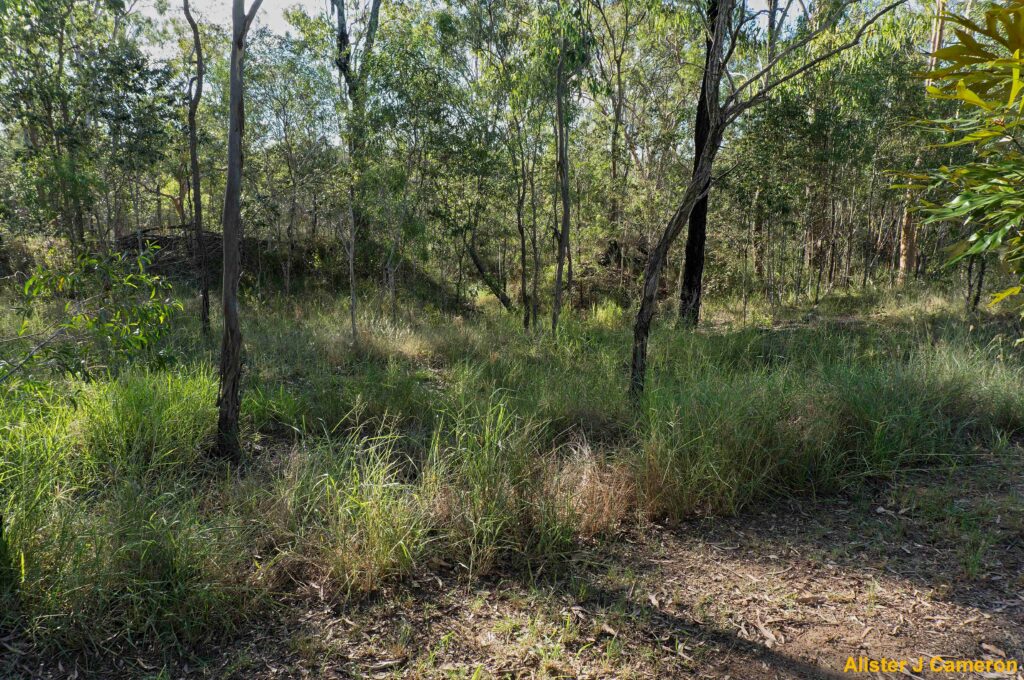

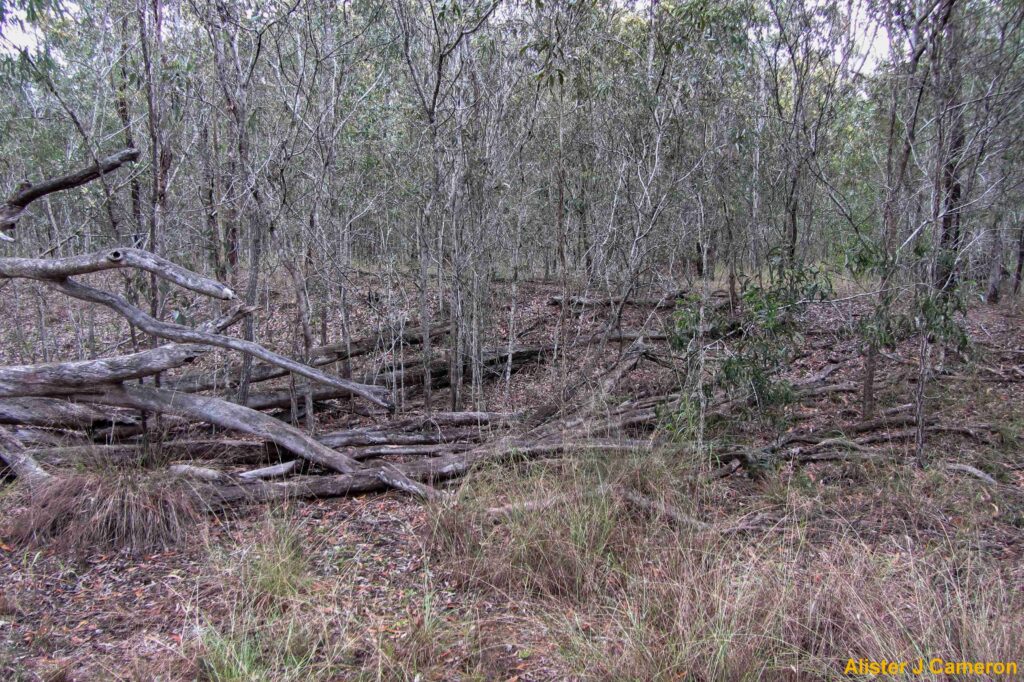

LOG CULVERT SITE (GAP) LOOKING WEST 2013
Allignment is still heading south-west.
Photo: Alister J Cameron

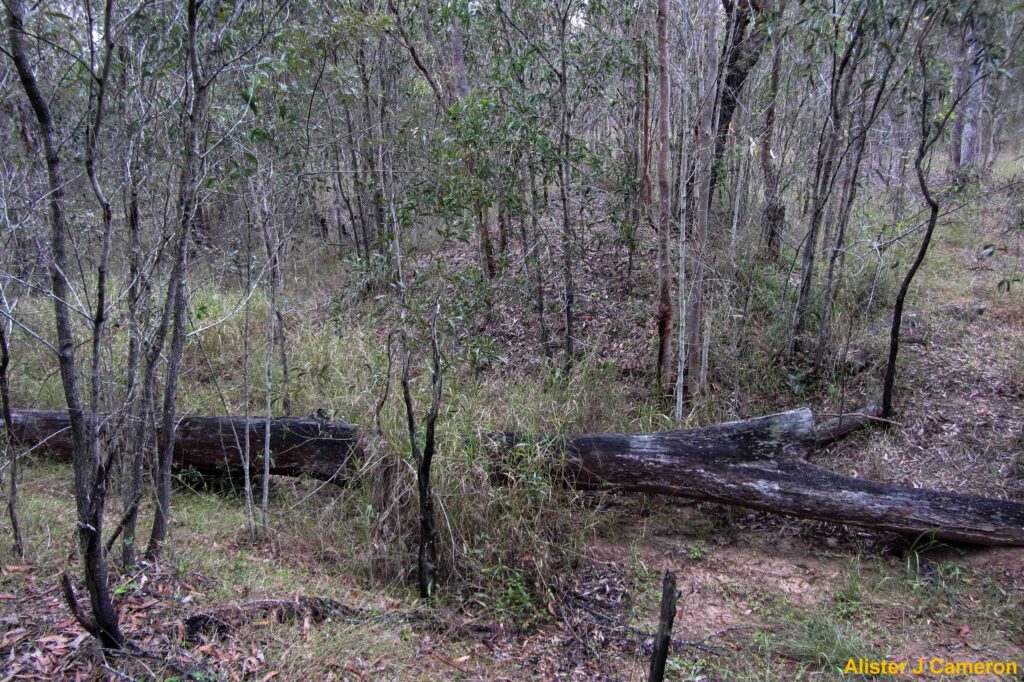

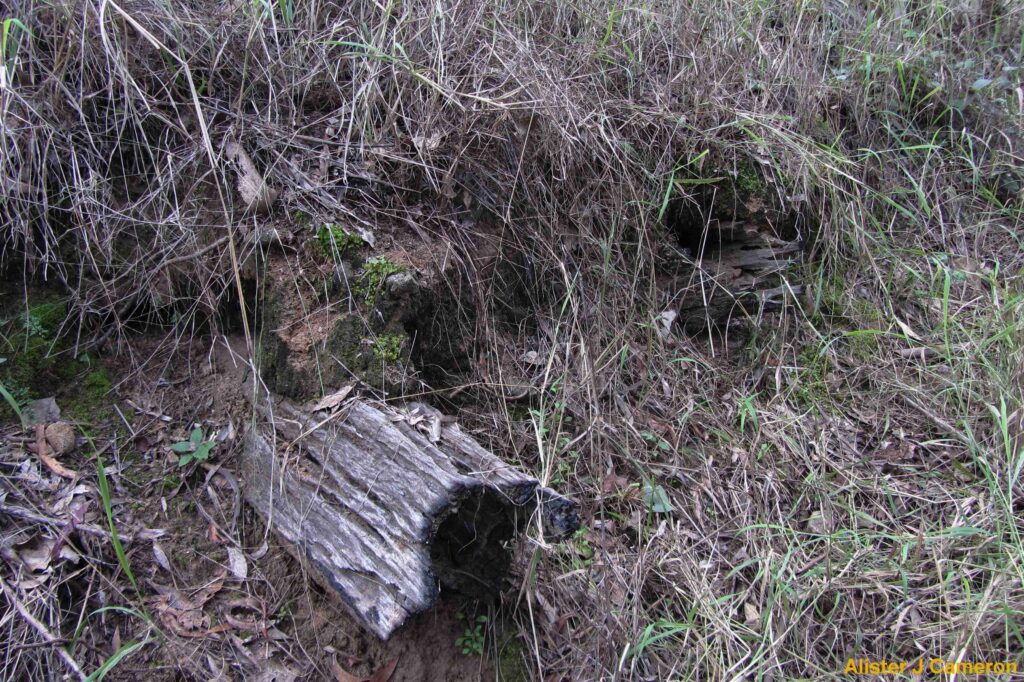

LOOKING BACK ALONG ALLIGNMENT NORTH-EAST 2013
A large fallen log now fills the space formerly occupied by the culvert.
Nothing is left of this original structure.
Photo: Alister J Cameron

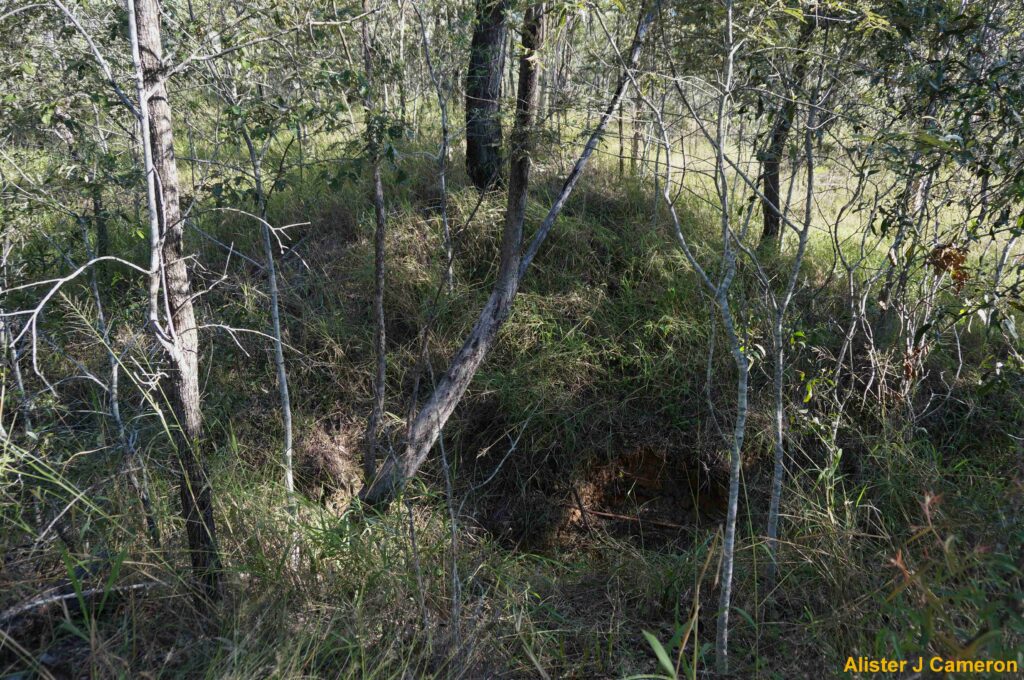

DRIED WATERHOLE 2016
Allignment is less distinct. Viewed looking approximately north-west.
Photo: Alister J Cameron

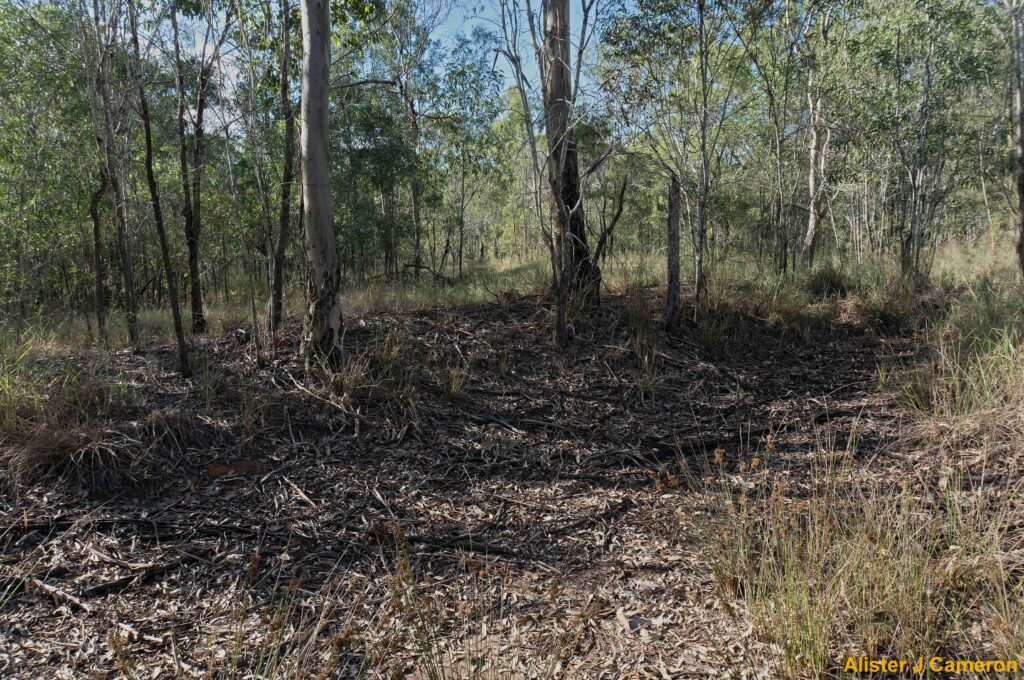

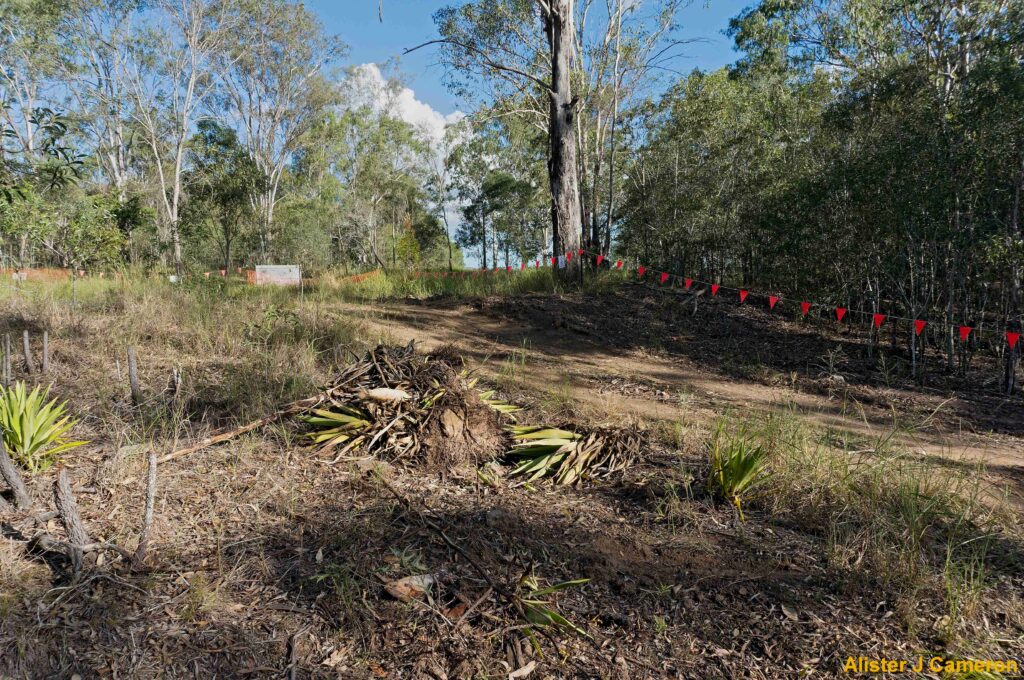

FURTHER SOUTH-WEST DIRT TRACK CUTS THROUGH EMBANKMENT 2016
Looking approximately south.
Photo: Alister J Cameron

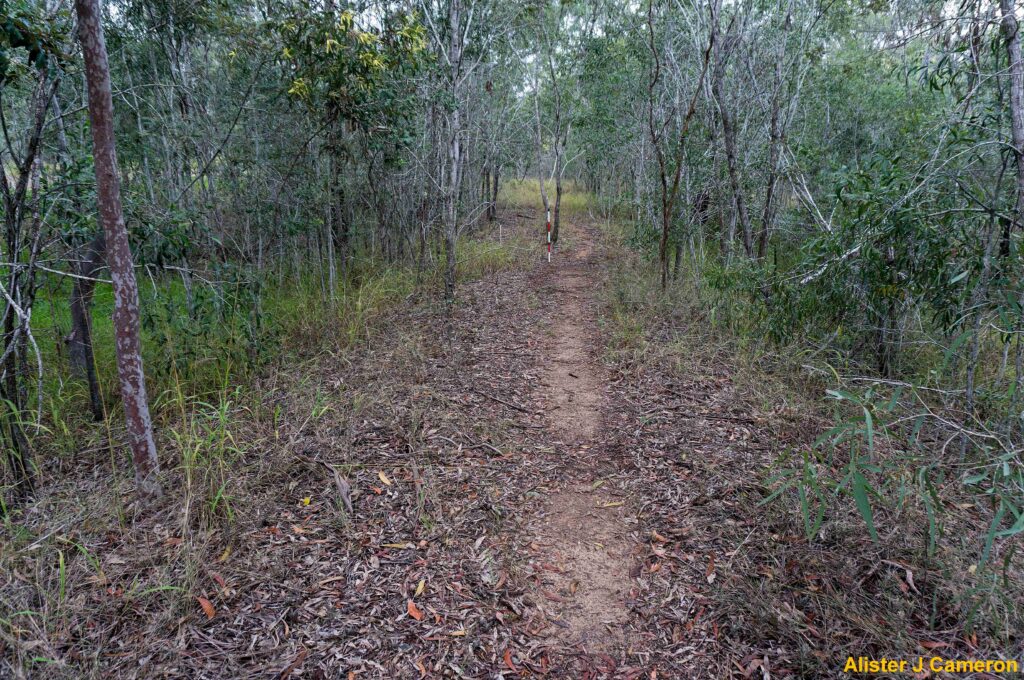

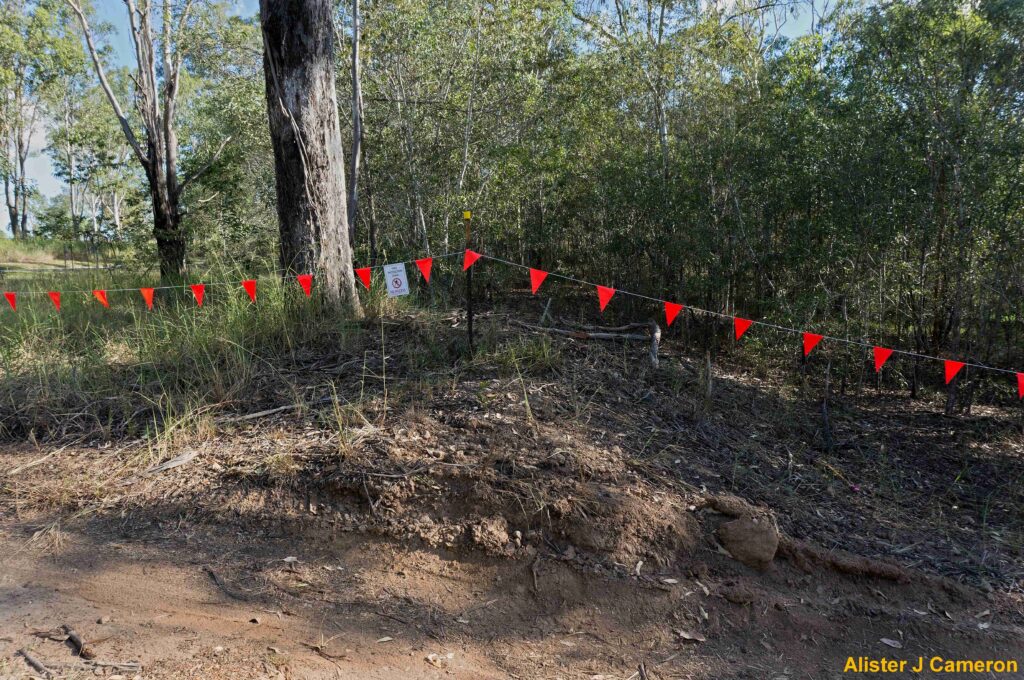

CLOSUP LOOKING DIRECTLY ALONG THE SOUTH-WEST ALLIGNMENT 2016
Ballast can be clearly seen.
Photo: Alister J Cameron

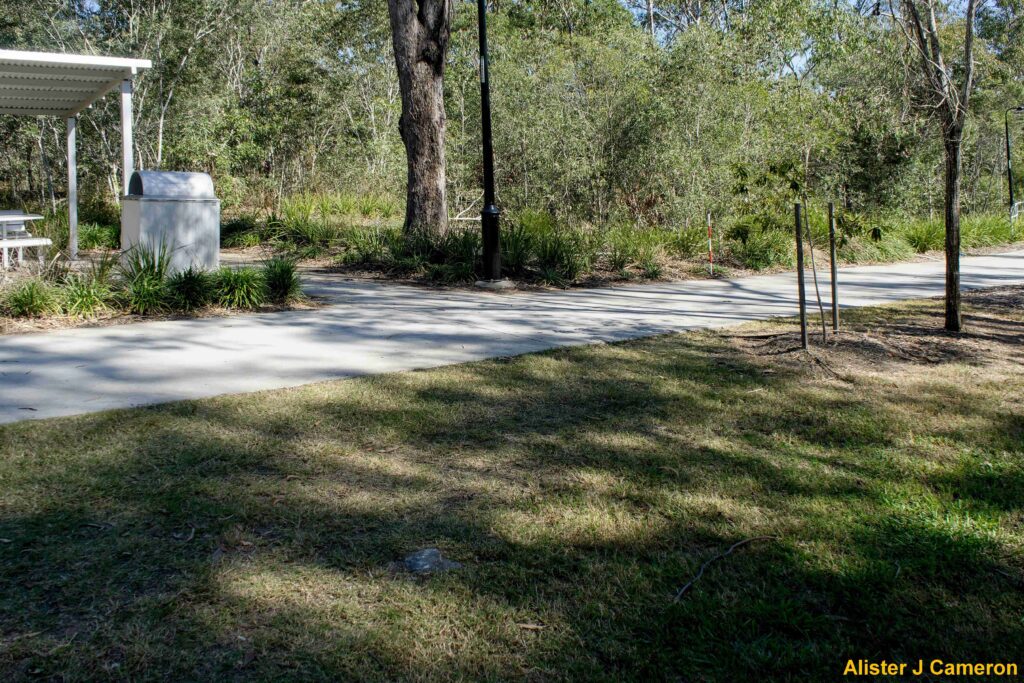

VIEWED FROM A DIFFERENT ANGLE TWO YEARS LATER IN 2018
Concrete path replaces track and shelter shed built. Striped pole marks where the allignment crossed.
Photo: Alister J Cameron
Rail Trail Pathway to Wulkuraka

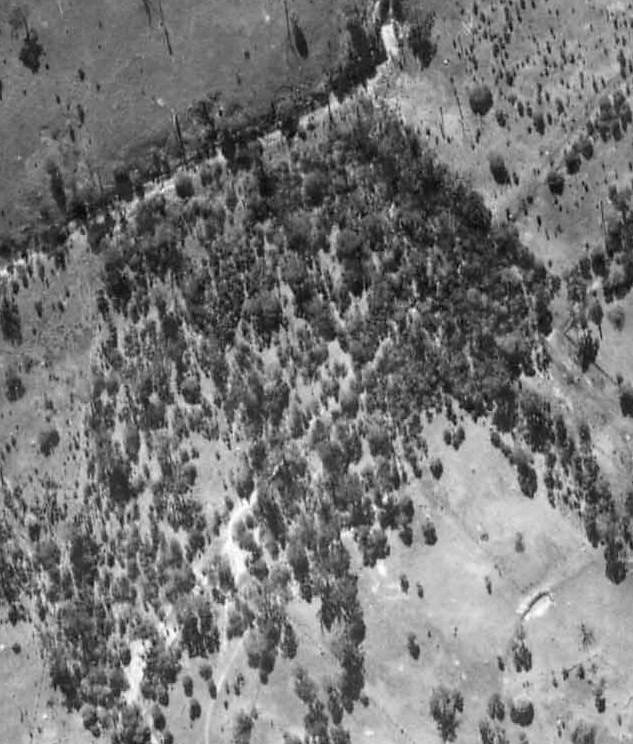

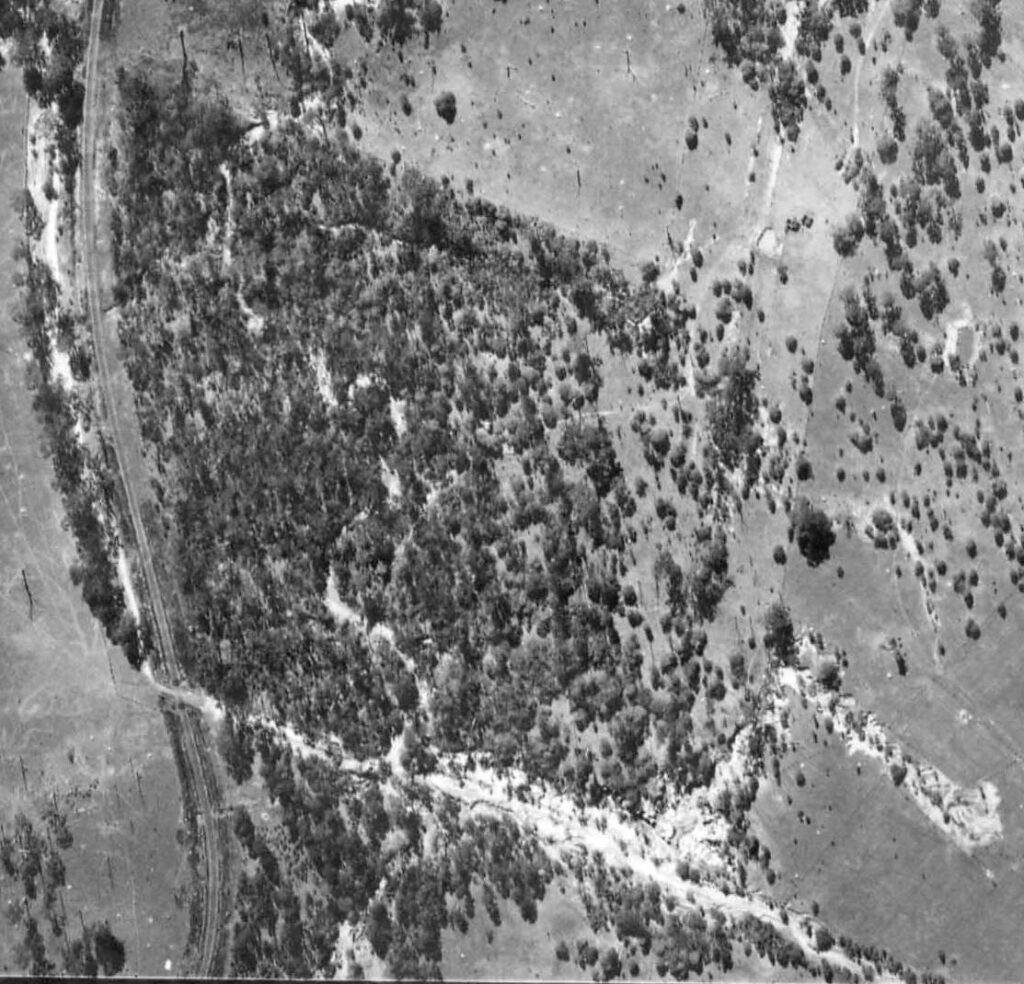

AERIAL GRACE ST NORTH 1946
RAAF4-35646
The State of Queensland (Department of Natural Resources and Mines) 2016

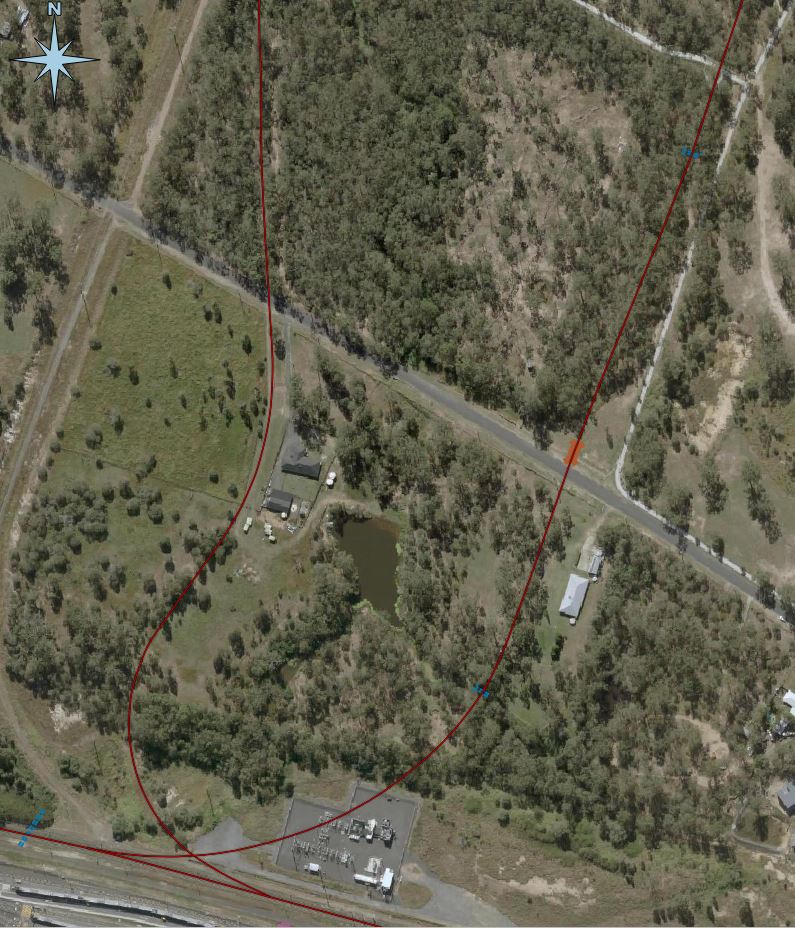

FROM ABOVE: RAIL TRAIL PATH TO WULKURAKA
From top to bottom: Log Culvert (some remains), Bridge (nothing left), & Brick Culvert (replaced by open drain).
Left hand rail line is the Brisbane Valley Branch (original junction).
QGIS Vectors, Alister J Cameron
Underlay: Qld Globe (Ausmap)
WORKING PLAN WULKURAKA NORTH 1863
Southern & Western Railway
Section No.1 1st Division Contract No.1
General Plan
A Fitzgibbon
29 December 1863
Source: Qld Railways Archives
WORKING PLAN WULKURAKA NORTH 1863
Note: top of map faces south so order of features is in reverse.
Southern & Western Railway
Section No.1 1st Division Contract No.1
General Plan
A Fitzgibbon
29 December 1863
Source: Qld Railways Archives

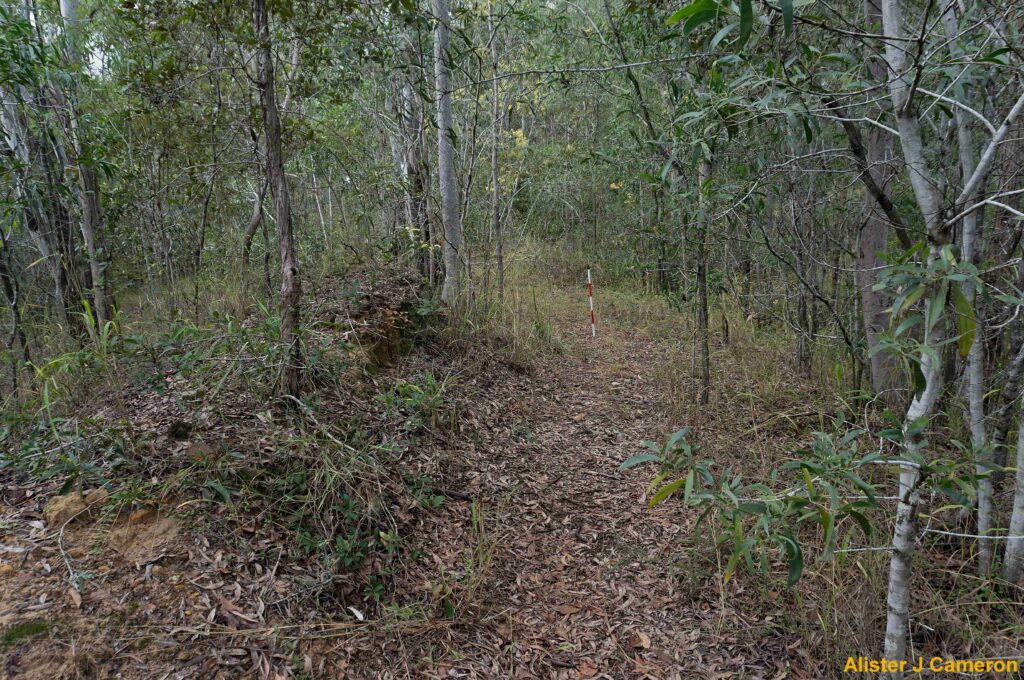

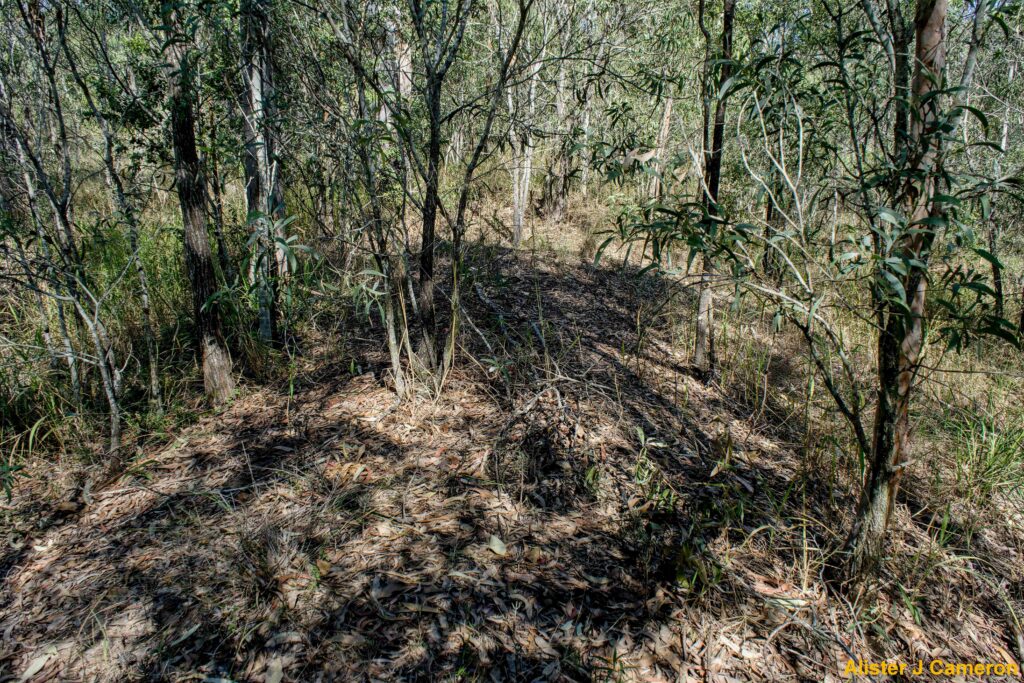

FURTHER SOUTH-WEST THE EMBANKMENT IS NOW QUITE DISTINCT 2018
Viewed looking south-west.
Photo: Alister J Cameron
PROCEEDING FURTHER ALONG THE EMBANKMENT HAS A SHALLOW DIP 2013.
Purpose is unknown but probably has a later cause.
Photo: Alister J Cameron
Fourth Culvert South-West of Sports Field (Log Culvert, 6 feet span)

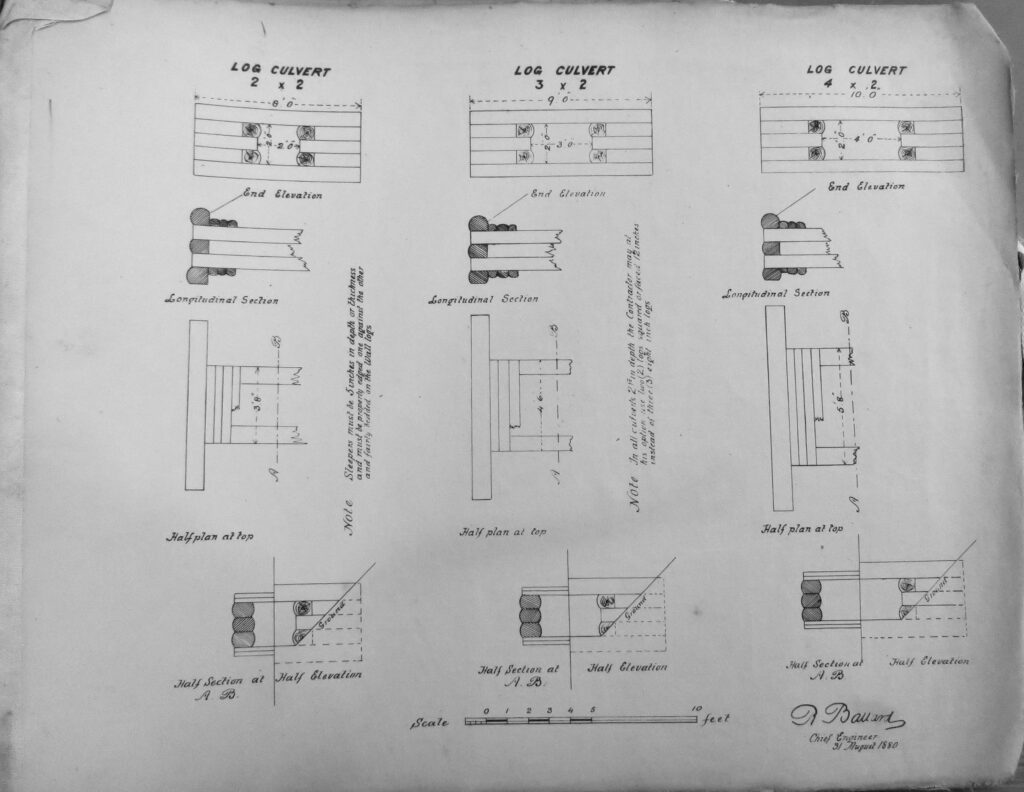

EXAMPLE OF LOG CULVERT DESIGN 1880
Source: Qld State Archives

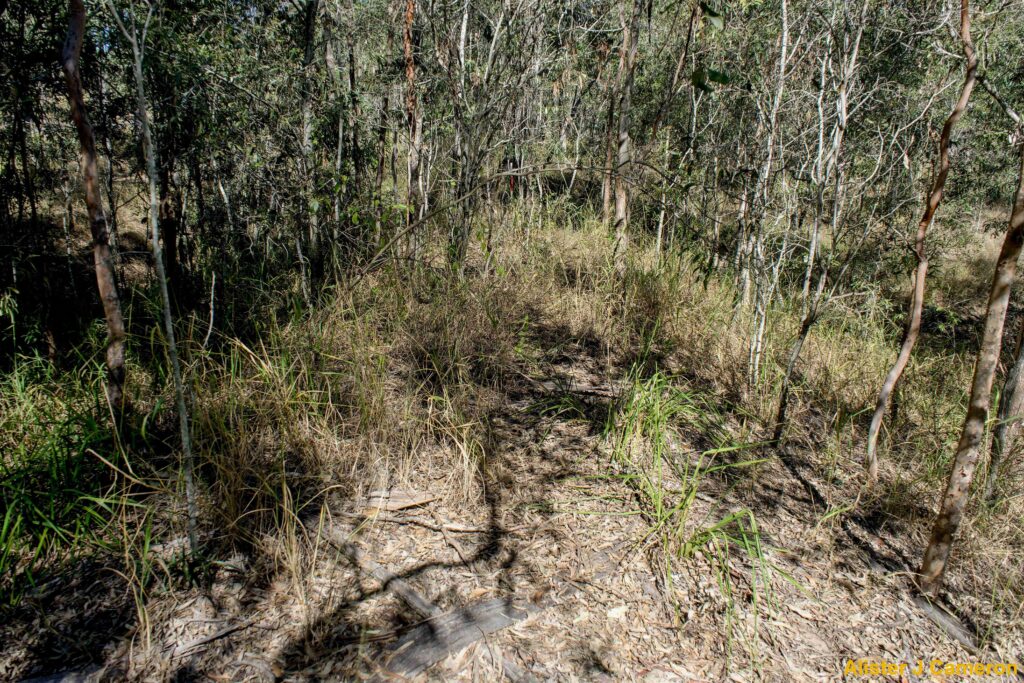

EMBANKMENT LOOKING SOUTH-WEST 2018
Ahead where red and white pole can just be seen is a gap that was the former site of the log culvert.
Photo: Alister J Cameron
LOOKING SOUTH-WEST ACROSS THE CULVERT SITE 2015
Photo: Alister J Cameron

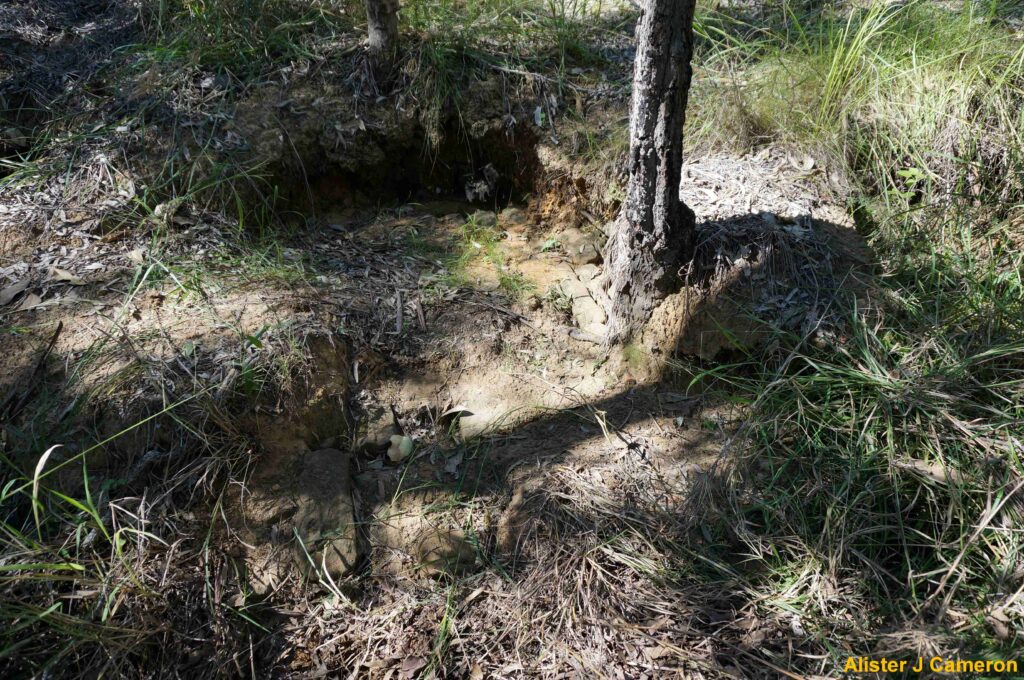

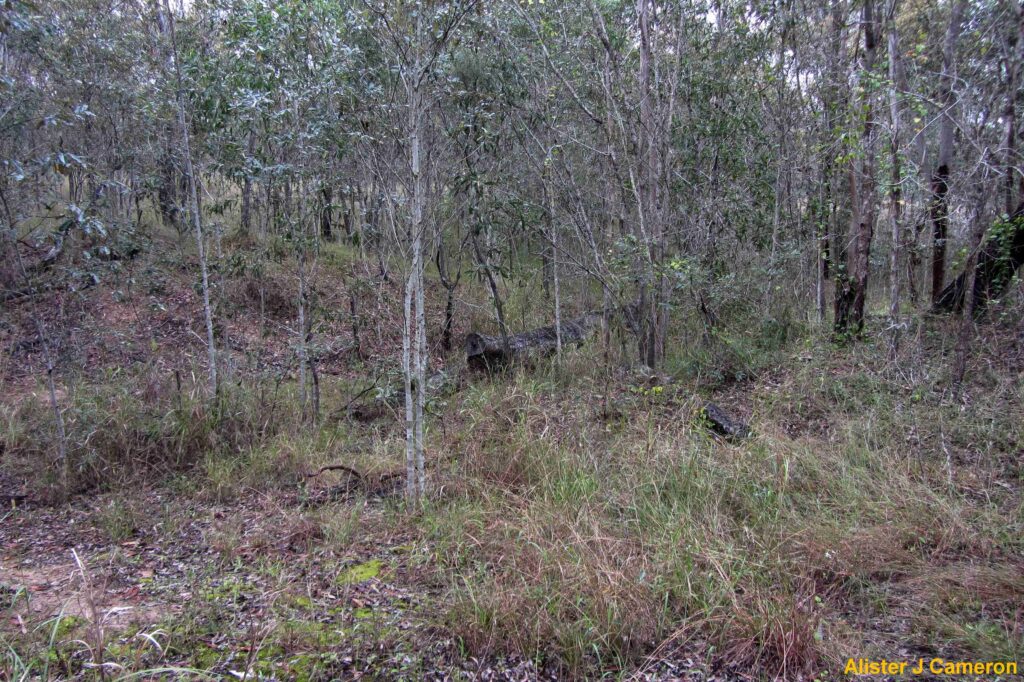

NORTH-EAST SIDE OF GAP 2013
The remains of two horizontal timbers can clearly be seen.
They probably part of the floor of the culvert. Erosian has since made the gully much deeper.
Photo: Alister J Cameron
CLOSEUP OF TIMBERS 2013
It is likely that these were preserved from fire and other destructive agency by being formerly buried in the bank.
Photo: Alister J Cameron

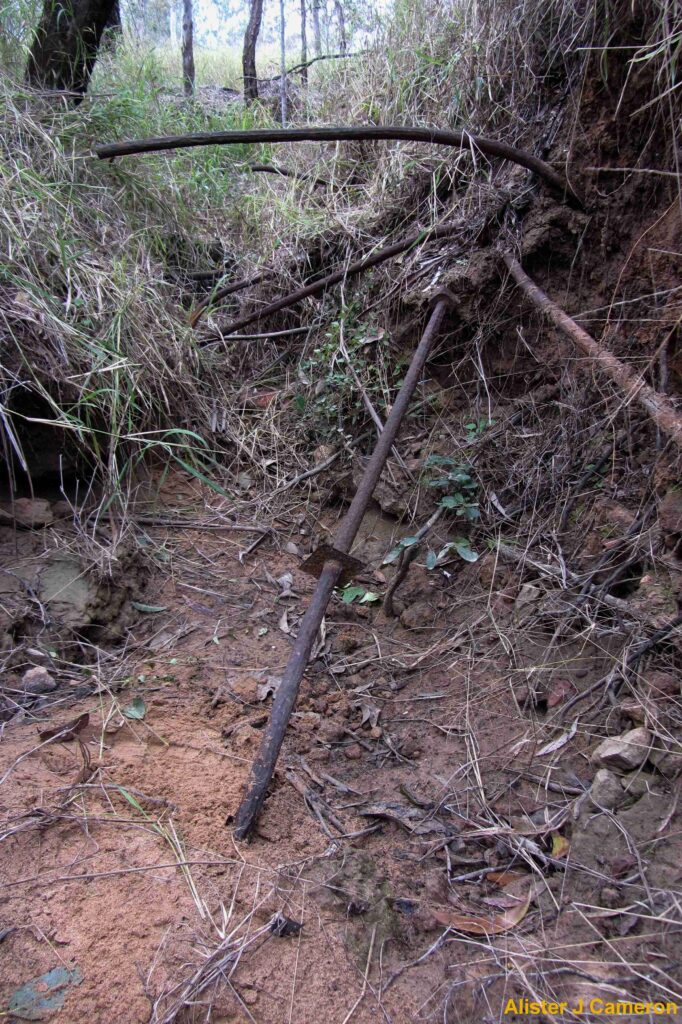

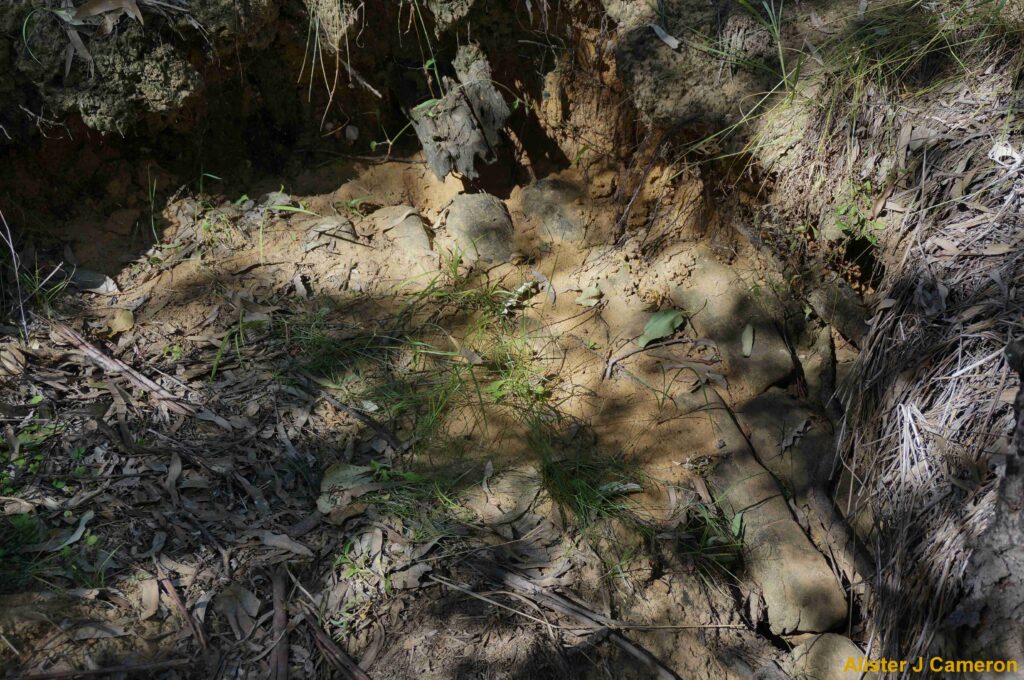

RUSTED METAL ITEMS ON FLOOR OF GAP 2013
Were either part of the original structure or were part of a later item that was placed there to try to avoid erosian.
Photo: Alister J Cameron

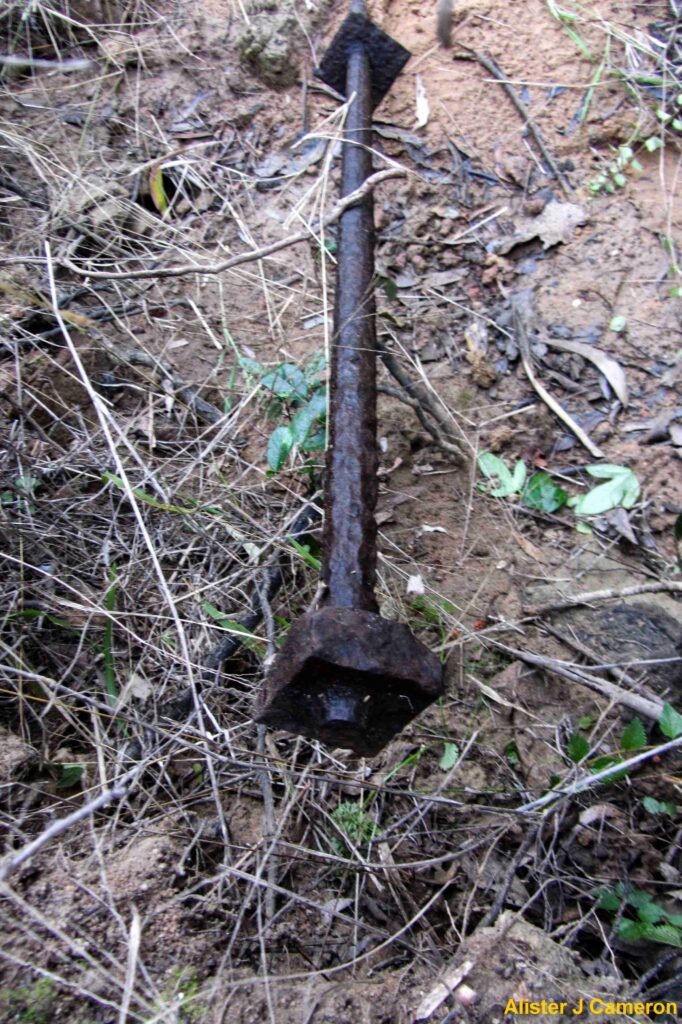

CLOSEUP OF ONE OF METAL RODS 2013
Photo: Alister J Cameron
NORTH-WEST SIDE OF GAP VIEWED FROM THE SOUTH 2013
Photo: Alister J Cameron
GAP VIEWED FROM THE SOUTH-EAST 2013
In the foreground is the remains of flagstone paving.
In the background the metal rods can just be seen.
Photo: Alister J Cameron
THE FLAGSTONE PAVING SEEN FROM OTHER DIRECTION.
Appears to have been formerly covered with mud and later exposed due to excavation of erosian.
Photo: Alister J Cameron

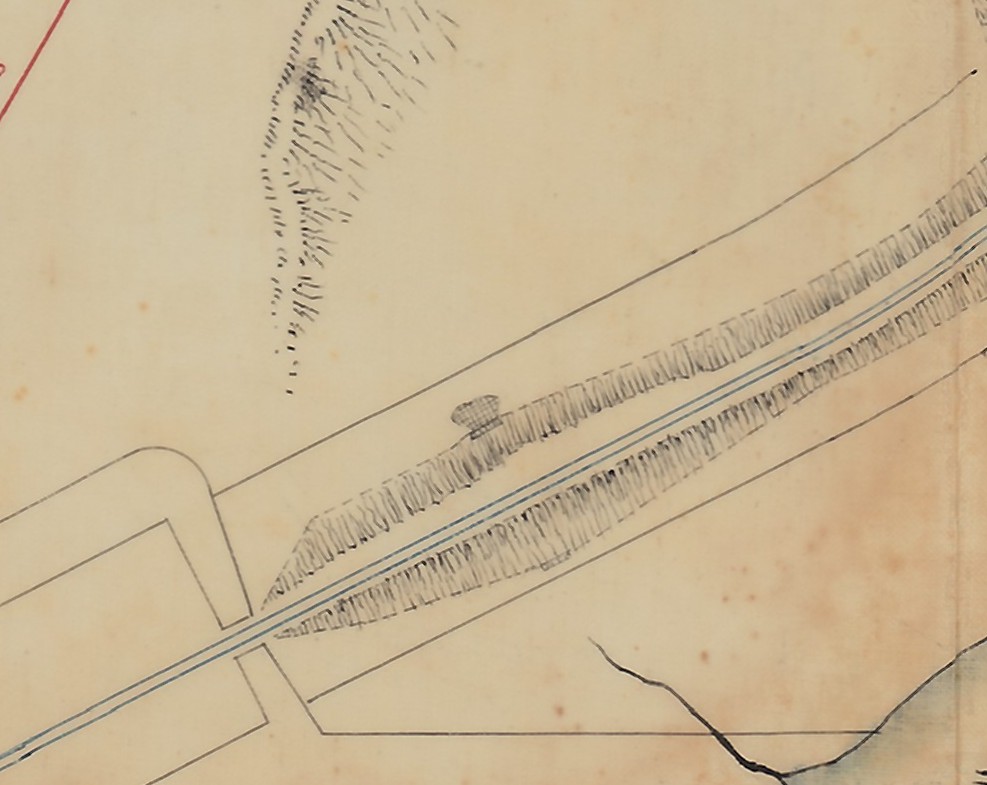

CLOSEUP OF MIHI CROSSING WORKING PLAN 1867
Upper side of that culvert has a drawing that possibly represents stone paving.
The 'fourth' culvert here may have had a similar design.
Series: 17924 Land Resumption Files
Item 140807 & 140808 QSA
CLOSEUP OF THE FLAGSTONE AREA 2015
Photo: Alister J Cameron
CULVERT AREA VIEWED AT DISTANCE FROM THE SOUTH 2016
Photo: Alister J Cameron
CULVERT AREA VIEWED AT DISTANCE FROM THE NORTH 2016
Photo: Alister J Cameron
Fourth Culvert to Grace Street

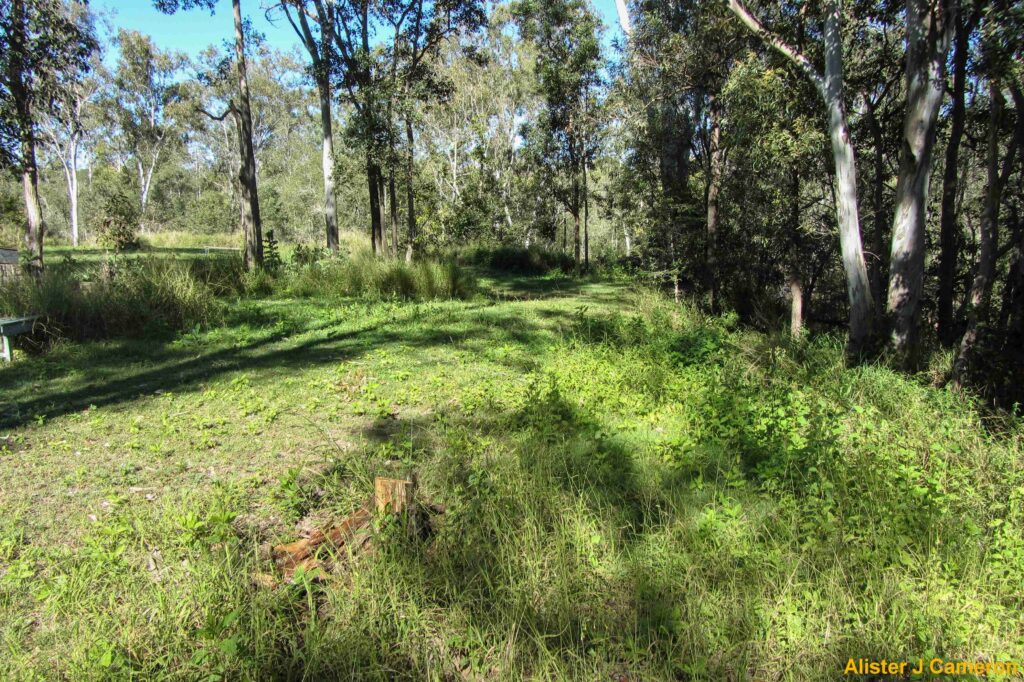

EMBANKMENT AS IT APPROACHES GRACE ST 2013
Street can just be seen top left.
Photo: Alister J Cameron
LOOKING BACK ALONG THE EMBANKMENT ROUGHLY NORTH 2013
Photo: Alister J Cameron
CLOSER TO GRACE SEAT LOOKING ROUGHLY SOUTH 2013
Photo: Alister J Cameron

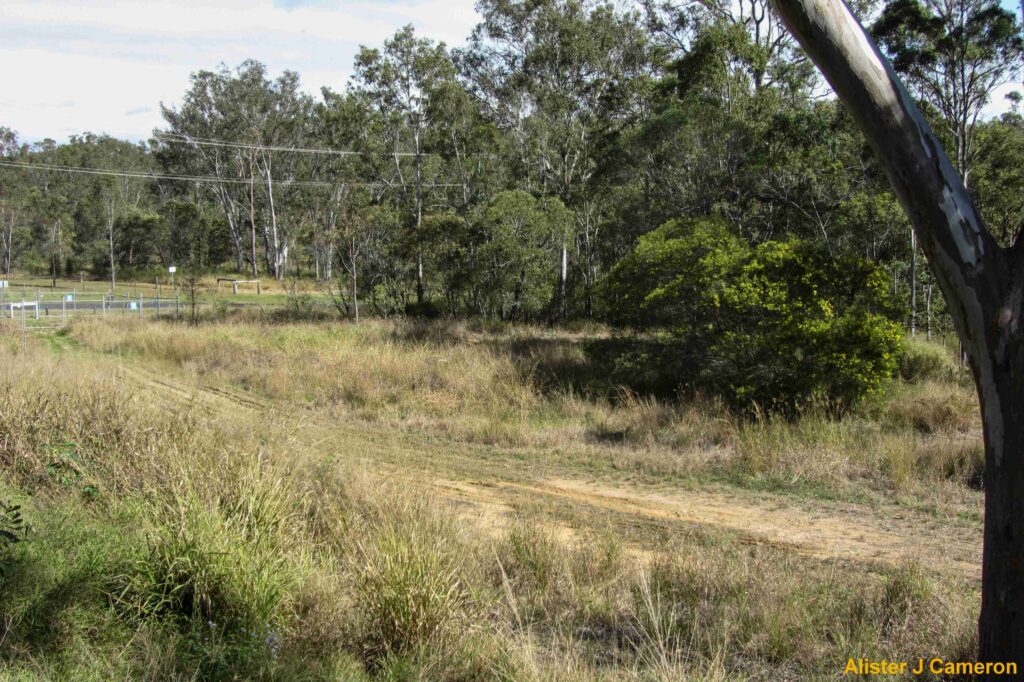

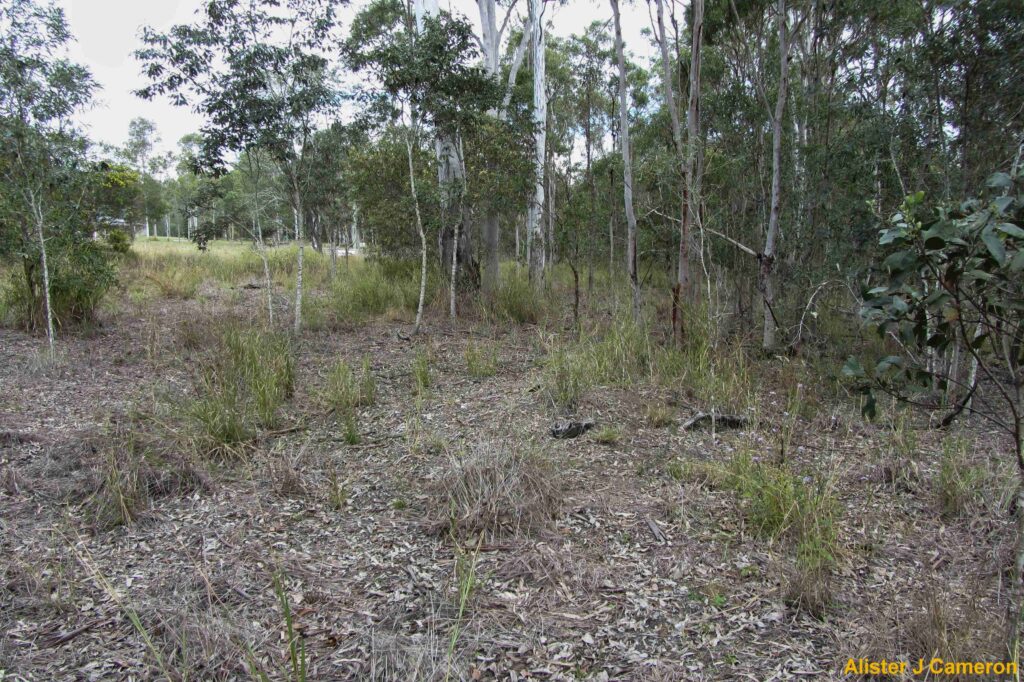

SITE OF BRIDGE (3 12 FOOT SPANS) LOOKING SOUTH-WEST TOWARDS GRACE ST 2013
Site of line was from tree line through temporary fencing.
Nothing now remains.
Photo: Alister J Cameron

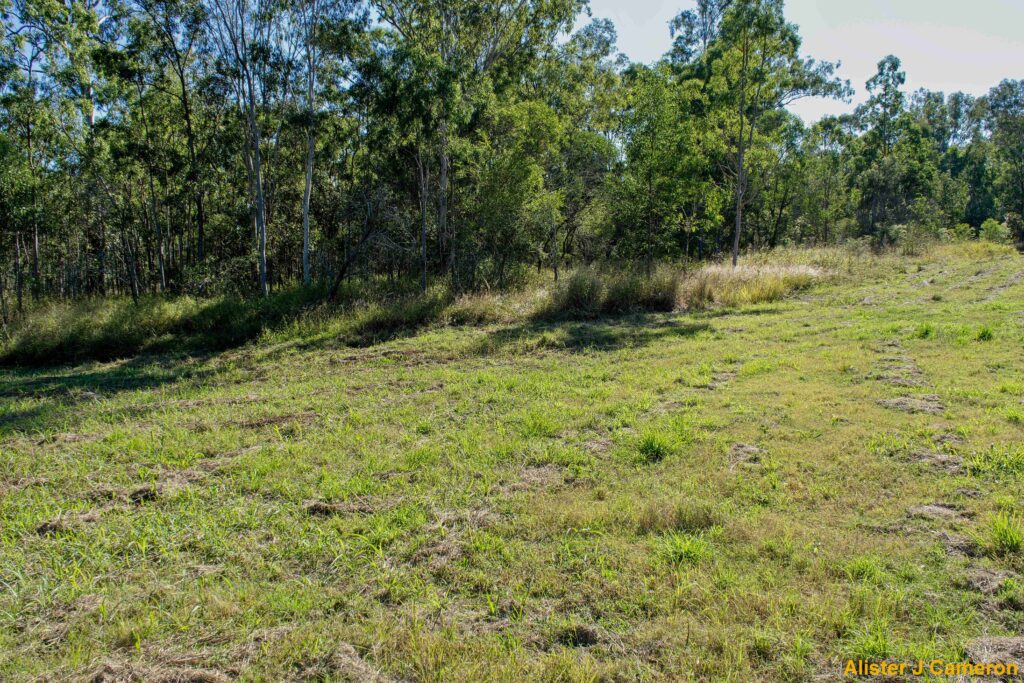

LOOKING BACK NORTHWARDS FROM GRACE ST OVER SITE OF BRIDGE 2018
Photo: Alister J Cameron
Grace Street South

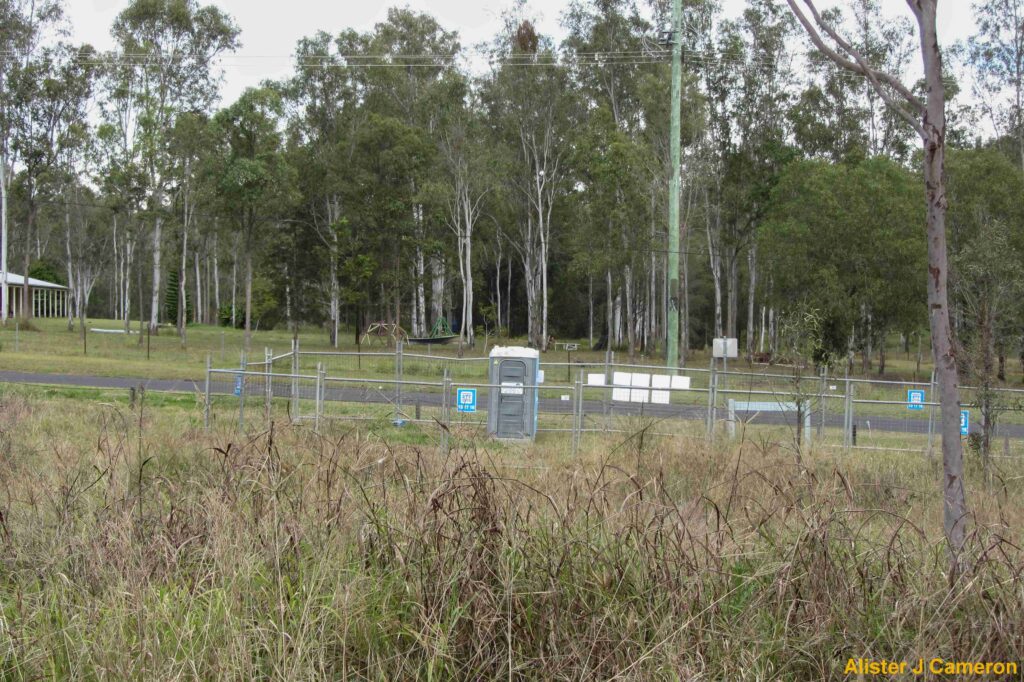

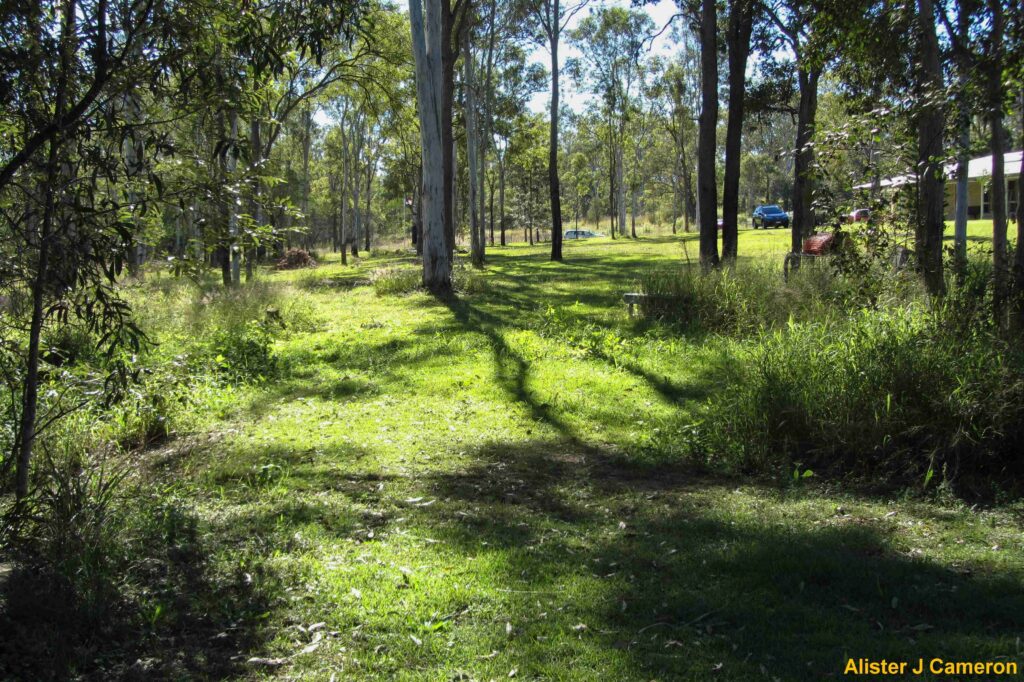

LOOKING SOUTHWARDS ALONG ALLIGNMENT ACROSS GRACE ST 2013
Would have passed just to left of portable toilet.
Little evidence remains.
Photo: Alister J Cameron

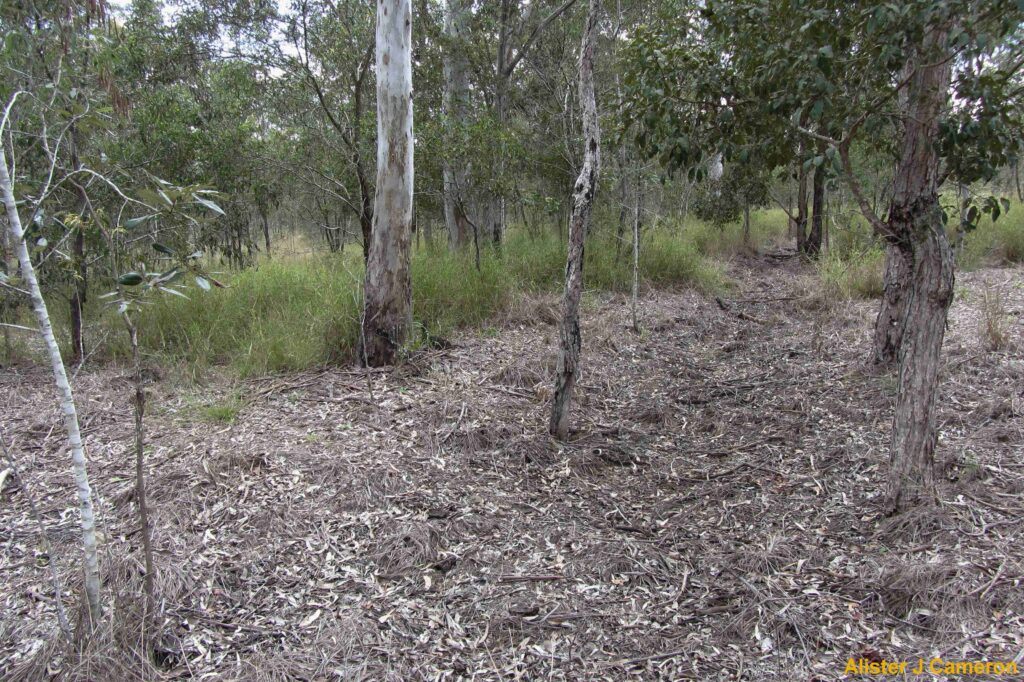

FORMER ALLIGNMENT SOUTH OF GRACE ST 2013
Approximately where edge of line of trees is.
Viewed from north-east.
Photo: Alister J Cameron
LOOKING BACK NORTH ALONG ALLIGNMENT 2013
Photo: Alister J Cameron
LOOKING FORWARD ALONG ALLIGNMENT AS IT APPROACHES SITE OF CULVERT 2013.
Viewed from north-west.
Photo: Alister J Cameron

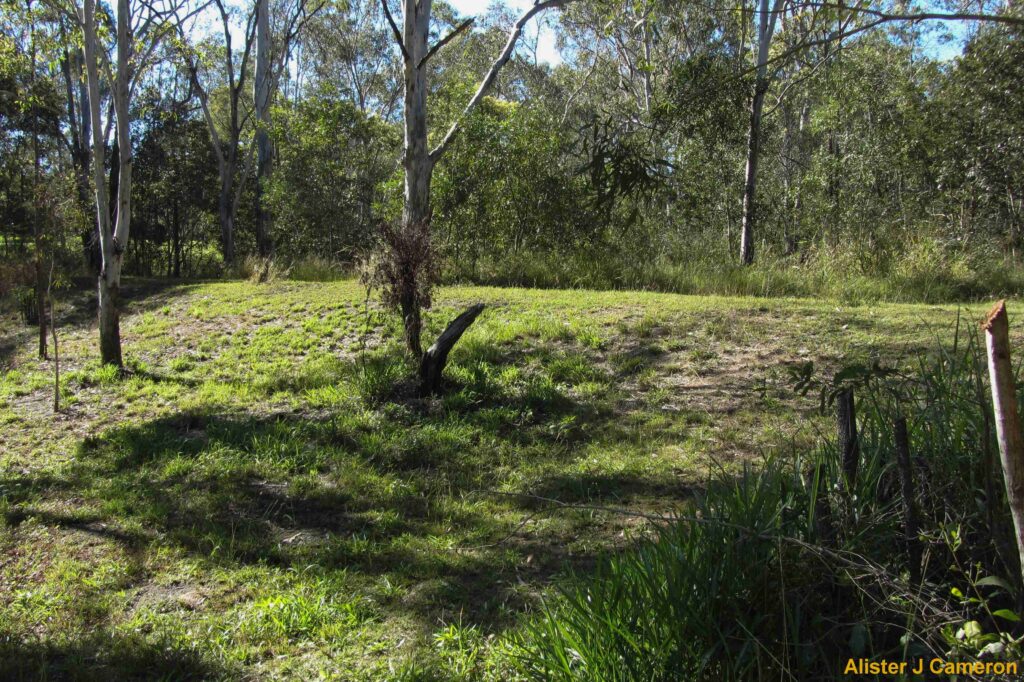

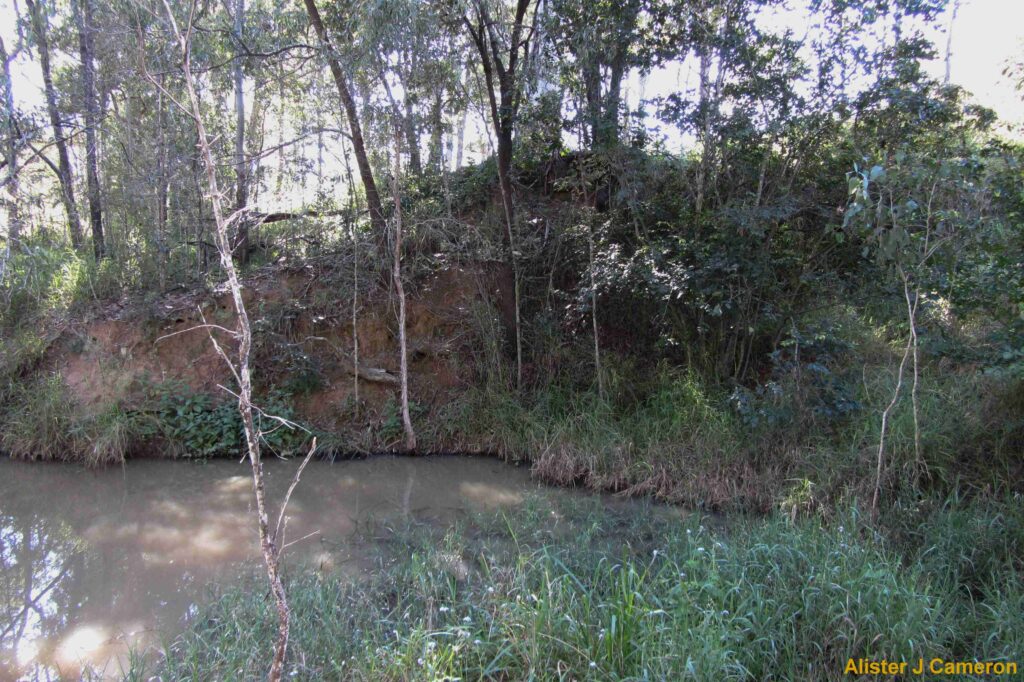

LAGOON AREA WHICH REPLACED BRICK CULVERT (5 OR 6 FEET SPAN) 2013
This area would have been completely re-structured due to drainage changes when Wulkuraka Yard was re-built in the 1950s.
Photo: Alister J Cameron

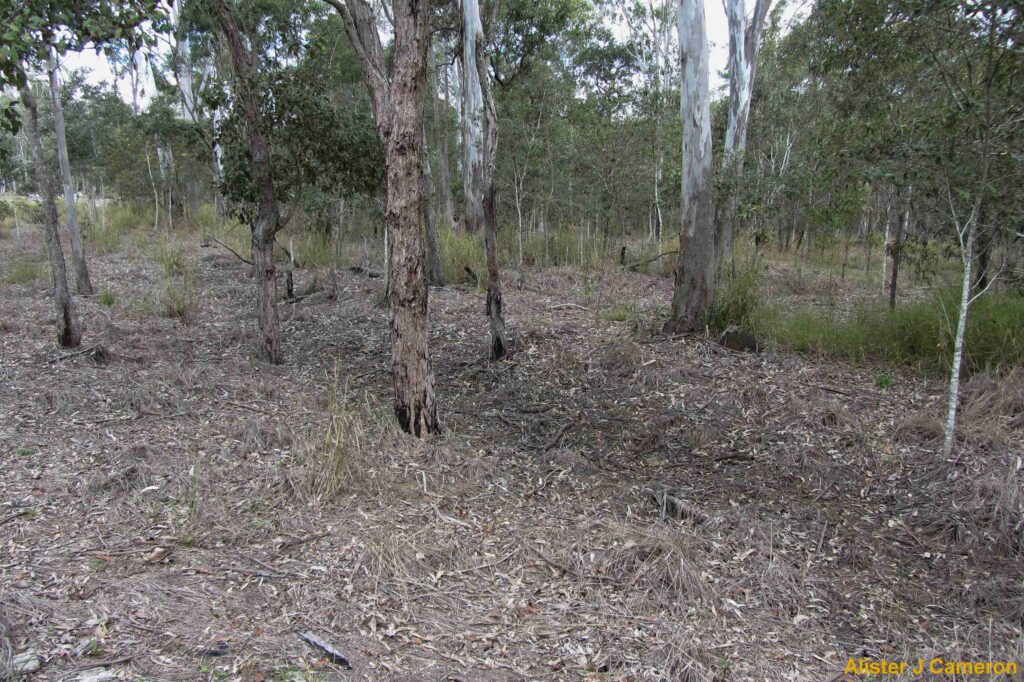

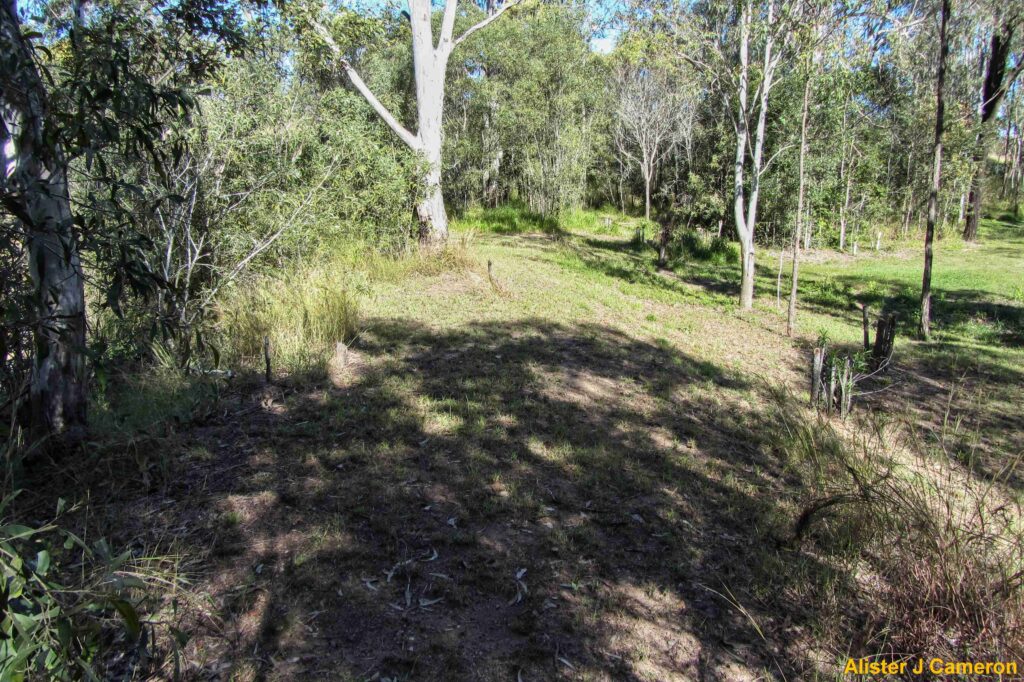

EMBANKMENT LOOKING NORTH OVER CULVERT SITE 2013
Lagoon is on the left.
Photo: Alister J Cameron
EMBANKMENT IS QUITE DISTINCT ON SOUTH SIDE OF CULVERT SITE 2013
Photo: Alister J Cameron
EMBANKMENT LOOKING TOWARDS THE SOUTH WHERE IT MEETS WULKURAKA REDEVELOPMENT AREA 2013
Beyond the tree the allignment completely disappears.
Photo: Alister J Cameron
