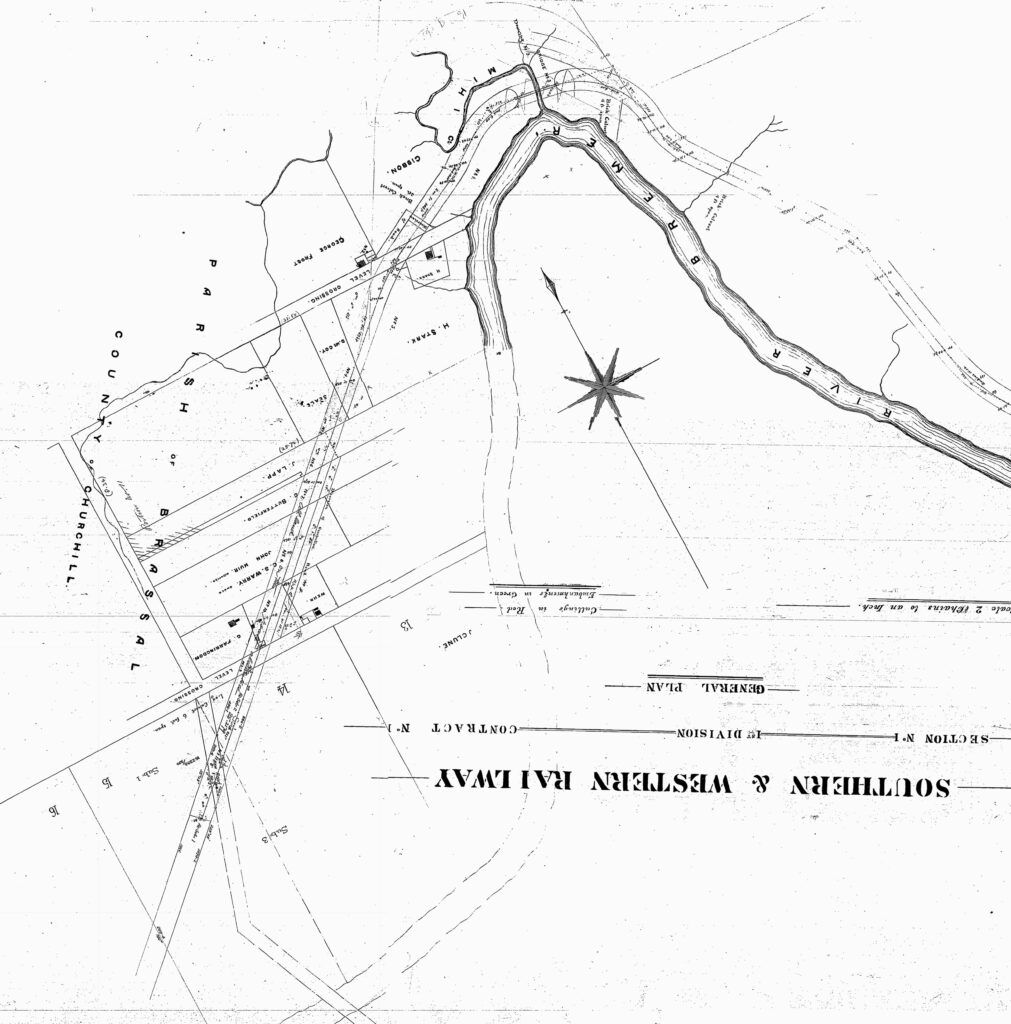

WORKING PLAN MIHI AREA TO WORKSHOPS ST SOUTH 1863
Southern & Western Railway
Section No.1 1st Division Contract No.1
A Fitzgibbon
29 December 1863
Source: Qld Railways Archives

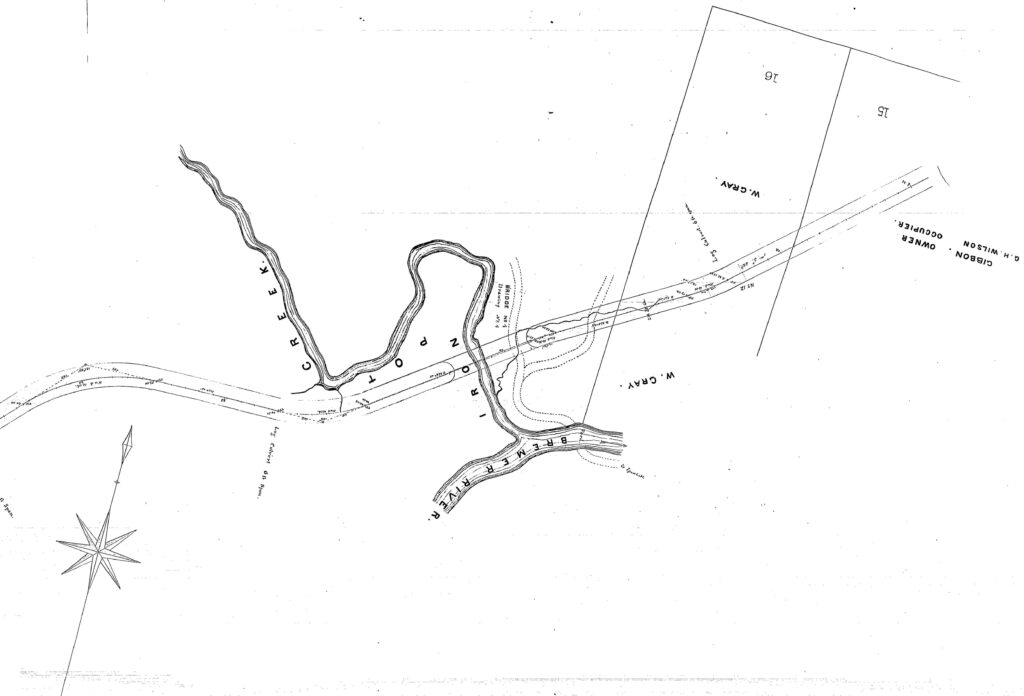

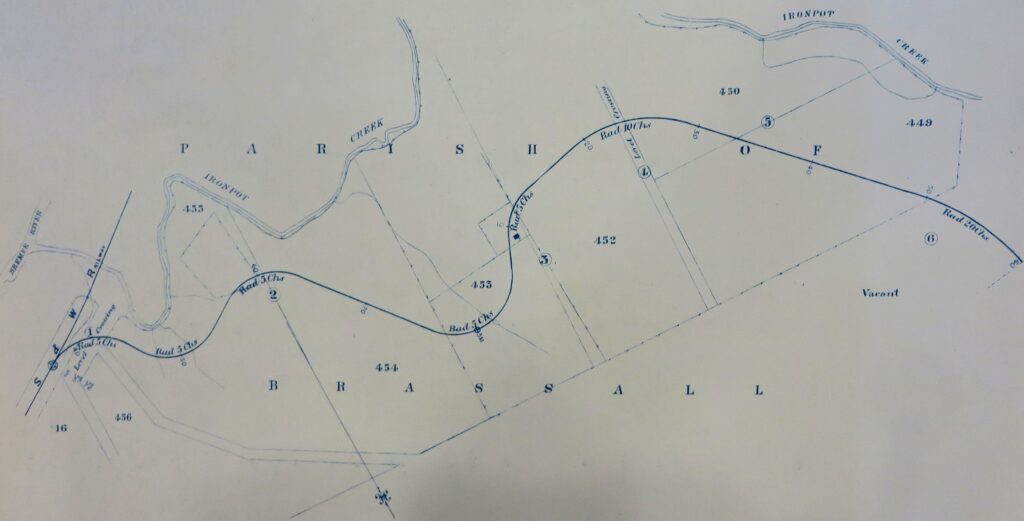

WORKING PLAN IRONPOT CREEK AREA 1863
Southern & Western Railway
Section No.1 1st Division Contract No.1
A Fitzgibbon
29 December 1863
Source: Qld Railways Archives
PROPOSED (BUT NEVER BUILT) BRISBANE VALLEY BRANCH COMMENCING NEAR IRONPOT CREEK. 1880
S. & W. Railway
Parliamentary Plan & Section
of the proposed
Brisbane Valley Branch Railway
Sec. No. 1-0.00 to 10 1/2 Miles
1880
Item: 117312 Series 17676 (QSA?)

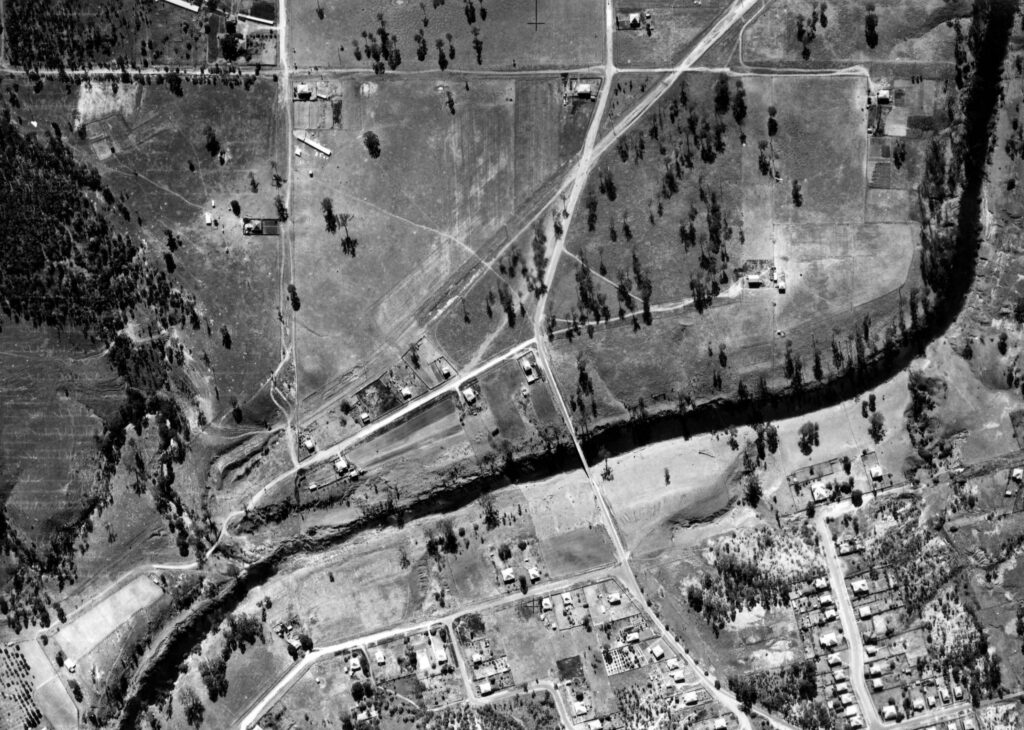

AERIAL PHOTO WORKSHOPS ST TO IRONPOT CREEK 1946
RAAF4-35644
The State of Queensland (Department of Natural Resources and Mines) 2016

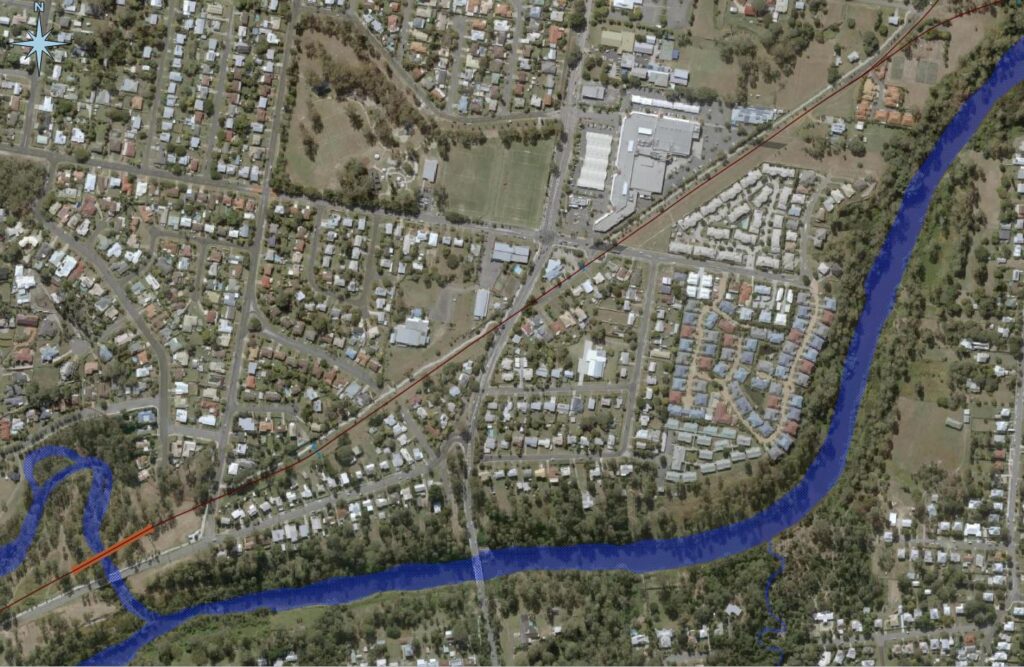

1865 LINE; WORKSHOPS ST TO IRONPOT CREEK FROM ABOVE
QGIS Vectors based on 1863 Working Plan (Alister J Cameron)
Underlay: Qld Globe (Ausmap)
MODERN COLLINS ST FACING SOUTH-WEST 2013
Roughly follows the allignment of the original Railway Line.
Photo: Alister J Cameron
FURTHER ALONG AFTER END OF COLLINS ST LOOKING SOUTH-WEST 2013
Former rail allignment was situated along the right hand portion of the open area.
Photo: Alister J Cameron
CONTINUATION OF ALLIGNMENT SOUTH-WEST 2013
In far distance Workshops Street crosses
On the right is Brassall Shopping Center.
Photo: Alister J Cameron

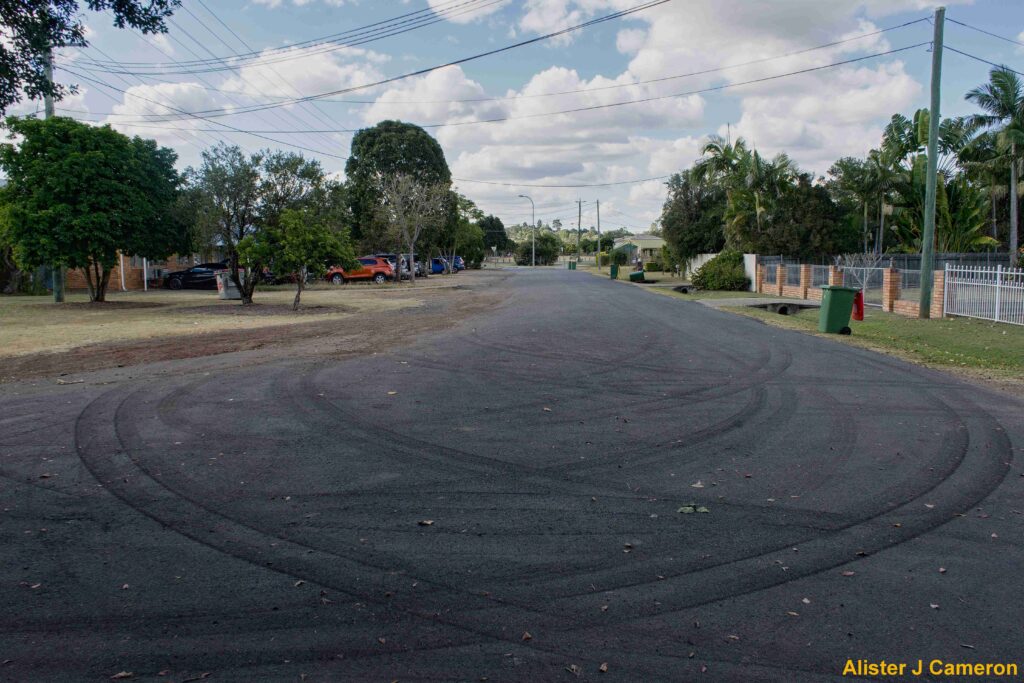

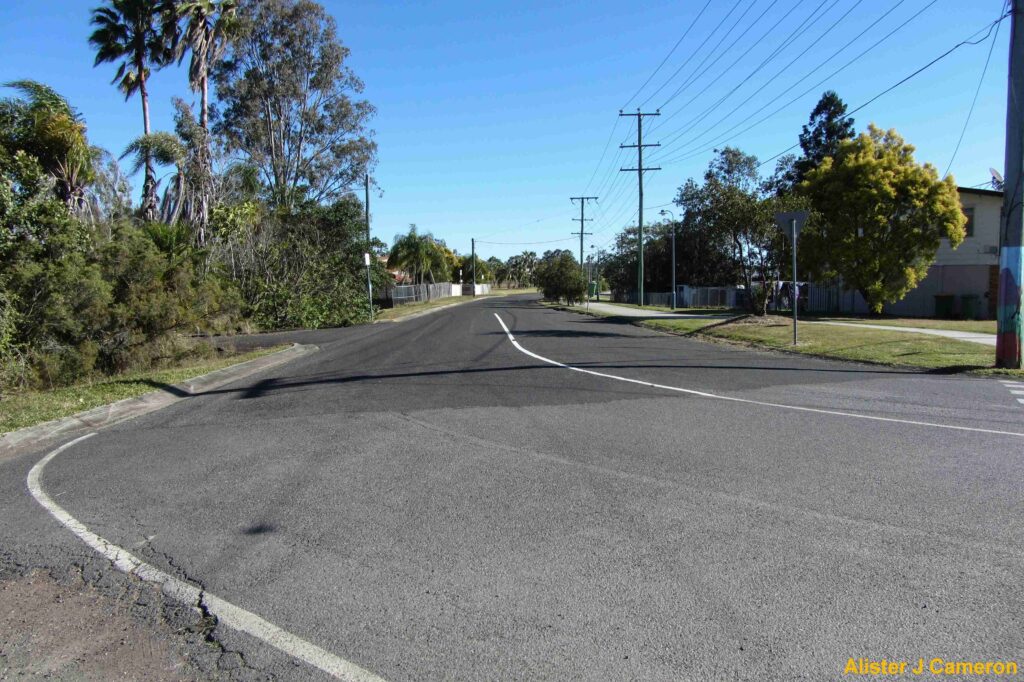

WORKSHOPS ST TO HUNTER ST; LOOKING BACK NORTH-EAST 2018
Bitumin road cover original railway allignment.
Photo: Alister J Cameron

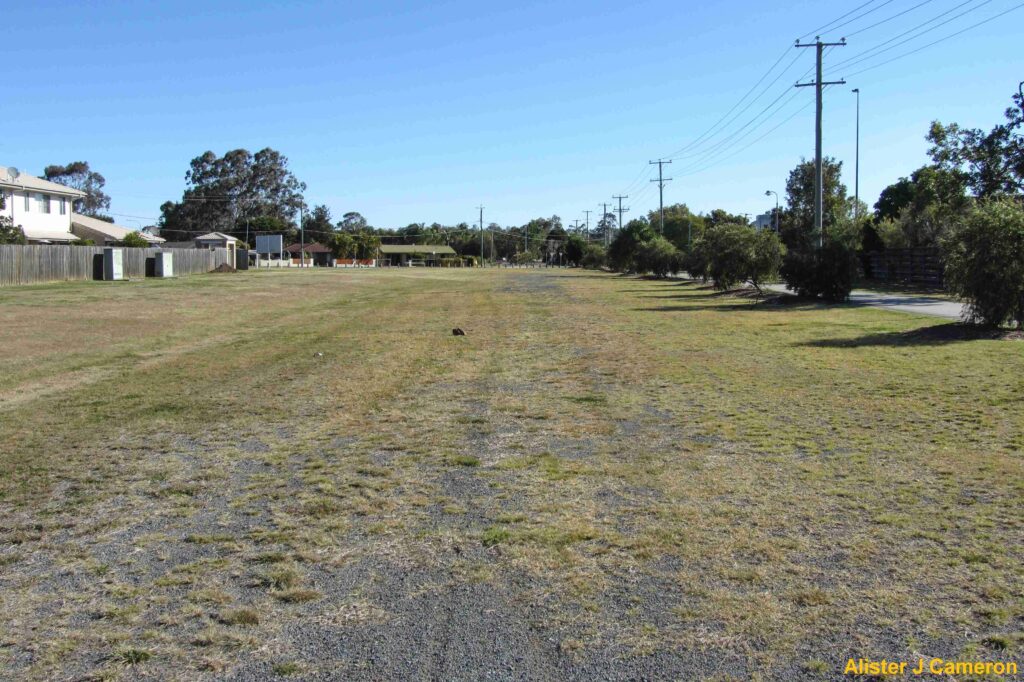

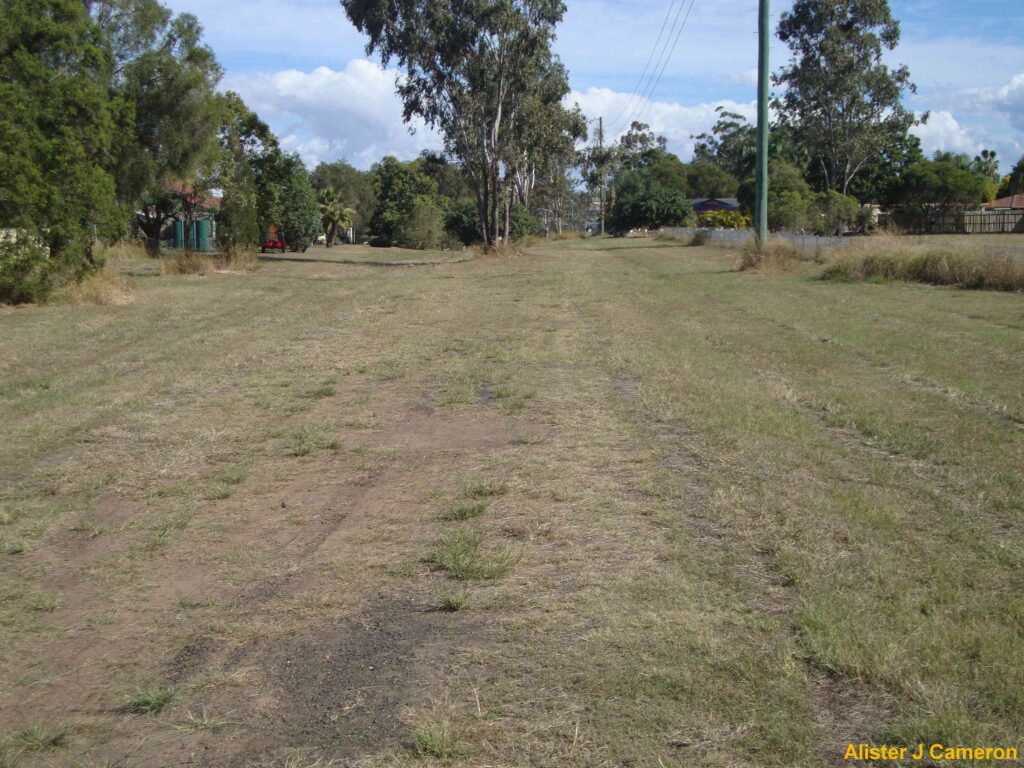

LOOKING SOUTH-WEST ALONG FORMER ALLIGNMENT FROM HUNTER ST 2010
Photo: Alister J Cameron
FURTHER SOUTH-WEST ALONG THE FORMER ALLIGNMENT 2010
In this section later earthworks appear to have disrupted the former embankment.
Photo: Alister J Cameron

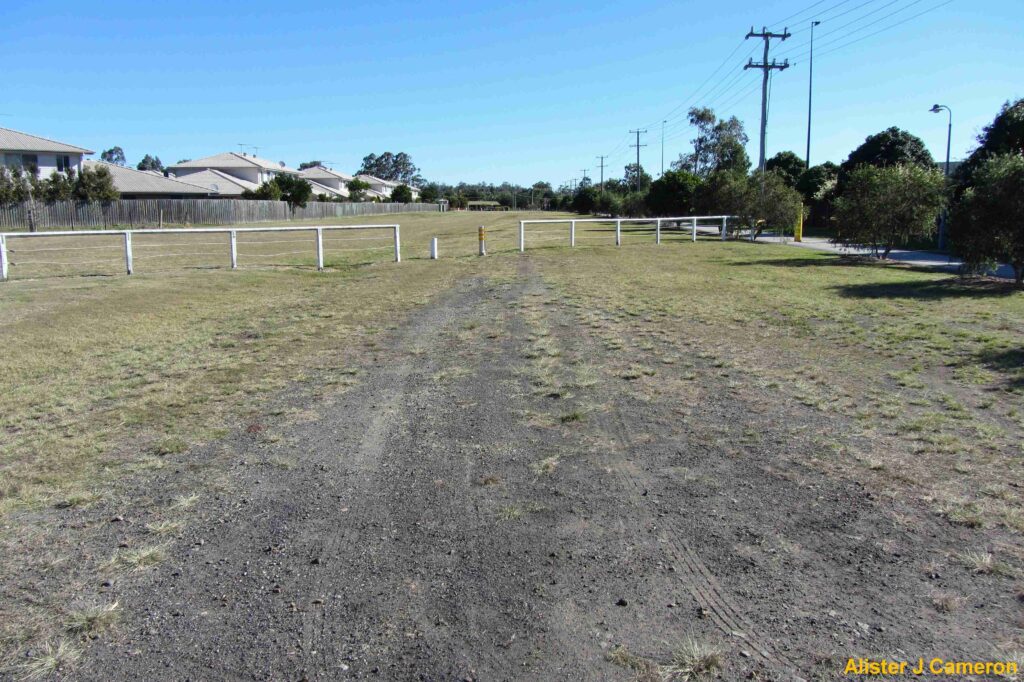

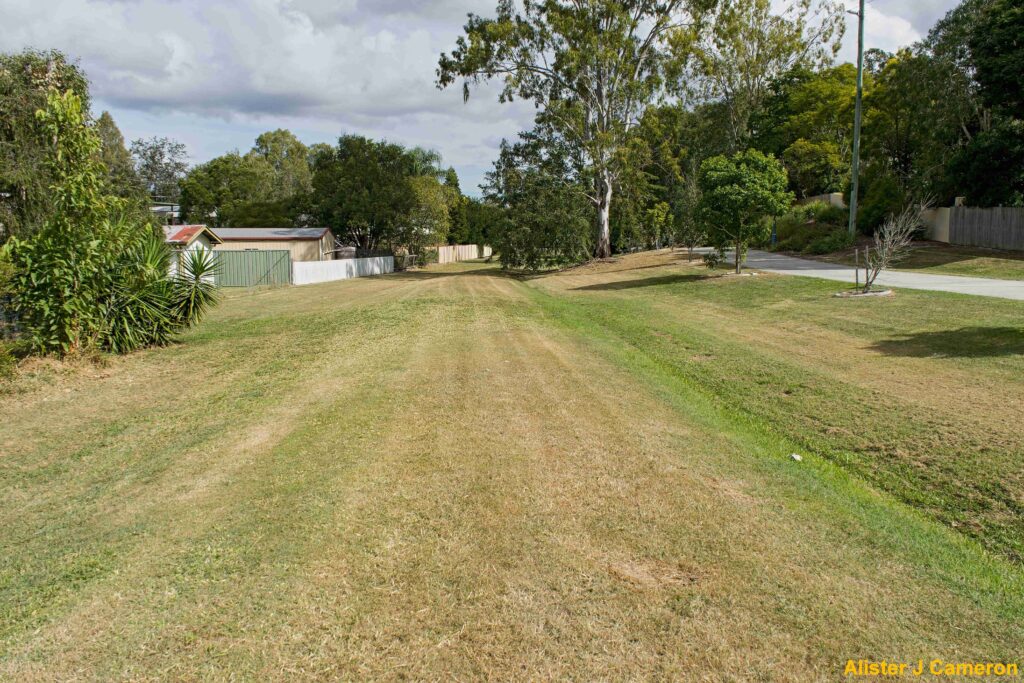

ALLIGNMENT STILL TRACKING SOUTH-WEST FURTHER ALONG 2018
Former embankment now very distinct.
Photo: Alister J Cameron

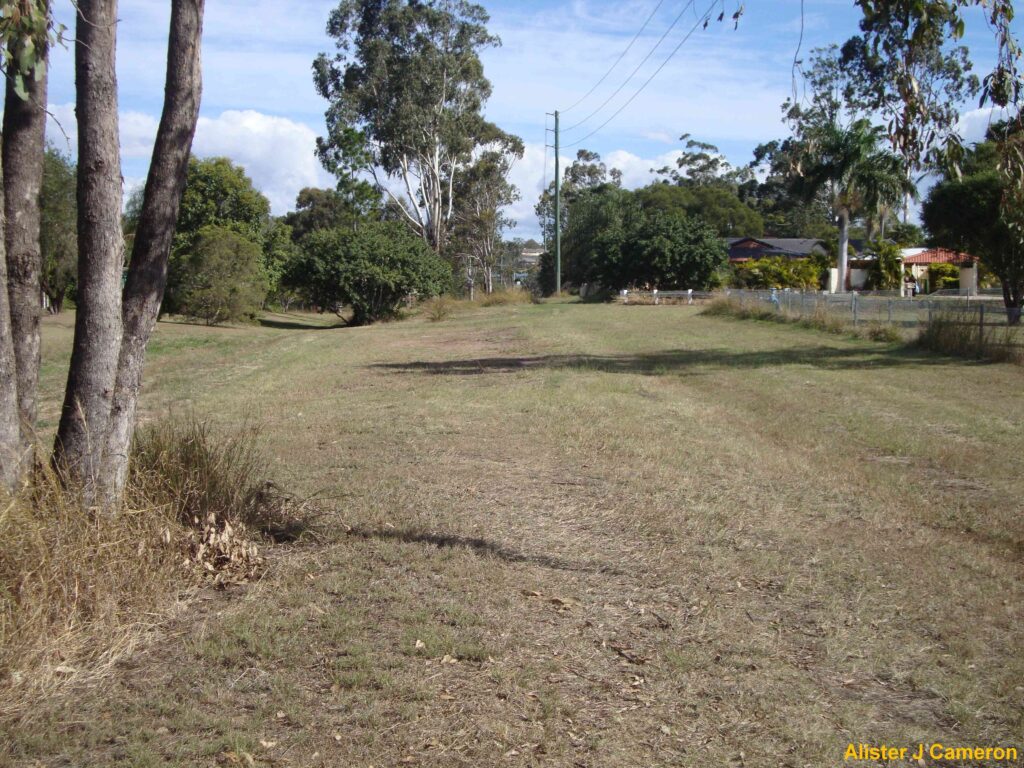

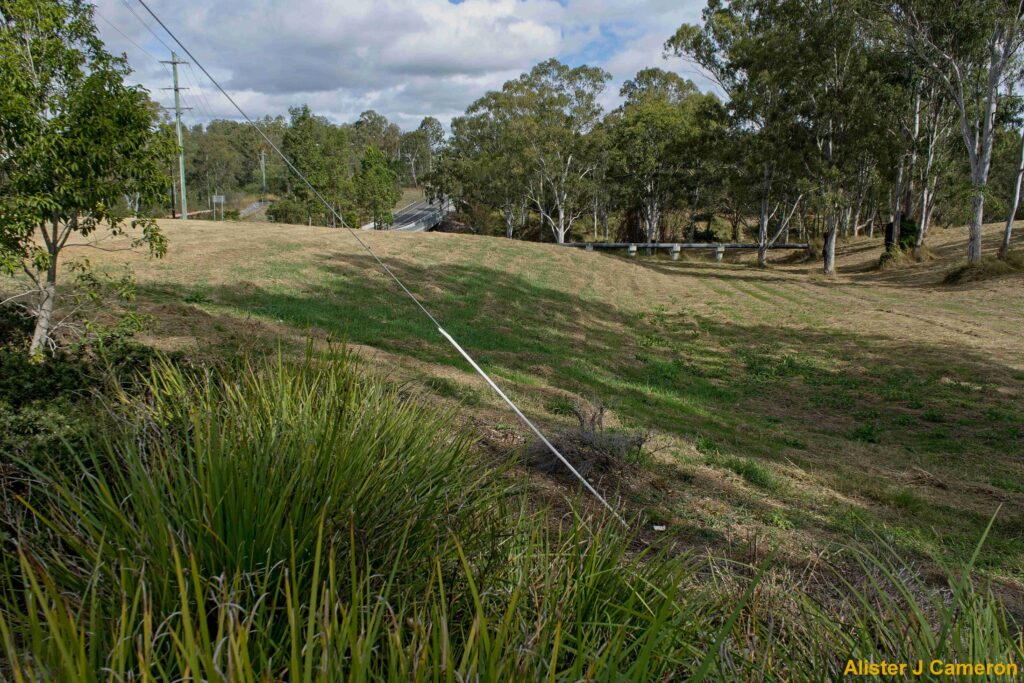

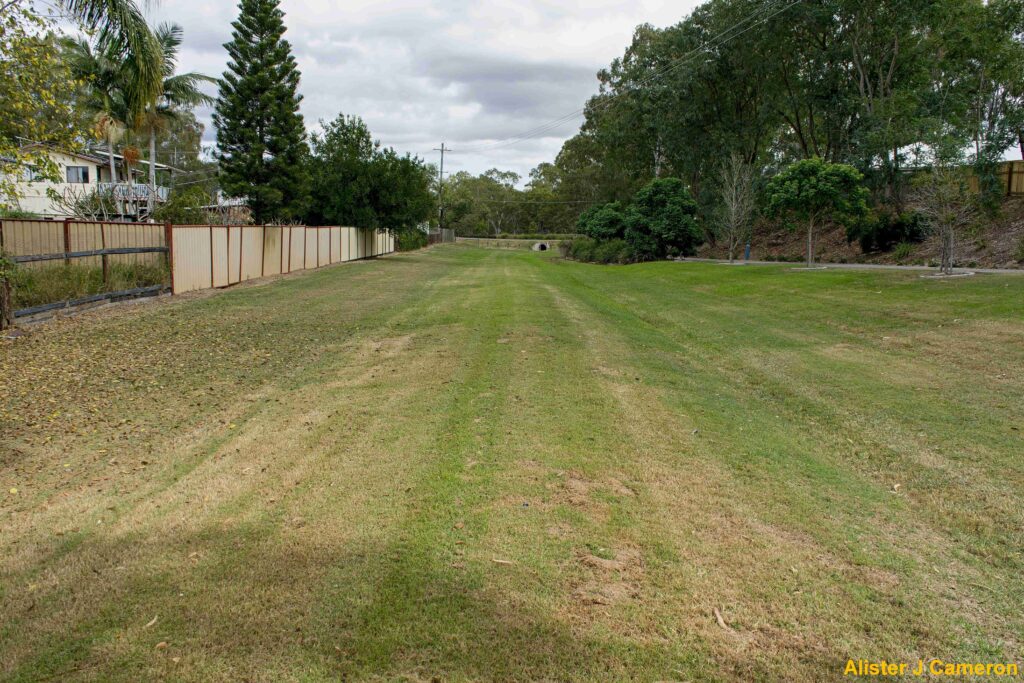

CONTINUATION OF ALLIGNMENT TO VOGEL RD 2018
Photo: Alister J Cameron

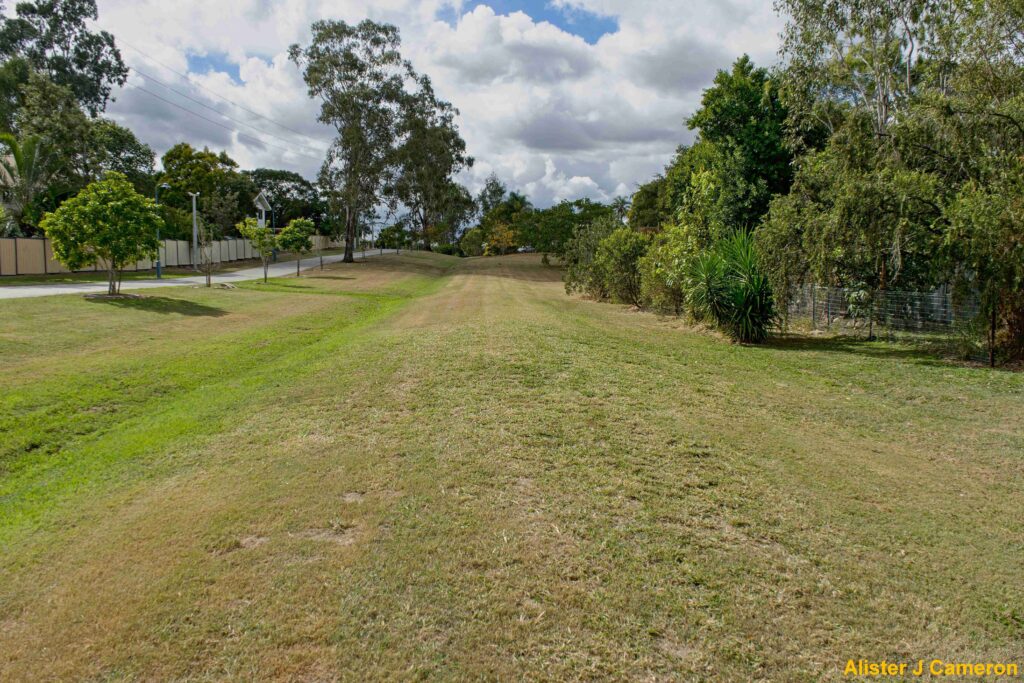

LOOKING BACK NORTH-EAST ALONG ALLIGNMENT 2018
Photo: Alister J Cameron

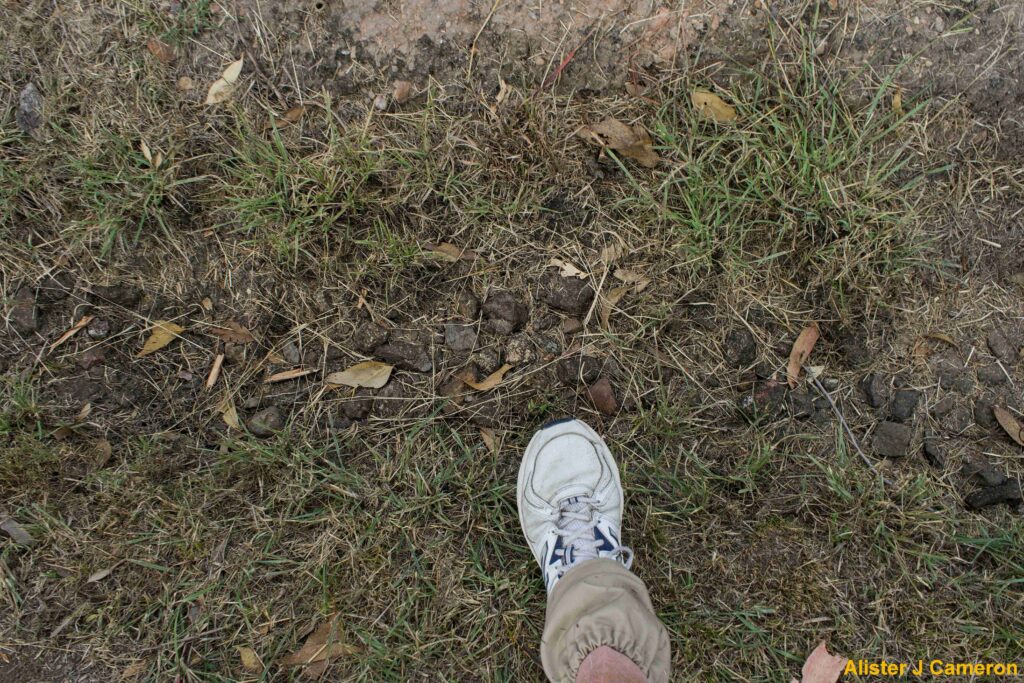

REMNANTS OF SANDSTONE BALLAST IN DITCH BESIDE EMBANKMENT 2018
Photo: Alister J Cameron
Iron Pot Creek Bridge

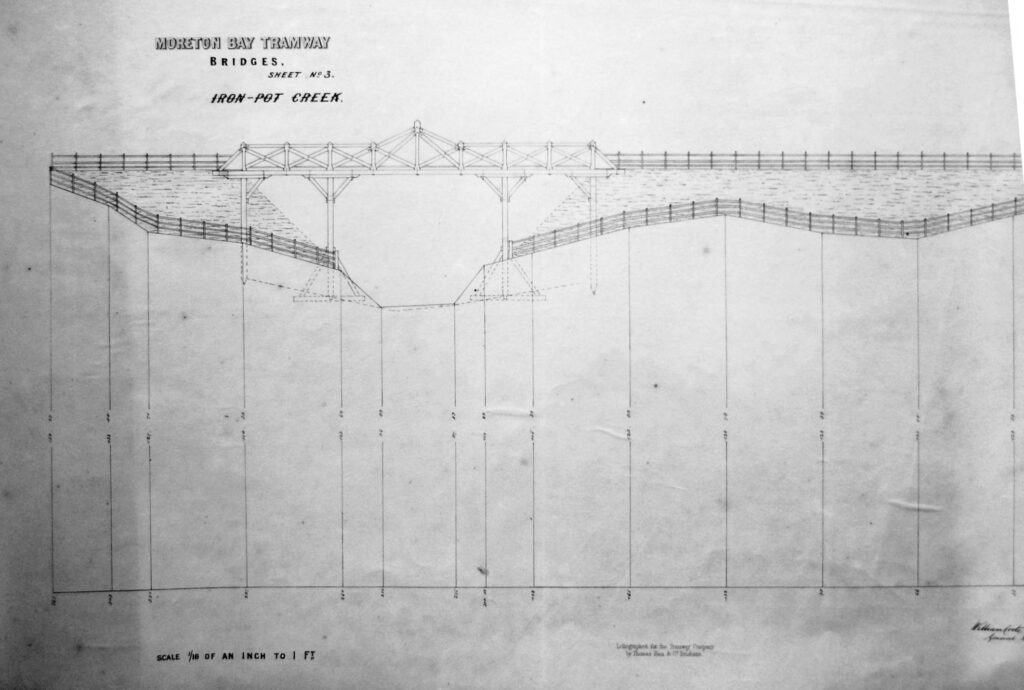

DESIGN DRAWING OF IRONPOT CREEK BRIDGE (NOT BUILT)
Moreton Bay Tramway Co.
MBTC Bridge 3 Iron Pot Creek
Source: Qld Railways Archives

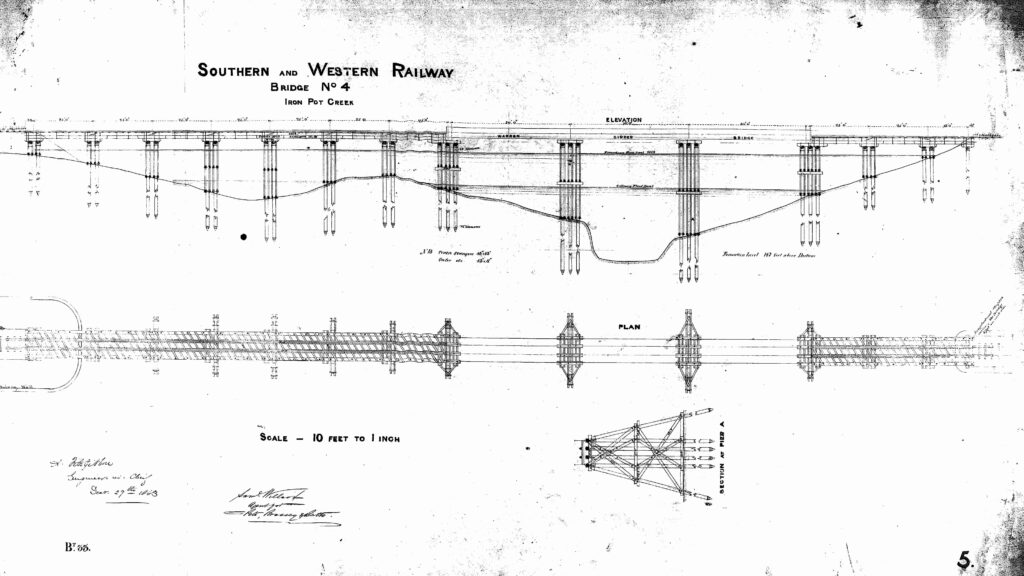

DESIGN DRAWING IRON POT CREEK BRIDGE 1863
Source: Qld Railways Archives

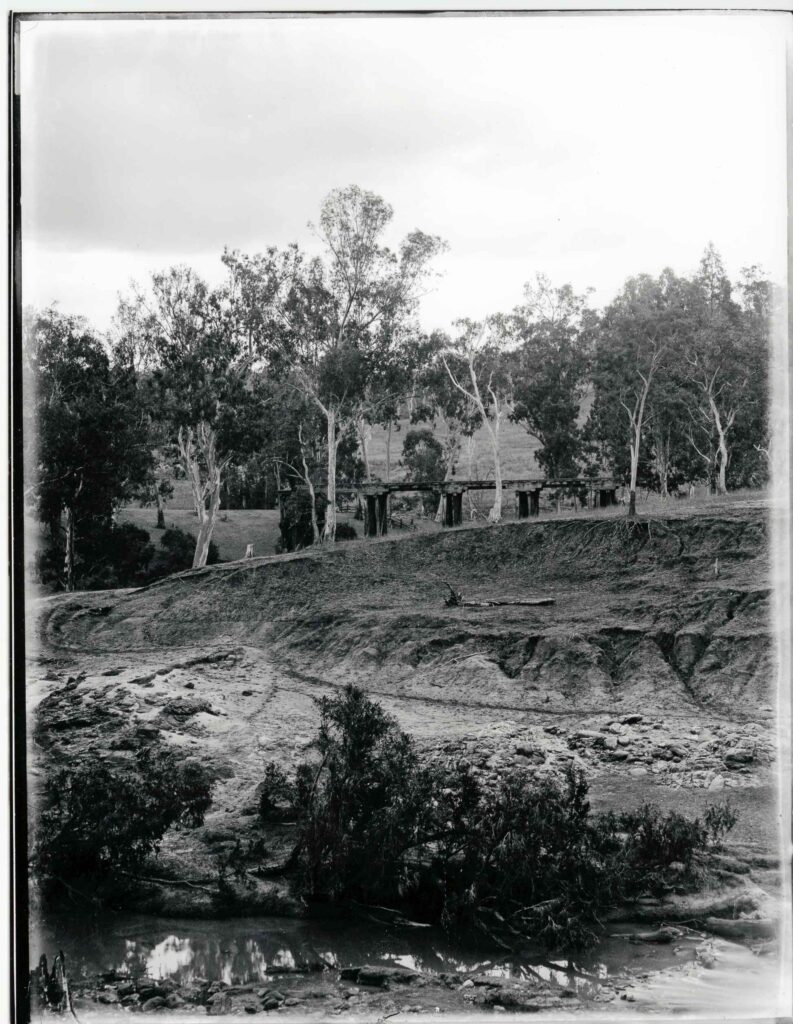

IRON POT CREEK BRIDGE REMAINS DATE UNKNOWN
Metal girder has been removed.
From the Roberts Collection held by the Cob & Co, Museum.

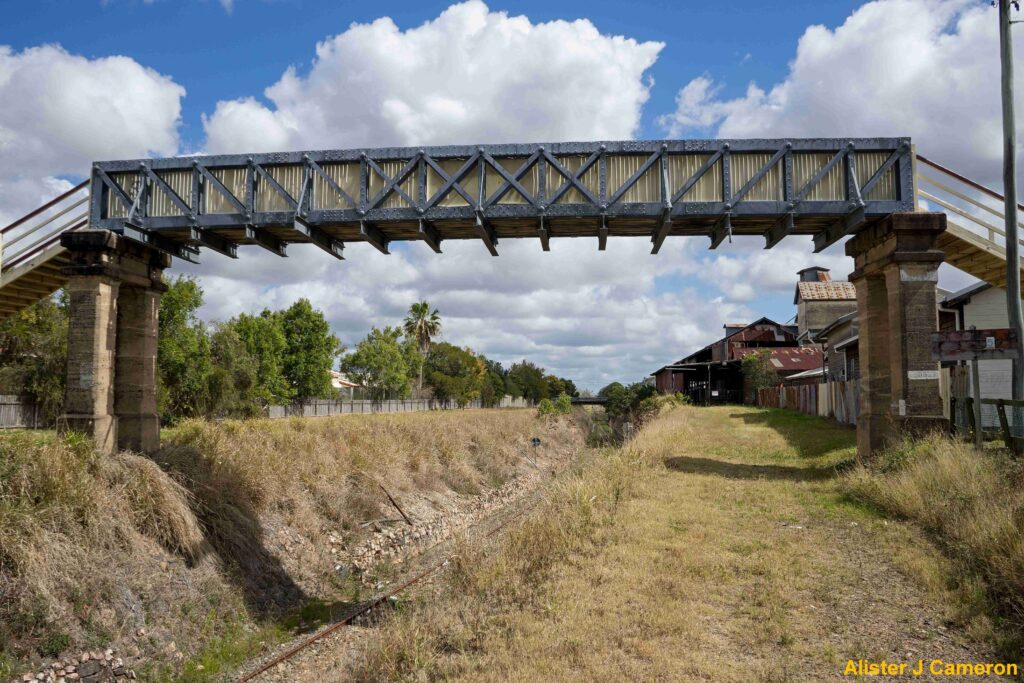

CENTRE TRUSS OF IRON POT BRIDGE NOW CONVERTED TO PEDESTRIAN OVERBRIDGE MARYBOROUGH 2018
Now known as Tooley St Bridge
Photo: Alister J Cameron

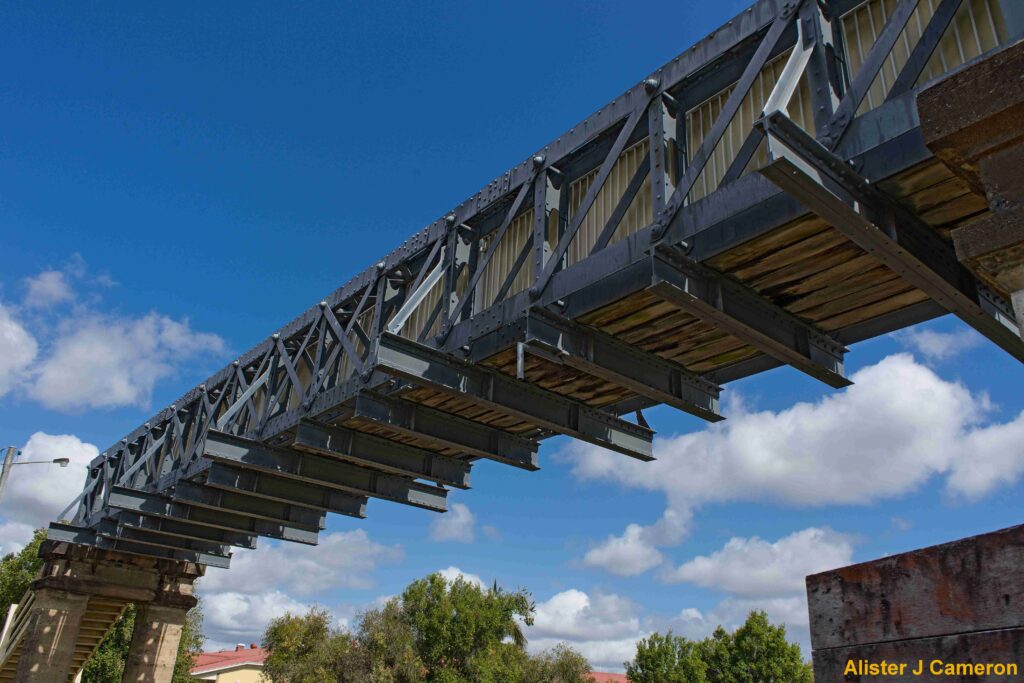

CLOSER VIEW OF UNDERSIDE OF BRIDGE 2018.
Apparently has been narrowed for its current purpose.
Photo: Alister J Cameron

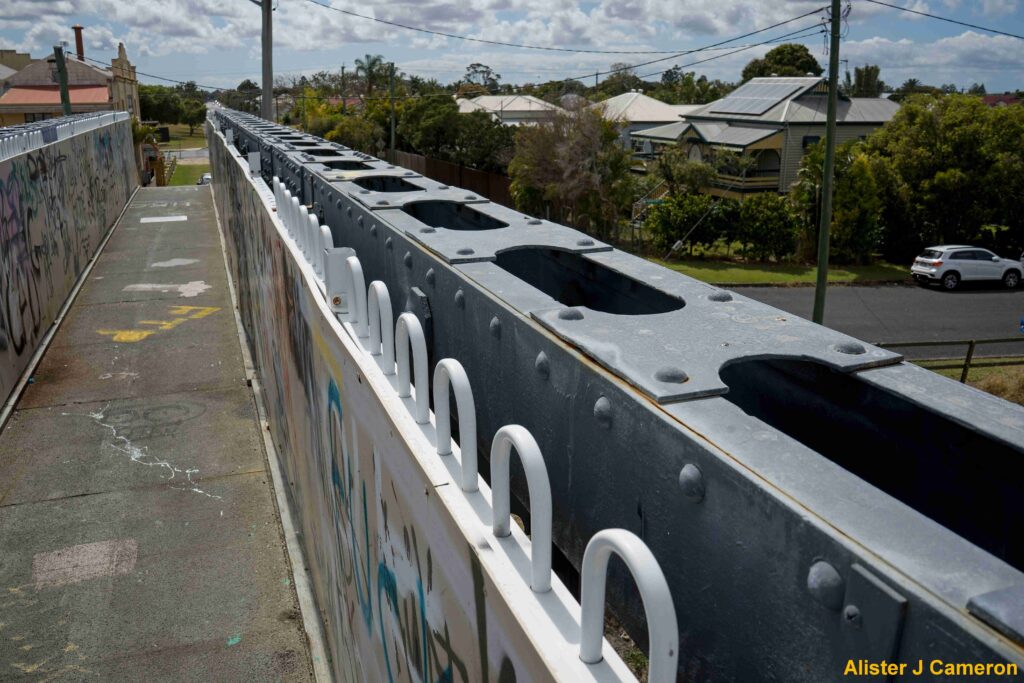

TOP VIEW OF ONE OF GIRDERS 2018
Photo: Alister J Cameron
SITE OF FORMER ALLIGNMENT LOOKING SOUTH-WEST TOWARDS IRON POT CREEK 2018
Landscape has completely changed due to later being a dump site.
Photo: Alister J Cameron
LOOKING SOUTH-WEST ACROSS IRON POT CREEK 2015
Photo: Alister J Cameron

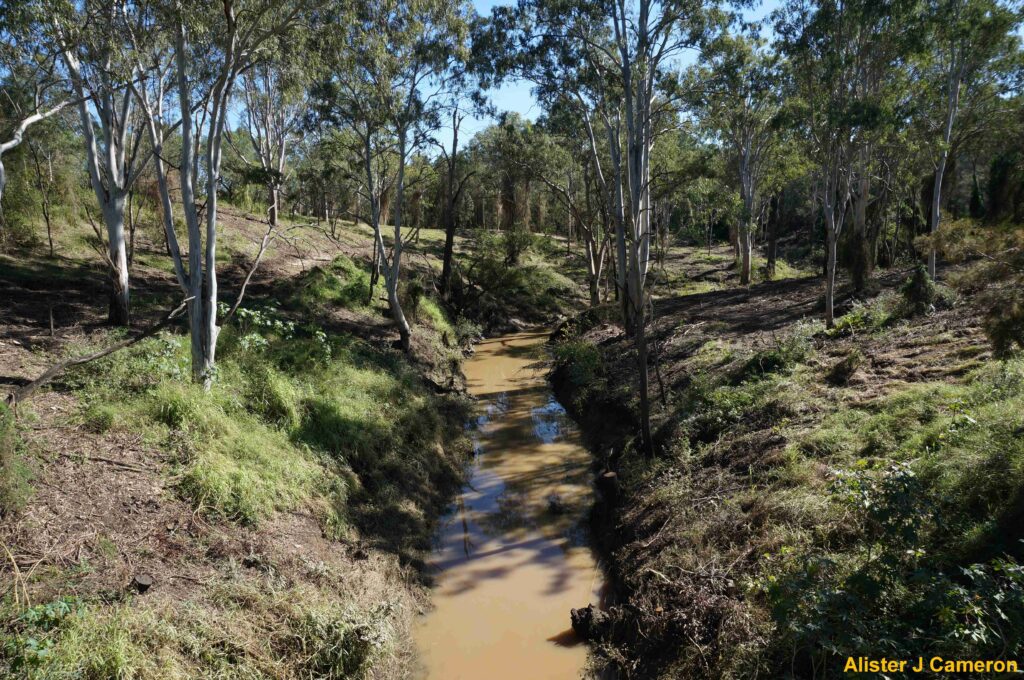

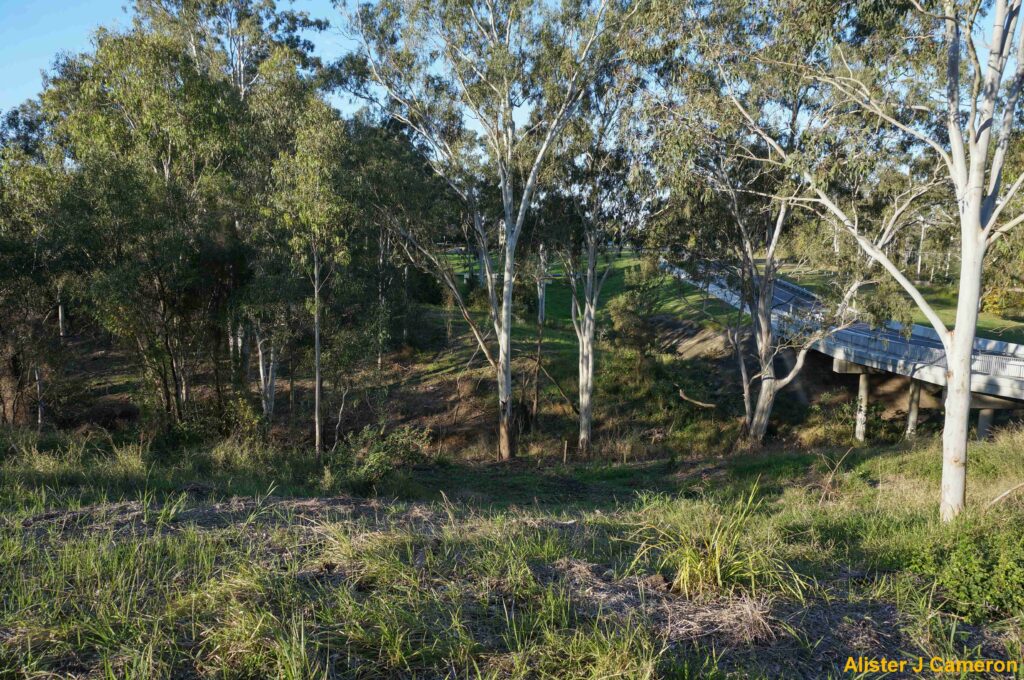

LOOKING NORTH-WEST ALONG IRON POT CREEK 2015
Rail bridge crossed in near distance.
Viewed from current road bridge.
Photo: Alister J Cameron

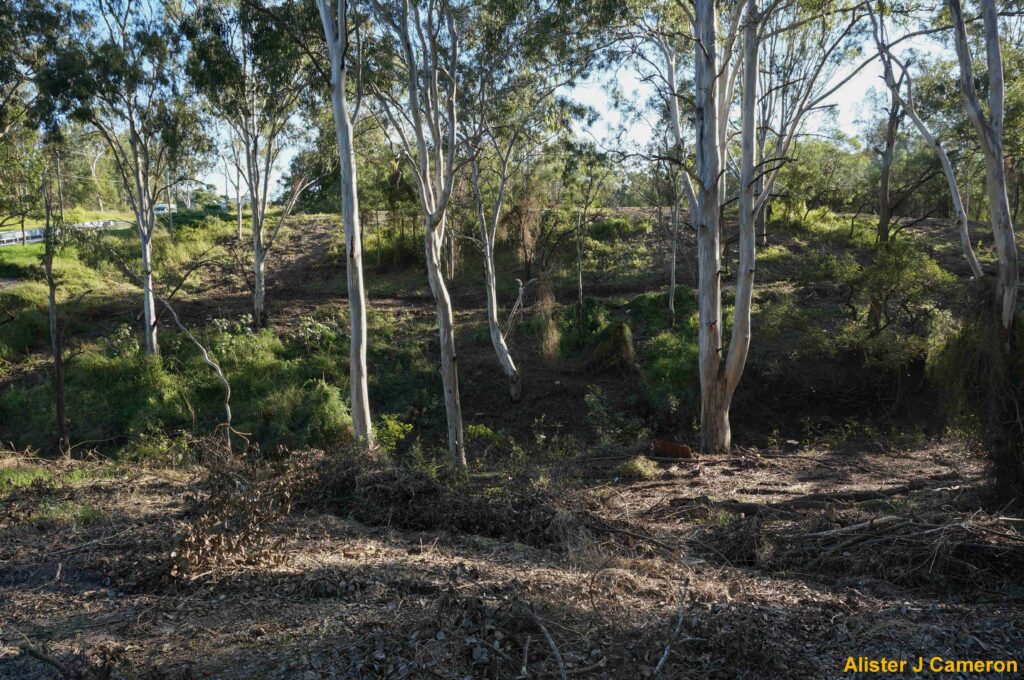

LOOKING BACK NORTH EAST ALONG FORMER ALLIGNMENT OF IRON POT BRIDGE 2015
Very little evidence of either buttress remains.
Photo: Alister J Cameron
