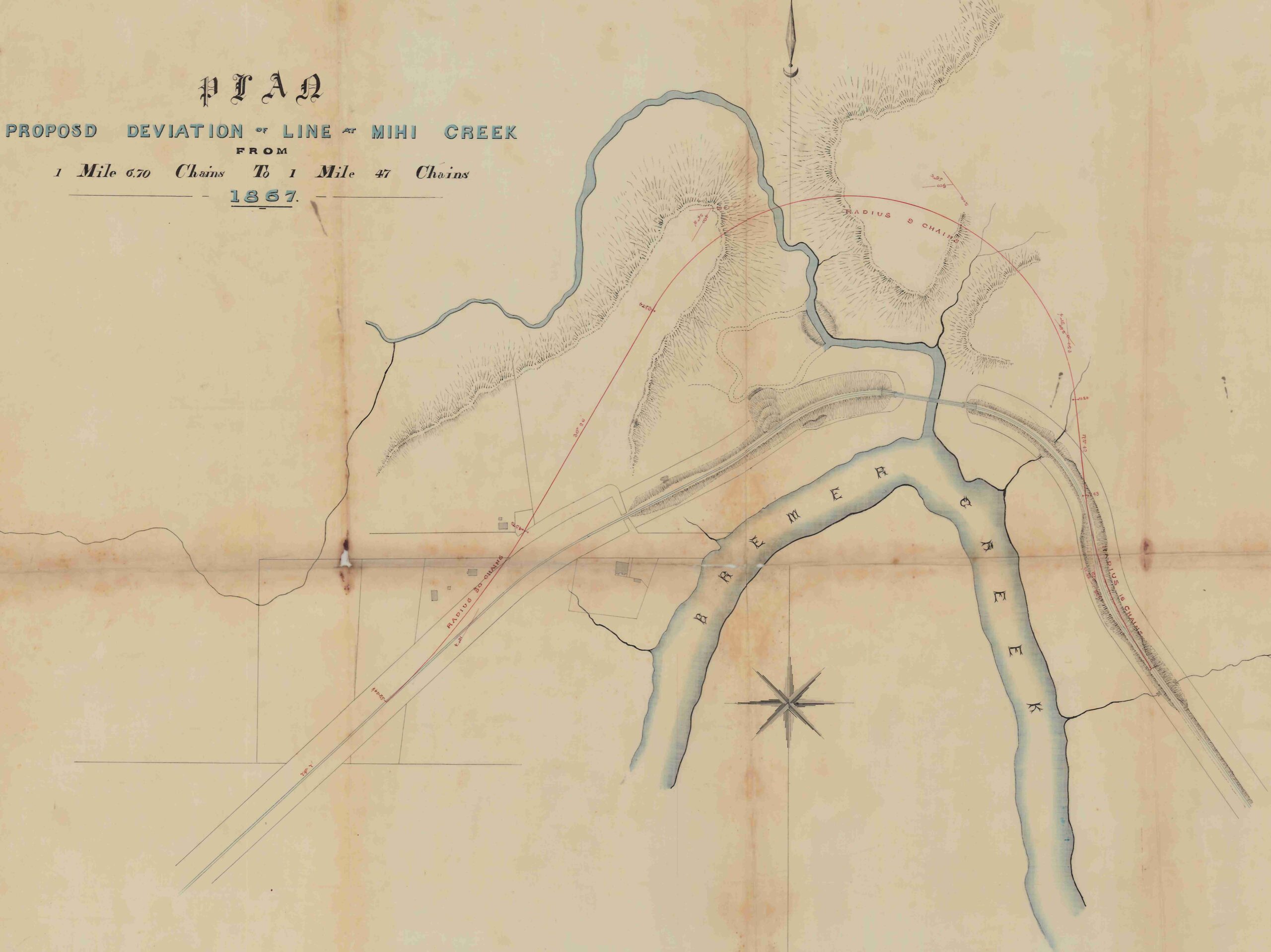

WORKING PLAN MIHI DEVIATION 1867
Planned deviation not detailed; only approximate. Actual trajectory unknown.
Series: 17924 Land Resumption Files
Item 140807 & 140808 QSA

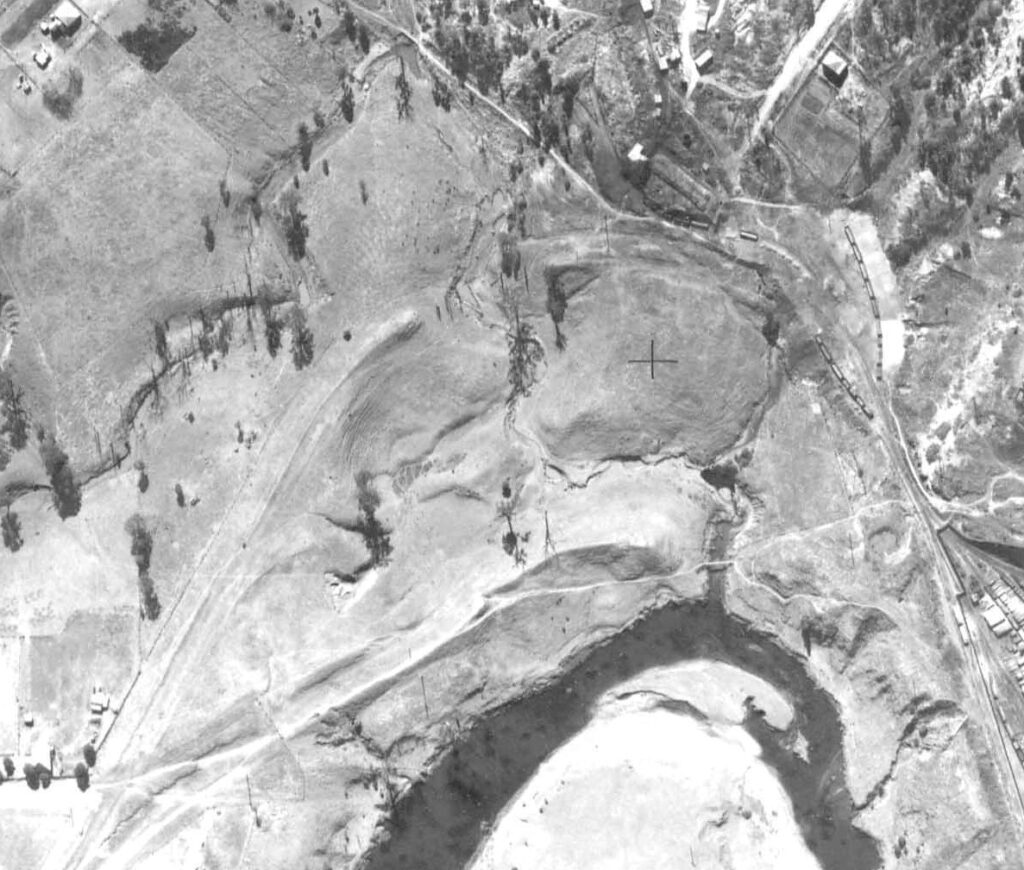

AERIAL PHOTO MIHI CROSSINGS AREA 1946
Ipswich City Council Series 1946
QImagery

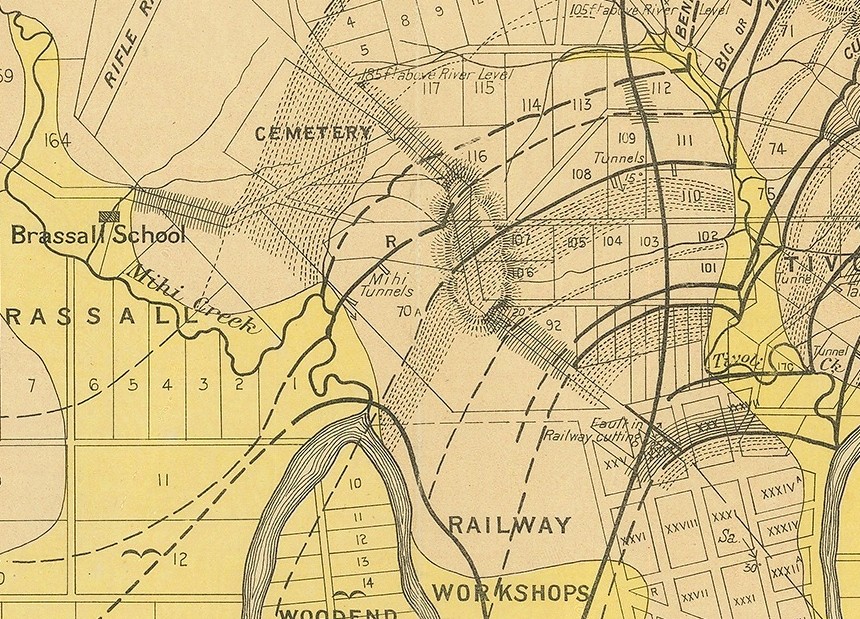

MINING MAP OF MIHI CROSSINGS AREA 1899
It would appear that the second bridge was still in use at this stage, but merely as a siding.
There were no mines on the west side of the Mihi but coal remnants suggests that it was used for coal all the same.
Author/Creator: H. W. Fox
Author/Creator: Walter E Cameron
State Library of Queensland
Record number: 21124835610002061

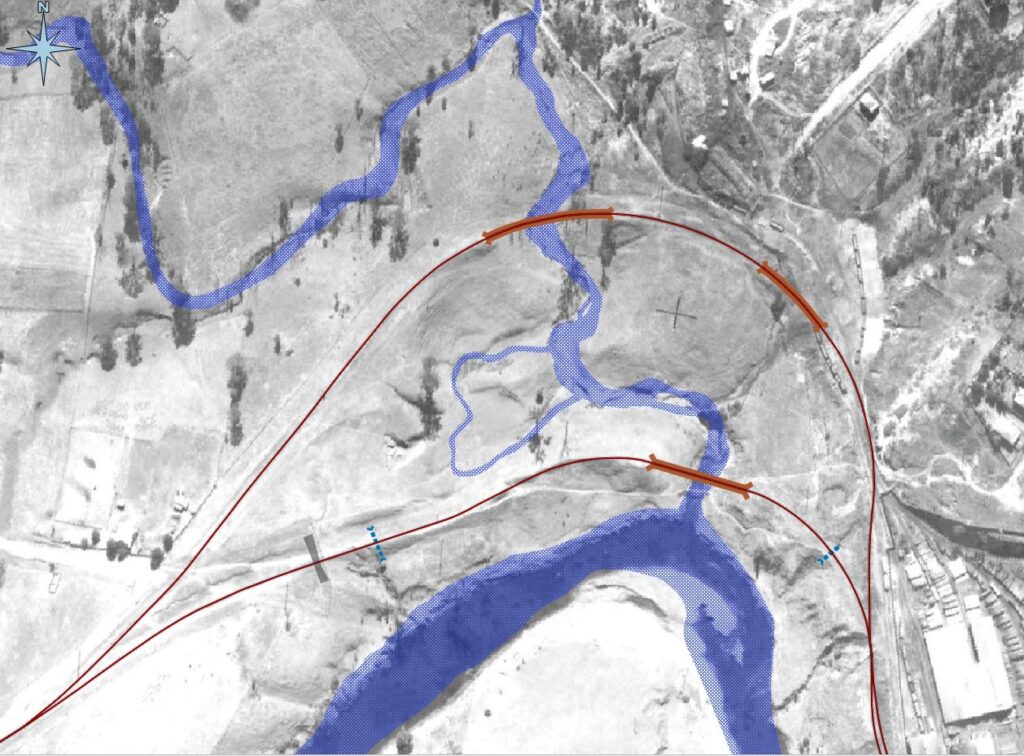

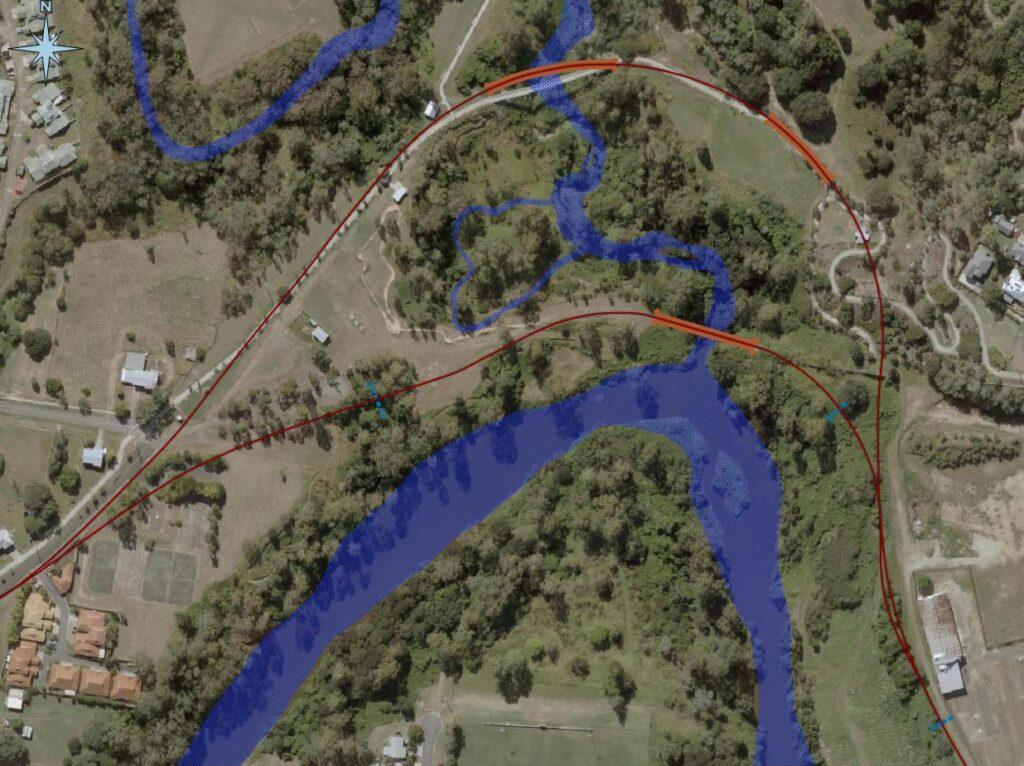

FIRST & SECOND MIHI CROSSINGS FROM ABOVE.
QGIS Vectors based on 1863 & 1867 Working Plans (Alister J Cameron)
Underlay: 1946 Aerial Photo, QImagery
FIRST & SECOND MIHI CROSSINGS FROM ABOVE.
QGIS Vectors based on 1863 & 1867 Working Plans (Alister J Cameron)
Underlay: Qld Globe (Ausmap)
First Mihi Creek Crossing
Culvert Immediately South-East of First Mihi Crossing

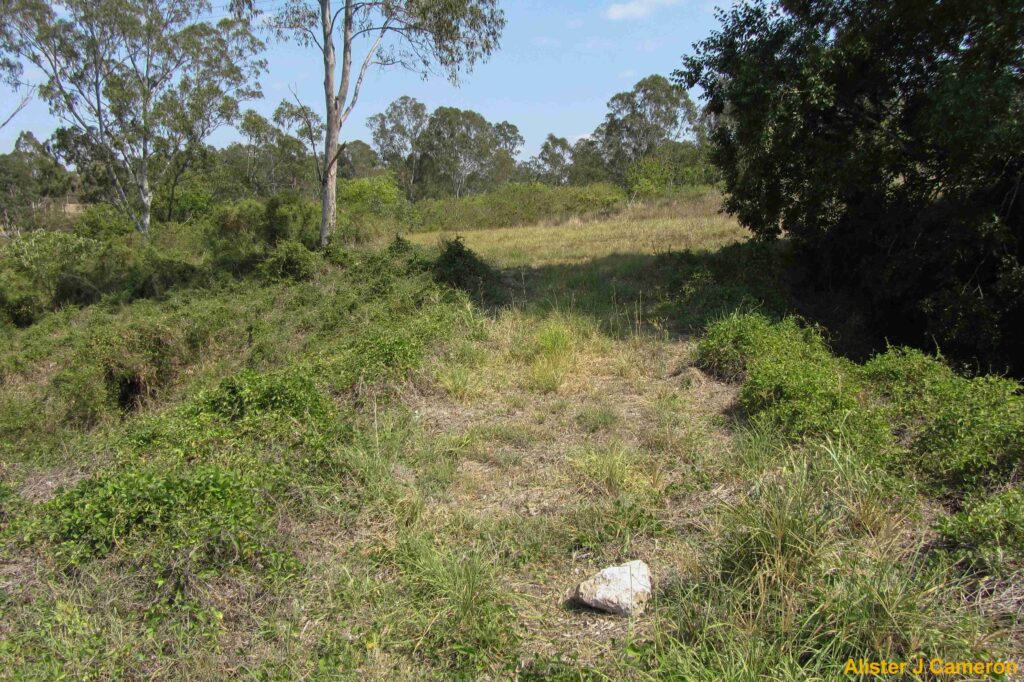

LOOKING SOUTH-EAST ALONG ORIGINAL ALLIGNMENT OVER CULVERT 2011
Built-up Workshops area has obliterated former route from here onwards.
Photo: Alister J Cameron
LOOKING IN OPPOSITE DIRECTION TOWARDS FORMER EASTERN ABUTTMENT OF MIHI CREEK BRIDGE 2014
Photo: Alister J Cameron

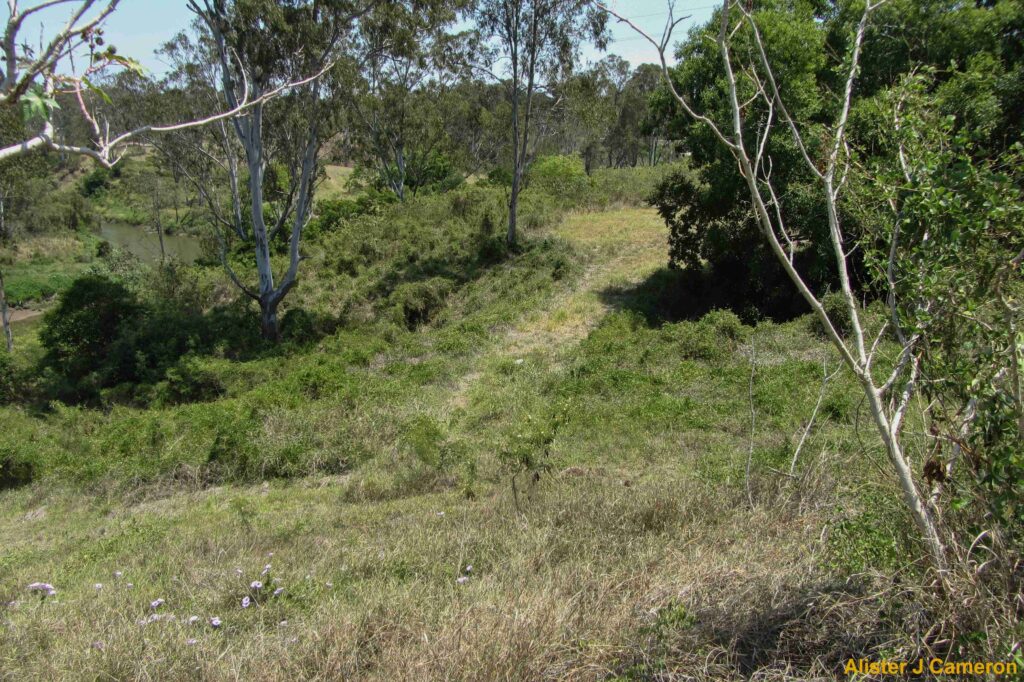

CULVERT AREA VIEWED FROM AN ELEVATED POSITION LOOKING WEST 2014
North-east portal is in shadow area on right. South-west portal is somewhere amongst vegetation below white-trunked gum.
Photo: Alister J Cameron

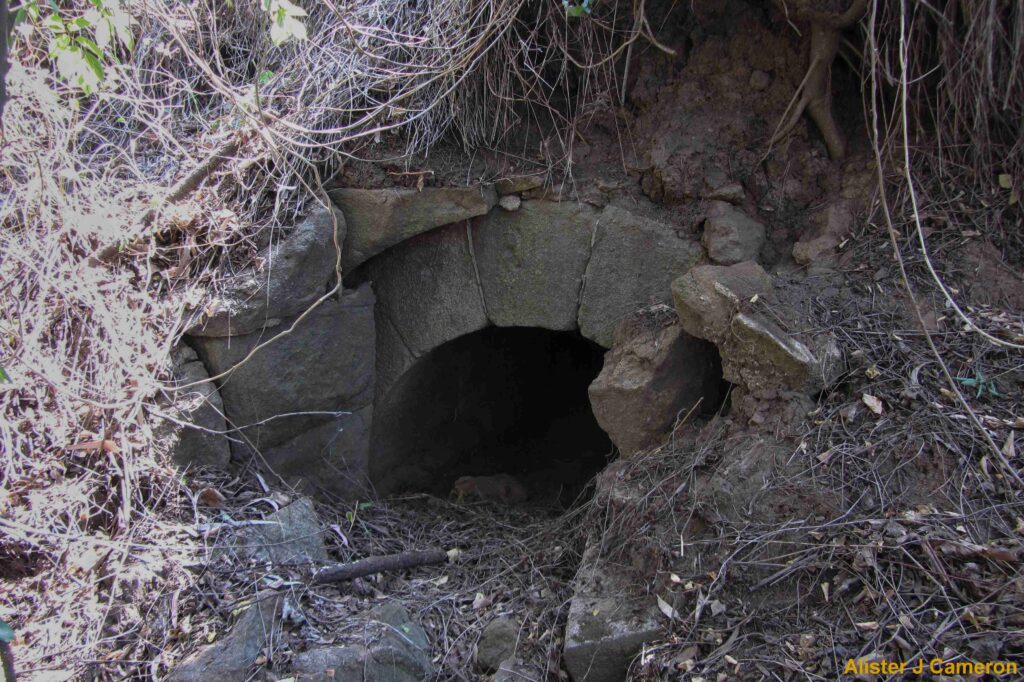

SOUTH-WEST PORTAL OF CULVERT 2014
Only just visible because of soil build-up.
Photo: Alister J Cameron

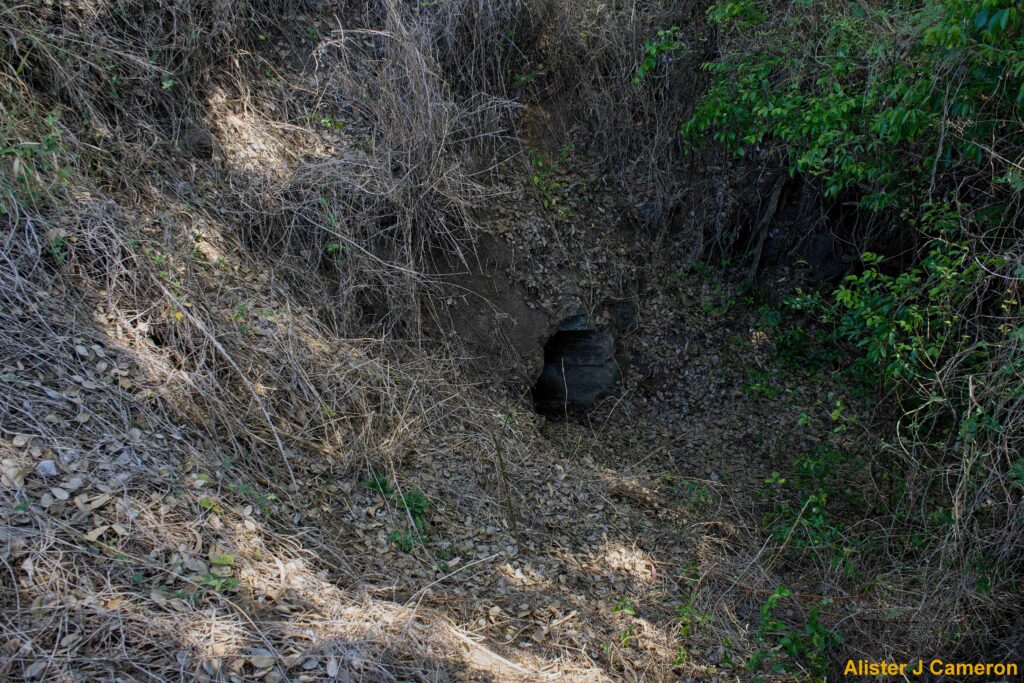

NORTH-EAST PORTAL 2018
Photo: Alister J Cameron

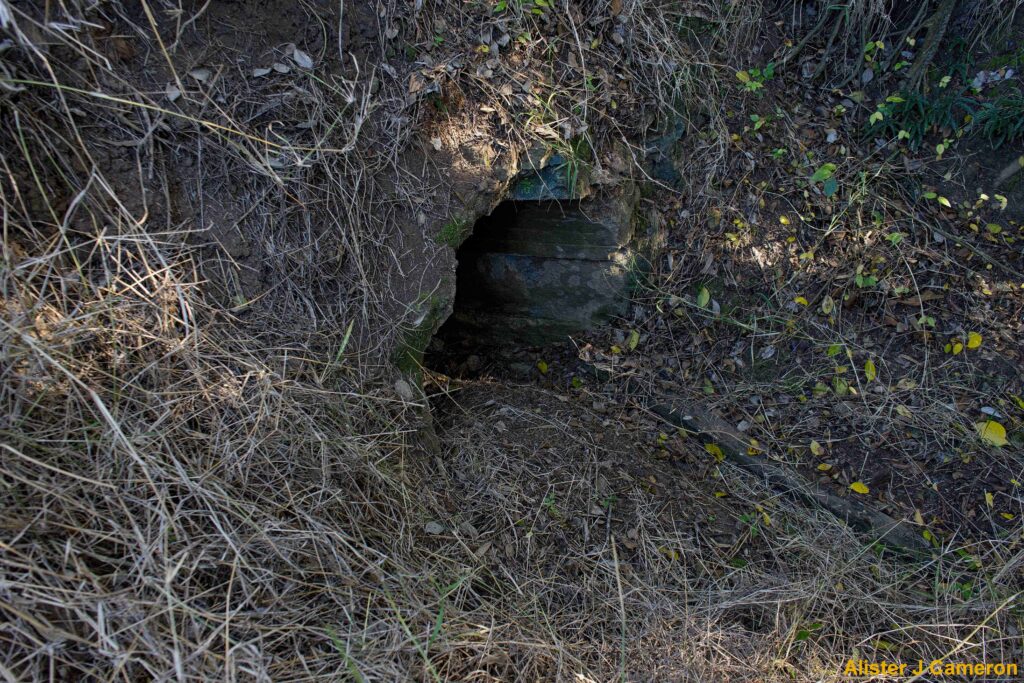

CLOSEUP OF NORTH-EAST PORTAL 2018
Photo: Alister J Cameron

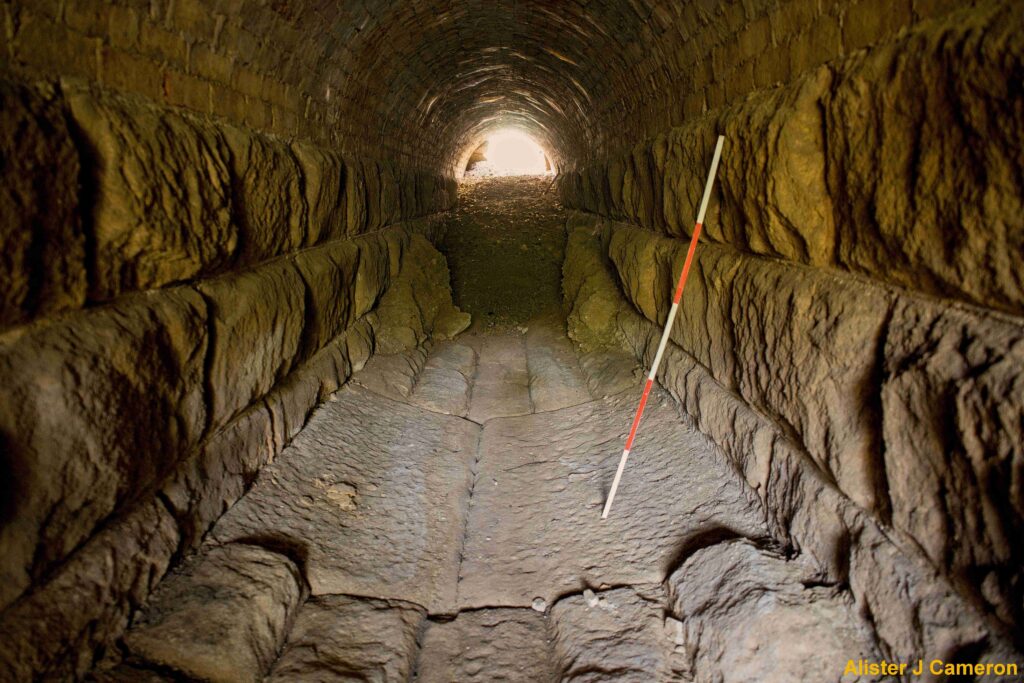

INSIDE CULVERT LOOKING SOUTH-WEST 2018
15 meters in length.
Note sandstone at bottom and brick arch.
Photo: Alister J Cameron

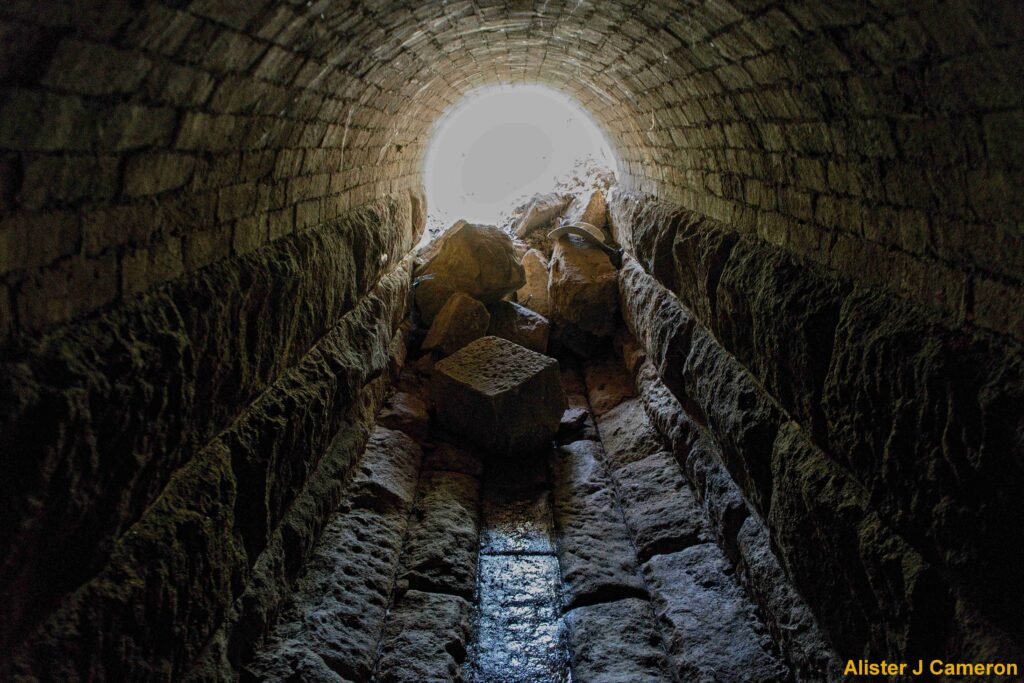

INSIDE CULVERT LOOKING NORTH-EAST 2018
Remnants of portal can be seen inside the entrance.
Photo: Alister J Cameron

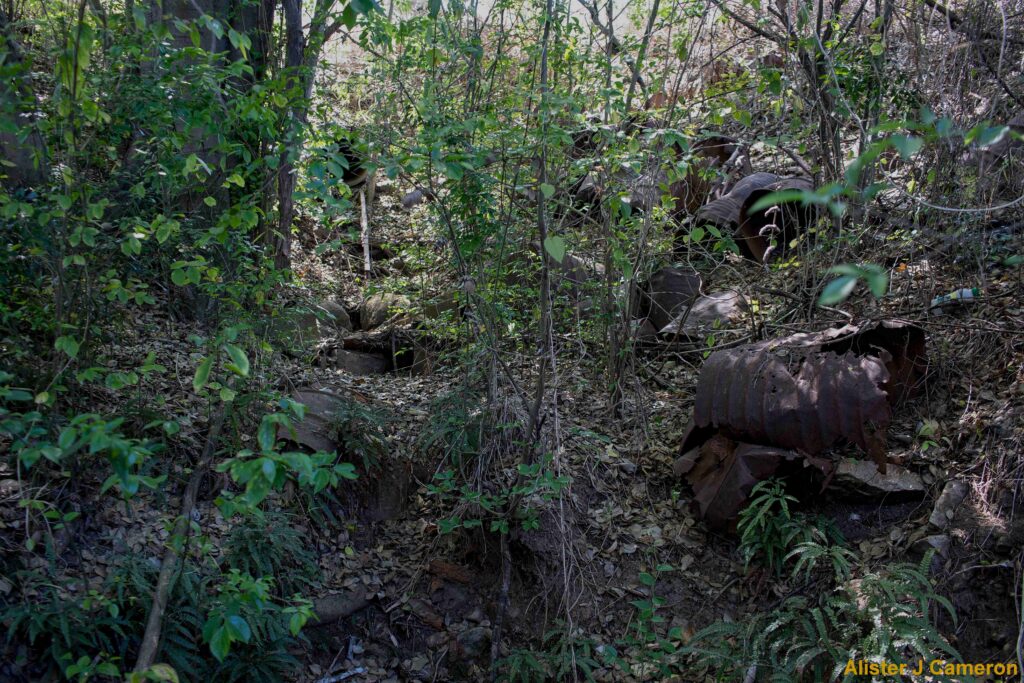

AREA ABOVE NORTH-EAST PORTAL 2018
Fed by more modern culvert further up slope.
Plenty of railway junk; mainly oil drums.
Photo: Alister J Cameron

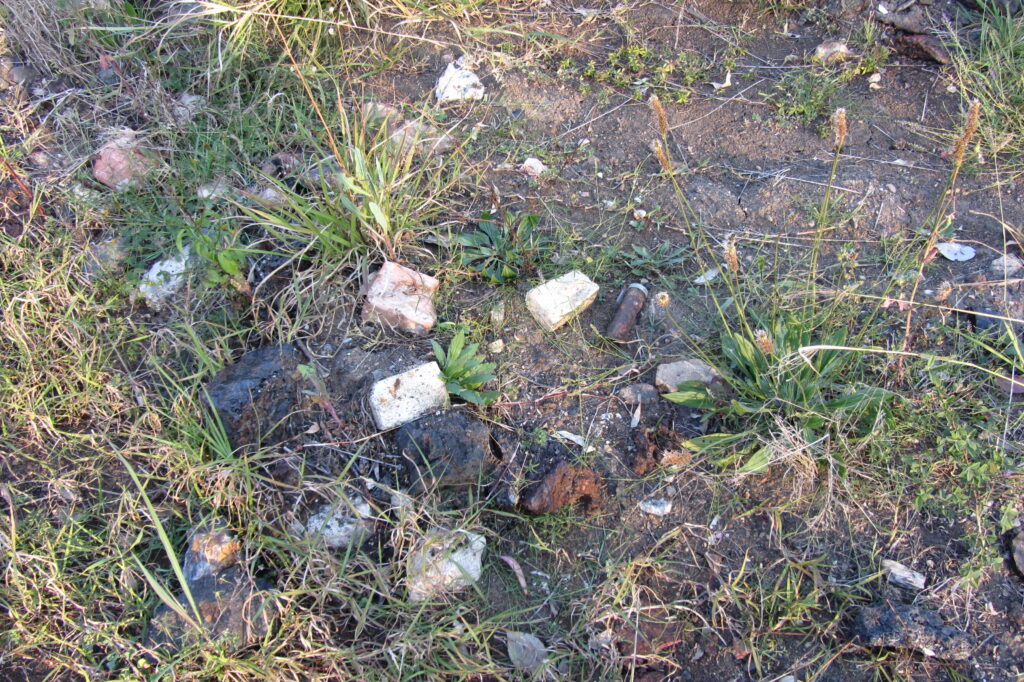

FURTHER RAILWAY JUNK IN CULVERT AREA
Includes bricks, ash and a small piece of machinery.
Photo: Alister J Cameron

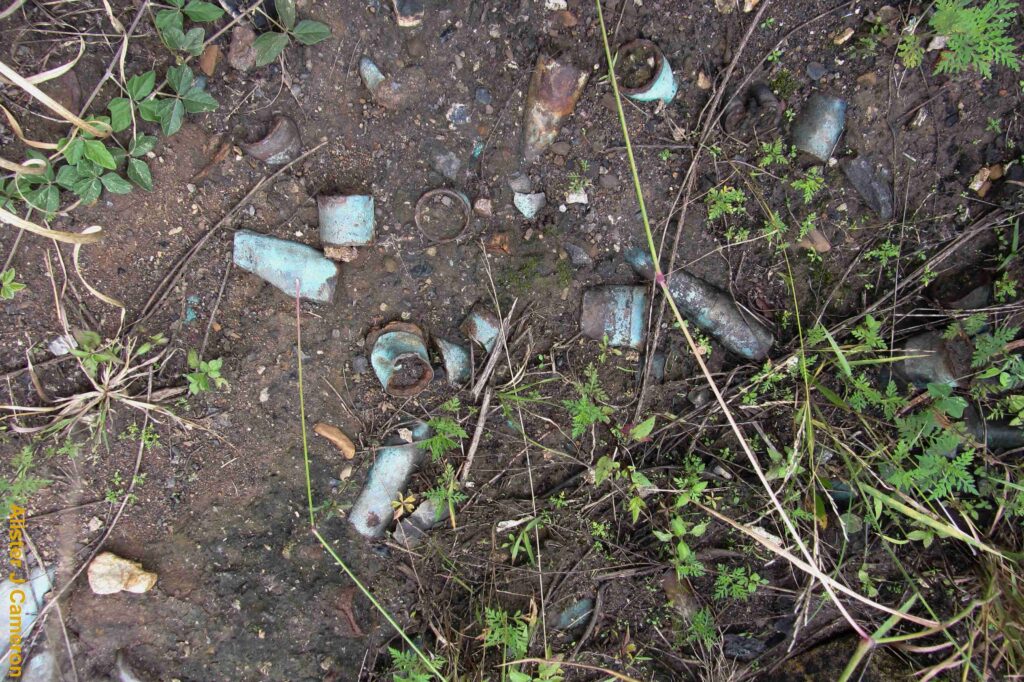

COPPER TUBING OFFCUTS CULVERT AREA 2013
Photo: Alister J Cameron
First Mihi Creek Bridge
ILLUSTRATION OF FIRST TRAIN CROSSING THE ORIGINAL MIHI CREEK BRIDGE 1865
In the foreground is the home of Premier Macalister at Woodend.
Illustrated Sydney News 15.7.1865, p13

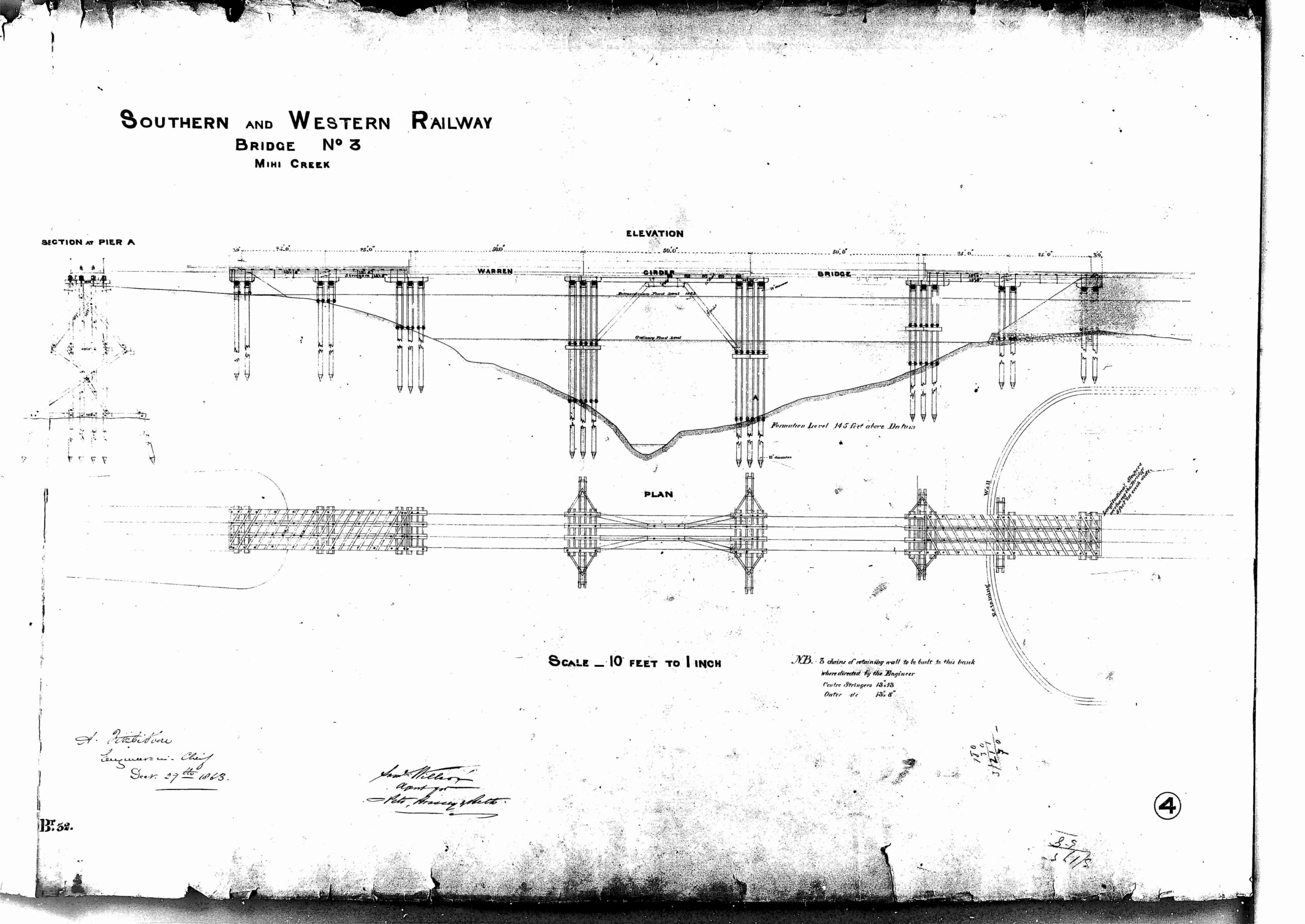

DESIGN ORIGINAL MIHI CREEK BRIDGE 1863
source: Qld Railway Archives

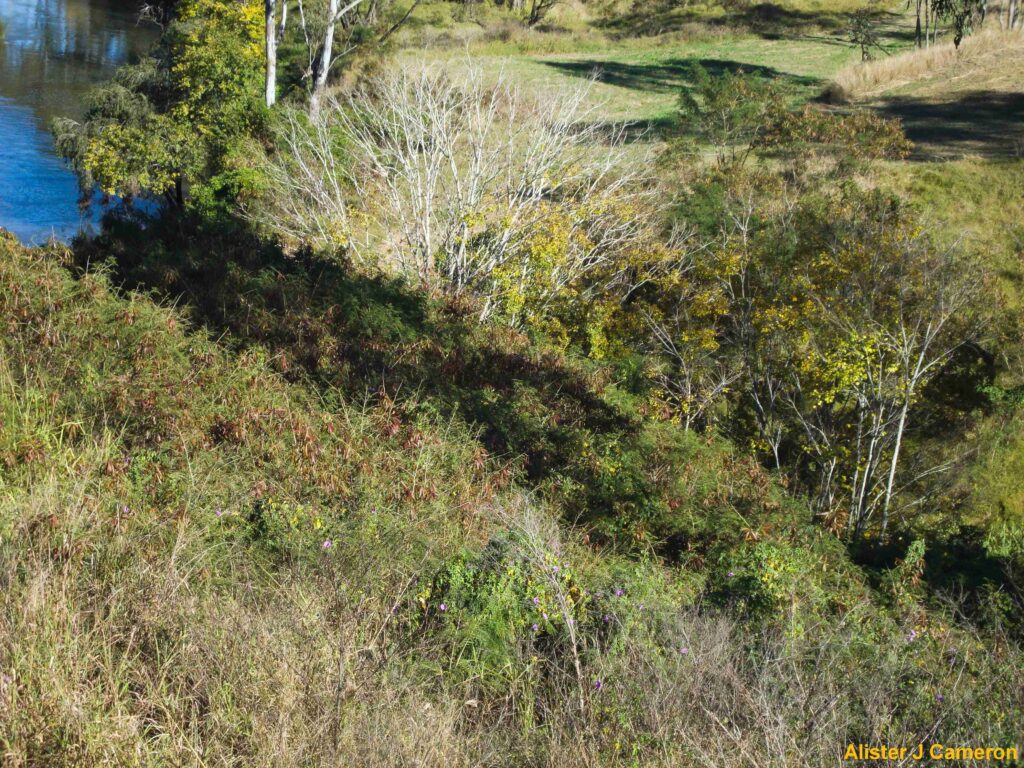

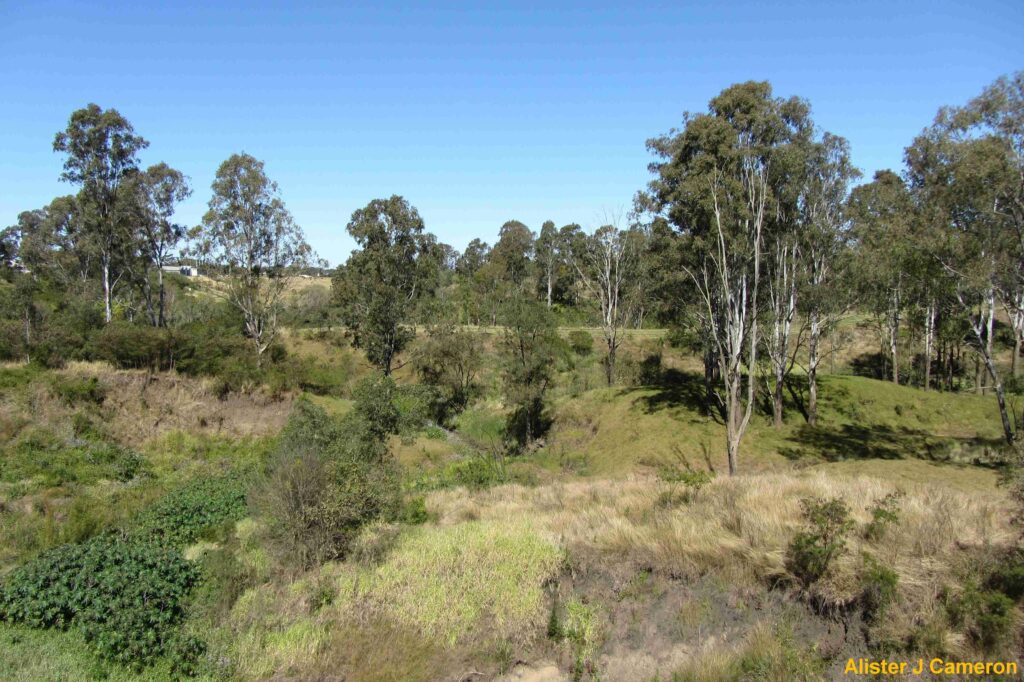

FIRST MIHI CROSSING AREA 2010
Eastern buttress is on left masked by foliage. Western buttress can just be seen. Mihi Creek is out of sight in between. The Bremer River is top left.
Photo: Alister J Cameron

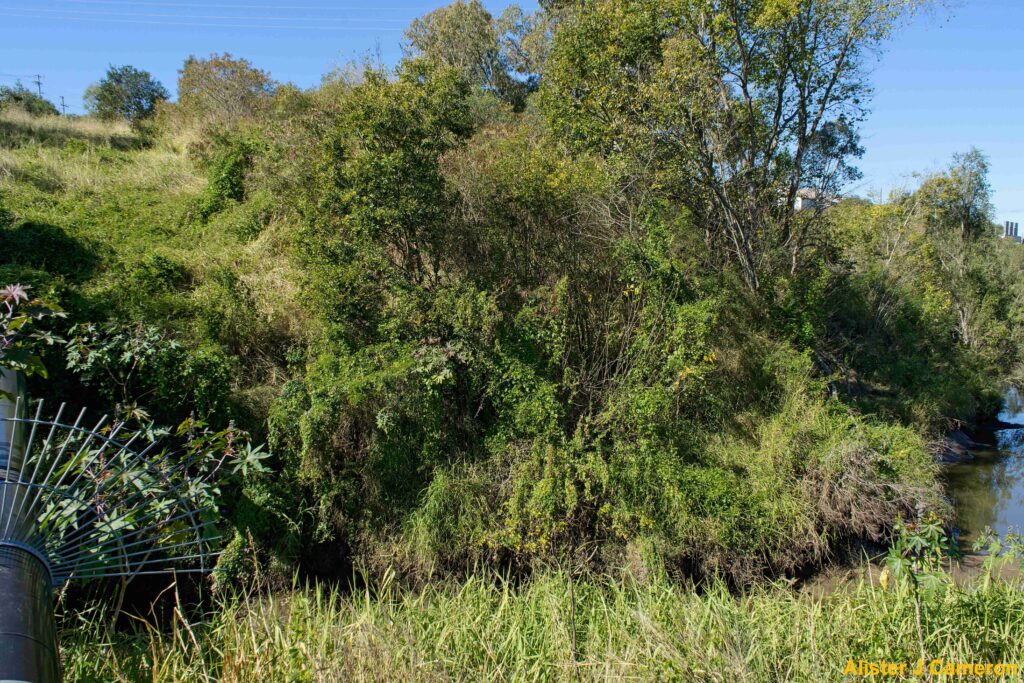

SITE OF FORMER EASTERN BUTTRESS OF ORIGINAL MIHI BRIDGE 2017
Line came through to right of trees middle top of photo.
Hidden by vegetation though not much remains of original formation.
Modern day sewarage pipe is on the far left.
Photo: Alister J Cameron
SITE OF WESTERN BUTTRESS LOOKING EAST 2013
Photo: Alister J Cameron

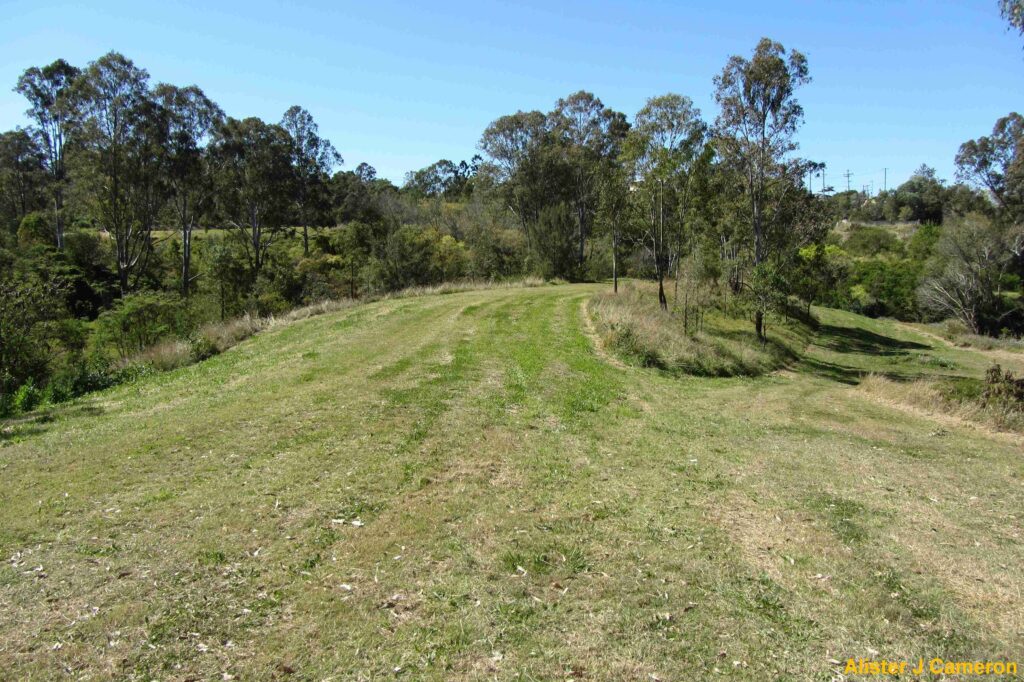

LOOKING EAST DOWNHILL ALONG THE ORIGINAL ALLIGNMENT TOWARDS THE WESTERN BUTTRESS 2013
Photo: Alister J Cameron

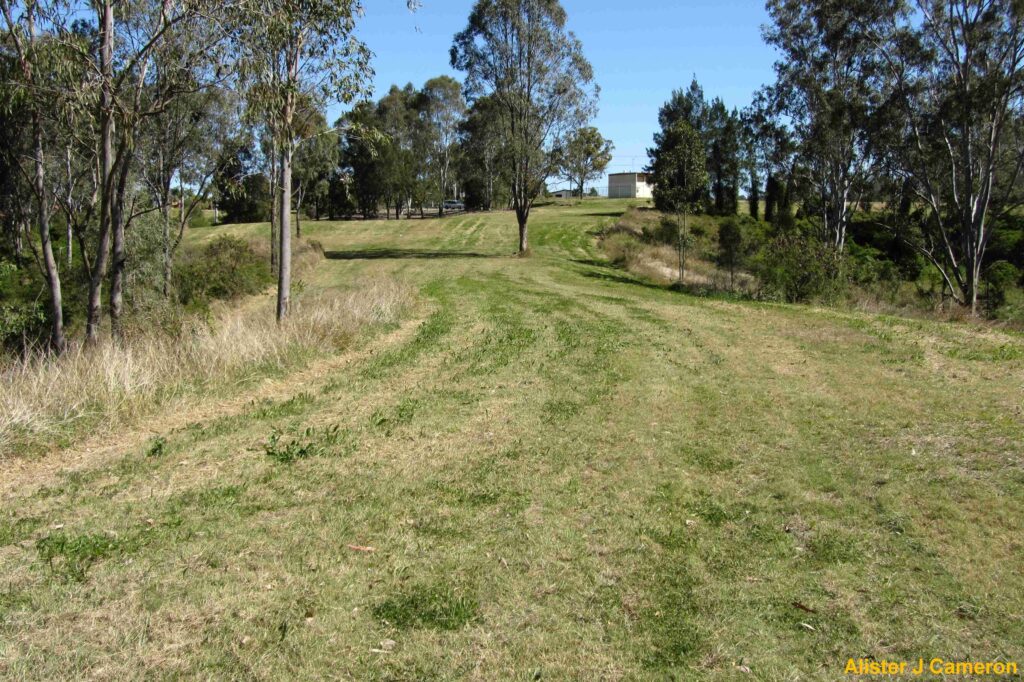

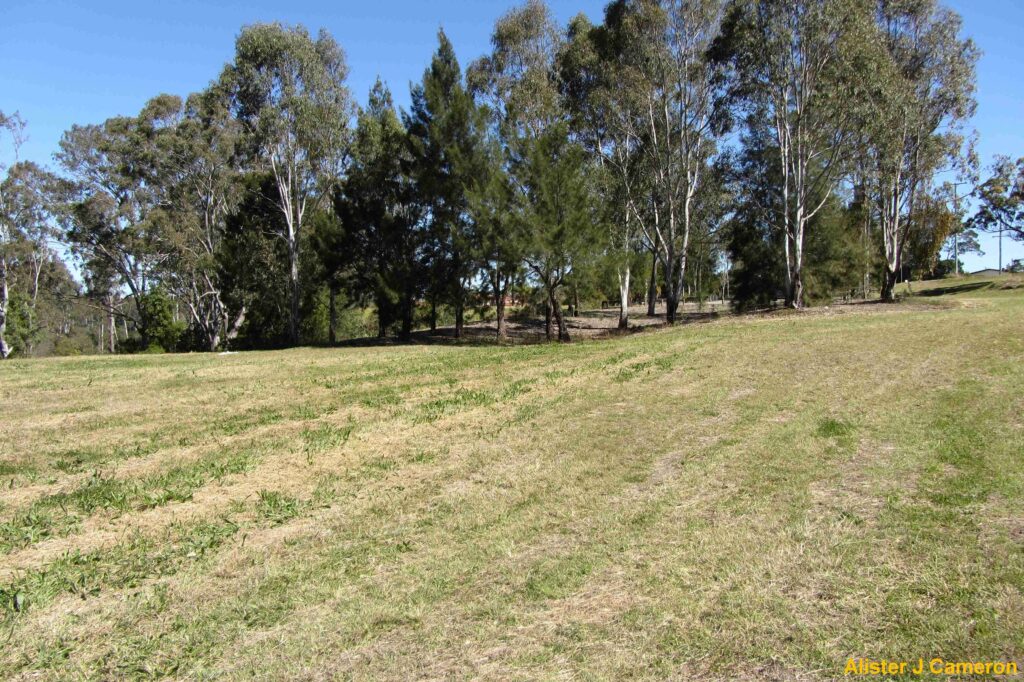

LOOKING ALONG THE ALLIGNMENT WESTWARD 2013
Passed through grove of trees in distance.
Photo: Alister J Cameron
WESTERN ALLIGNMENT VIEWED FROM THE NORTH
Photo: Alister J Cameron
Culvert Immediately South-West of First Mihi Crossing
GROVE OF TREES MARKING THE SITE OF FORMER CULVERT 2013
Photo: Alister J Cameron

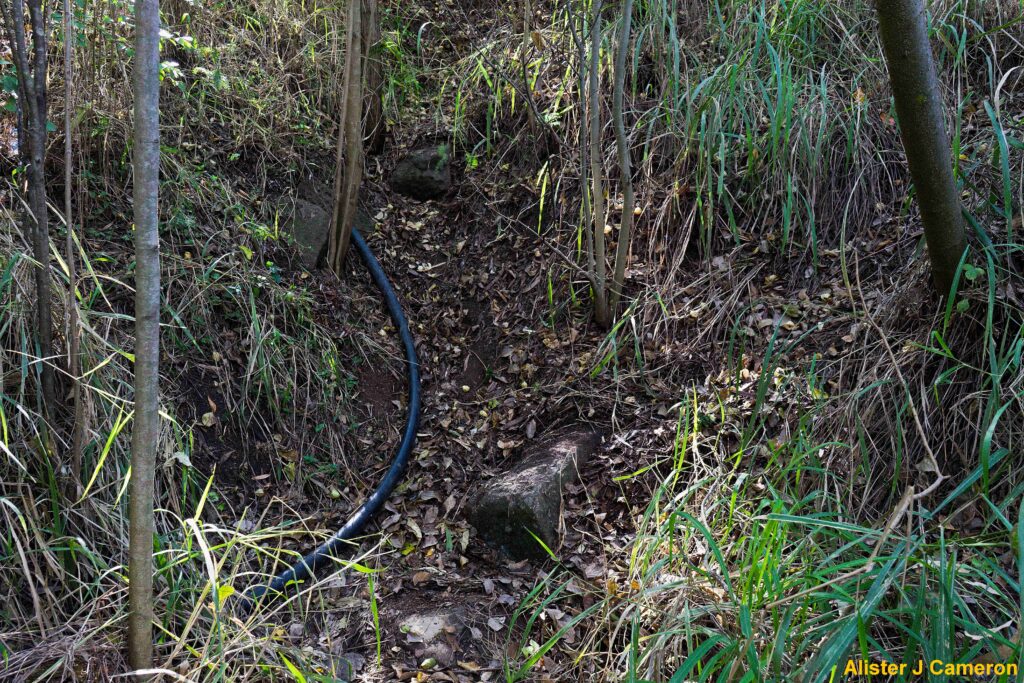

MASONRY BLOCKS SCATTERED BELOW SITE OF FORMER CULVERT 2017
Photo: Alister J Cameron

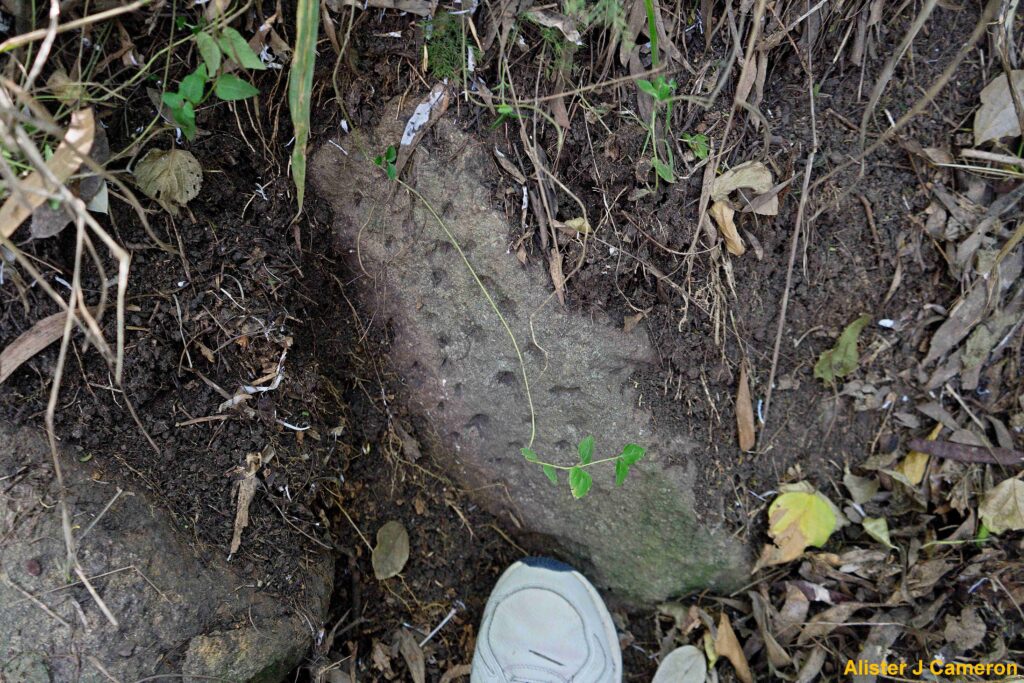

CLOSEUP OF ONE OF THE BLOCKS 2017
Mason's peck marks can clearly be seen.
Photo: Alister J Cameron

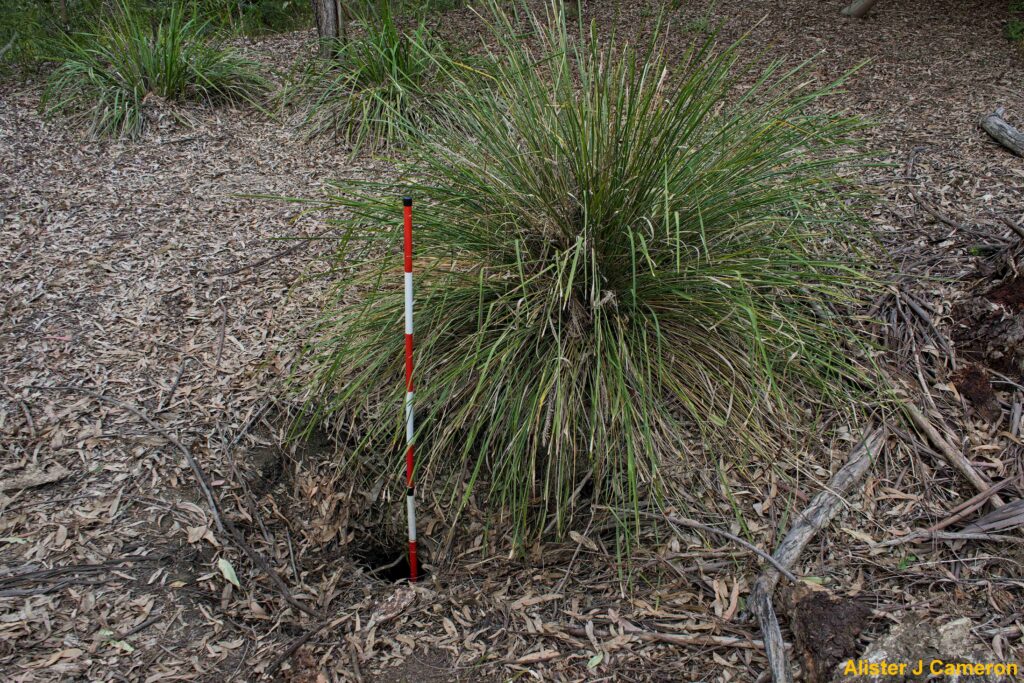

POSITION OF SINK HOLE POSSIBLY RELATED TO BURIED CULVERT UNDERNEATH 2018
Photo: Alister J Cameron
Second Mihi Creek Crossing (Deviation)

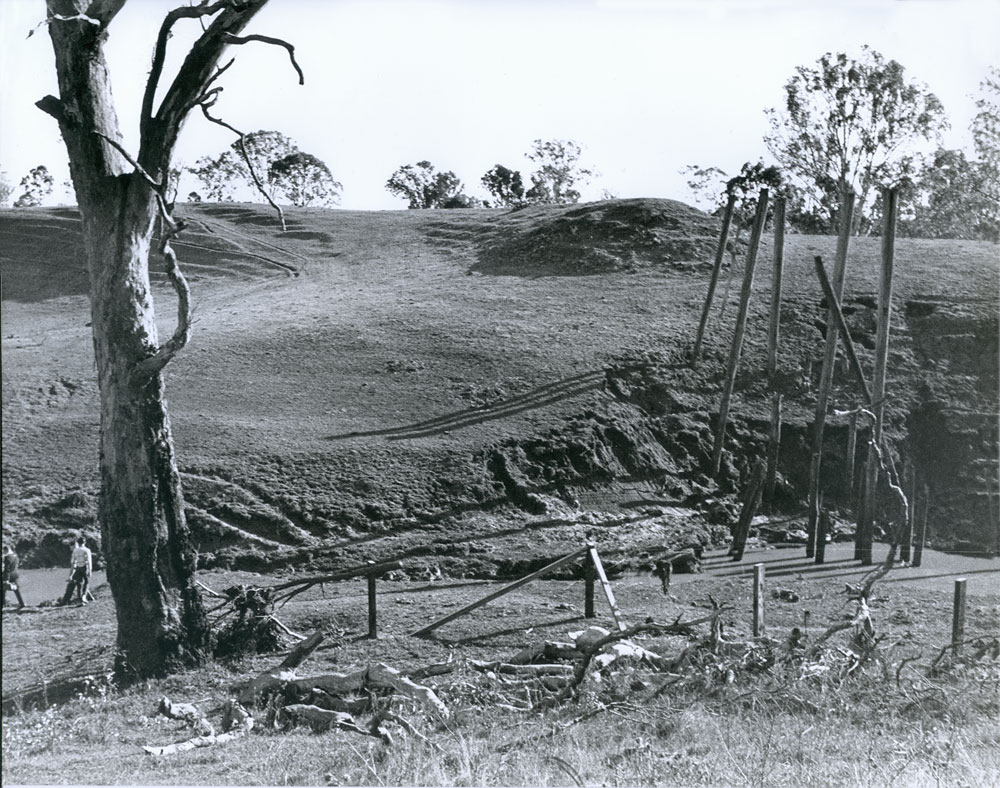

TIMBER PILE REMNANTS OF SECOND MIHI BRIDGE 1965
South-west buttress can clearly be seen.
Picture Ipswich
Document ID: 15155

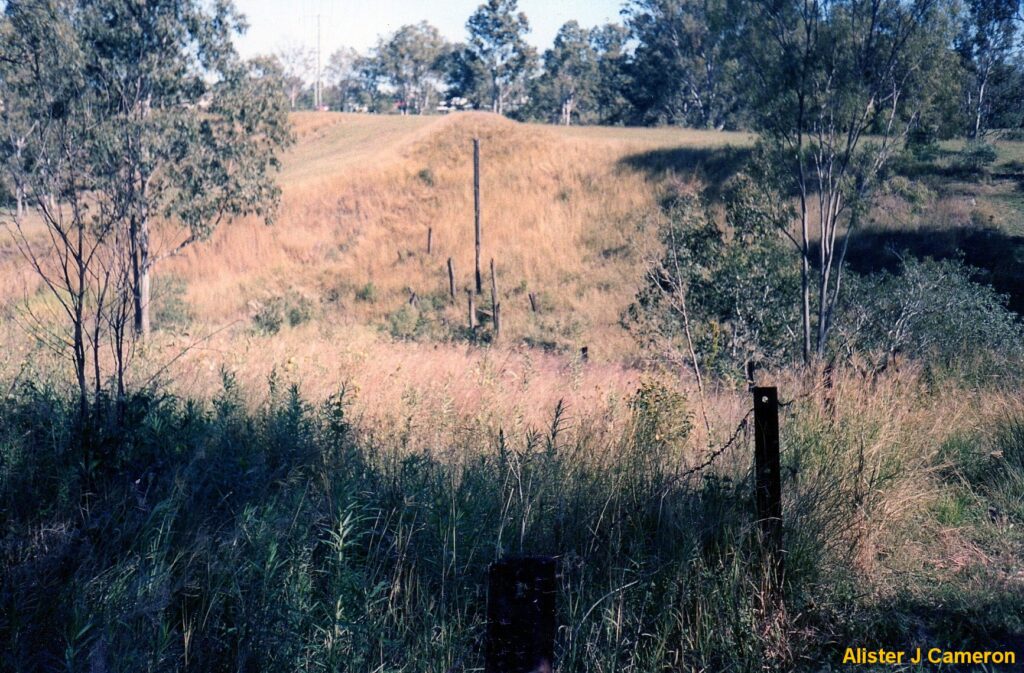

SAME AREA EARLY 2000s
Photo: Alister J Cameron

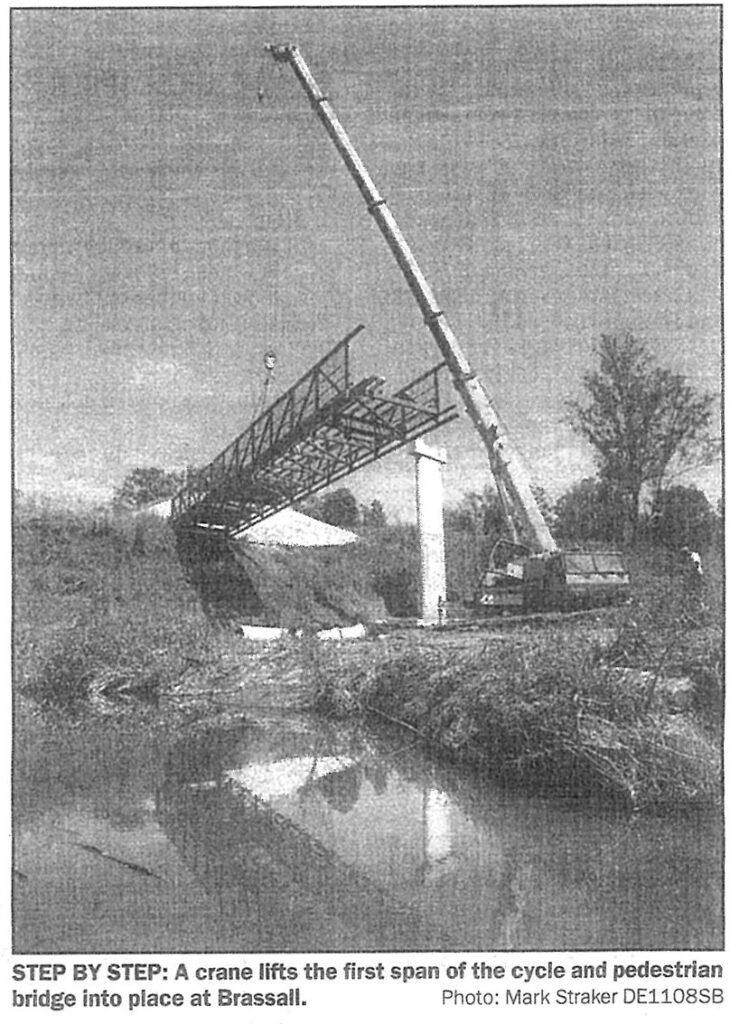

PREDESTRIAN BRIDGE WAS BUILT ON SITE OF SECOND MIHI BRIDGE IN 2008
Scanned at Ipswich Council Library
5 March 2018

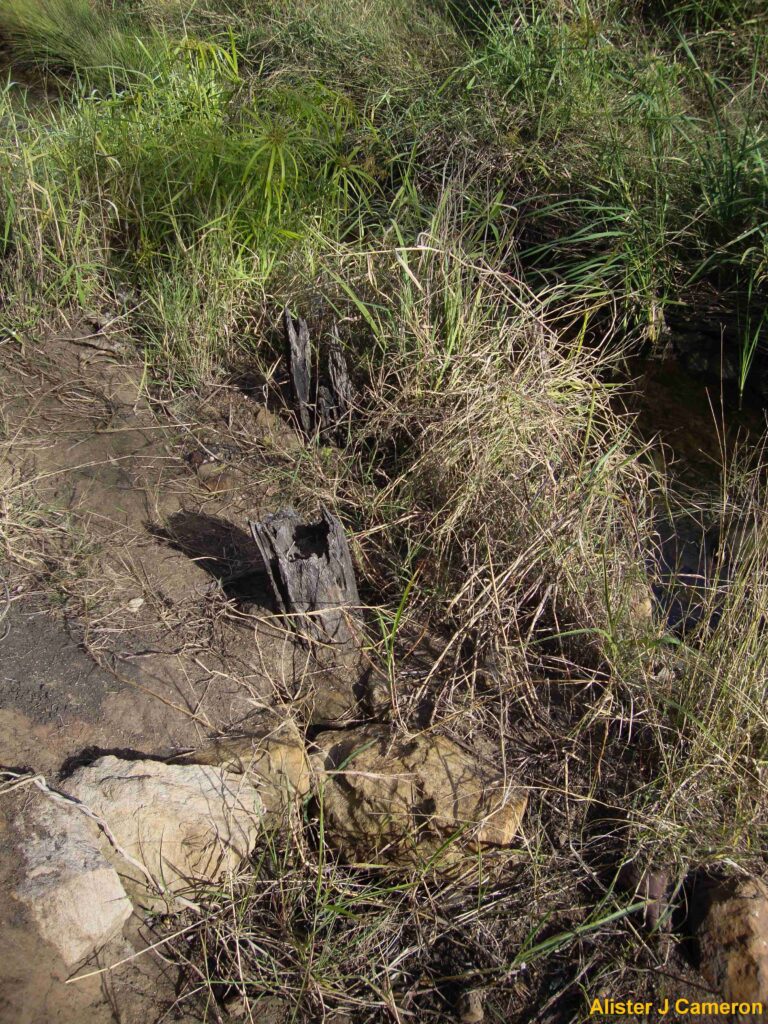

STUMPS OF PILES STILL IN EXISTENCE IN FOUNDATION OF NEW PEDESTRIAN BRIDGE 2010
Photo: Alister J Cameron

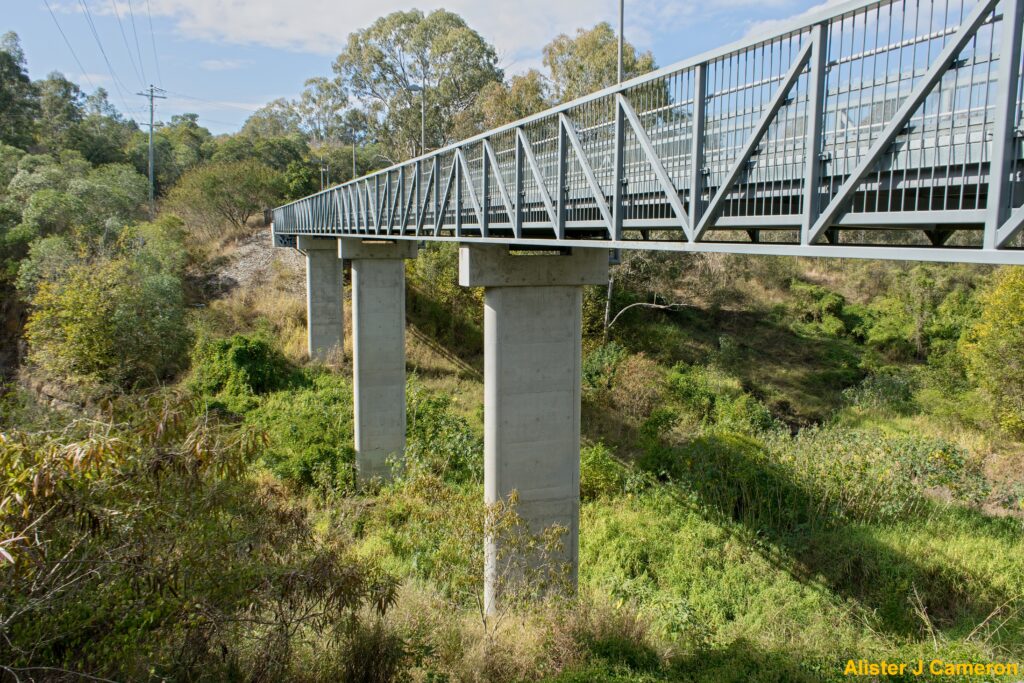

PEDESTRIAN BRIDGE LOOKING EAST 2018
Walkway was designed so as to look similar to the original Warren Trusses of the first bridge. The second bridge was possibly just a timber trestle type.
Photo: Alister J Cameron

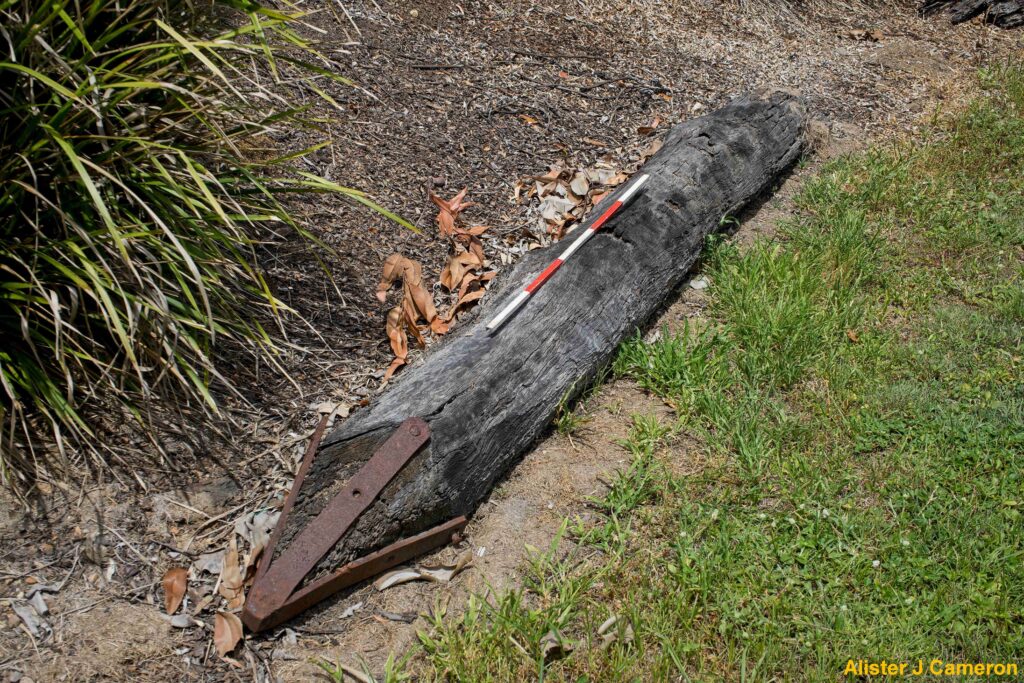

ONE OF REMOVED PILES FROM SITE OF SECOND BRIDGE PRESERVED BY THE COUNCIL AFTER REMOVAL TO MAKE WAY FOR NEW PEDESTRIAN BRIDGE.
Attached metal point assisted in the pile-driving process.
Photo: Alister J Cameron

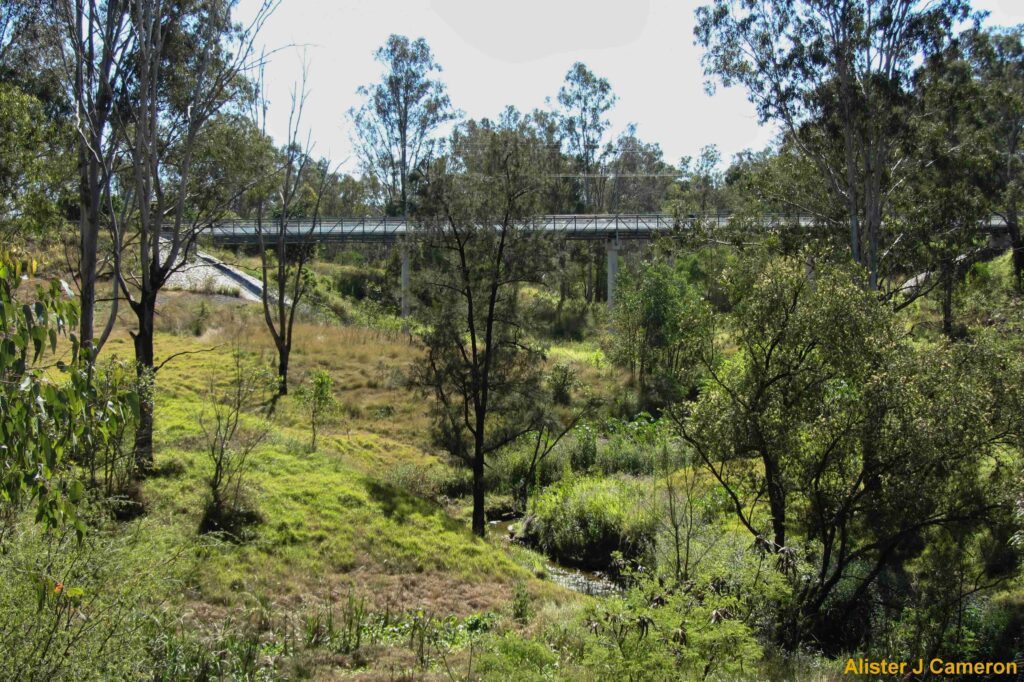

PEDESTRIAN BRIDGE FROM THE SOUTH 2013
Photo: Alister J Cameron

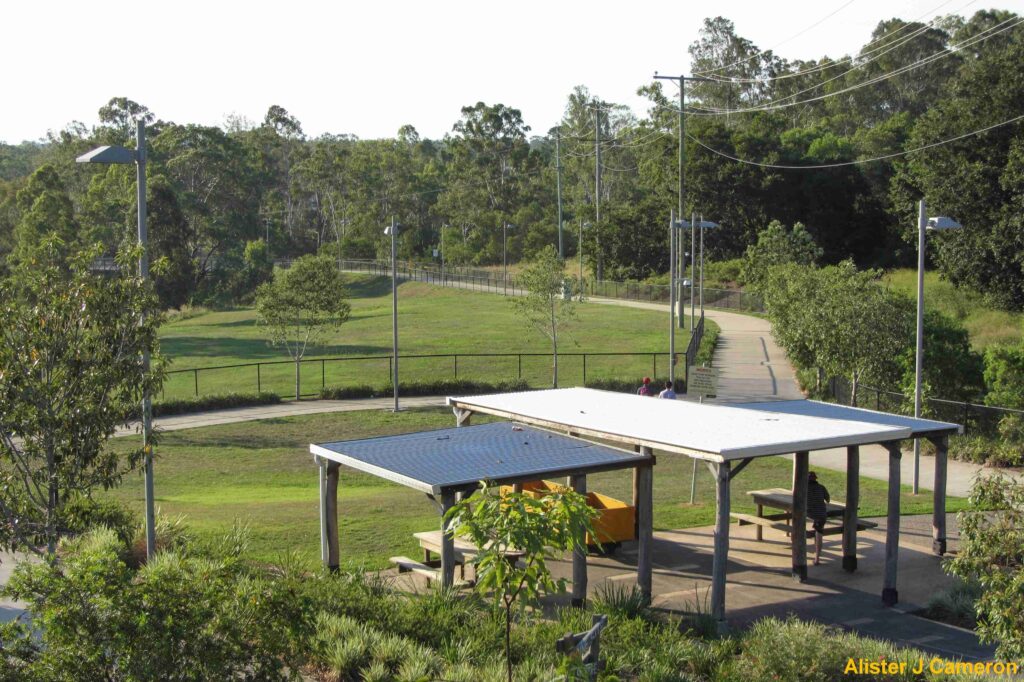

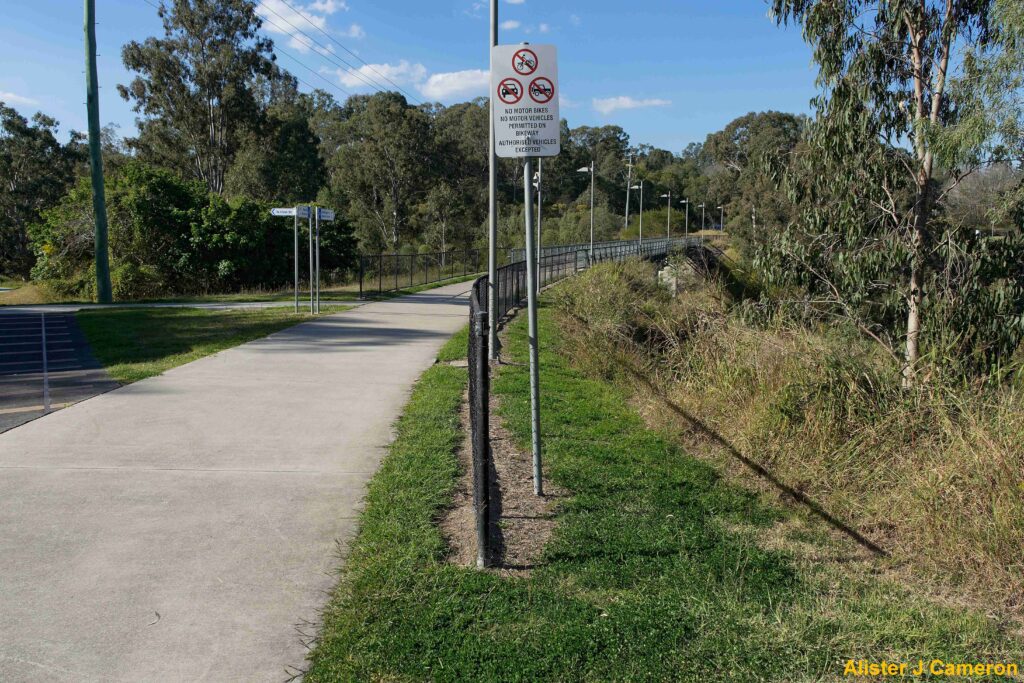

EASTERN APPROACH TO CURRENT PEDESTRIAN BRIDGE 2014
Path to bridge and bridge itself approximately follow original rail allignment.
Photo: Alister J Cameron

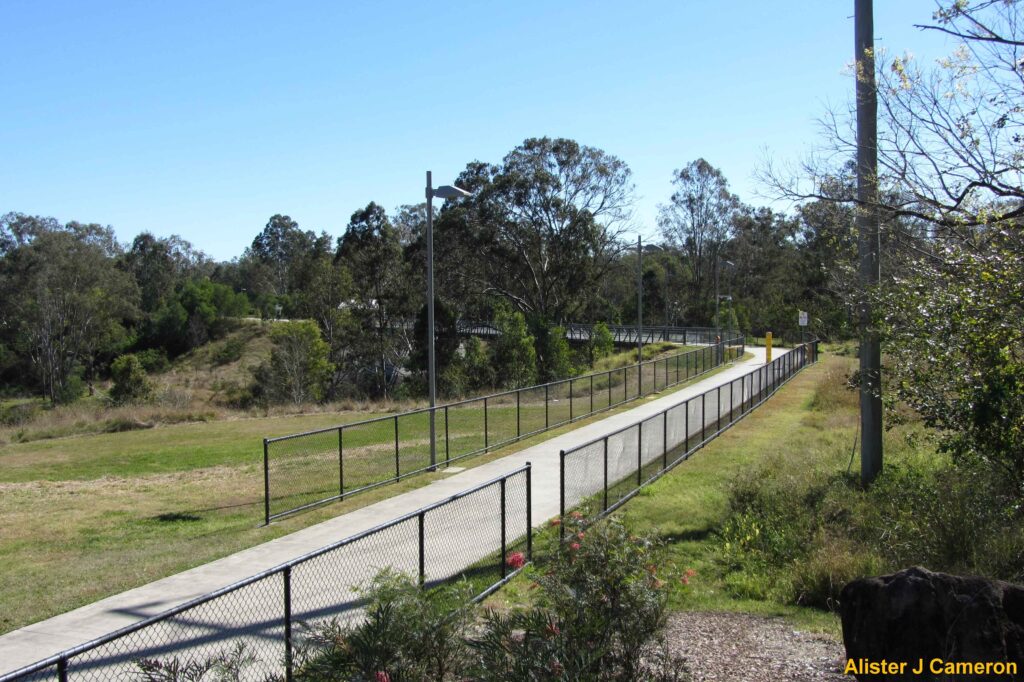

CLOSER VIEW OF PEDESTRIAN PATH & BRIDGE FROM EAST 2013
Photo: Alister J Cameron
PEDESTRIAN BRIDGE FROM THE WEST 2017
Photo: Alister J Cameron

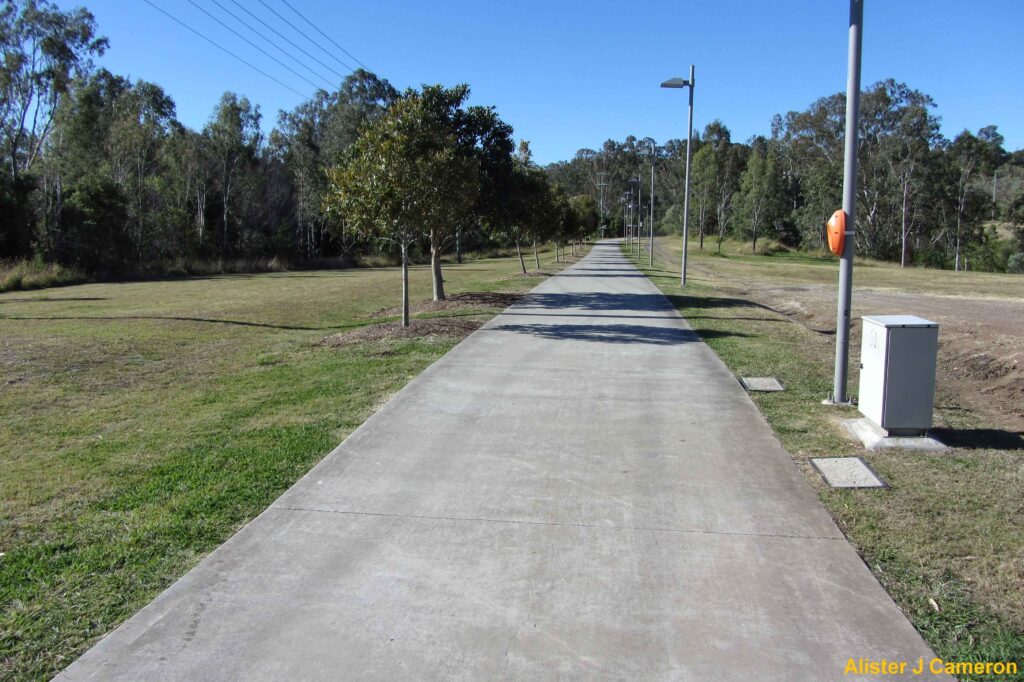

PATHWAY HEADING SOUTH-WEST FROM PEDESTRIAN BRIDGE 2013
Roughly follows the original allignment of the deviation
Photo: Alister J Cameron

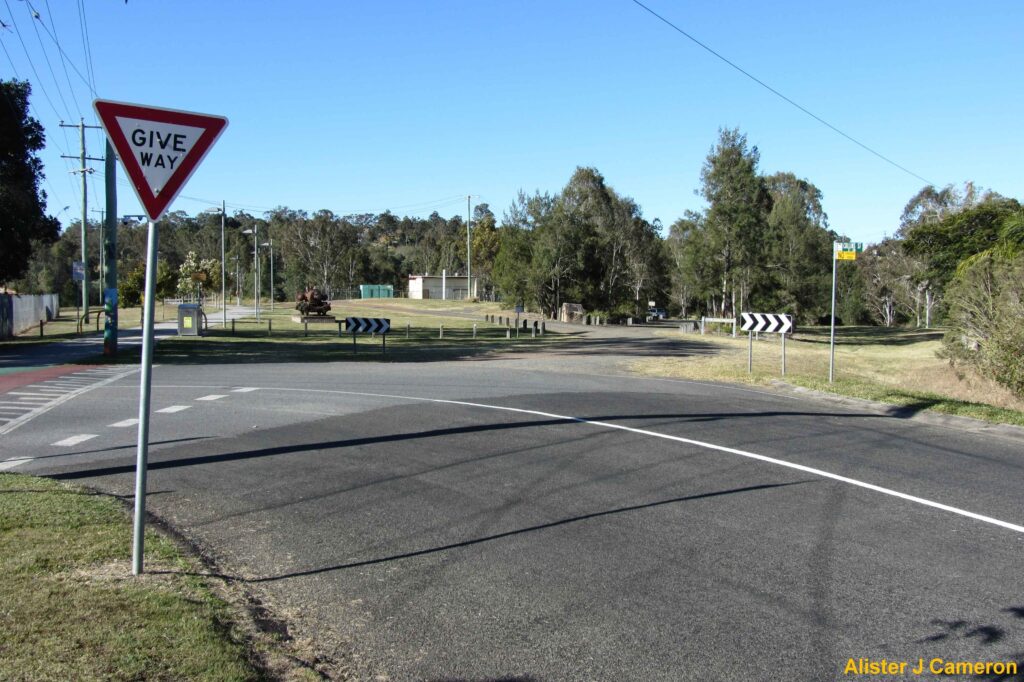

LOCATION WHERE ORIGINAL ALLIGNMENT & DEVIATION JOINED 2013
Photo: Alister J Cameron

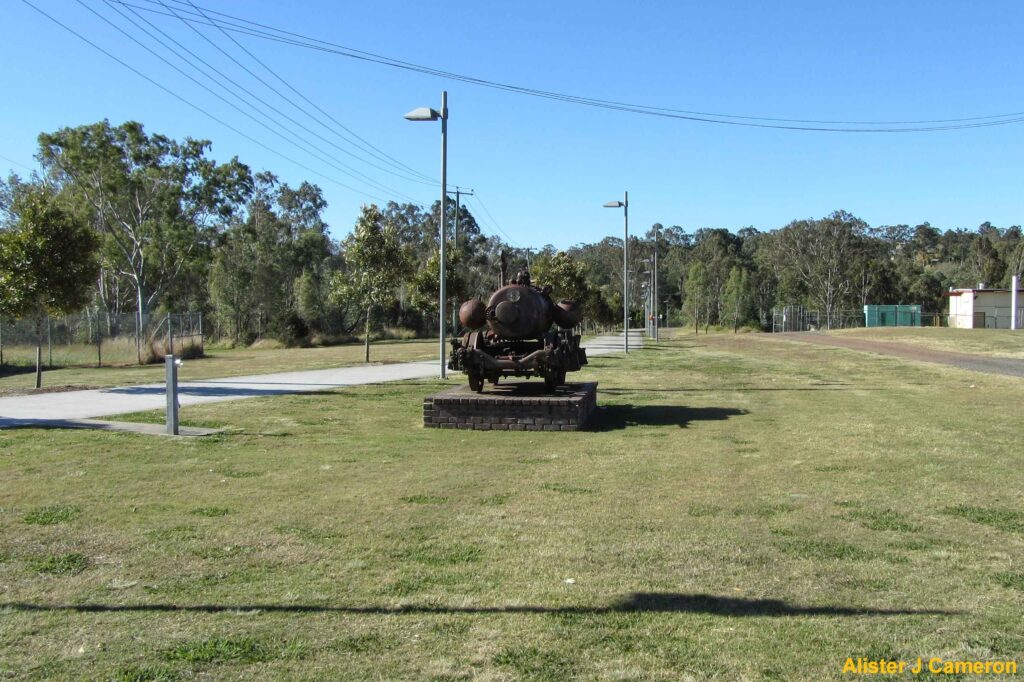

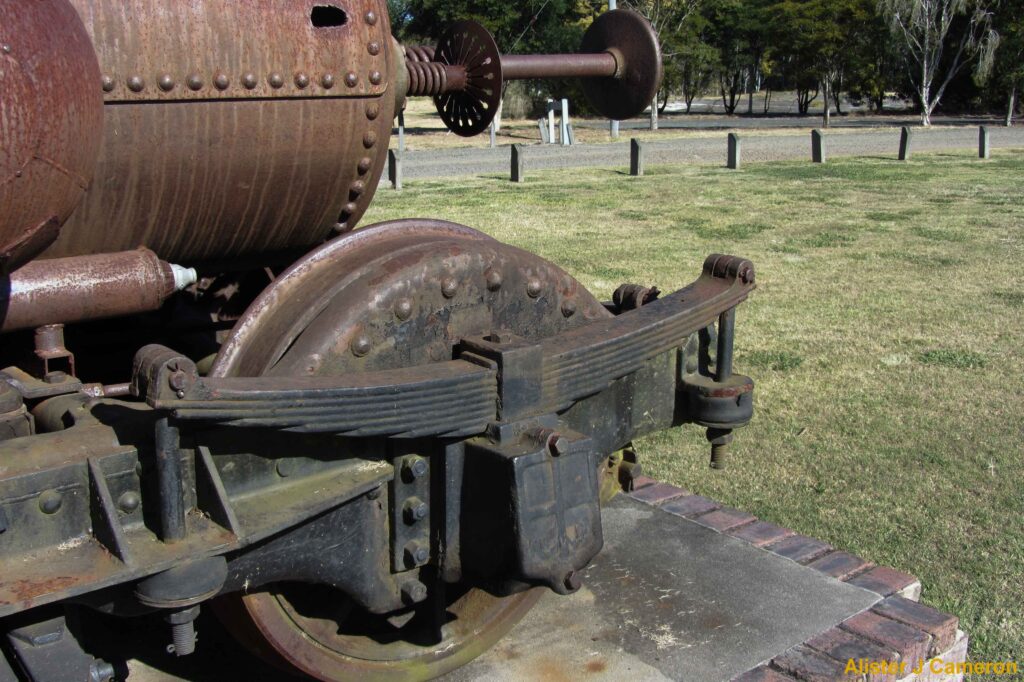

A VERY CLEVER SCULPTURE REPRESENTING THE HISTORY OF THE AREA.
Made up of old metal railway caste-offs.
Photo: Alister J Cameron
