31C5(A) The (New) Ipswich Railway Workshops; Early Years
1890s

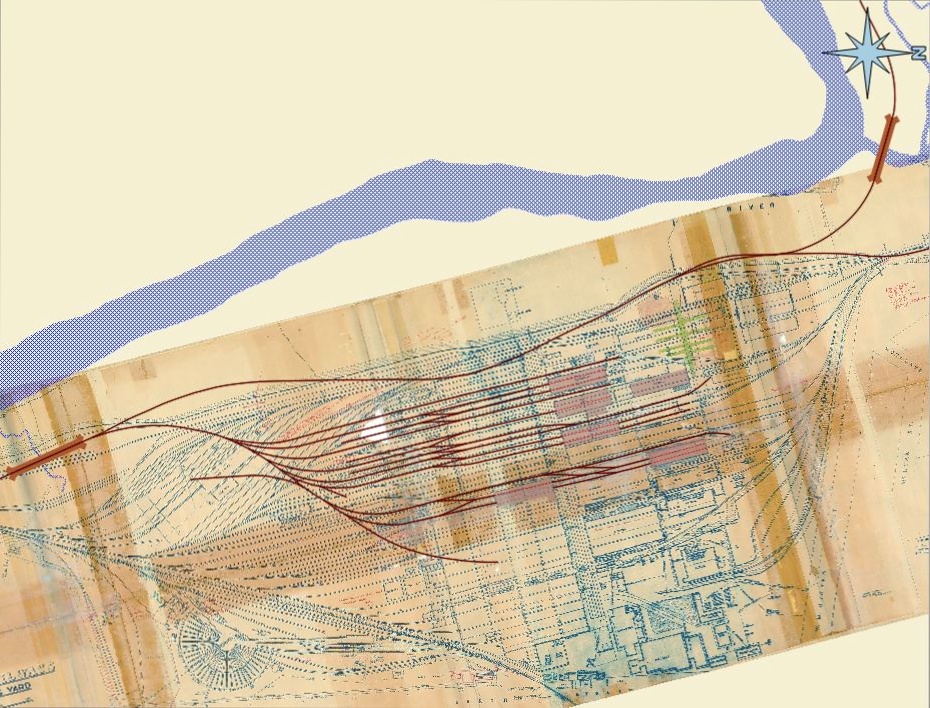

IPSWICH RAILWAY WORKSHOPS FROM ABOVE (1895)
At top is 1865 Line from Wide Gully Bridge to the 1st Mihi Bridge.
Demonstrates how later workshops development completely obliterated most of this section.
QGIS Vectors based on 1863 Working Plan & 1895 WP Ipswich Workshops. (Alister J Cameron)
Underlay: 1948 Working Plan Ipswich Workshops.

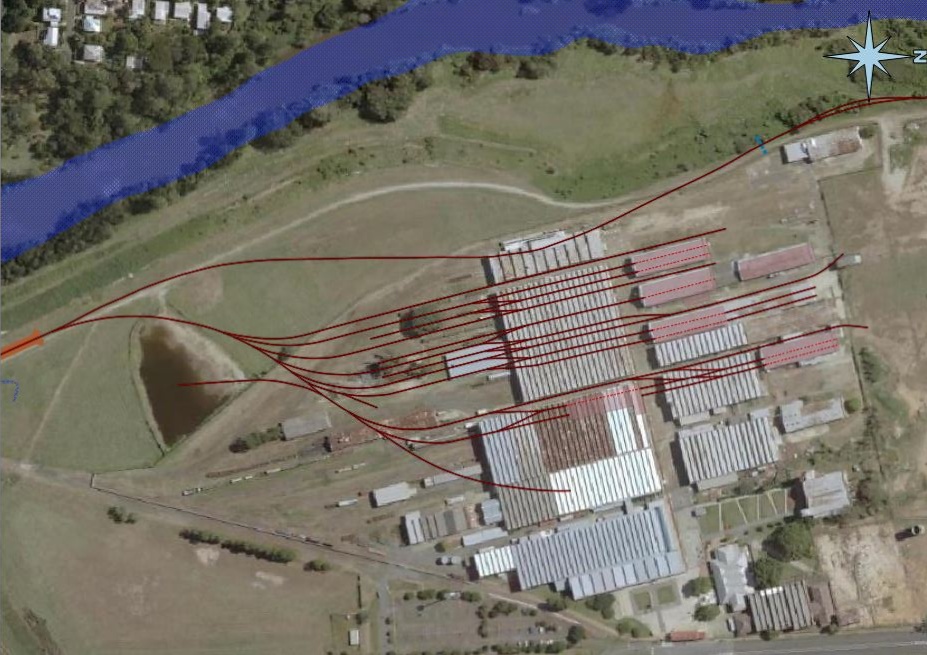

IPSWICH RAILWAY WORKSHOPS FROM ABOVE (1895)
QGIS Vectors based on 1863 & 1895 Working Plans (Alister J Cameron)
Underlay: Qld Globe (Ausmap)
Early 1900s
External Views

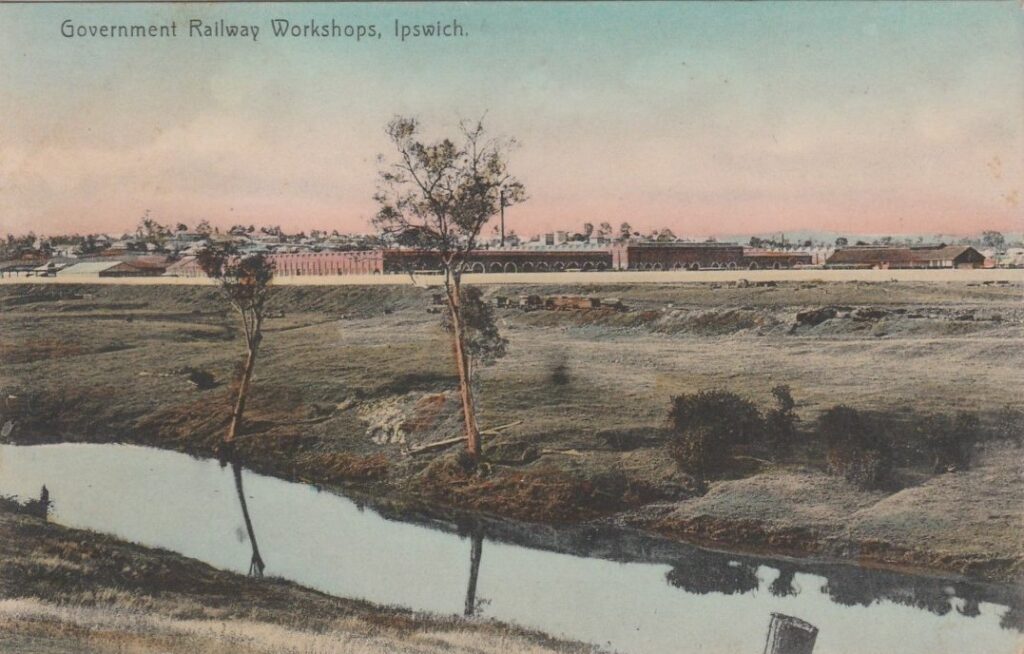

IPSWICH RAILWAY WORKSHOPS VIEWED FROM SOUTH-WEST c1910
Coloured photograph
Looking across the Bremer River from Woodend.
Note the continuous yellow bar which represents the corrugated iron fence which by this stage had been constructed around the entire site.
Vintage Queensland
IPSWICH RAILWAY WORKSHOPS SOUTH YARD LOOKING NORTH 1908
"Ipswich And Bundamba"; by Queensland Government Intelligence and Tourist Bureau; Published 1908; State Library of Qld

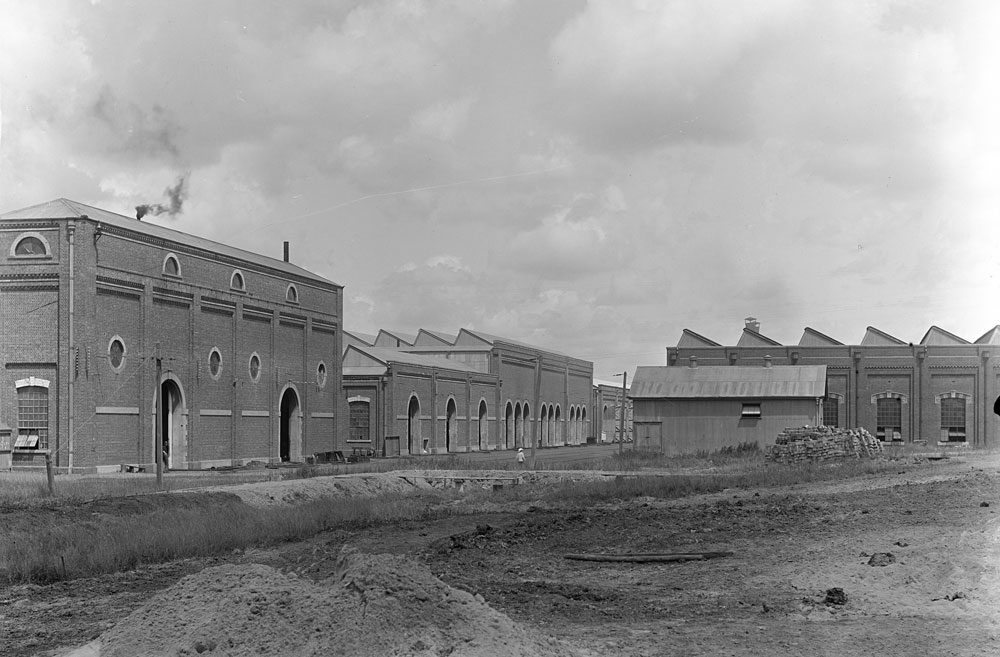

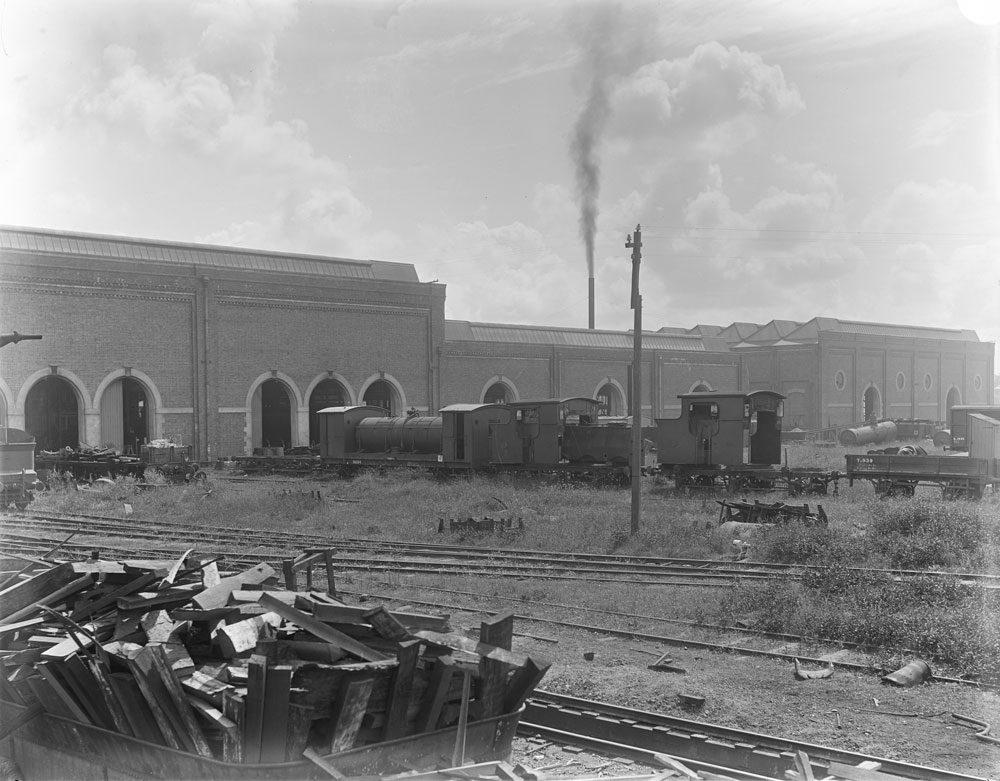

IPSWICH RAILWAY WORKSHOPS SOUTH YARD VIEWED FROM SOUTH-WEST c1911
Note the chimney of the newly constructed Power House smoking in the background.
Source unknown

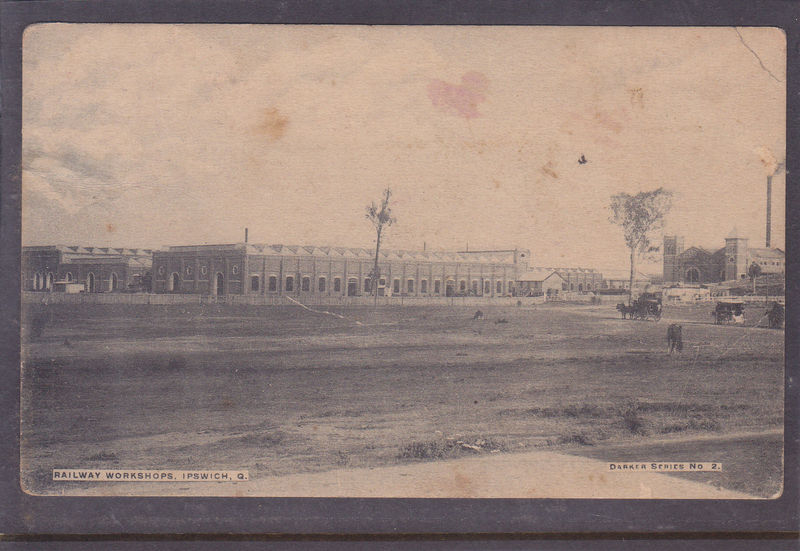

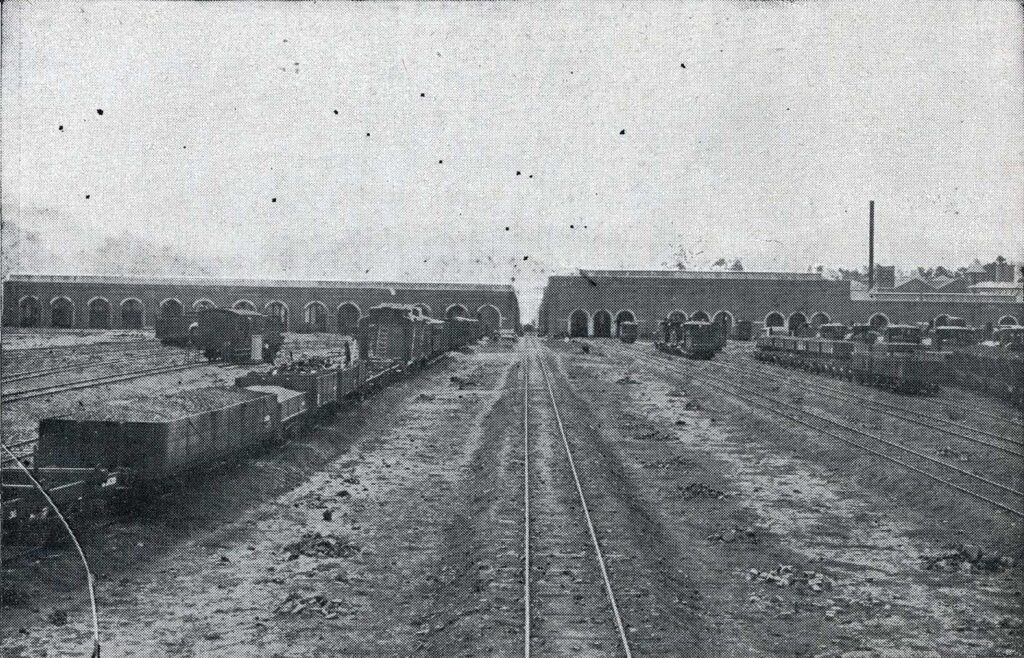

IPSWICH RAILWAY WORKSHOPS VIEWED FROM THE SOUTH-EAST EARLY 1900s
Note Power House on far right.
Ron Williams? Lost Ipswich
IPSWICH RAILWAY WORKSHOPS VIEWED FROM THE EAST c1911
Note the Traverser rails which extend east-west between the southern and northern buildings. The Traverser allowed rolling stock to be transferred from one building rail access to another.
Whitehad Collection, Picture Ipswich Reference ID
WHD-003-GPL-0082

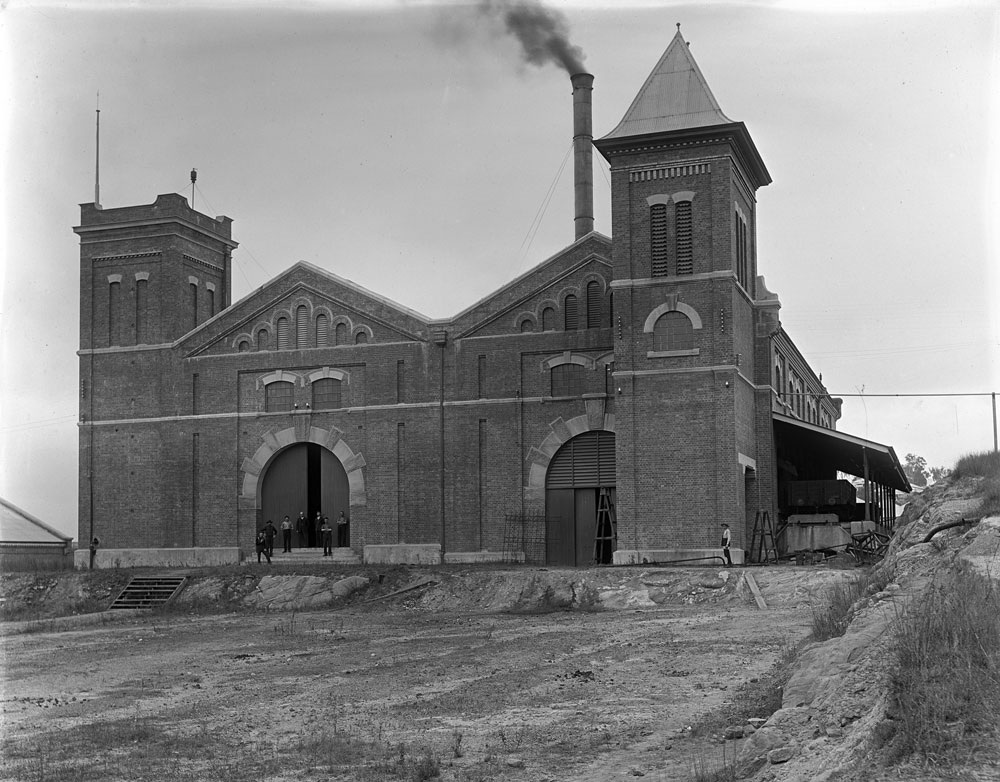

NEWLY-CONSTRUCTED WORKSHOPS POWER HOUSE 1910
Shelter on far right is location of siding supplying coal.
On top of left-hand tower is the whistle regulating work throughout the workshops.
Picture Ipswich Reference ID
WHD-002-GPL-0042

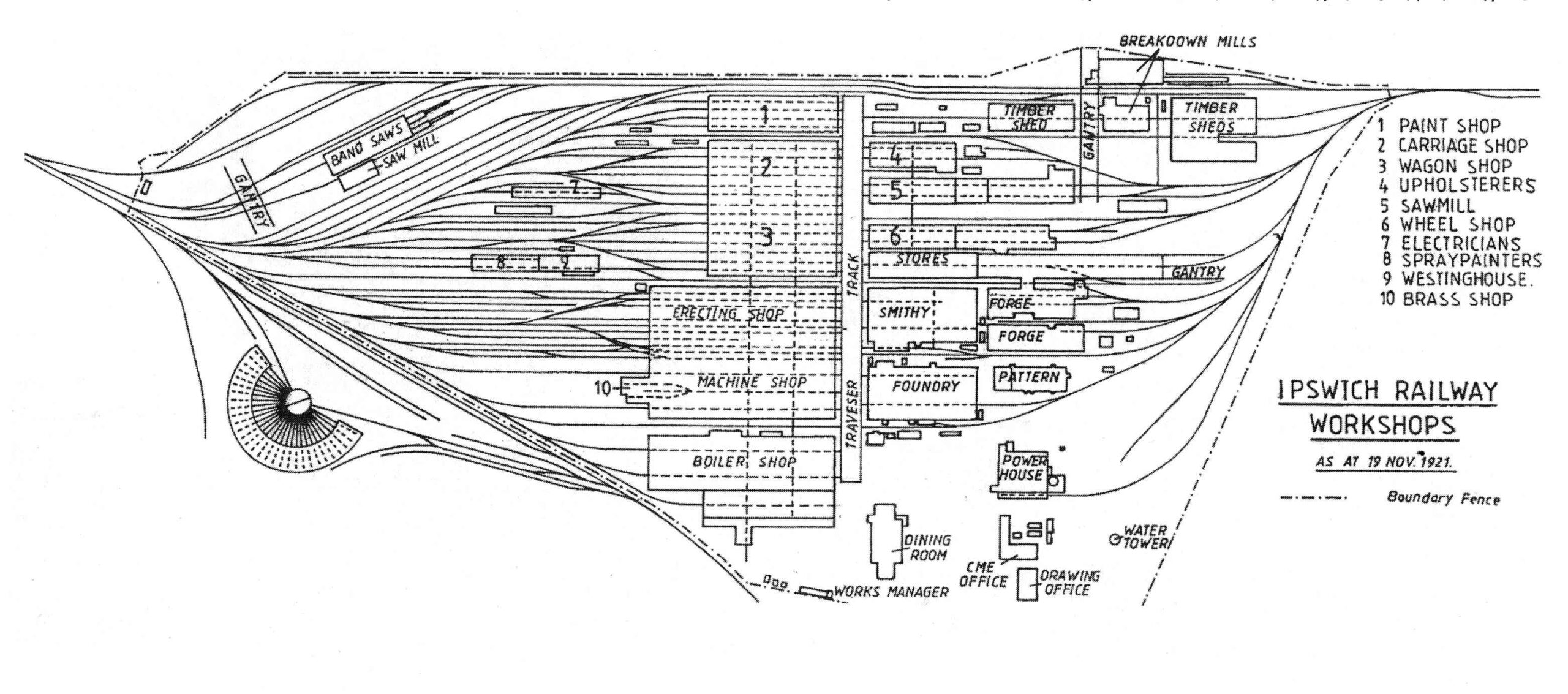

PLAN OF IPSWICH RAILWAY WORKSHOPS c1921
redrawn by Keith McDonald.
"Behind the Tin Fence"
30 June 2011

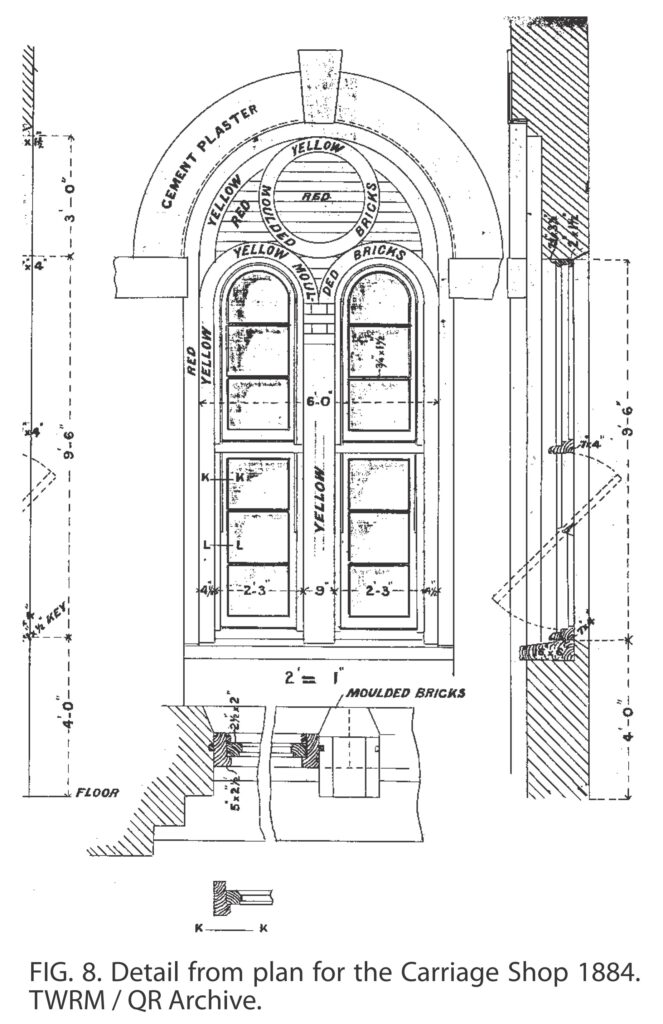

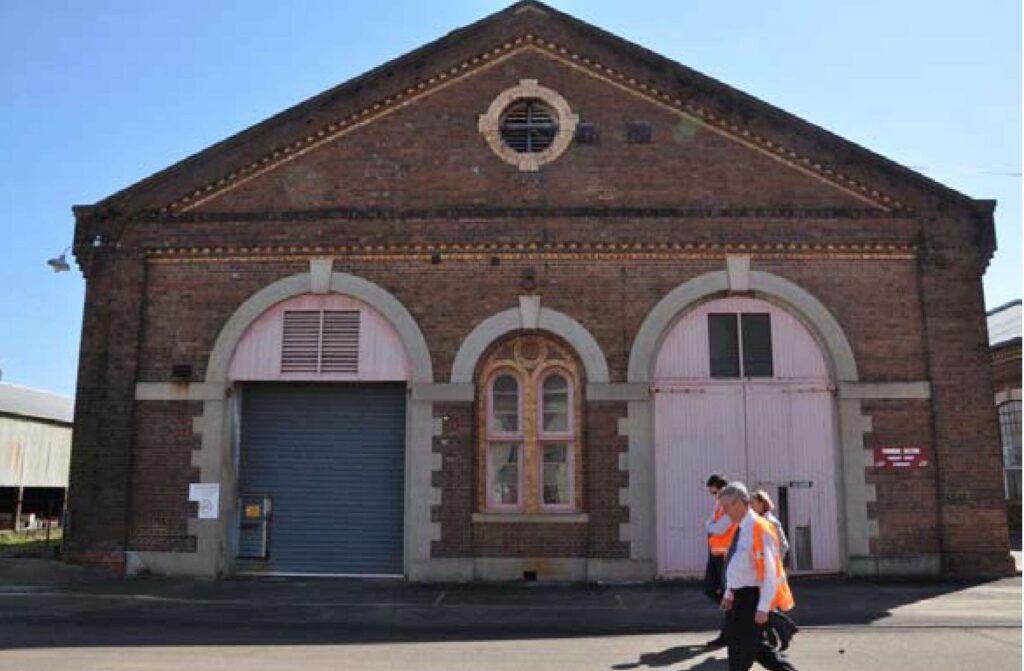

THE WINDOW AND ITS BUILDING STILL IN EXISTENCE IN 2011
This building was originally constructed in 1884 as the Carriage Erection Shop. It later became a timber store, paint shop, Trimmers and Electroplaters Shop and Tarpaulin Store. It is one of the oldest buildings on the site.
North Ipswich Railyards Vision Plan 2011

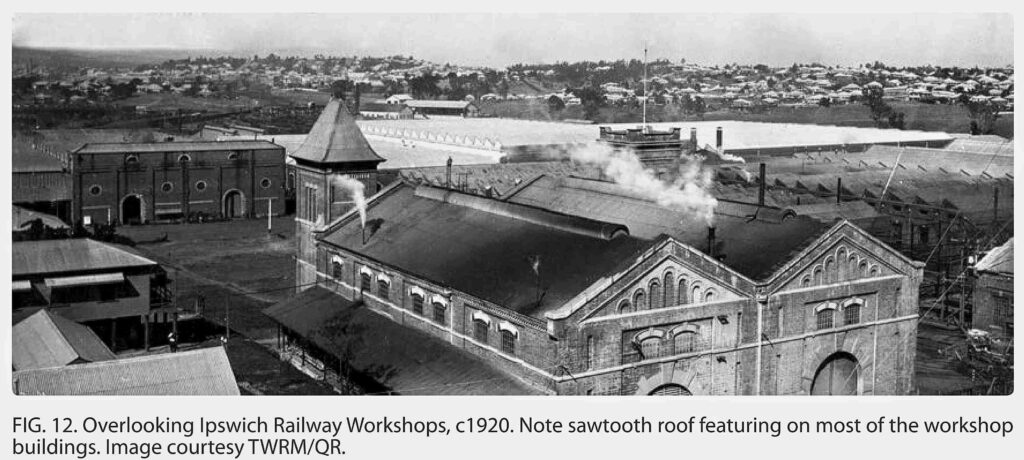

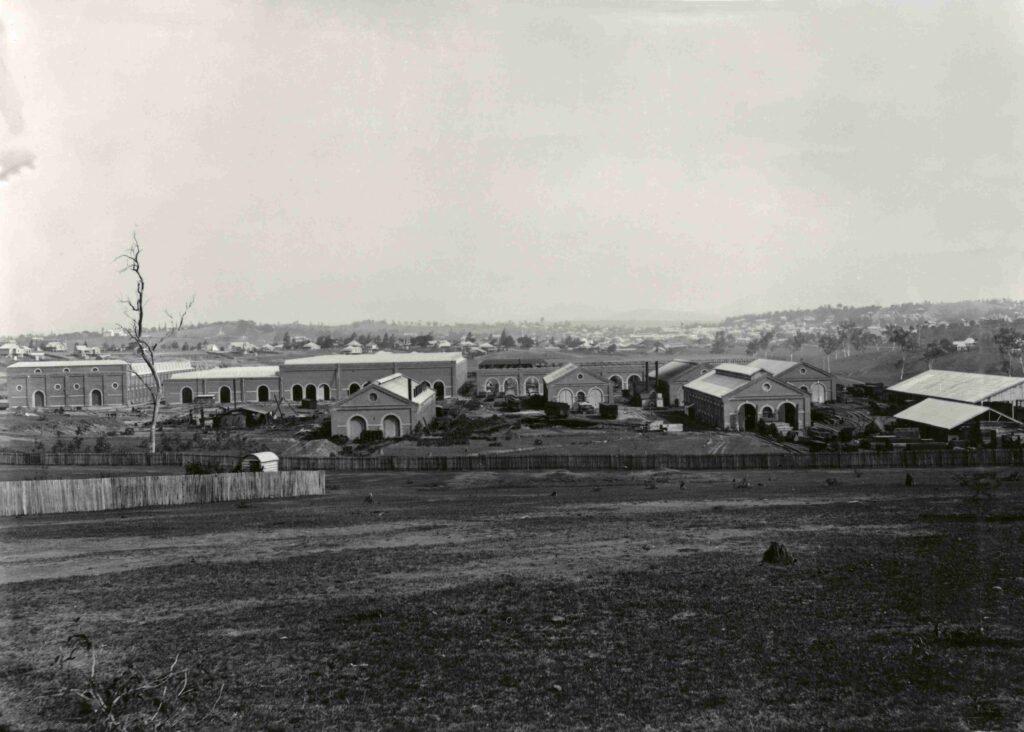

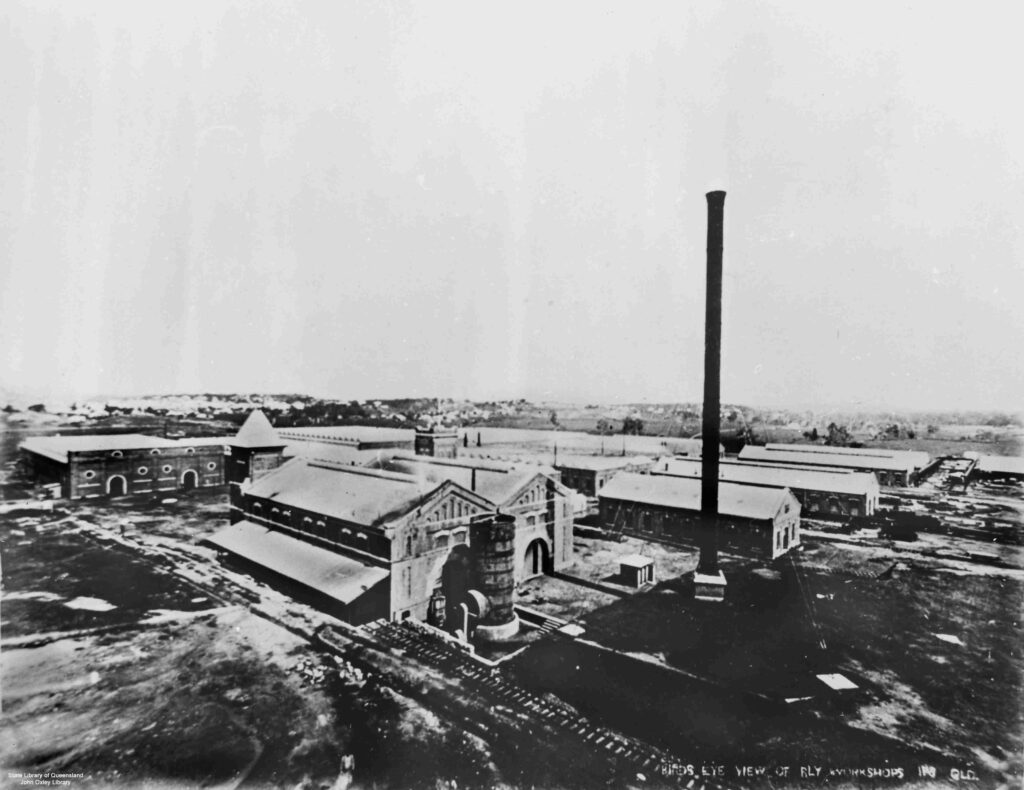

PANORAMA OF IPSWICH RAILWAY WORKSHOPS EARLY 1900s
Picture probably taken from the water tower.
Note that Power House takes pride of place.
Coal siding for the Power House can clearly be seen at the bottom.
State Library of Qld; Record number: 88916

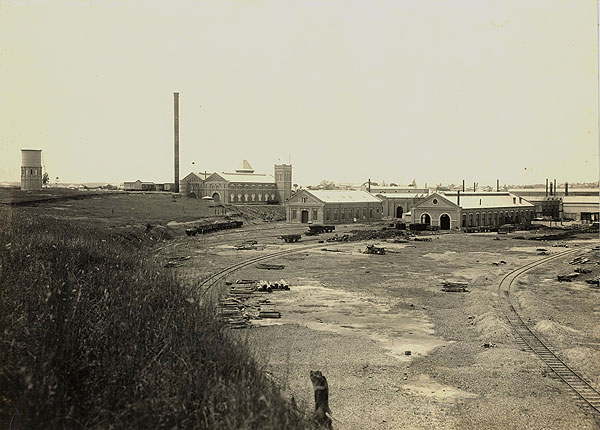

THE IPSWICH RAILWAY WORKSHOPS VIEWED FROM THE NORTH AROUND 1905.
Source: Queensland Museum
Memoirs of the Queensland Museum - Culture
Volume 5 Part 1
Qld Museum 2011
p41
IPSWICH RAILWAY WORKSHOPS NORTH YARD VIEWED FROM THE NORTH-WEST EARLY 1900s
Source Unknown

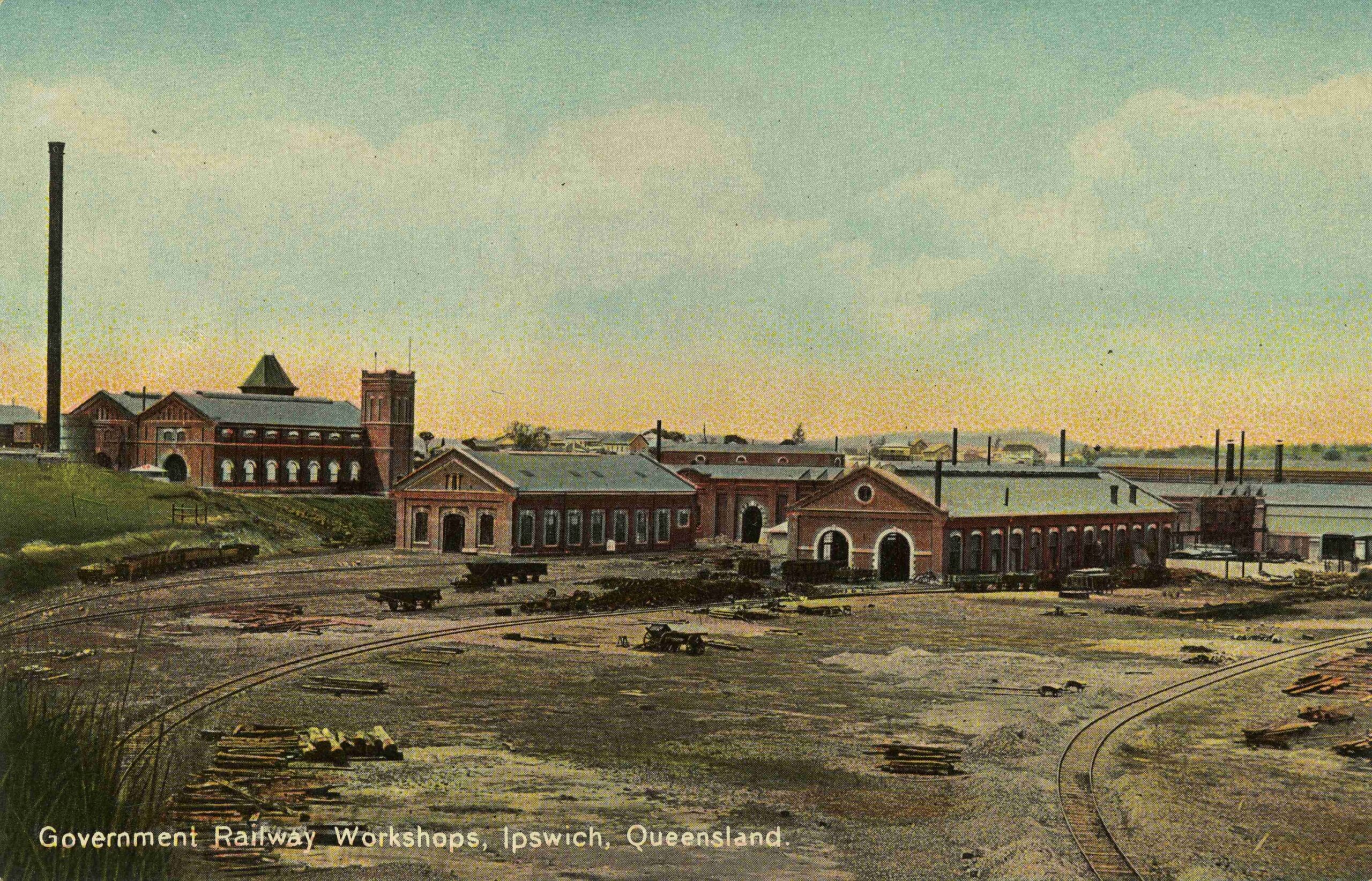

IPSWICH RAILWAY WORKSHOPS NORTH YARD VIEWED FROM THE NORTH-WEST c1913
Coloured photograph
State Library of Qld; Image number: 4831-0005-0137

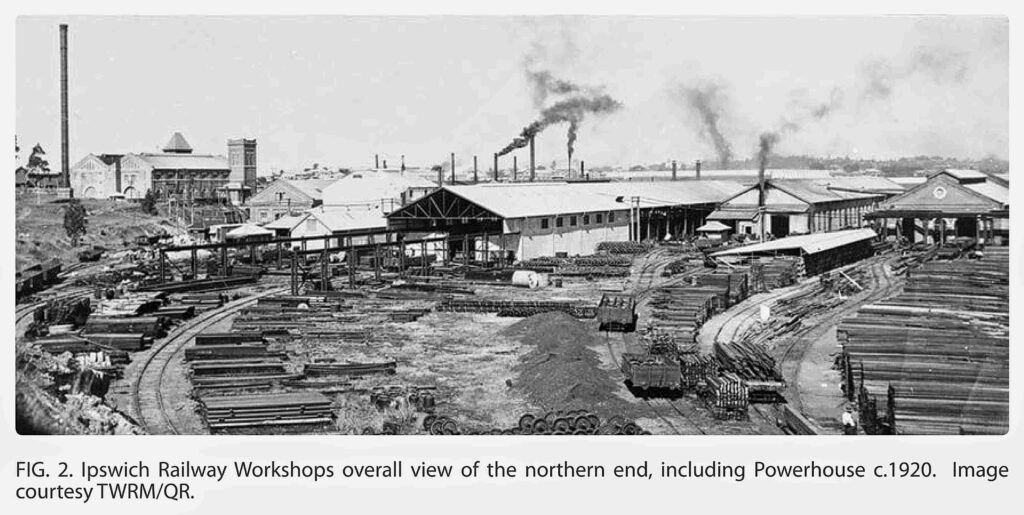

IPSWICH RAILWAY WORKSHOPS NORTH YARD VIEWED FROM THE NORTH-WEST c1920
Memoirs of the Queensland Museum-Culture
Volume 5 Part 1
Qld Museum 2011
Internal Views

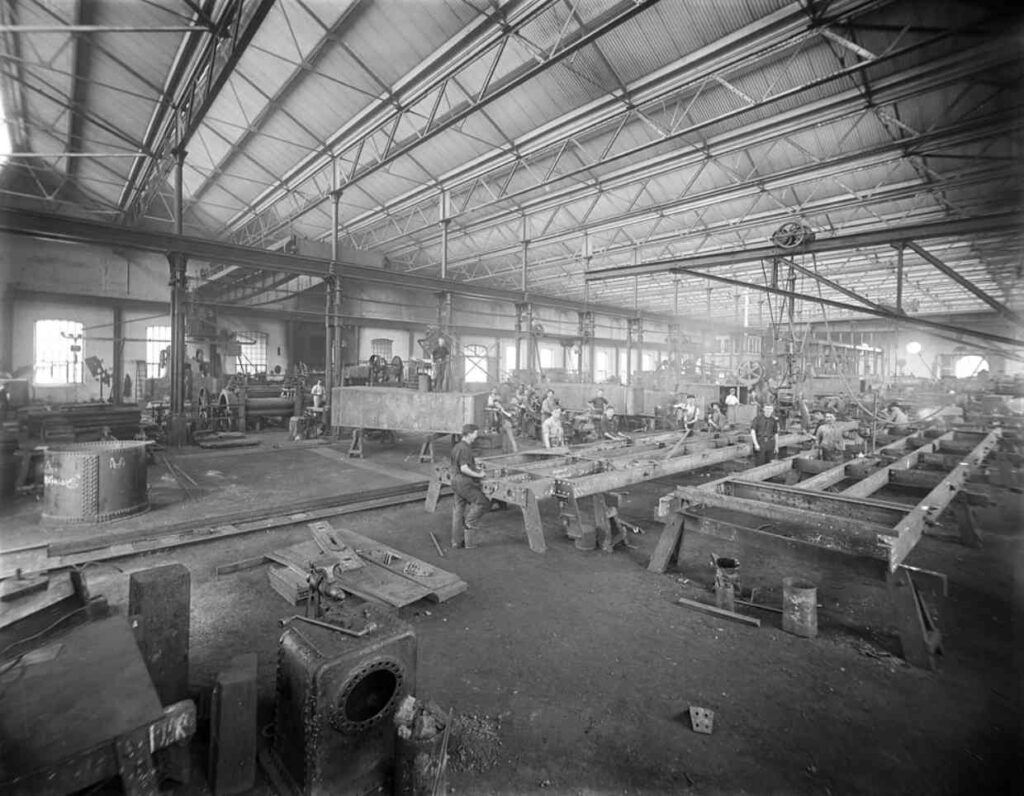

BOILER SHOP 1910
Whitehead Studios, Picture Ipswich
Reference ID

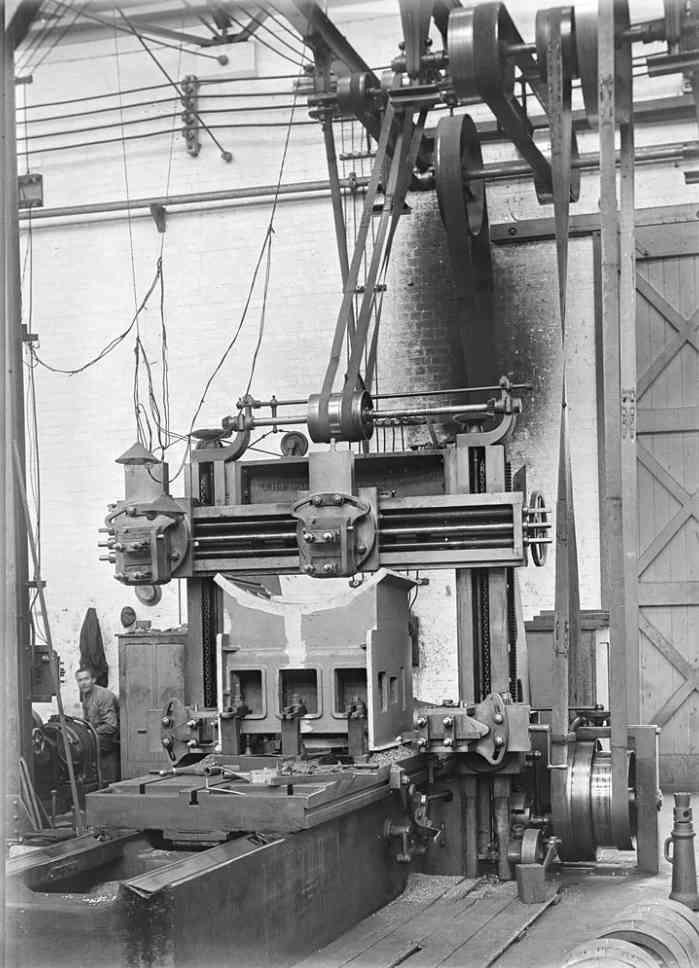

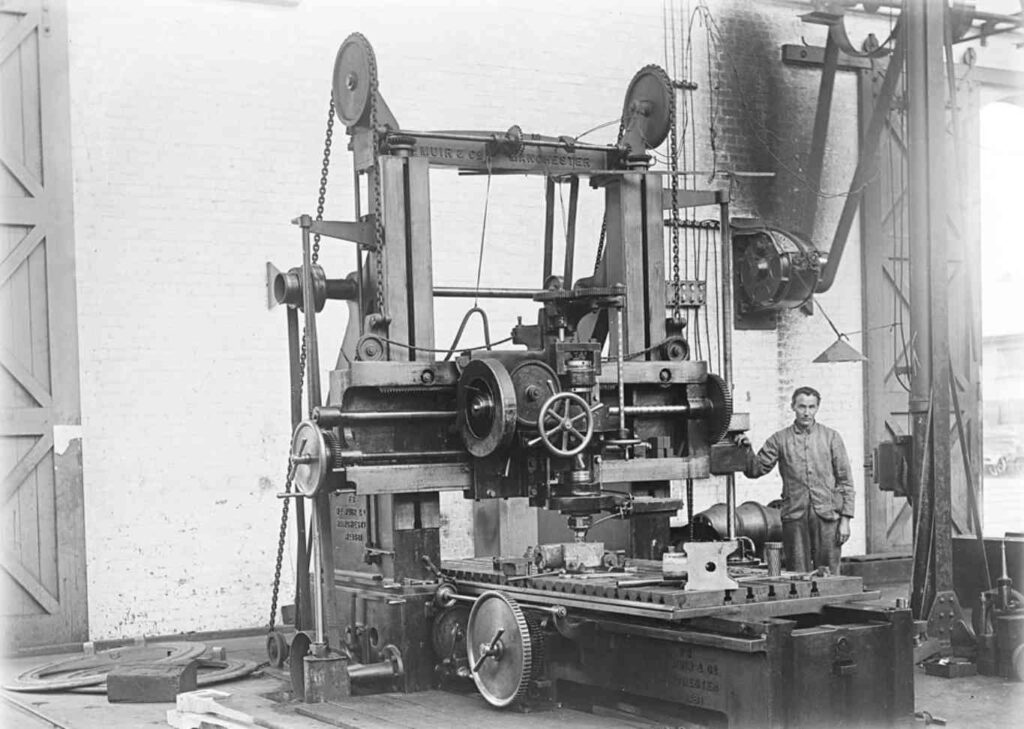

MACHINE SHOP 1910
Whitehead Collection, Picture Ipswich
Reference ID
MACHINE SHOP 1910
Whitehead Collection, Picture Ipswich
Reference ID

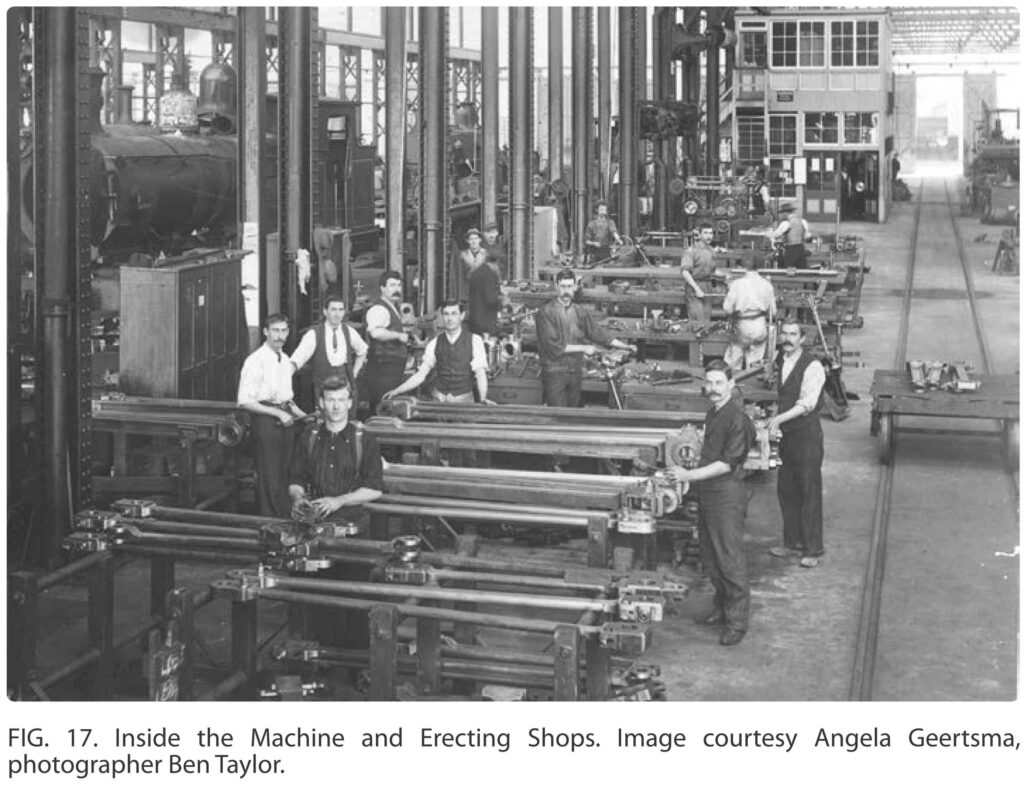

MACHINE & ERECTING SHOP
Memoirs of the Queensland Museum - Culture
Volume 5 Part 1
Qld Museum 2011

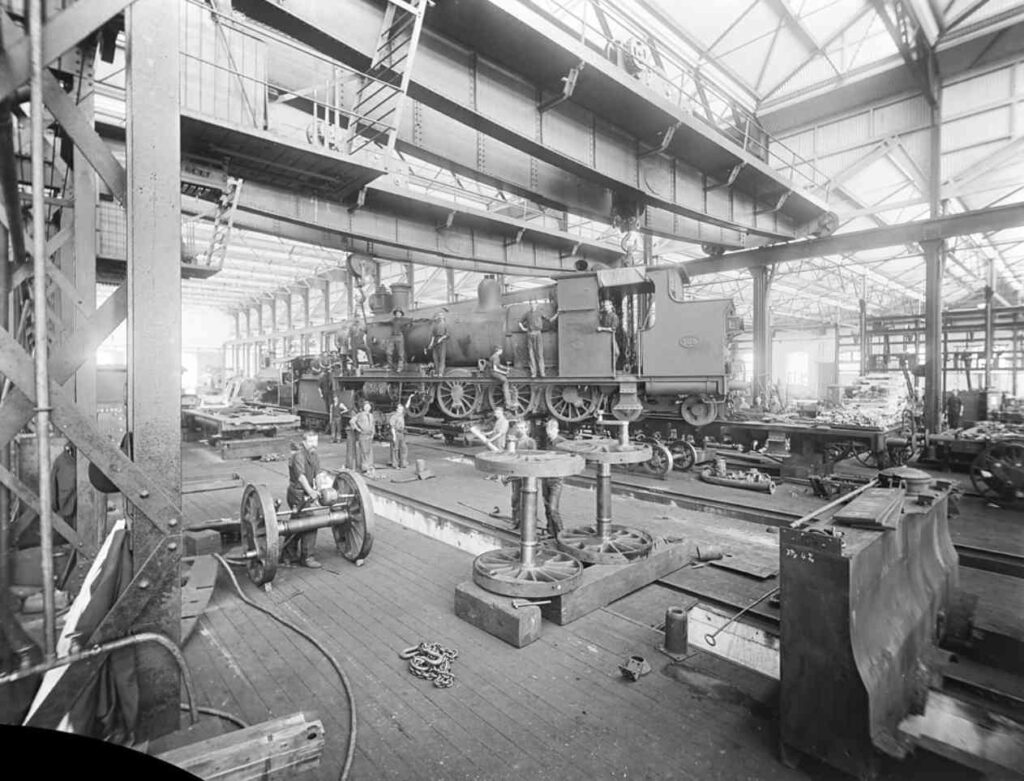

ERECTING SHOP c1910
Whitehead Collection, Picture Ipswich
Reference ID
WHD-002-gpl-0069

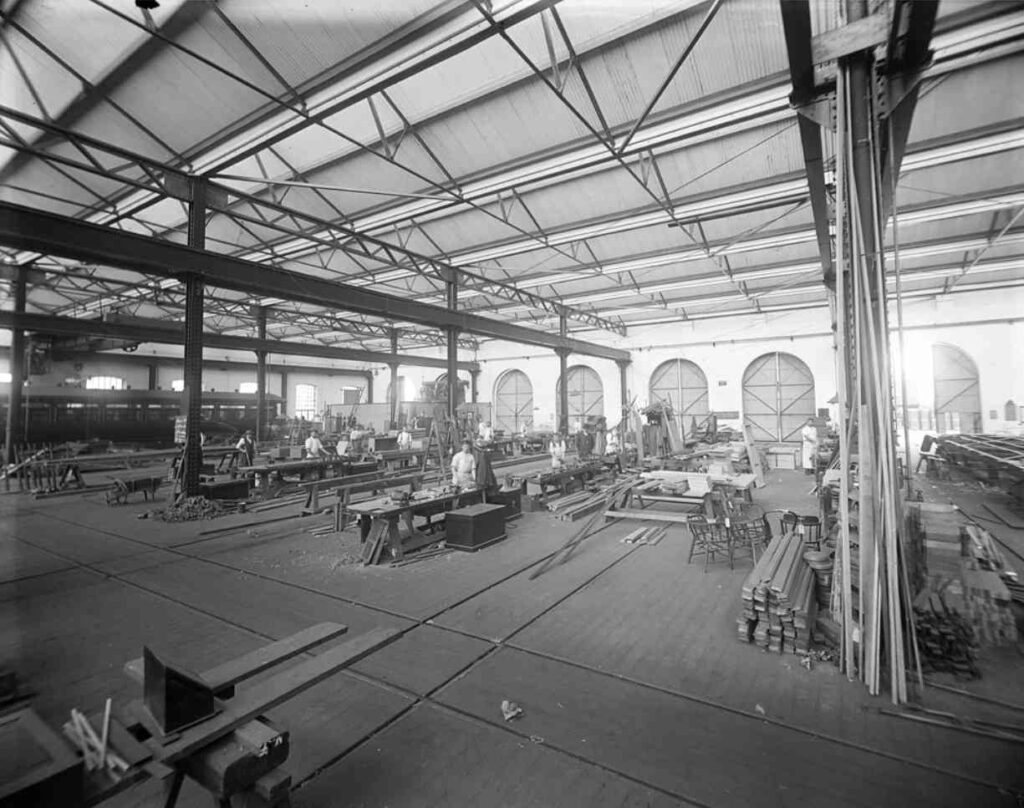

CARRIAGE SHOP 1910
Whitehead Collection, Picture Ipswich
Reference ID

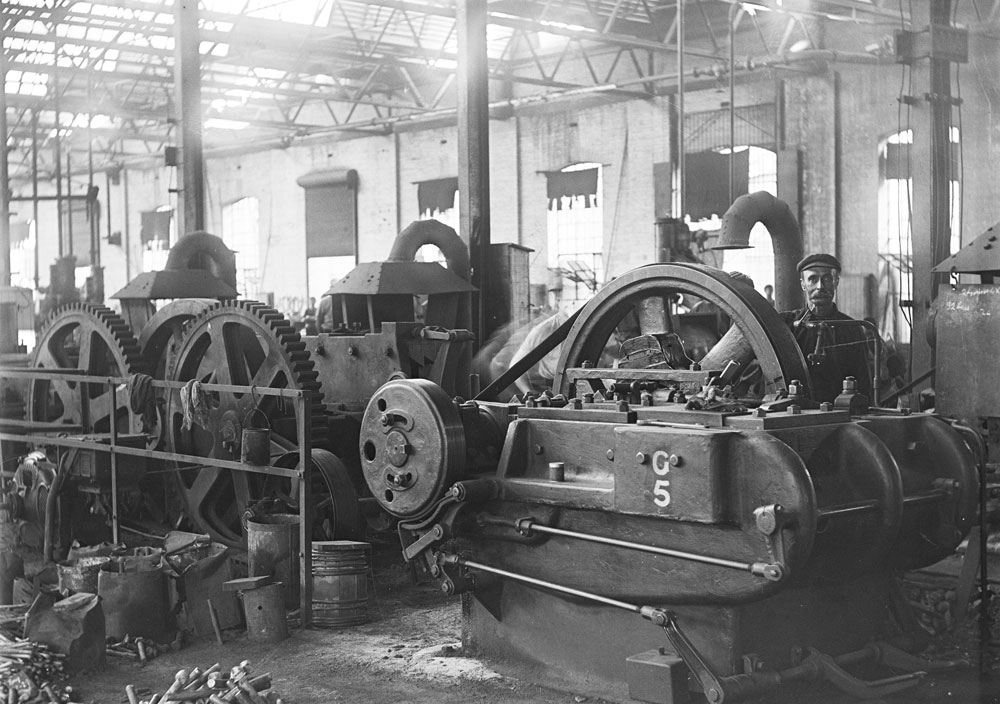

FOUNDRY 1910
Whitehead Collection, Picture Ipswich
Reference ID

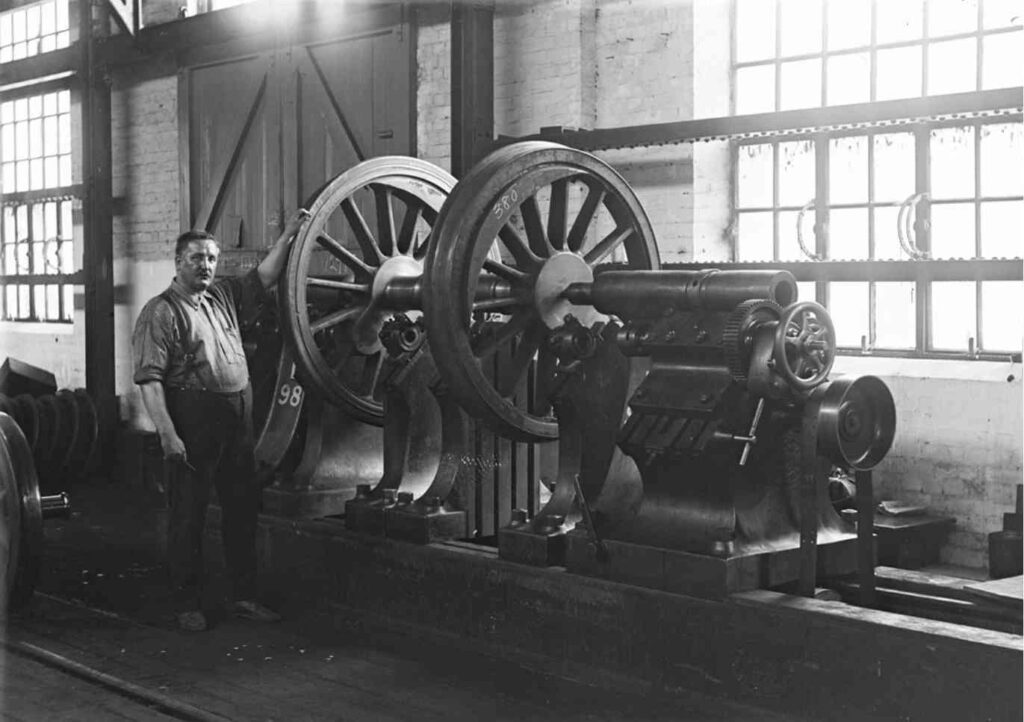

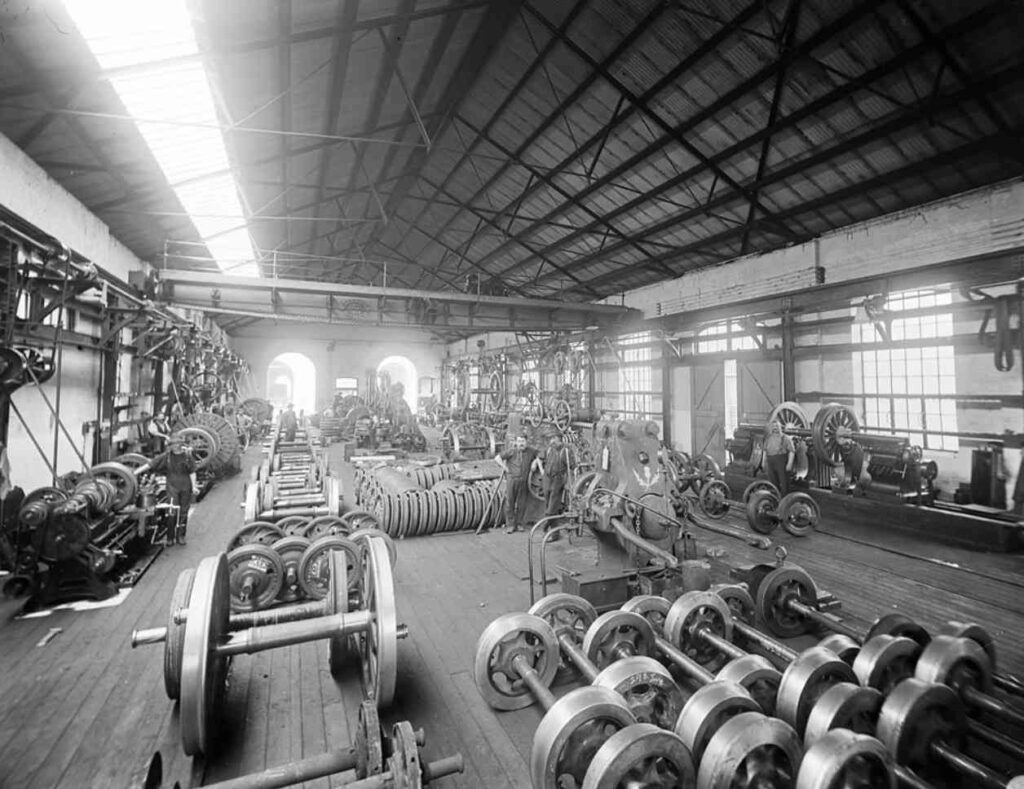

WHEEL SHOP 1910
Whitehead Collection, Picture Ipswich
Reference ID
WHEEL SHOP 1910
Whitehead Collection, Picture Ipswich
Reference ID

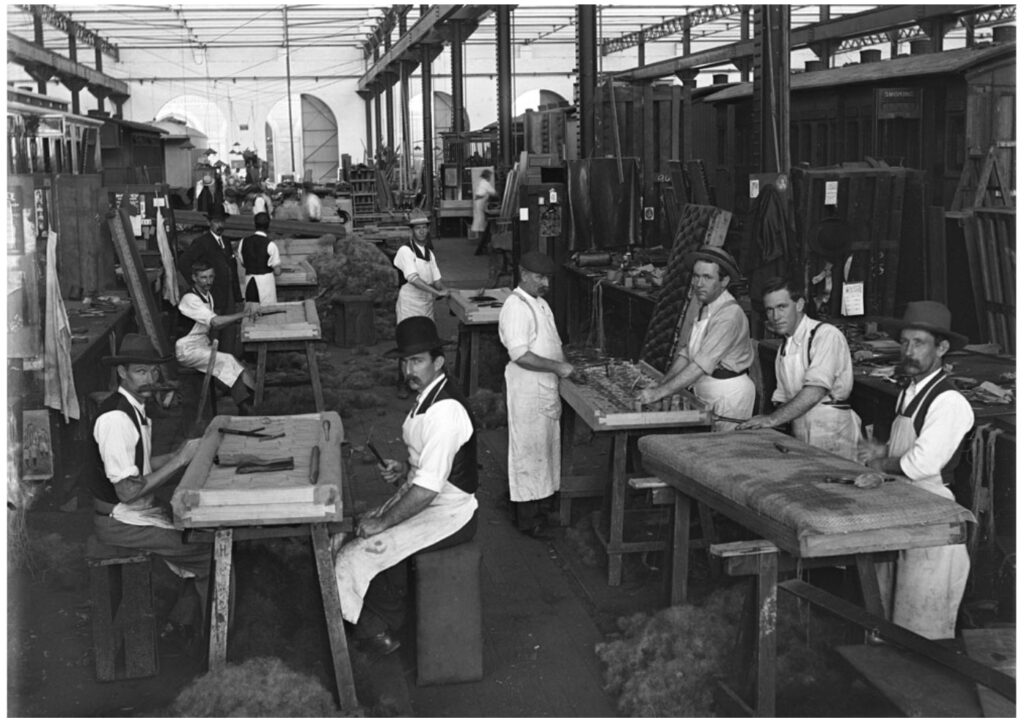

TRIMMERS' SHOP c1911
Whitehead Collection, Picture Ipswich
Reference ID
